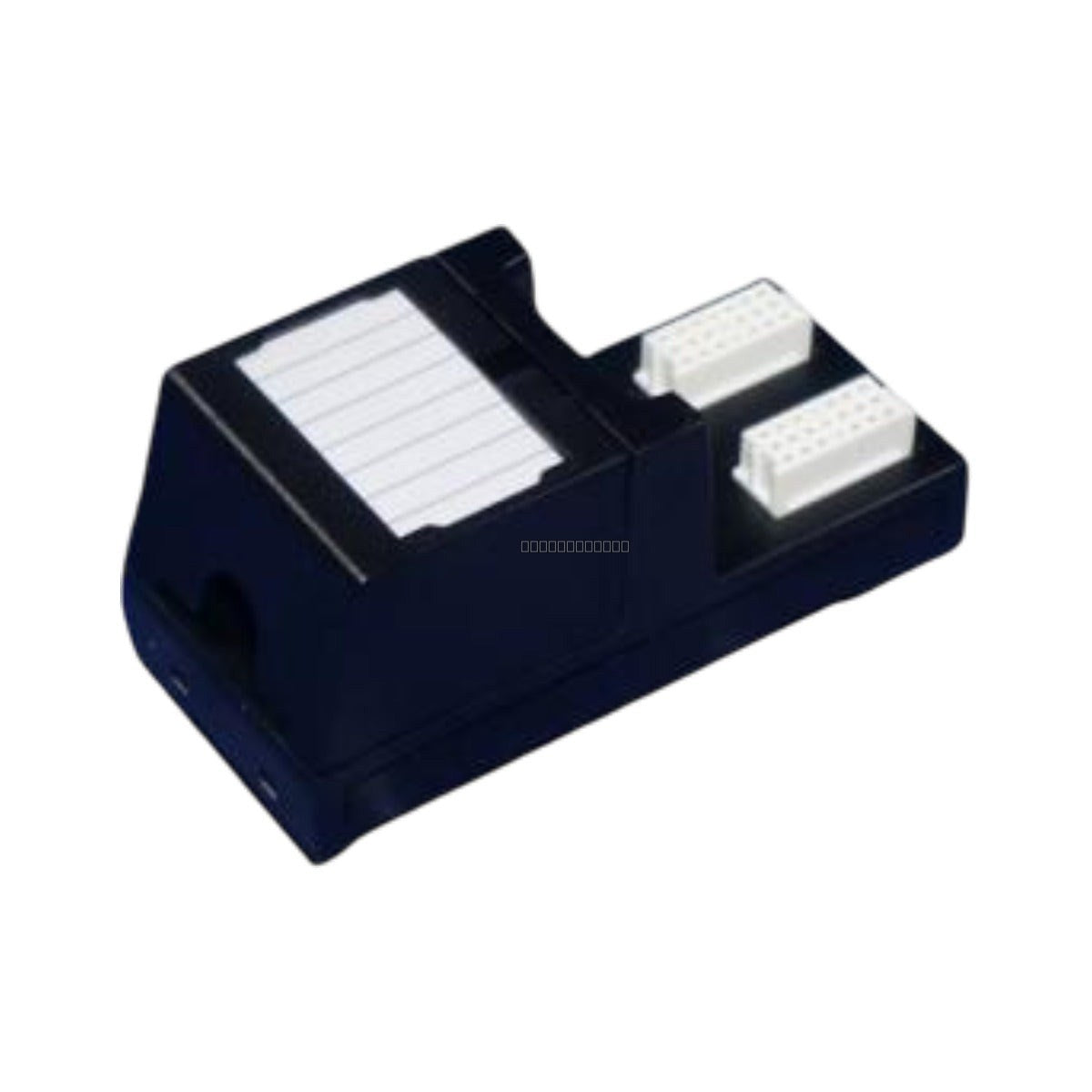

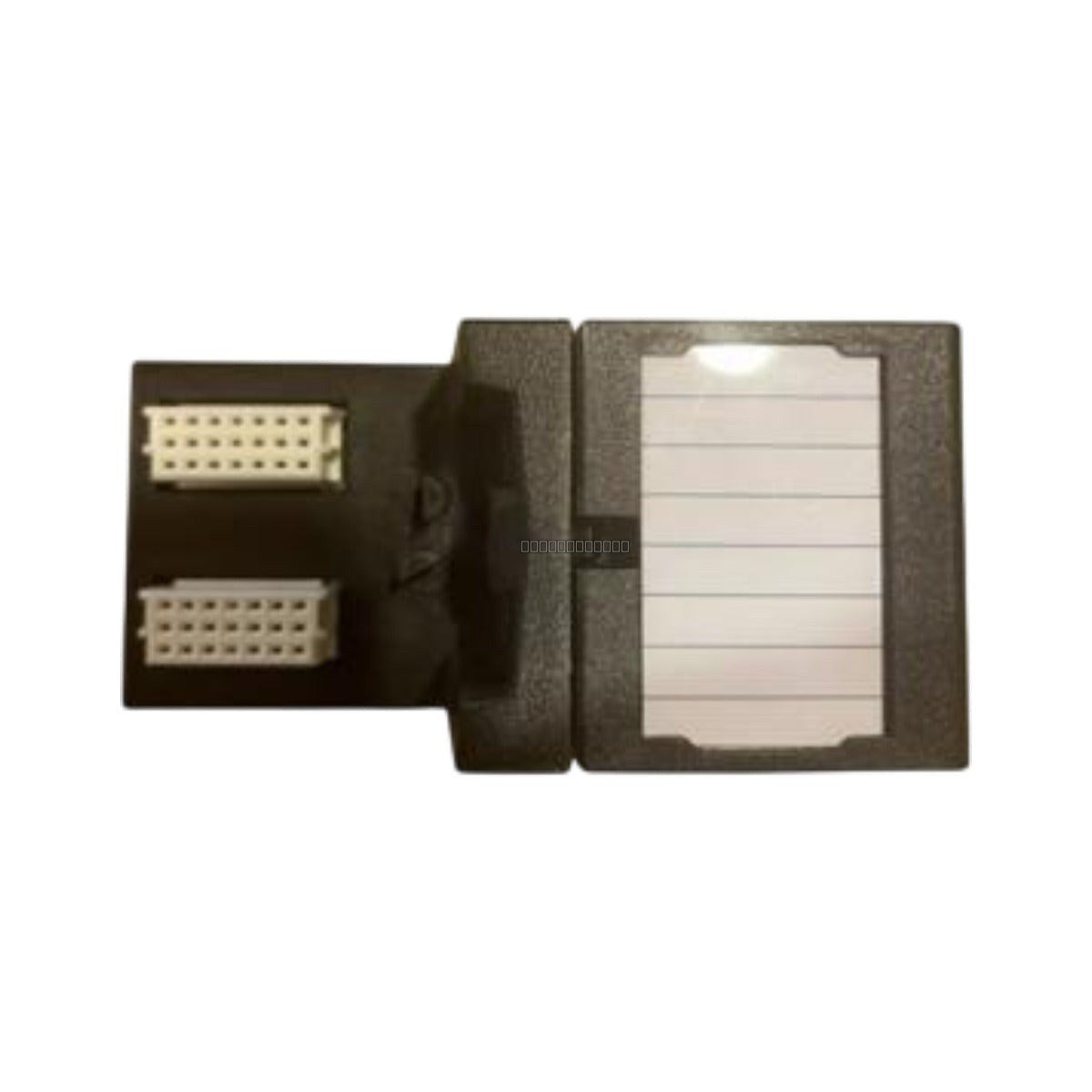

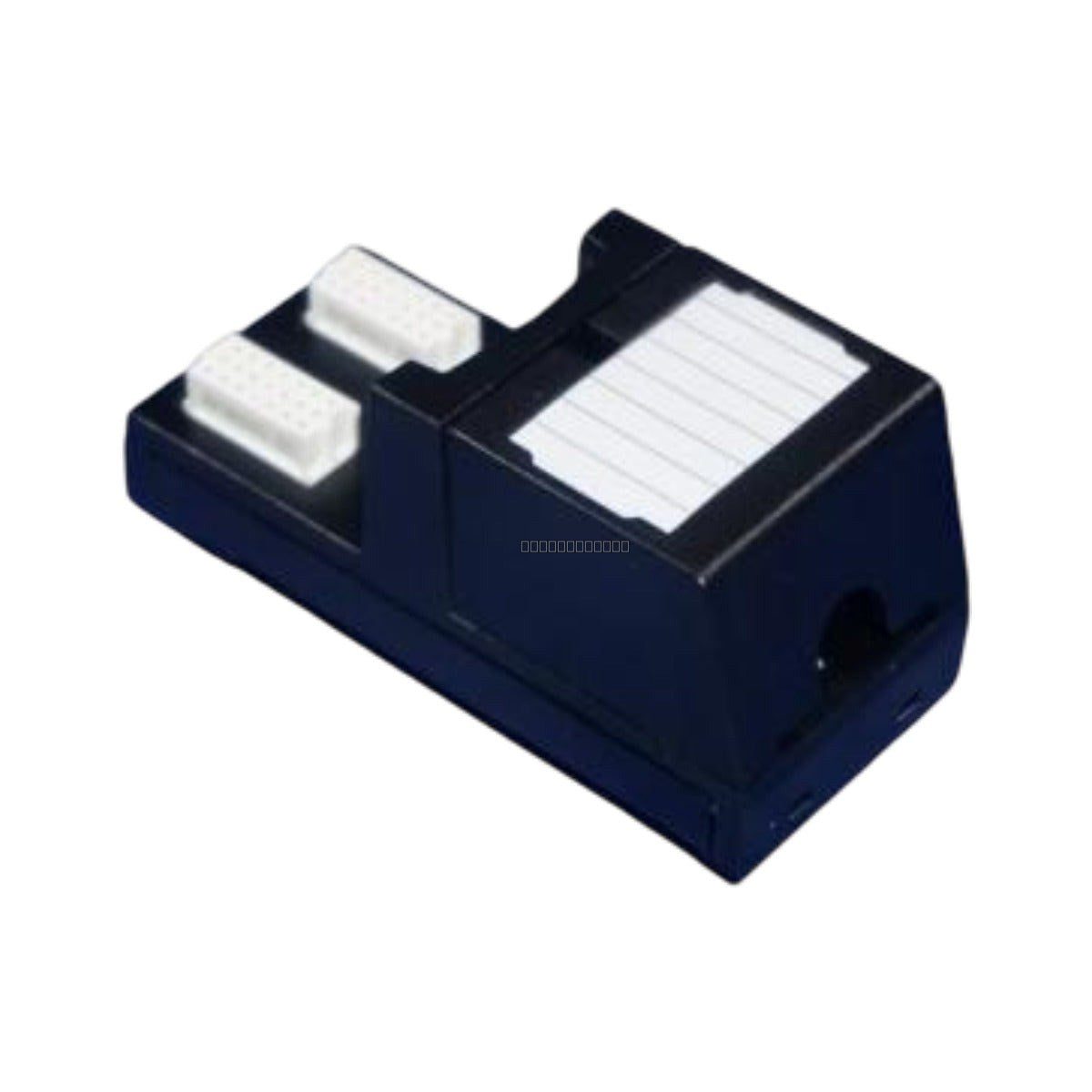

Emerson DeltaV KJ4006X1-BP1 40-Pin Mass Terminal Block

Emerson DeltaV KJ4006X1-BP1 40-Pin Mass Terminal Block

التوفر: 2 متوفر في المخزون

DescriptionThe Emerson DeltaV KJ4006X1-BP1 is a 40-pin Mass Terminal Block designed for the DeltaV S-Series digital automation platform. It serves...

رمز المنتج: KJ4006X1-BP1

Manufacturer: Emerson
Product No.: KJ4006X1-BP1
Product Type: Terminal Block
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Emerson DeltaV KJ4006X1-BP1 is a 40-pin Mass Terminal Block designed for the DeltaV S-Series digital automation platform. It serves as the essential physical interface between field instrumentation wiring and the corresponding I/O cards. By providing a high-density termination point, this block simplifies field wiring management, reduces installation time, and ensures reliable signal integrity in critical process control environments.

Features

40-pin high-density interface for efficient field wiring.
Mechanical rotary keying system to prevent incorrect I/O card insertion.
Designed for use in Class I Division 2 and Zone 2 hazardous locations.
Compliant with ISA-S71.04 Class G3 standards for protection against corrosive contaminants.
Maintenance-free, calibration-less design for long-term operational reliability.

Applications

This terminal block is utilized in DeltaV S-Series systems across various industrial sectors, including oil and gas, chemical processing, and power generation, where secure and organized field-to-controller signal distribution is required.

Technical Specifications

Brand	Emerson
Model	KJ4006X1-BP1
Type	40-Pin Mass Terminal Block
System Series	DeltaV S-Series
Field Power Rating	30 VDC at 3.2 A
Operating Temperature	-40 to +70 deg C
Relative Humidity	5 to 95 percent (Non-Condensing)
Shock Resistance	10 g (11 ms half-sinewave)
Vibration Resistance	1 mm P-P (2-13.2 Hz); 0.7 g (13.2-150 Hz)
Contaminant Rating	ISA-S71.04-1985 Class G3

Installation Guidelines

Ensure the rotary keying system is correctly configured to match the specific I/O card type before installation.
Always power down the system or ensure no I/O card is present before installing or removing the terminal block.
Ensure all field wiring is disconnected prior to removing the block from the carrier.
Maintain proper grounding practices as per DeltaV S-Series installation manuals to ensure EMI protection.
Handle with care to avoid damage to the 40-pin connector pins during alignment and seating.

Compliance and Certifications

The KJ4006X1-BP1 holds multiple hazardous area certifications, including FM19ATEX0173U, IECEx FMG 19.0019U, FM21UKEX0017U, FM17CA0145U, and FM17US0286U. It is rated for Class I Division 2, Groups A, B, C, D and Zone 2 AEx/Ex ec IIC Gc environments.

FAQ

Is this terminal block user-serviceable?

No, the KJ4006X1-BP1 is a maintenance-free, calibration-less component with no user-serviceable internal parts.

Can this block be used in corrosive environments?

Yes, the unit is compliant with ISA-S71.04 Class G3 standards, making it suitable for environments with airborne corrosive contaminants.
