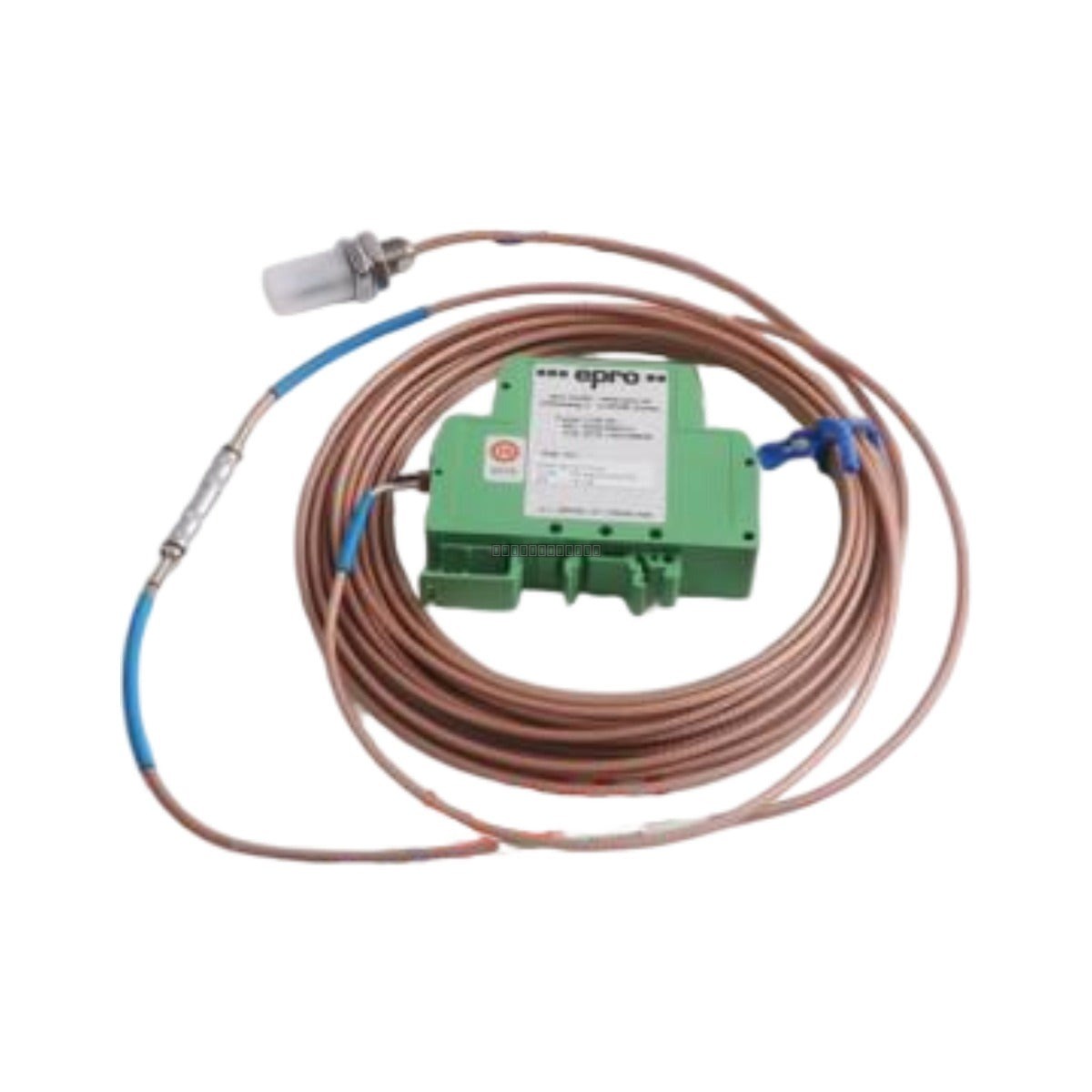

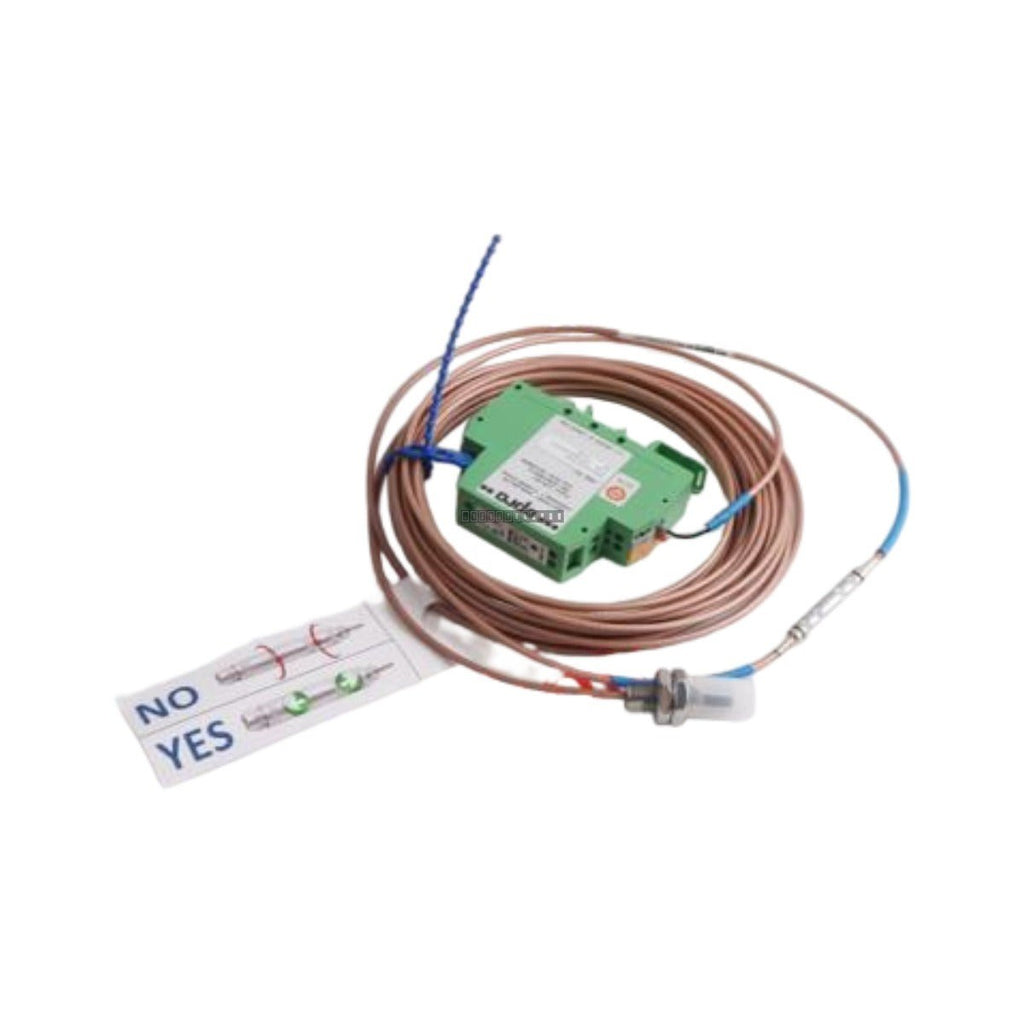

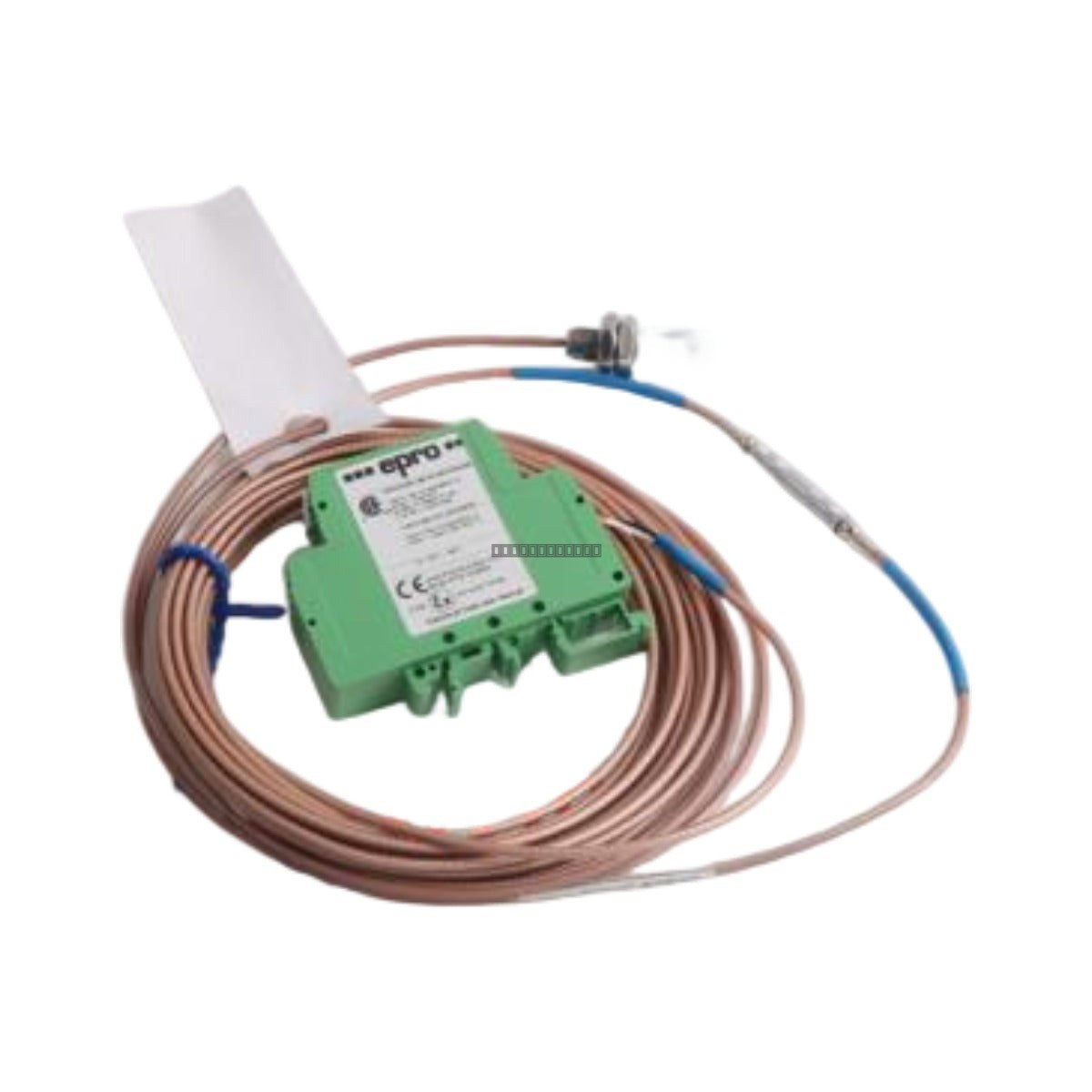

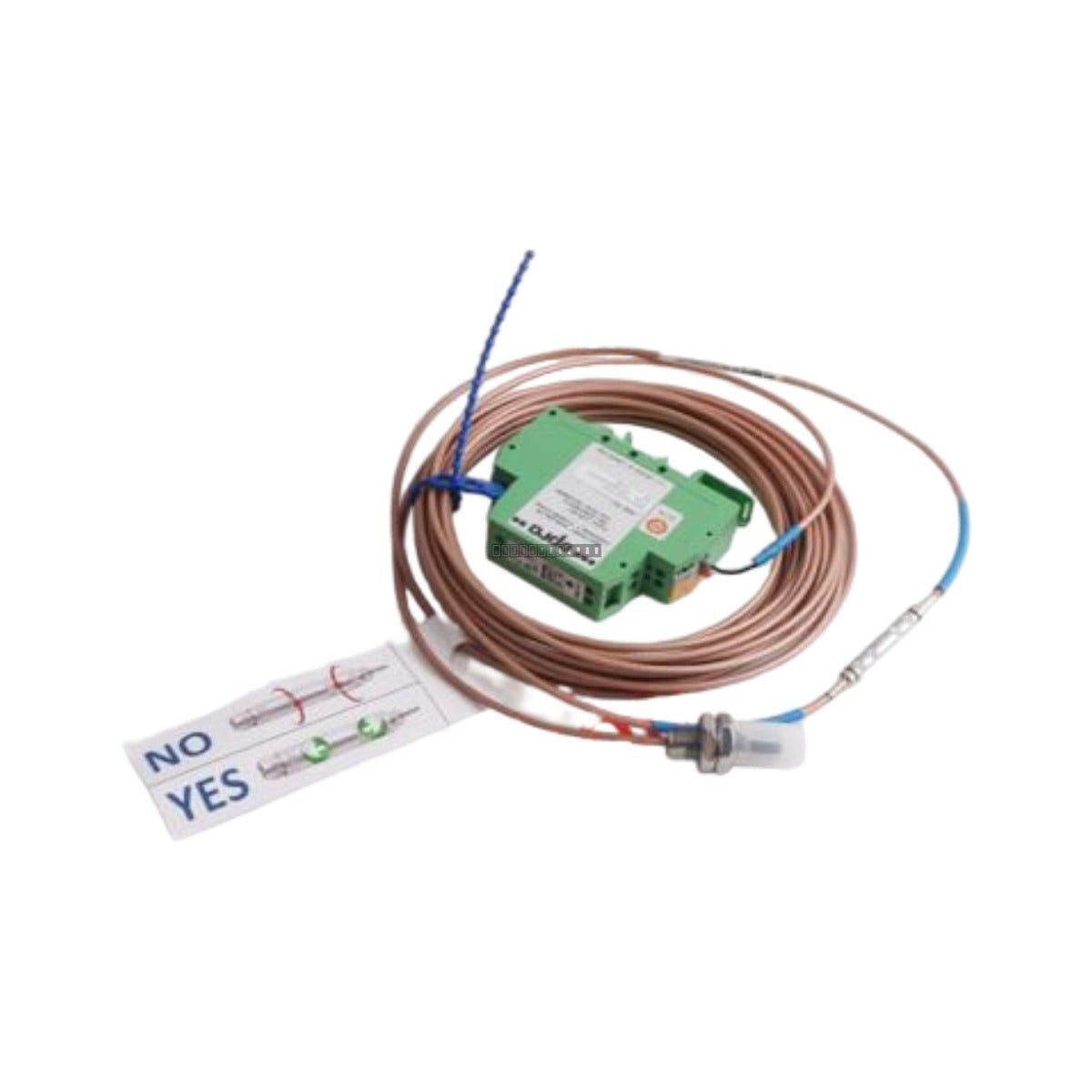

Emerson Epro PR6423/00R-101 CON031 Displacement Sensor

Emerson Epro PR6423/00R-101 CON031 Eddy Current Displacement Sensor

التوفر: 1 متوفر في المخزون

DescriptionThe Emerson Epro PR6423/00R-101 CON031 is an 8 mm eddy current displacement sensor designed for high-precision, non-contact monitoring of rotating...

رمز المنتج: PR6423/00R-101 CON031

Manufacturer: Emerson
Product No.: PR6423/00R-101 CON031
Product Type: Eddy Current Sensor
Product Origin: Germany
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Emerson Epro PR6423/00R-101 CON031 is an 8 mm eddy current displacement sensor designed for high-precision, non-contact monitoring of rotating shafts. As a critical component within the AMS machinery protection ecosystem, this sensor is engineered to provide reliable, real-time feedback on shaft position, axial thrust, and vibration. It is a standard selection for operators managing heavy rotating equipment, including steam and gas turbines, centrifugal pumps, and large-scale industrial compressors where uptime and predictive maintenance are essential.

Features

Non-Contact Measurement: Utilizes advanced eddy current technology to measure displacement without physical interaction, ensuring minimal wear and high signal integrity.
Robust Construction: Features a high-performance probe tip designed to withstand chemical exposure and high-pressure lubricants common in industrial environments.
Integrated Connectivity: Equipped with a specialized cable assembly and a standard LEMO coaxial connector for secure, reliable signal transmission.
Wide Thermal Tolerance: Rated for operation in environments ranging from -35 degC up to +150 degC at the probe head.

Technical Specifications

Brand	Emerson Epro
Model	PR6423/00R-101 CON031
Probe Diameter	8 mm
Measurement Range	2.0 mm
Target Material	42CrMo4 (Ferromagnetic)
Pressure Resistance	7 bar (700 kPa)
Protection Rating	IP 67 (Head/Cable)
Connector	LEMO Coaxial
Operating Temperature	-35 to +150 degC

Installation Guidelines

Mounting: Ensure the probe is mounted in a stable bracket to minimize mechanical resonance. Use the provided locking nuts to secure the M10x1 thread configuration.
Clearance: Maintain proper gap distance as specified by the system calibration to ensure the sensor operates within its linear measurement range.
Cabling: Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal degradation.
Handling: The probe tip is a precision component; avoid physical impact or scratching the surface, as this can affect measurement accuracy.
Protection: Ensure the LEMO connector is kept clean and dry, as it carries an IP 20 rating and is sensitive to moisture ingress.

FAQ

What is the primary application for this sensor?
The PR6423/00R-101 is primarily used for monitoring vibration and axial displacement in rotating machinery such as turbines and compressors within critical infrastructure.

Is this sensor compatible with standard calibration targets?
Yes, it is factory-calibrated for 42CrMo4 ferromagnetic steel, which is the industry standard for most turbine shaft materials.

Can the cable be shortened?
The cable length is integrated into the CON031 configuration. Modifying the cable length may alter the impedance and resonance characteristics of the sensor, which can lead to measurement errors.
