9761-210 TRICONEX Termination Panel

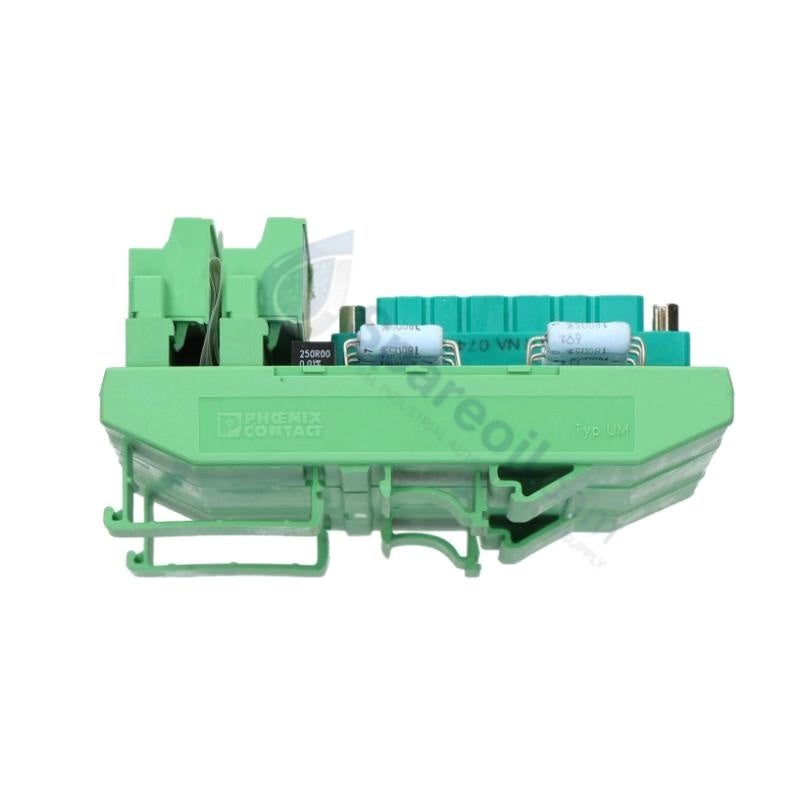

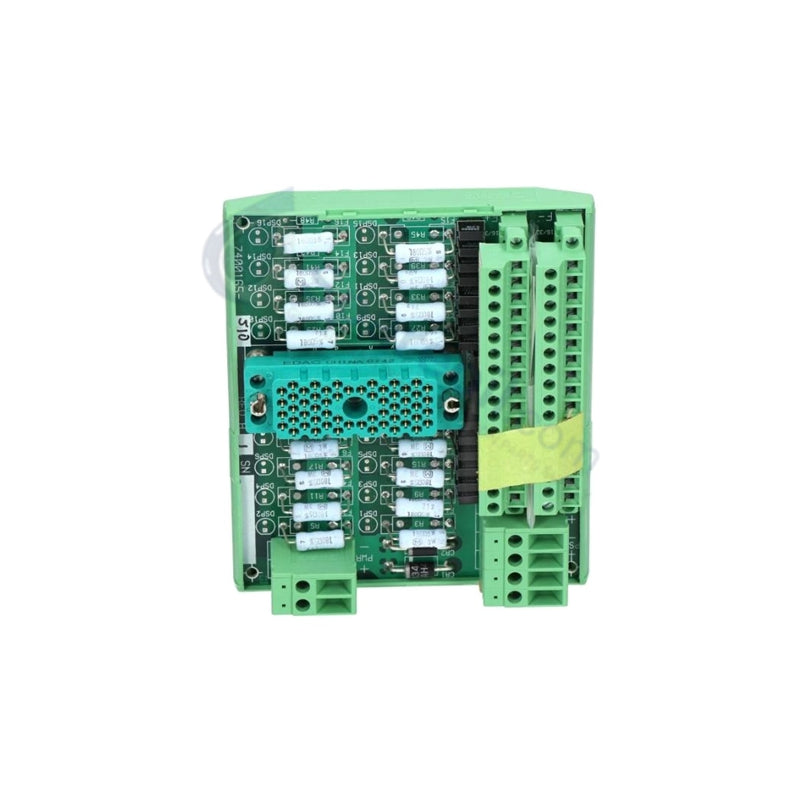

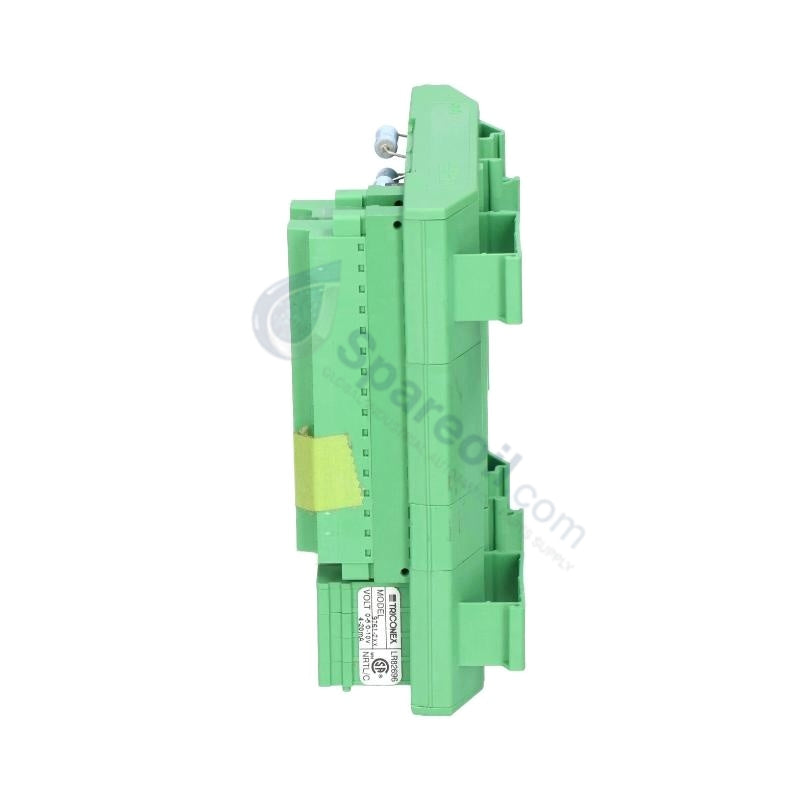

Analog Termination Panels Triconex 9761-210 Tricon V9/V10 Series

Analog Termination Panels Triconex 9761-210 Tricon V9/V10 Series

Disponibilidad: 10 Quedan en stock

TRICONEX 9761-210 Tricon V9/V10 Series Termination Panel Configured for continuous voltage and current loop validation in Tricon V9/V10 SIS racks,...

Código: 9761-210

Manufacturer: Triconex
Product No.: 9761-210
Product Type: Termination Panels
Product Origin: USA
Payment:T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

TRICONEX 9761-210 Tricon V9/V10 Series Termination Panel

Configured for continuous voltage and current loop validation in Tricon V9/V10 SIS racks, the TRICONEX 9761-210 (9761-210 Analog Input External Termination Panel) provides direct physical/electrical execution. The hardware routes field-derived 4-20 mA transmitter loops to specialized analog input cards, converting the signals via embedded resistors to establish unified data paths across the system backplane network.

Hardware Specifications

Parameter	Specification
Model	9761-210
Brand	TRICONEX (Schneider Electric)
Origin	USA
Weight	0.1 kg
Dimensions	2.2 cm x 12.4 cm x 12.6 cm
Operating Temp	-40 to +70 deg C
Power Consumption	<= 2.5 W
Channel Count	16 or 32 independent channels (depending on configuration)
Signal Conversion	250 ohm precision resistors convert 4-20 mA current to 0-5 VDC
Loop Power Protection	16 positive terminals (+), current-limited via 180 ohm series resistors
Redundant Supply	Dual 24 VDC external power sources with internal diode ORing
Isolation	1500 VDC dielectric isolation (field to module side)
Surge Protection	Built-in 1500 V surge suppression
Diagnostics	Open-circuit detection per channel, LED indicators
Module Compatibility	0 to 5 VDC, -5 to +5 VDC, and HART analog input modules
Termination Style	Screw terminals, accepts 12-24 AWG copper wire
Certifications	IEC 61508 SIL3, UL1059, CE, ATEX Zone 2, IP20 protection

Triple Modular Redundancy and Safety Integrity

The termination panel architecture supports a fault-tolerant interface network designed to maintain triple modular redundancy (TMR) 2oo3 processing operations. Galvanic isolation rated at 1500 VDC divides the external field wiring loops from the downstream I/O modules, which stops transient surges from damaging the active processing cards. The dual redundant 24 VDC supply architecture implements diode ORing to supply continuous field loop power, enforcing fail-safe state execution boundaries. These integrated conditioning layers allow the subsystem to operate within strict IEC 61508 SIL3 safety control guidelines.

Frequently Asked Questions

Q: What boundaries govern hot-swap operations for the 9761-210 panel assembly?

A: The passive field interface layout allows for hot-swap interventions. Technicians perform the physical installation steps while the secondary or parallel redundant I/O module channels remain fully energized, which avoids triggering false process trips or logic solver interruptions.

Q: How does the internal resistive network condition the current loop signals?

A: The panel routes incoming transmitter current through factory-soldered 250 ohm precision resistors to translate 4-20 mA signals into a 0-5 VDC range. Concurrently, the 16 positive terminals restrict overcurrent faults using individual 180 ohm series resistors.

Field Installation Guidelines

Mount the panel assembly vertically onto standard DIN rail networks inside the enclosure cabinet. Verify that the routing cables connecting the panel to the Tricon analog input modules are locked completely into their headers. Terminate the field transmitter lines using the integrated screw terminals, restricting connections to 12-24 AWG copper wire. Apply a consistent torque value of 0.5-0.6 N·m on all terminal clamps. Ground the external cable shielding arrays directly to the main low-impedance facility instrument ground bus to suppress electromagnetic interference (EMI). Route these low-voltage analog paths through independent raceways away from heavy AC mains cabling.
