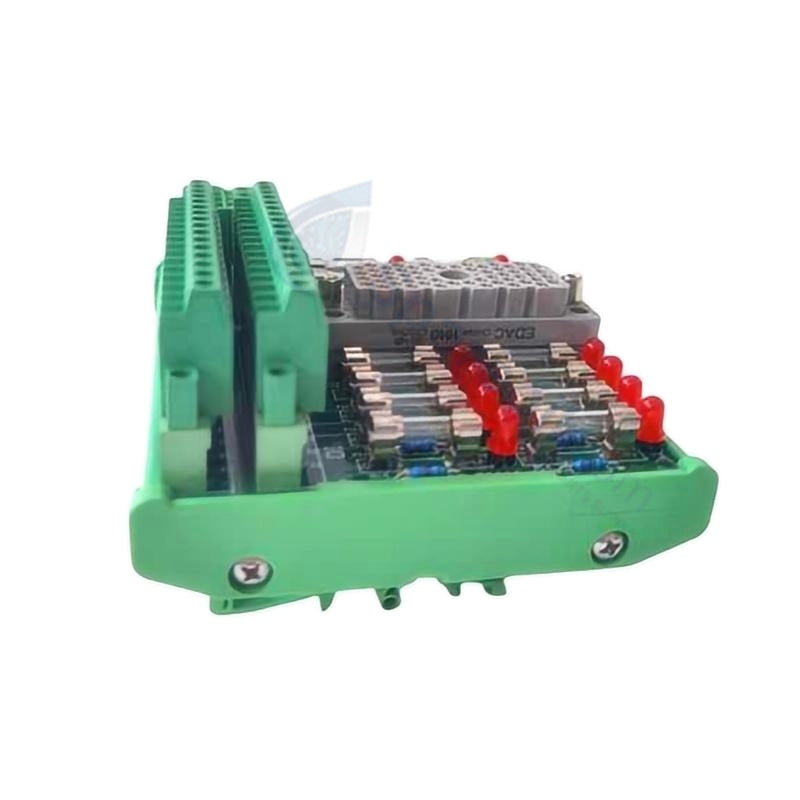

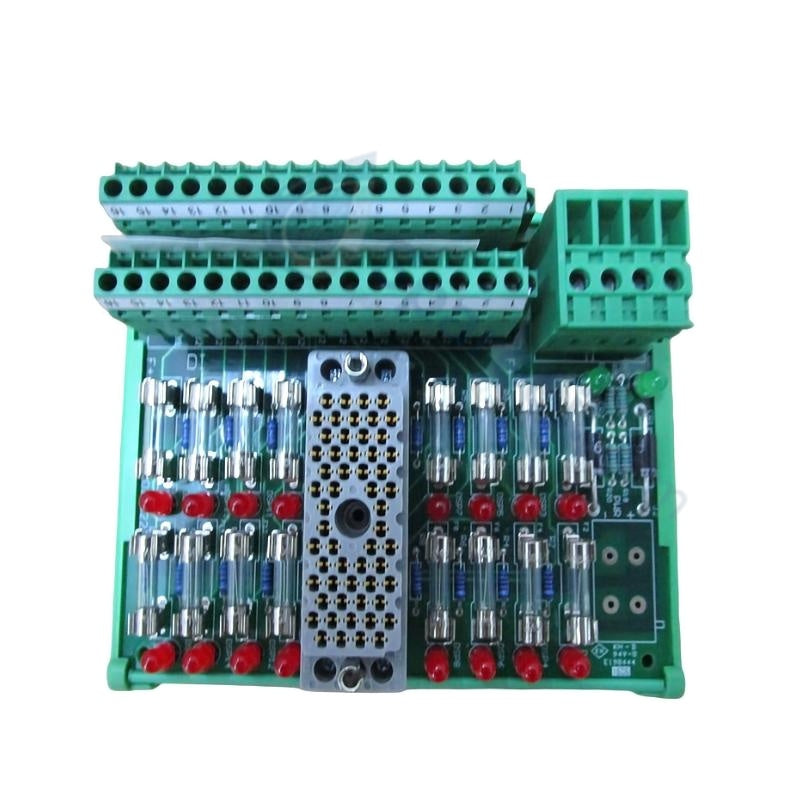

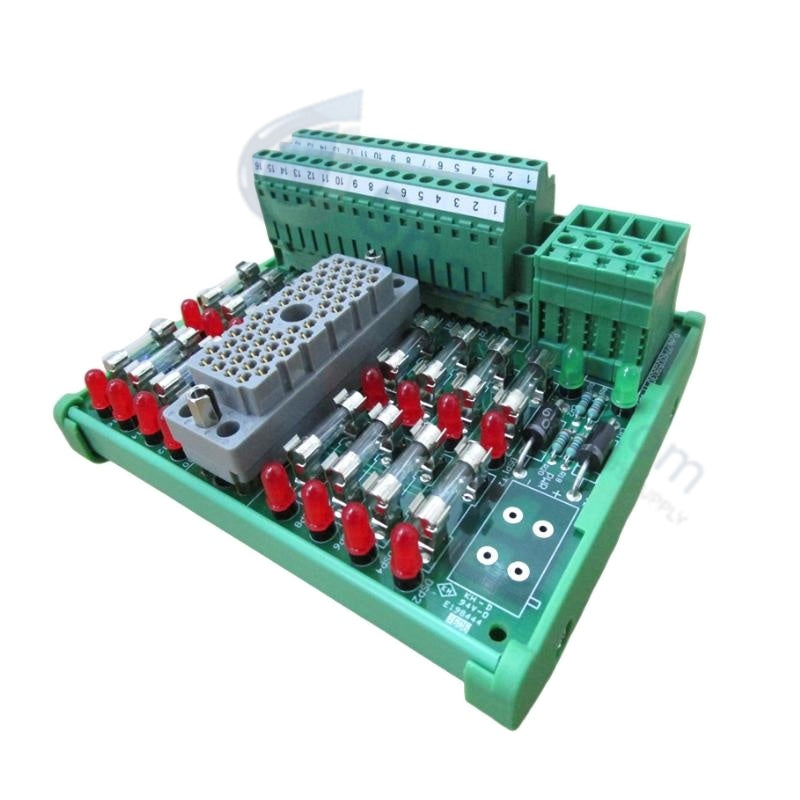

TRICONEX 9563-810 Tricon V9/V10 Series Termination Panel

The TRICONEX 9563-810, also cataloged as the 9563-810 Digital Output Module, operates as a dedicated hardware component for deterministic discrete output routing within Tricon V9/V10 Series SIS racks. The hardware routes fault-tolerant binary activation signals from the core logic cards directly to field-mounted solenoids, alarms, and safety trip relays.

Hardware Specifications

Parameter Specification
Model 9563-810 (Alternate Part Number: 9753-810)
Brand TRICONEX (Schneider Electric)
Origin USA (or per manufacturer allocation)
Weight 1.5 - 2.0 kg (Shipping Weight: 3 kg)
Dimensions 177.8 mm x 101.6 mm x 228.6 mm
Operating Temp -20 to +60 deg C
Power Consumption 15 W typical
Output Channels 32 isolated digital outputs
Output Voltage 24 VDC nominal
Output Current Up to 0.5 A per channel
Architecture Triple Modular Redundancy (TMR), 2-out-of-3 voting configuration
Safety Integrity Level SIL3 (IEC 61508 / IEC 61511)
Isolation 1500 VAC galvanic isolation between backplane and field wiring
Diagnostics Continuous self-test, LED indicators per channel
Termination Style Screw-clamp terminals, accepts 12-22 AWG wire
Storage Temp -40 to +85 deg C
Humidity Range 5% to 95% non-condensing
Certifications IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy and Safety Integrity

The termination panel architecture supports a fault-tolerant interface network designed to maintain triple modular redundancy (TMR) 2oo3 processing operations. Galvanic isolation rated at 1500 VAC divides the external field wiring loops from the downstream digital output driver circuitry, which stops transient overvoltages from damaging the active processing cards. The triple-redundant bus alignment distributes parallel actuation path validation down to individual screw-clamp fields, enforcing fail-safe state execution boundaries. These integrated conditioning layers allow the subsystem to operate within strict IEC 61508 SIL3 safety control guidelines.

Frequently Asked Questions

Q: What operational constraints govern online hot-swap maintenance for this digital output panel? A: The panel layout allows online hot-swap interventions. Technicians perform the physical installation steps while the backplane remains fully energized, allowing parallel redundant channels to execute control logic without causing spurious shutdowns or process interruptions.

Q: How does the panel handle external short circuits or overcurrent faults on individual output lines? A: Each channel controls independent 24 VDC loops rated up to 0.5 A. Built-in diagnostic loop testing isolates wiring faults and short circuits away from the core logic chassis, utilizing the 1500 VAC galvanic isolation barrier to protect adjacent processing circuits from cascading failure.

Field Installation Guidelines

Mount the panel assembly vertically into standard slots within the Tricon V9/V10 chassis enclosure. Verify that the routing cables connecting the panel to the Tricon digital output modules are locked completely into their headers before tightening the mechanical retaining hardware. Terminate the field lines using the integrated screw-clamp terminals, restricting connections to 12-22 AWG copper wire. Ground the external cable shielding arrays directly to the main low-impedance facility instrument ground bus to suppress electromagnetic interference (EMI). Route these low-voltage discrete activation paths through independent raceways away from heavy AC power cabling.
