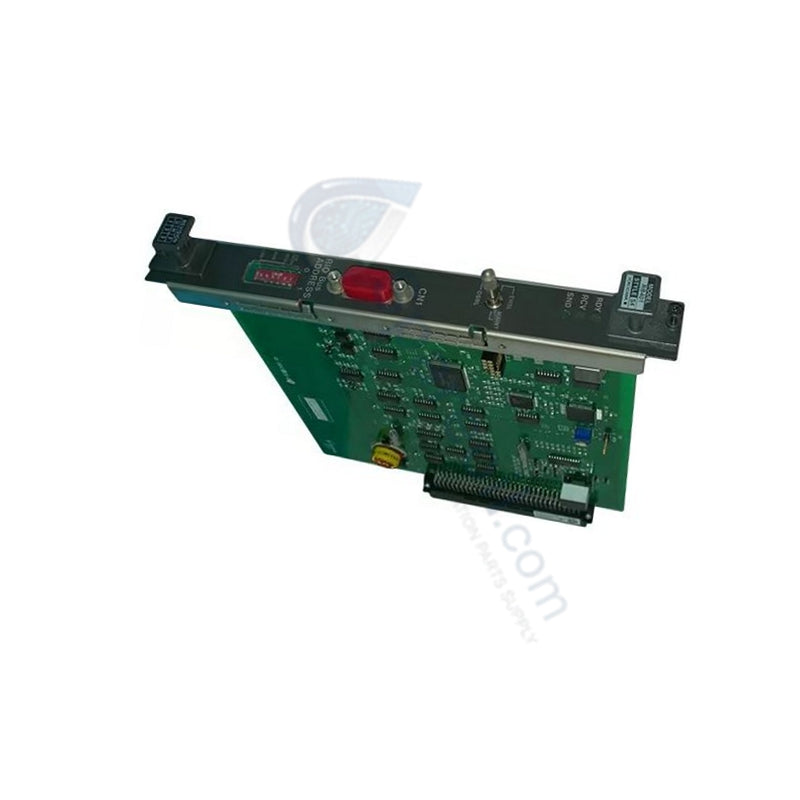

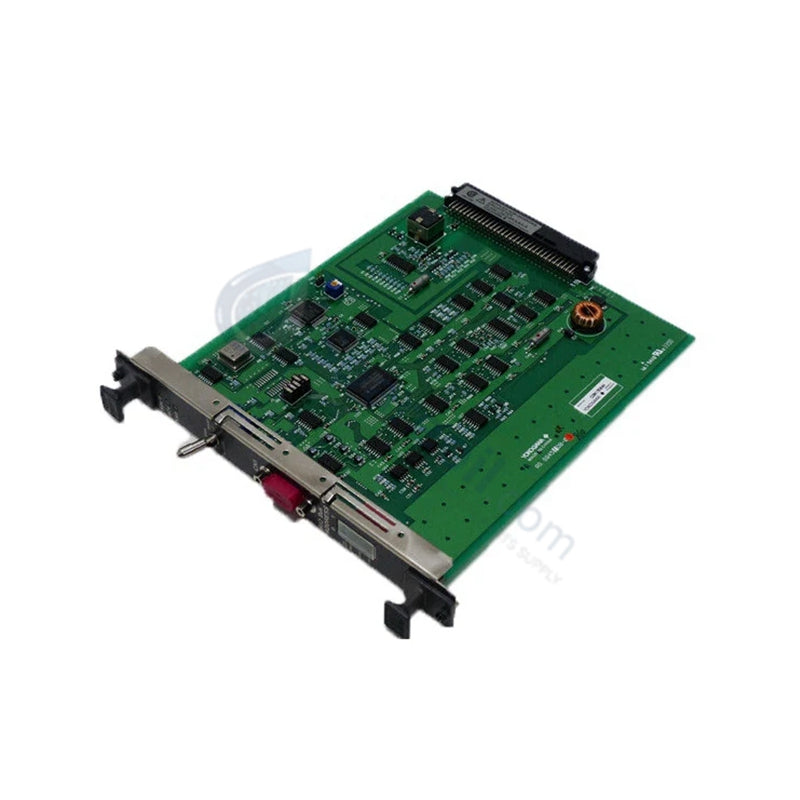

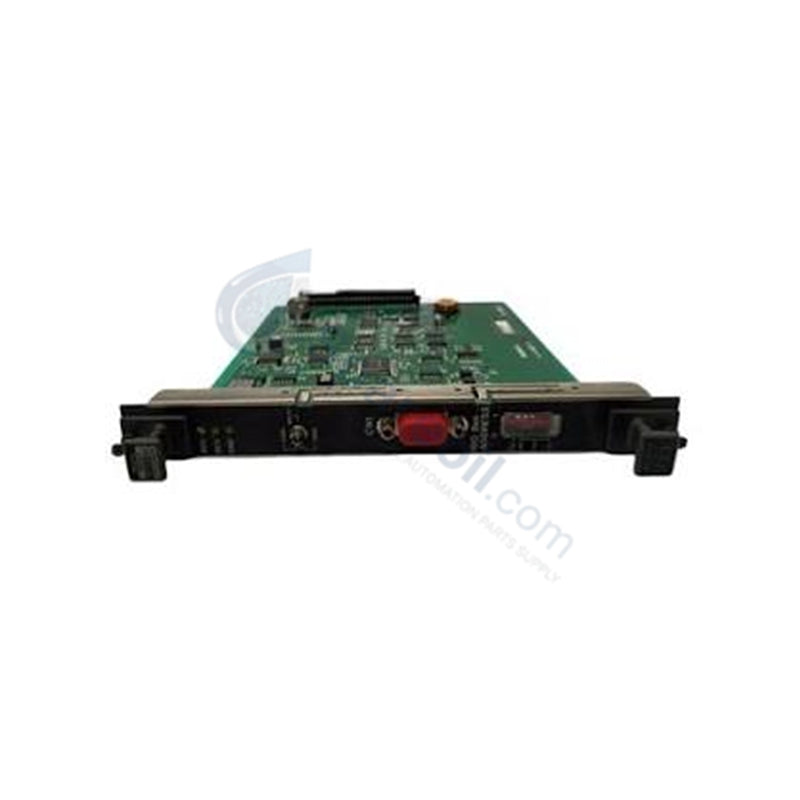

Yokogawa RB401 RIO Bus Module

The Yokogawa RB401-S4, also cataloged as the RB401 RIO Bus Module, operates as a dedicated hardware component for remote I/O data communication within Yokogawa DCS architectures.

Suffix Breakdown & Model Matrix

Suffix Code Description
RB401 Base Model: RIO Bus Module
/S4 Style 4 Revision

Hardware Specifications

Parameter Specification
Model RB401-S4
Brand Yokogawa
Origin USA
Weight 0.25 kg
Dimensions 22 mm x 124 mm x 126 mm
Operating Temp Standard Industrial Range
Power Consumption Not specified (Standard Bus Load)
Transmission Speed 10 Mbps
Transmission Media 2-core optical fiber (H-PCF)
Max Distance 200 m

DCS Process Control Connectivity

The RB401-S4 module manages signal synchronization and data frame transmission across the Remote I/O (RIO) network. Utilizing a star topology configuration, the module interfaces with up to 7 remote sub-units. Communication is facilitated through hard plastic clad quartz (H-PCF) optical fiber, which provides robust immunity against electromagnetic interference common in high-voltage industrial environments. The module enforces deterministic data exchange at a transmission rate of 10 Mbps, ensuring that I/O scan cycles maintain the timing precision required for real-time process monitoring and control loops.

Frequently Asked Questions

Q: Are there specific installation precautions for the H-PCF fiber-optic interface?

A: Yes, maintain the fiber-optic cables within the maximum bend radius to prevent micro-cracks in the silica core, which can increase signal attenuation. Ensure all optical connectors are cleaned with industry-standard fiber inspection scopes and solvent-free cleaning tools before insertion into the RB401 port to prevent light loss at the interface.

Q: How does the star configuration affect network availability?

A: In a star topology, the RB401 acts as the central hub for RIO communications. While this configuration simplifies cable routing and troubleshooting compared to daisy-chain setups, a fault in the central bus interface may impact all connected sub-units. Verify that optical power levels remain within the receiver's sensitivity threshold across all legs of the star to ensure stable data transmission.

Field Installation Guidelines

  1. Mounting: Seat the RB401 module into the rack mount assembly. Secure the module using the integrated fastening points to prevent vibration-induced dislodgement from the backplane bus.
  2. Cabling: Route optical fiber cables through dedicated conduits to prevent mechanical stress or crushing. Label all fiber-optic connections clearly at both ends to facilitate rapid identification during network troubleshooting.
  3. Grounding: Ensure the rack mount chassis is properly bonded to the cabinet ground bus. Even though the fiber-optic medium provides inherent galvanic isolation, the module housing must be grounded to dissipate static charge and maintain EMC shielding.
  4. Validation: After installation, perform a light-level audit at the termination points to verify that the attenuation does not exceed the budget allowed for the 200 m maximum distance specification.
