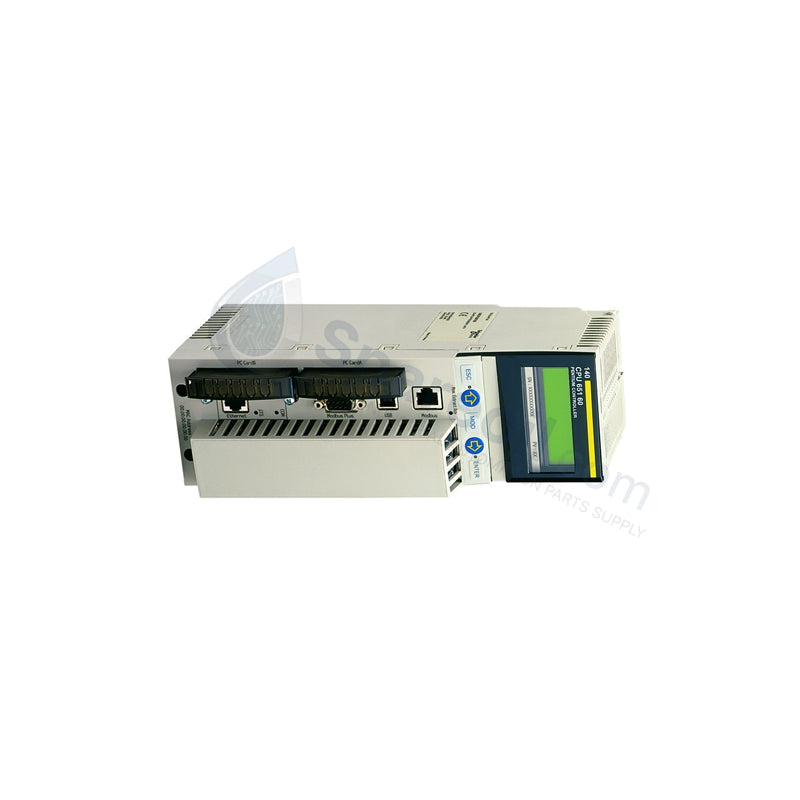

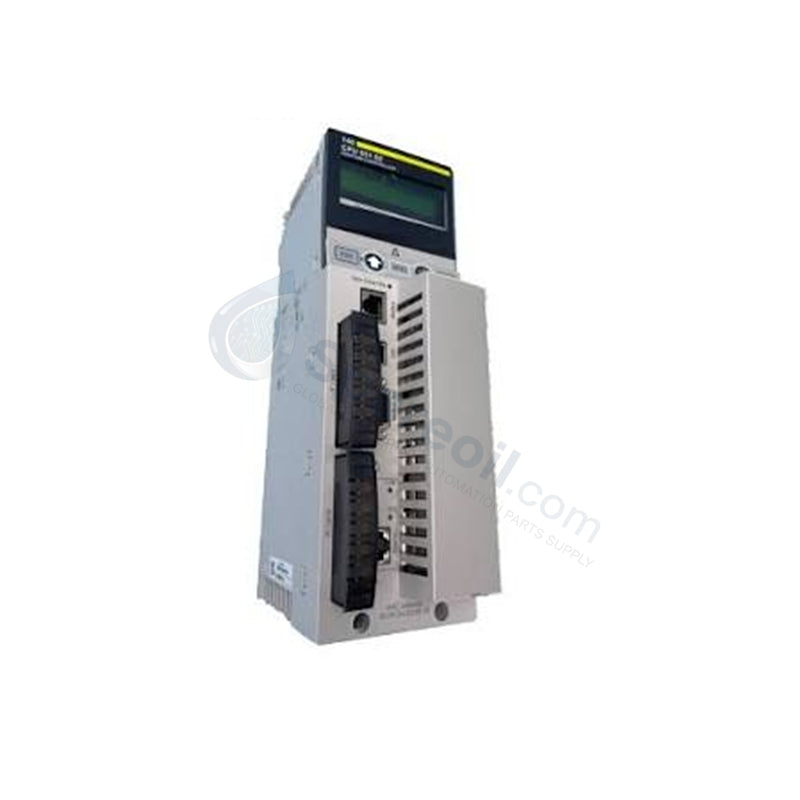

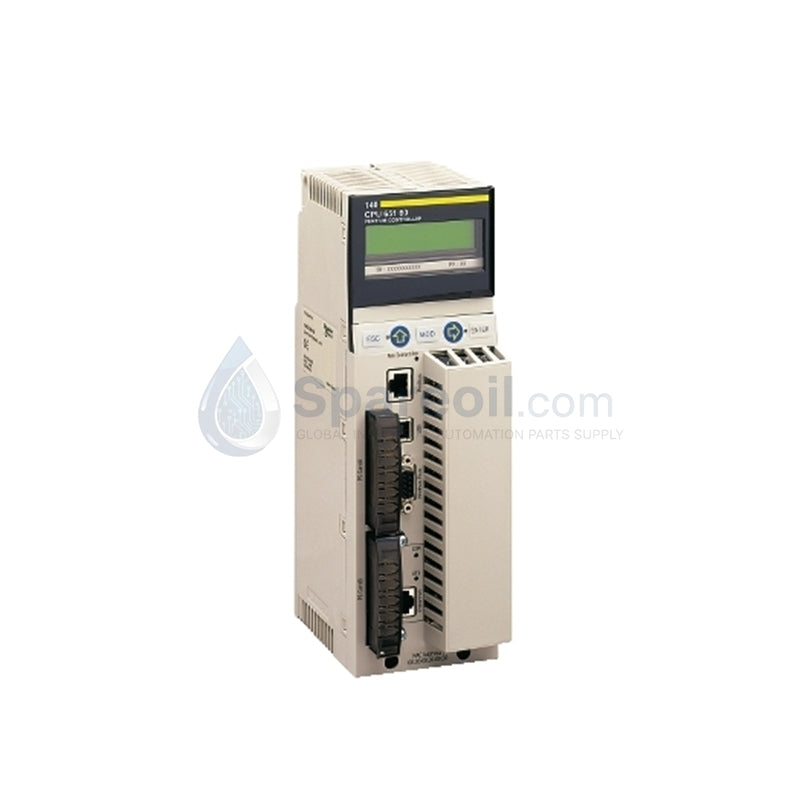

Schneider 140CPU65160 Modicon Quantum Unity Processor

The Schneider 140CPU65160 serves as the primary 140CPU65160 Unity Processor utilized to execute industrial control and automation applications across Modicon Quantum automation platform networks. The hardware embeds a 266 MHz processing core and 1024 kB of internal RAM to manage high-density discrete and distributed analog input/output infrastructures. Dedicated physical communication ports handle deterministic network routing over Modbus Plus, standard Modbus, and Ethernet TCP/IP architectures. Furthermore, an MT-RJ fiber optic connector provides direct infrastructure synchronization for secondary backup controllers when deployed in a hardware-level hot-standby configuration.

Hardware Specifications

Backplane Bus Communication Velocity and Network Networks

The 140CPU65160 requires a backplane current allocation of 2760 mA from the Quantum rack power supply unit due to the extensive internal logic gates dedicated to managing parallel bus communication velocity. The architecture processes system frames across the backplane structure to control remote dropping topologies with minimal propagation delay. To extend deterministic network performance beyond the local rack, engineers introduce up to 6 optional communication coprocessors. These coprocessors offload routine industrial Ethernet or Profibus DP network messaging from the main cyclic task loop. Firmware flash compatibility within the Quantum environment maintains consistent memory maps and hardware parameters across local configurations, allowing synchronized database transfers when executing bumpless changeovers in redundant hot-standby setups.

Frequently Asked Questions

Q: What are the specific design restrictions concerning the arithmetic capabilities of this processor?

A: This specific module configuration does not contain an integrated mathematical hardware coprocessor. Consequently, complex floating-point calculations and intensive trigonometric algorithms will execute slower than standard Boolean logic transitions. For applications requiring extensive heavy mathematical processing, select a processor variant with an active coprocessor.

Q: Can this module operate without a PCMCIA memory card inserted?

A: The processor utilizes its 1024 kB of onboard internal RAM to execute basic executive runtime tasks and standard application logic. However, to expand the available program memory up to 7168 kB or to store comprehensive data logs and project source archives up to 8 MB, you must install an approved industrial PCMCIA memory card into the front expansion slot.

Q: How does the hot-standby mechanism synchronize the primary and standby controllers?

A: The processor incorporates an MT-RJ fiber optic port on the front faceplate. This dedicated hardware interface links the primary and standby processors directly, maintaining continuous data mirroring of the internal RAM and state variables independently of the primary system backplane or field network traffic.

Field Installation Guidelines

• Module Insertion and Alignment: Verify that the Quantum backplane power supply is completely switched off before attempting installation. Align the top and bottom trailing edge connectors of the 140CPU65160 with the rack slots, slide the unit straight back until the multi-pin connector seats firmly into the backplane bus, and tighten the integrated mechanical retention screw.
• Fiber Optic Connection Safety: Clean the MT-RJ fiber optic interface connectors with lint-free pads and optical solution before mating. Maintain the minimum dynamic bend radius of the fiber-optic synchronizing cable to prevent mechanical stress on the core material and avoid signal attenuation or packet dropouts between the primary and standby chassis.
• Modbus Plus Sub-D 9 Shield Terminations: Wire the Modbus Plus drop cable using standard shielded twisted-pair media. Ensure the braided metallic shield connects securely to the shell of the male SUB-D 9 connector to ground high-frequency electromagnetic noise directly to the chassis frame of the processor.
• Backplane Power Calculation Verification: Sum the continuous current demand of all modules residing in the Quantum rack before powering up. The 140CPU65160 draws a high nominal current of 2760 mA; verify that the rack power supply provides sufficient headroom above this threshold to prevent under-voltage logic trips.
