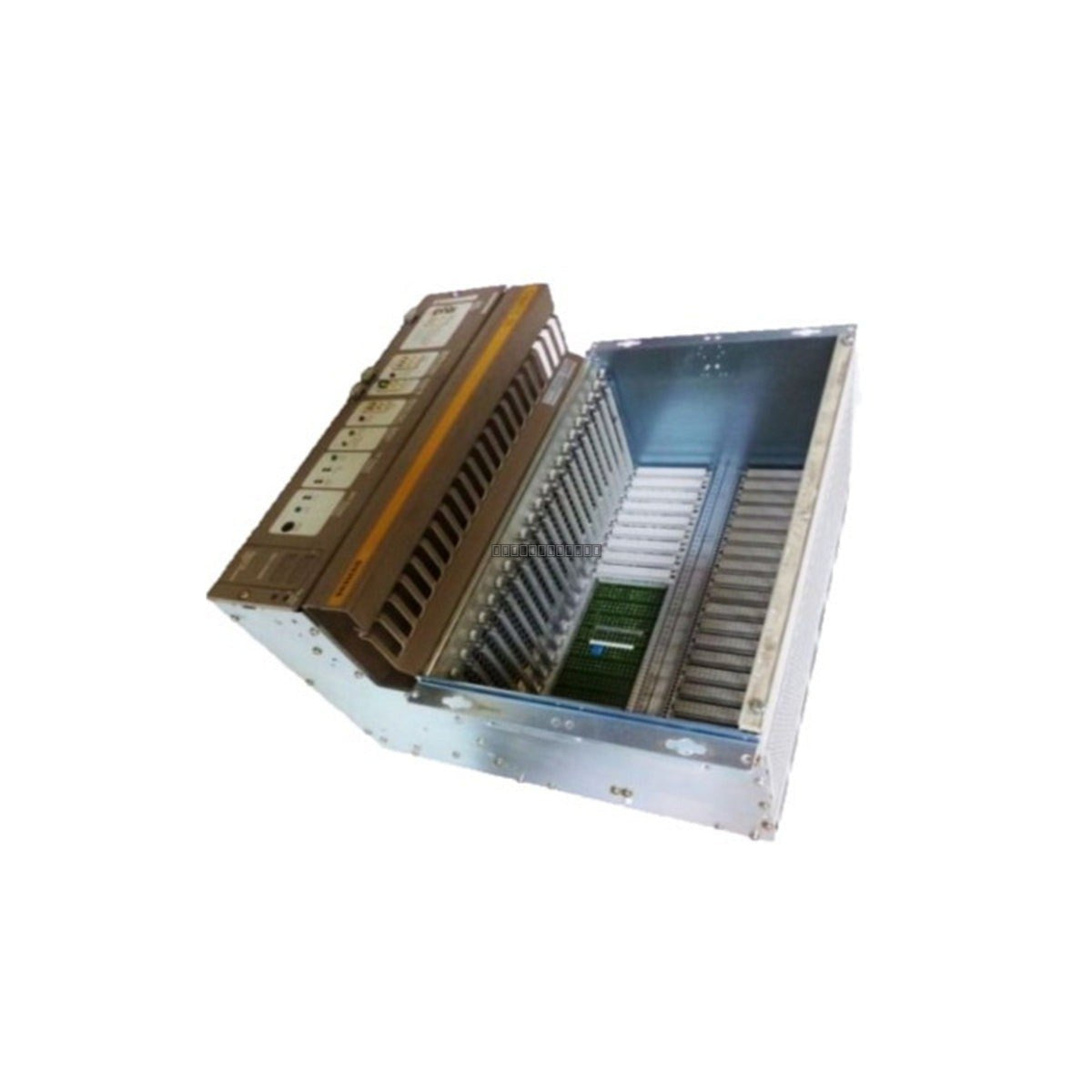

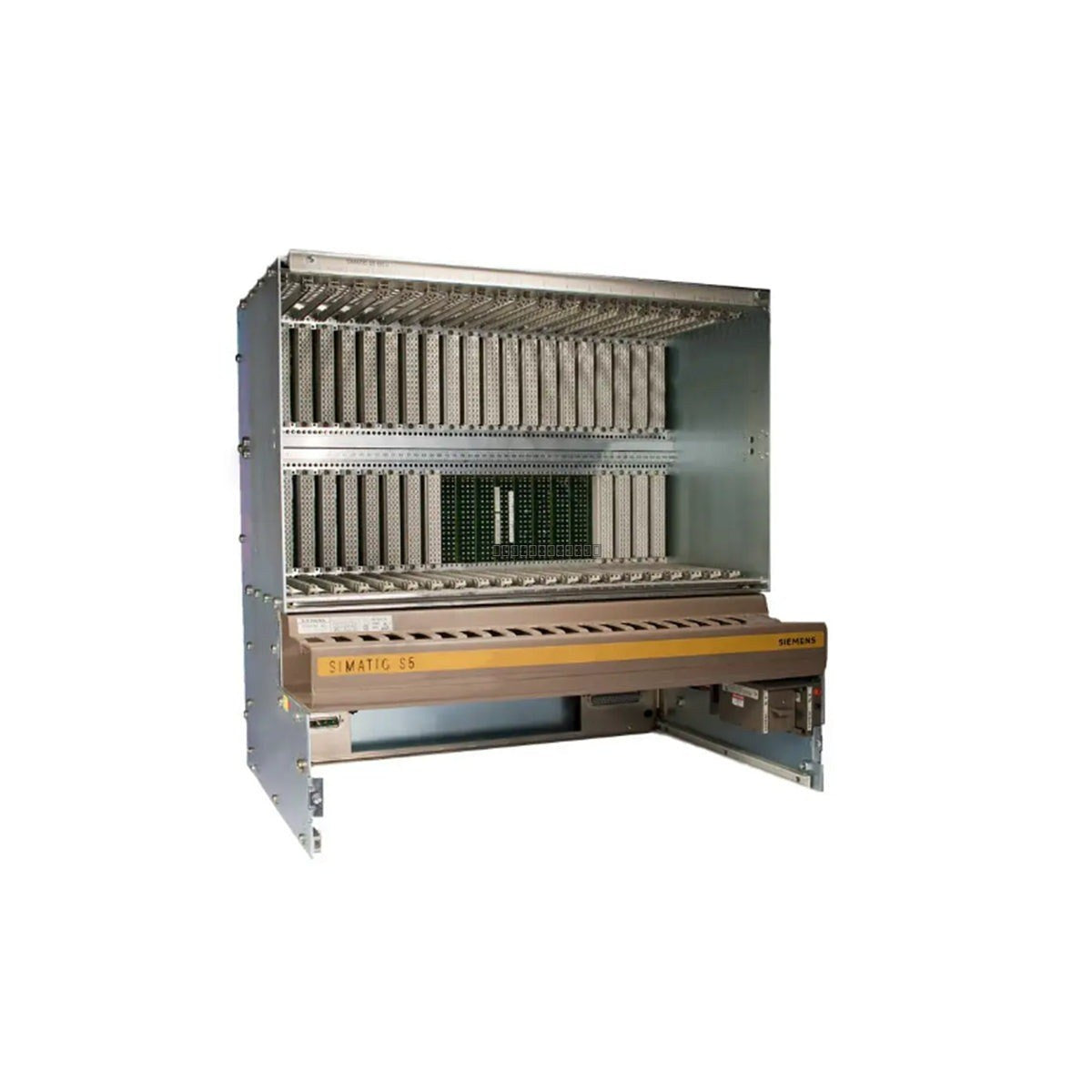

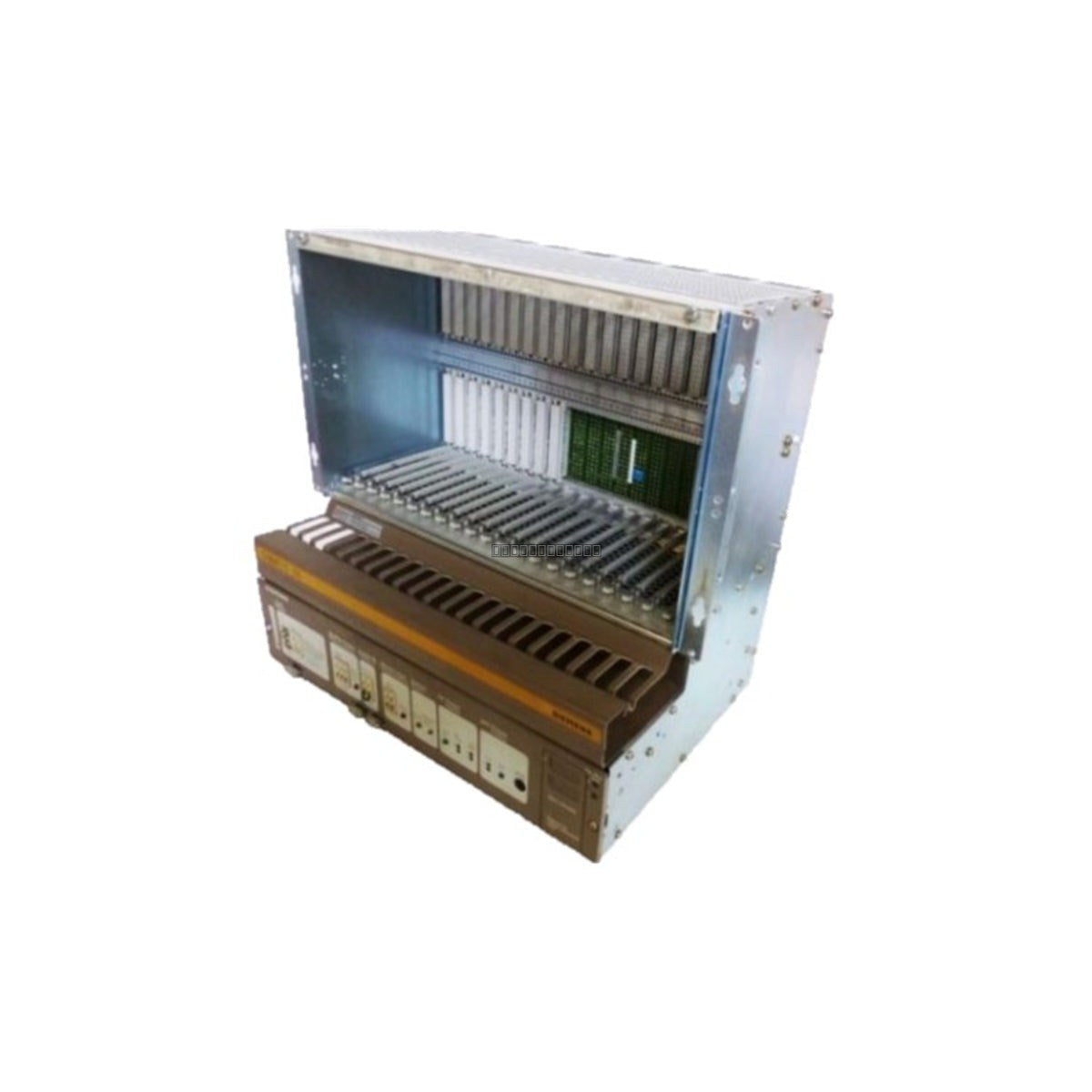

Siemens 6ES5135-3KA13 Simatic S5 Central Controller Rack

Availability: 7 left in stock

DescriptionThe Siemens Simatic S5 6ES5135-3KA13 serves as the primary backbone frame for the modular Simatic S5-135U automation platform. This industrial-grade...

SKU: 6ES5135-3KA13

Manufacturer: Siemens
Product No.: 6ES5135-3KA13
Product Type: PLC Rack
Product Origin: Germany
Payment:T/T, Western Union
Weight: 11800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens Simatic S5 6ES5135-3KA13 serves as the primary backbone frame for the modular Simatic S5-135U automation platform. This industrial-grade chassis provides 21 expansion slots designed to hold power supplies, multi-processor configurations, interface links, and various I/O expansion modules. Designed for demanding industrial environments such as mineral processing plants, large-scale power stations, and petrochemical refineries, this chassis provides the necessary structural and electrical foundation for complex automation tasks. It facilitates high-speed system bus communication between slots, ensuring precise synchronization and reliable signal integrity across the entire rack.

Features

21-slot capacity for flexible configuration of CPUs, power supplies, and I/O modules.
Integrated multi-point backplane assembly for high-speed data and power distribution.
Isolated card lanes to minimize cross-talk and preserve signal integrity.
Robust guide rails for precise module alignment and secure seating.
Heavy-duty copper grounding points for enhanced electromagnetic interference (EMI) protection.
Supports multi-processor network architectures for distributed control applications.

Applications

This central controller rack is intended for use in large-scale Simatic S5-135U and S5-155U automation systems. It is suitable for centralized control architectures requiring high-density I/O, multi-processor coordination, and reliable operation in harsh industrial environments.

Technical Specifications

Model	6ES5 135-3KA13
Platform	Simatic S5-135U / S5-155U
Slot Capacity	21 Slots
Operating Temperature	0 to 55 deg C
Power Consumption	60 W (passive backplane load)
Bus Architecture	Parallel multi-processor backplane

Installation Guidelines

Ensure the rack is mounted in a clean, dry, and well-ventilated enclosure to maintain operating temperatures within the specified 0 to 55 deg C range.
Verify that the chassis is securely bonded to the main system ground using the provided heavy-duty grounding points to prevent EMI-related signal instability.
Always power down the system before inserting or removing any modules to prevent electrical arcing or damage to the backplane pins.
Use the integrated guide rails to ensure modules are seated correctly; do not force modules into the slots.
Maintain adequate clearance around the rack to facilitate airflow and allow for future maintenance or module expansion.

FAQ

Does this rack come with a CPU installed? No, the 6ES5135-3KA13 is the chassis only. It requires the installation of a compatible Simatic S5 central processing unit and power supply module to function.

Can this rack be used for multi-processor configurations? Yes, the backplane is designed to support multi-processor setups, allowing for the integration of secondary coordinator cards and distributed processing tasks.
