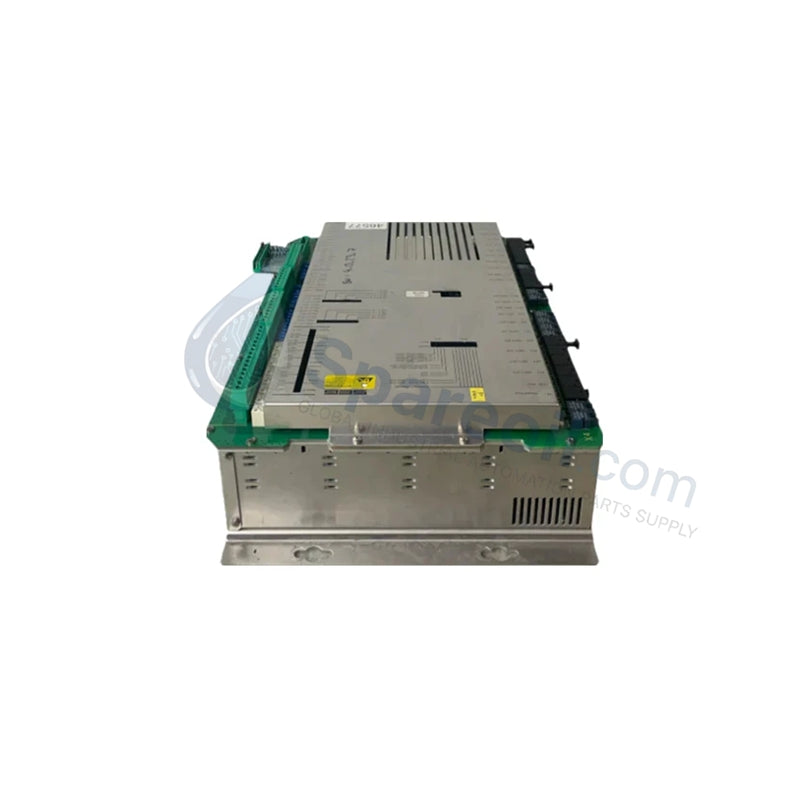

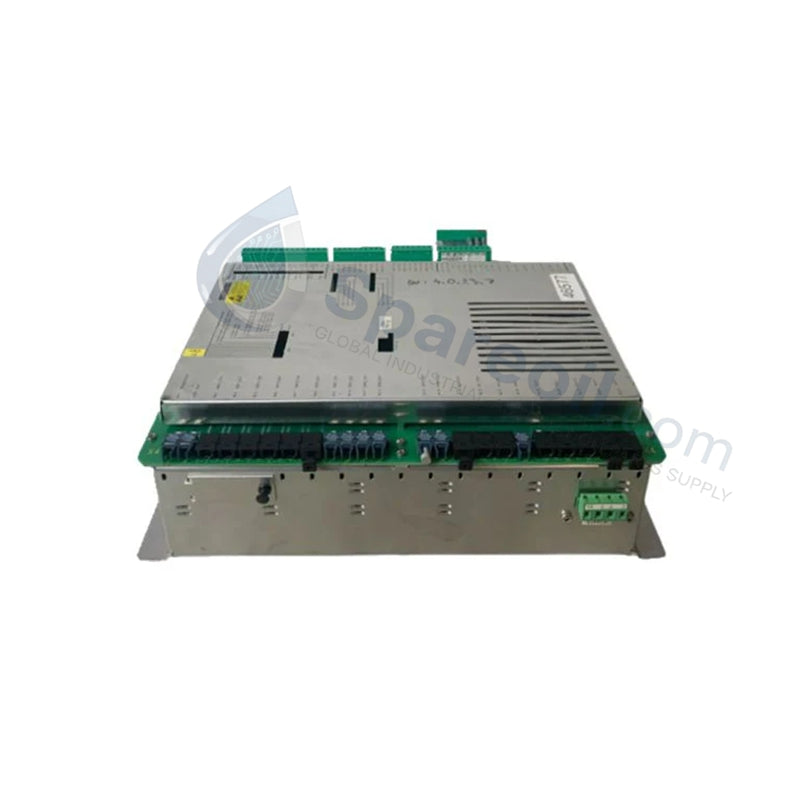

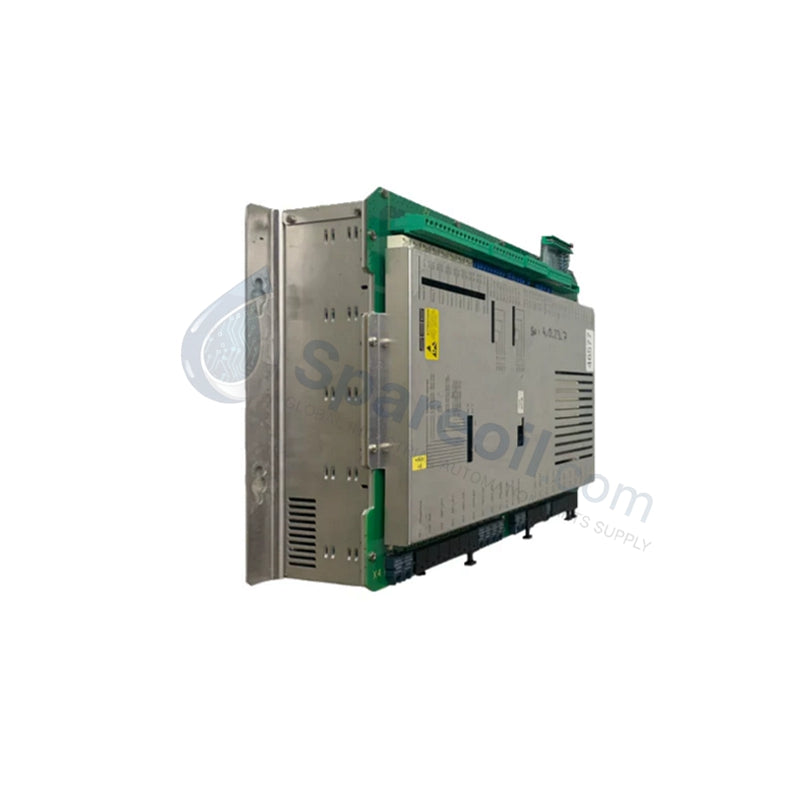

Woodward CSC3HUWC2B2 SEG Controller Module

The Woodward CSC3HUWC2B2, also cataloged as the CSC3HUWC2B2 Controller Module, operates as a dedicated hardware component for precise engine, turbine, and current sensing processing tasks within Woodward SEG control platforms.

Hardware Specifications

Parameter Specification
Model CSC3HUWC2B2
Brand Woodward
Origin USA
Weight 0.5 - 1.2 kg (variant dependent)
Dimensions 120 x 100 x 60 mm / 160 x 100 x 40 mm
Operating Temp -25 to +70 deg C
Power Consumption 5 W
Operating Voltage 24 VDC
Analog Inputs 8 channels (0-10 V)
Digital Outputs 16 channels (24 V)
CT Inputs 3-phase current transformer inputs (1 A / 5 A nominal)
Measurement Range Up to 120 A (scaled via CT ratio)
Accuracy +/- 0.5% typical
Isolation Voltage 2.5 kV AC (CT to system)
Response Time < 5 ms

Actuator Loop Feedback Response

The electronic architecture incorporates dedicated processing pathways optimized for sub-millisecond actuator loop feedback response. Current inputs derived from the 3-phase sensing circuit are converted via internal instrumentation networks to suppress electrical noise. Custom thermal heat sink dissipation profiles stabilize the internal measurement components, preventing measurement drift across the nominal 24 VDC excitation structure during high ambient temperature excursions.

Frequently Asked Questions

Q: What is the isolation threshold between the current transformer inputs and the internal processing logic?

A: The hardware platform provides galvanic isolation rated at 2.5 kV AC between the secondary CT measurement terminals and the internal system backplane components.

Q: How does the unit process high-current transients during electrical faults?

A: The input conditioning stage handles scaled overcurrent signals up to 120 A via external CT ratios, digitizing the waveform with a response delay of less than 5 ms to allow downstream protection execution.

Q: What onboard diagnostics are present for local troubleshooting?

A: The faceplate features dedicated diagnostic LED indicators that report internal module fault sequences and line-side connection discontinuities without requiring external software links.

Field Installation Guidelines

  • Mounting Restrictions: Fit the housing securely onto standard DIN rails or dedicated sub-rack frames, ensuring proper spatial separation to allow unrestricted vertical airflow.
  • CT Termination Security: Ensure external current loops are shorted using an external shorting block before disturbing terminal connections to eliminate dangerous open-circuit voltage spikes.
  • Shielding Topology: Terminate the outer shields of all measurement and analog signaling wires directly at the incoming enclosure bulkhead ground rail, avoiding loops or ungrounded drain endpoints.
  • Conductor Fastening: Use calibrated torque tools to clamp wire terminations to the specified engineering limits, mitigating the risk of intermittent contacts or thermal expansion failures under field conditions.
