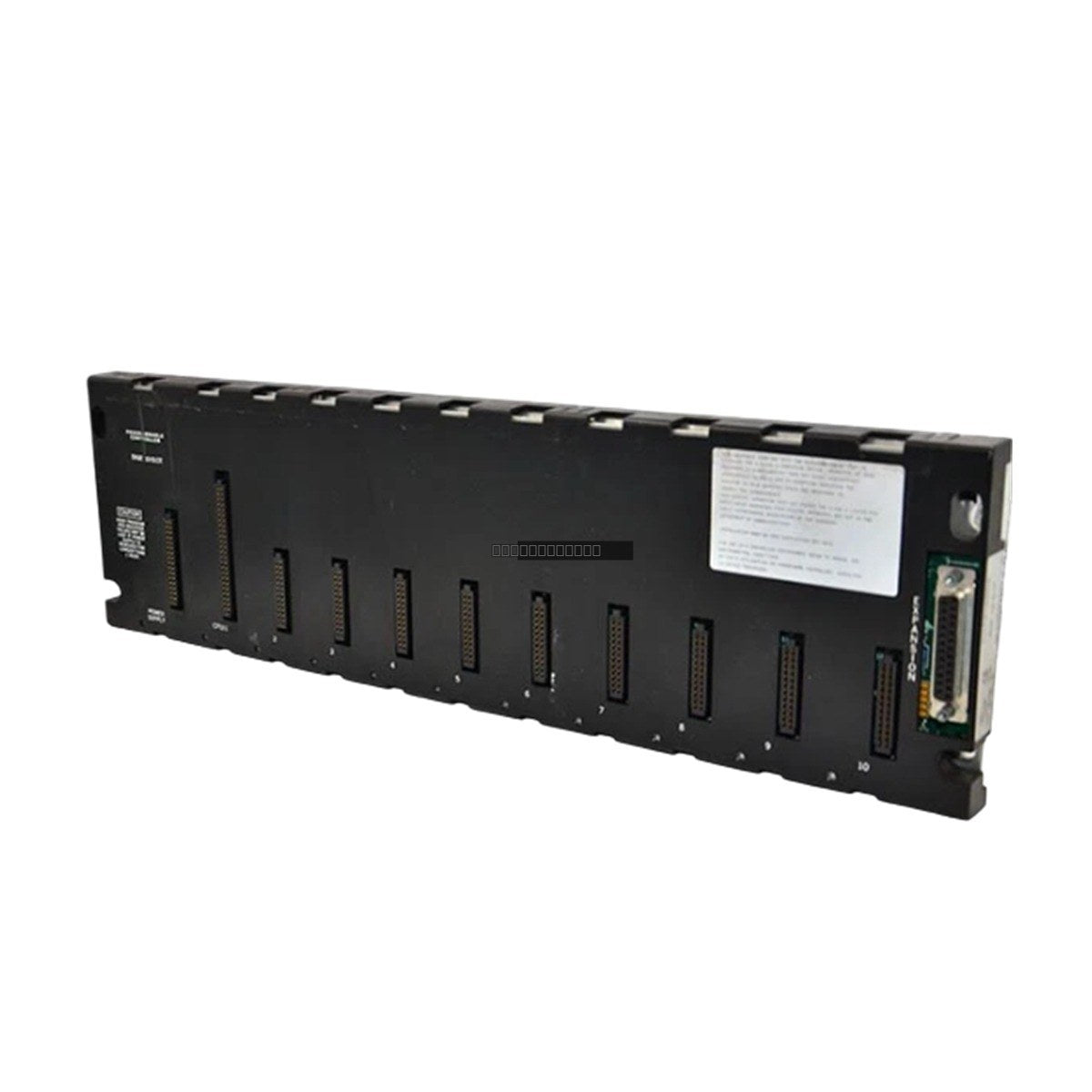

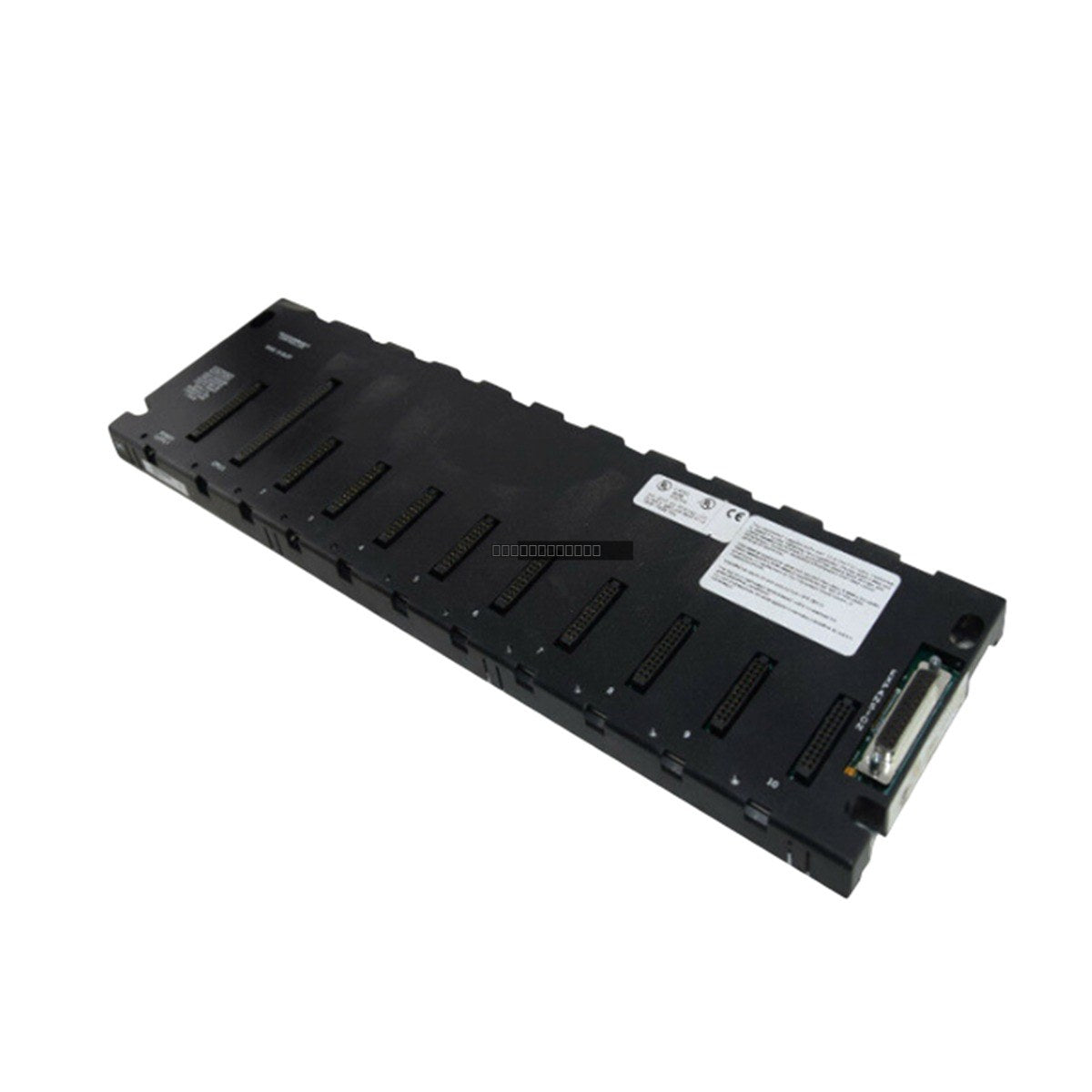

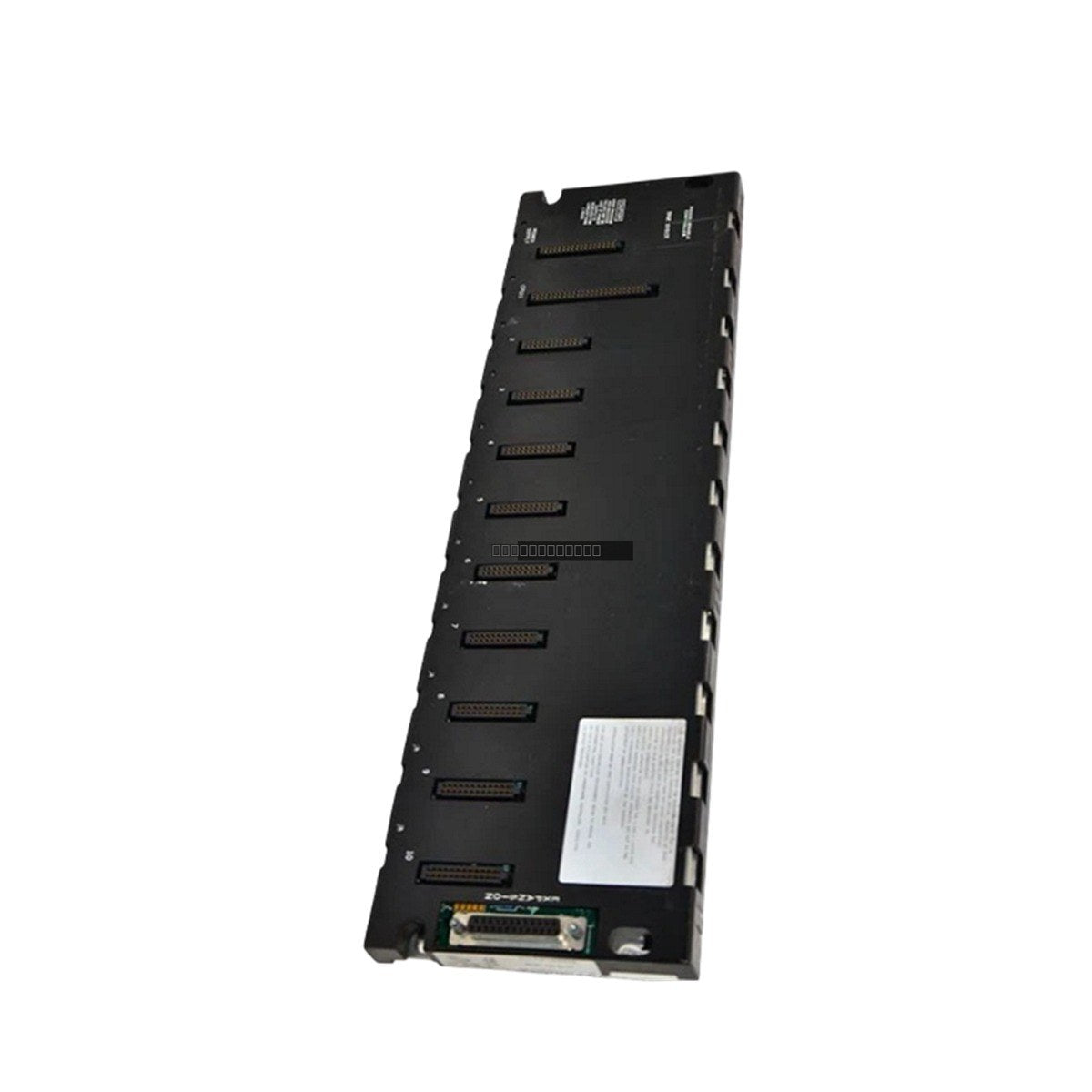

GE Fanuc IC693CHS391C 10-Slot Modular CPU Baseplate

GE Fanuc IC693CHS391C Series 90-30 10-Slot Modular CPU Baseplate

Availability: 5 left in stock

DescriptionThe GE Fanuc IC693CHS391C is a 10-slot modular baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This...

SKU: IC693CHS391C

Manufacturer: General Electric
Product No.: IC693CHS391C
Product Type: PLC Baseplate
Product Origin: USA
Payment:T/T, Western Union
Weight: 950g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The GE Fanuc IC693CHS391C is a 10-slot modular baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This expansion baseplate provides the necessary physical mounting and electrical backplane connectivity for a CPU module, power supply, and various I/O or specialty modules. It serves as the foundational hardware component for expanding the I/O capacity of a Series 90-30 rack configuration.

Features

Ten (10) total slots for system configuration.
Dedicated slot for one (1) CPU module.
Nine (9) slots available for I/O modules or specialty option modules.
Integrated power supply module slot.
25-pin female connector for expansion cabling.
Supports high-speed communication via PCI card interface.

Technical Specifications

Model Number	IC693CHS391C
Series	Series 90-30
Total Slots	10
CPU Slots	1
I/O Slots	9
Operating Voltage	5 Volts DC
Current Draw	420 mA
Connection Type	25-Pin Female

Installation Guidelines

Ensure the PLC system is powered down before installing or removing any modules from the baseplate.
Mount the baseplate securely on a flat, grounded metal surface to ensure proper EMI shielding and structural integrity.
Handle modules by the edges to prevent electrostatic discharge (ESD) damage to the backplane pins.
When inserting modules, ensure they are properly aligned with the card guides before applying pressure to seat them into the backplane connector.
Maintain adequate clearance around the baseplate to allow for proper ventilation and cooling of the installed modules.
Use shielded cables for expansion connections to minimize signal interference in high-noise industrial environments.

FAQ

What is the primary function of the IC693CHS391C baseplate?

This baseplate acts as the central communication and power distribution backplane for a GE Series 90-30 PLC system, allowing for the integration of a CPU and up to nine additional I/O or specialty modules.

Can this baseplate be used for remote I/O expansion?

Yes, the IC693CHS391C is designed to function as an expansion baseplate, allowing you to increase the total I/O count of your controller rack by connecting it to the main CPU rack via an expansion cable.
