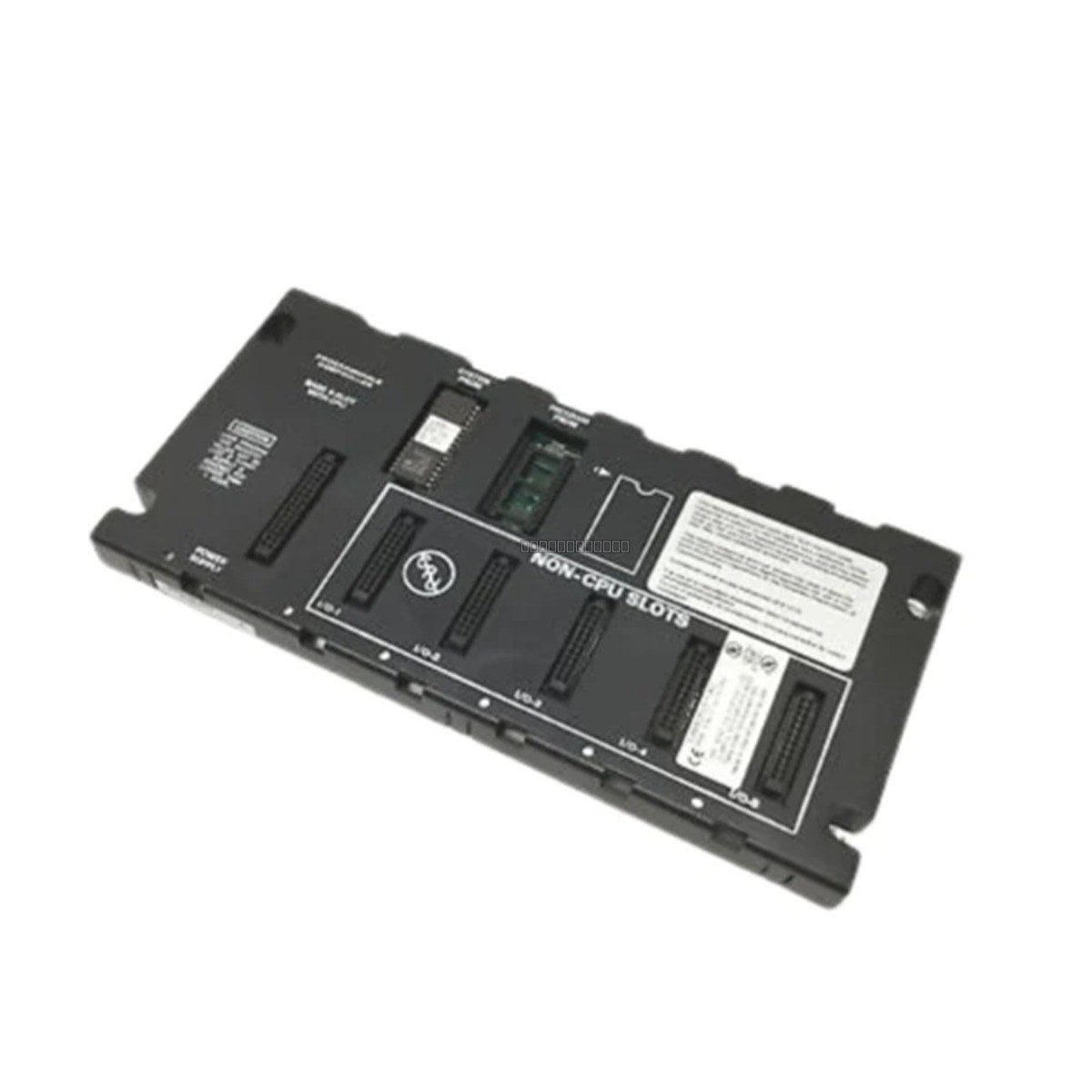

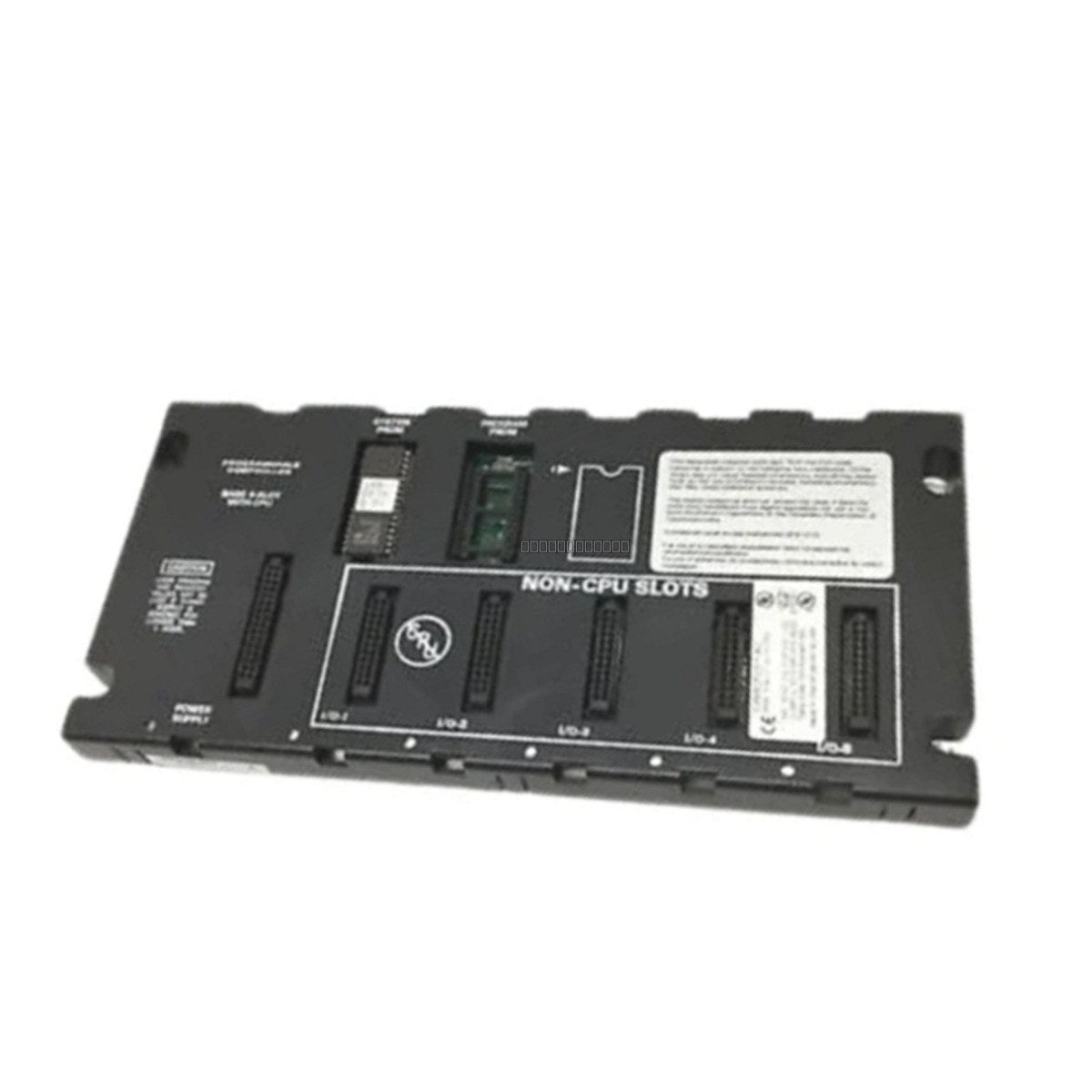

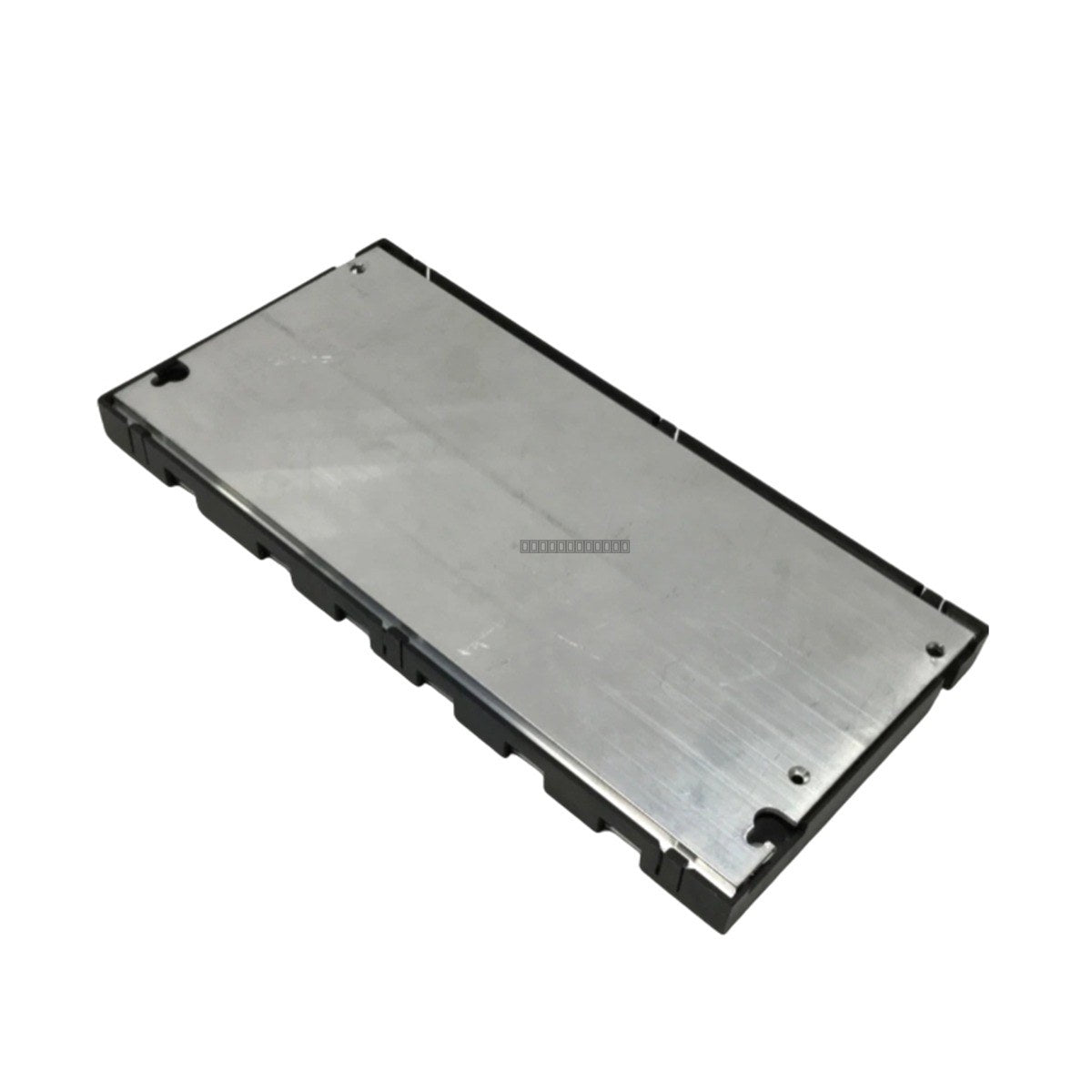

General Electric IC693CPU311J Series 90-30 Embedded CPU Baseplate

Availability: 4 left in stock

DescriptionThe General Electric IC693CPU311J is a specialized baseplate for the Series 90-30 PLC system that features an embedded CPU. This...

SKU: IC693CPU311J

Manufacturer: General Electric
Product No.: IC693CPU311J
Product Type: PLC Baseplate
Product Origin: USA
Payment:T/T, Western Union
Weight: 540g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The General Electric IC693CPU311J is a specialized baseplate for the Series 90-30 PLC system that features an embedded CPU. This integrated unit combines the backplane functionality with a 10 MHz processor, providing a compact solution for small-scale automation applications. It is designed to host one power supply module and provides five additional slots for I/O or specialty modules, streamlining system architecture in space-constrained environments.

Features

Integrated 10 MHz CPU processor
Five (5) dedicated I/O expansion slots
One (1) dedicated slot for a Series 90-30 power supply module
Supports 170 timers and counters for complex logic control
Boolean execution speed of 18 ms per 1K of logic
Compact design for efficient panel space utilization

Applications

This baseplate is commonly utilized in small to medium-sized industrial control systems, including machine automation, process monitoring, and small-scale manufacturing lines where a standalone, integrated CPU and I/O rack is required.

Technical Specifications

Model	IC693CPU311J
Series	Series 90-30
CPU Clock Speed	10 MHz
I/O Slots	5
Power Supply Slots	1
Current Load	410 mA
Bus Voltage	+5 VDC
Execution Speed	18 ms / 1K logic
Operating Temperature	0 to 60 degC (32 to 140 degF)

Installation Guidelines

Ensure the baseplate is mounted on a flat, grounded metal surface to provide proper EMI shielding and heat dissipation.
Always disconnect power before installing or removing any modules from the baseplate slots to prevent electrical damage.
Use appropriate ESD protection when handling the unit to avoid damage to sensitive internal circuitry.
Ensure adequate airflow around the baseplate to maintain operating temperatures within the specified range.
Verify that the power supply module is correctly seated in the dedicated slot before applying power to the system.

FAQ

What is the primary function of the IC693CPU311J?

The IC693CPU311J acts as both the mounting rack and the central processing unit for a Series 90-30 PLC configuration, allowing for a smaller footprint by eliminating the need for a separate CPU module.

How many I/O modules can this baseplate support?

This baseplate supports up to five (5) I/O modules in addition to the required power supply module.
