General Electric IS215UCCCH4A Mark VIe VME Controller Board

Availability: 10 left in stock

DescriptionThe IS215UCCCH4A is a high-performance VME/CompactPCI (cPCI) controller board engineered by General Electric for the Mark VIe control system. This...

SKU: IS215UCCCH4A

Manufacturer: General Electric
Product No.: IS215UCCCH4A
Product Type: VME Controller Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

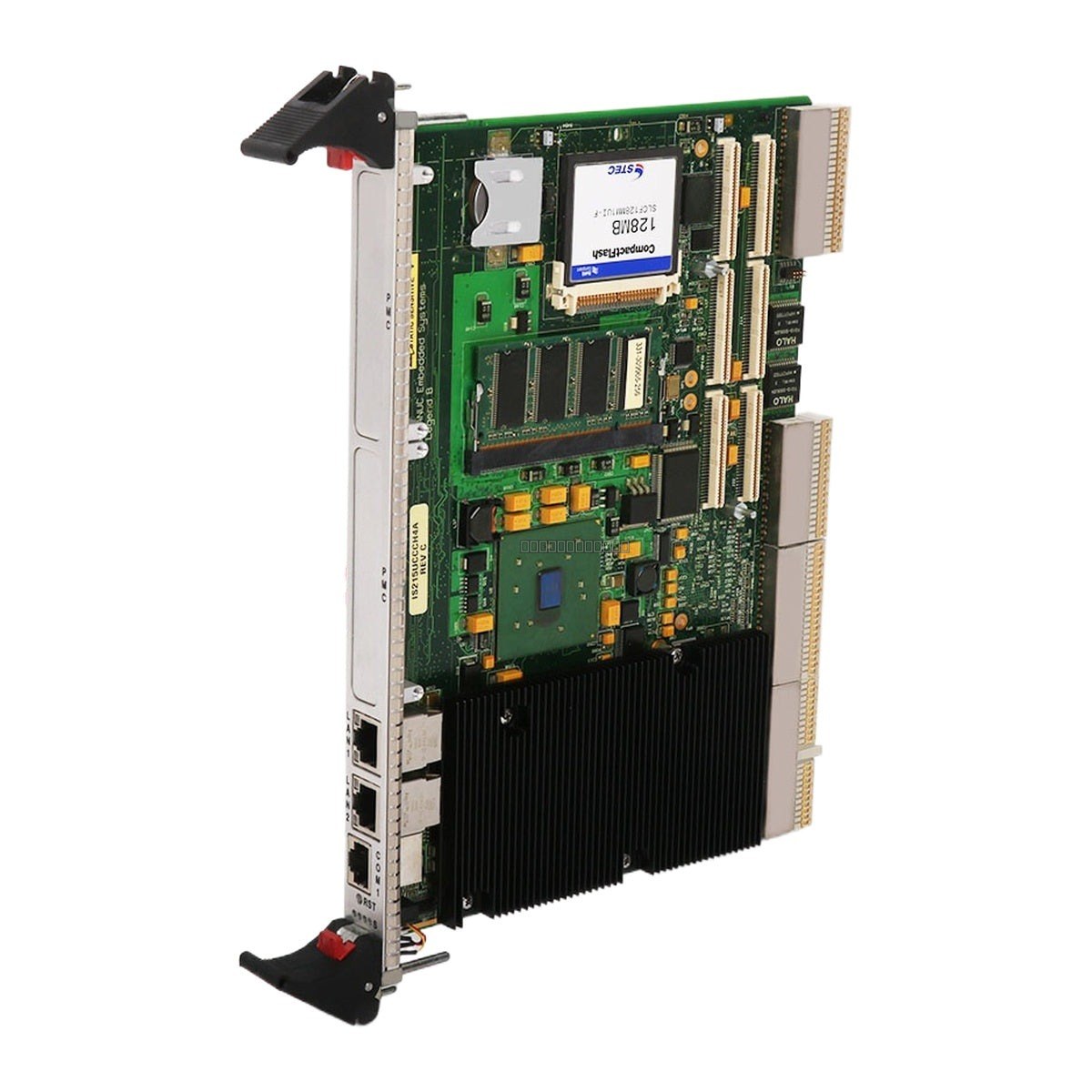

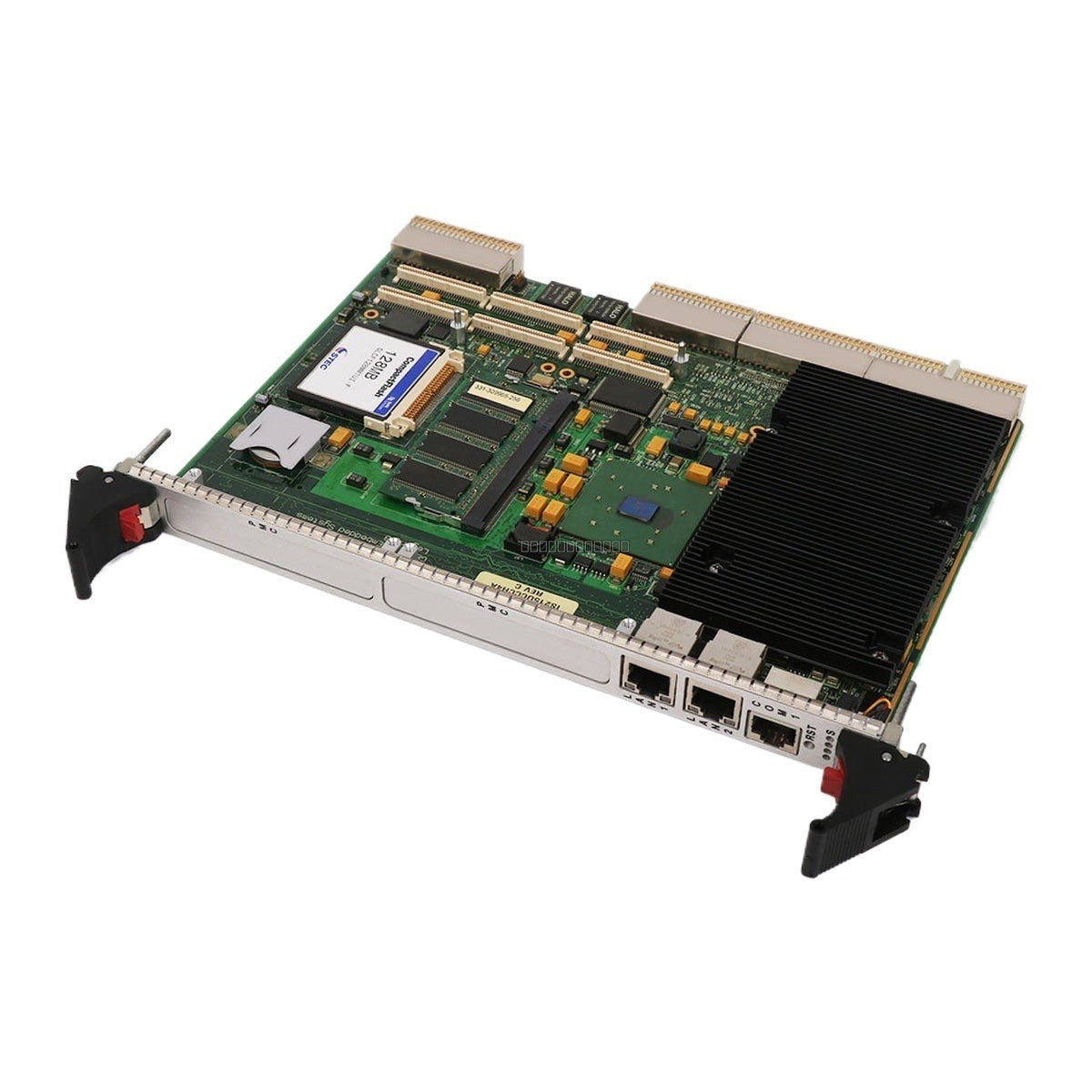

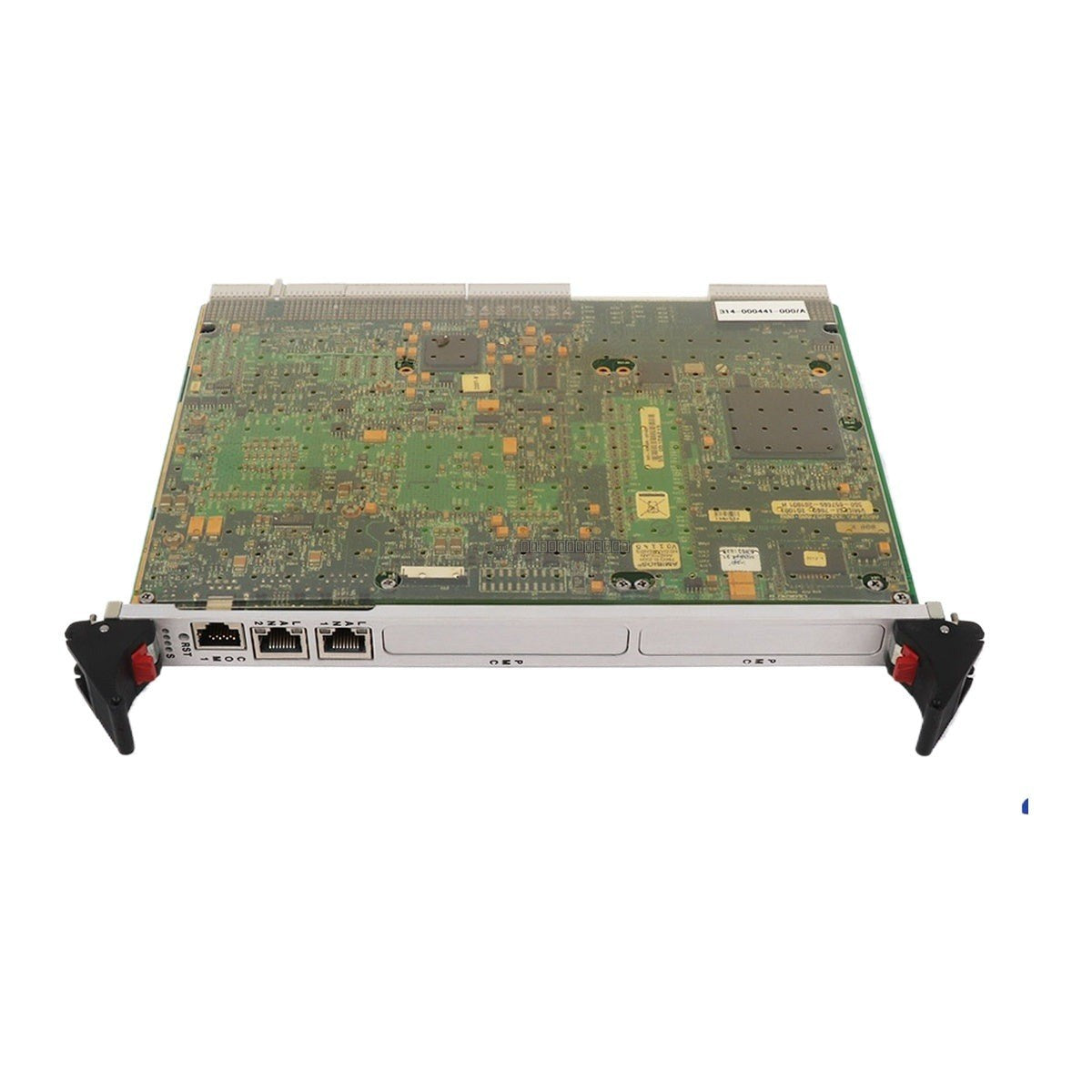

The IS215UCCCH4A is a high-performance VME/CompactPCI (cPCI) controller board engineered by General Electric for the Mark VIe control system. This module serves as a core processing unit in heavy-duty gas and steam turbine management, providing real-time control, data acquisition, and diagnostic capabilities. The assembly consists of the IS215UCCC H4 base processor card integrated with an IS200 EPMC daughter board.

Features

Intel Pentium M 1.6 GHz processor for high-speed control execution.
Equipped with 256 MB of DRAM and 128 MB of non-volatile flash memory.
Operates on the QNX Neutrino real-time operating system.
Features six Ethernet-style ports on the faceplate for UDH and IONet connectivity.
Integrated LED diagnostic indicators for real-time system status monitoring.
3U CompactPCI (cPCI) form factor for standard rack integration.

Applications

Gas and Steam Turbine Control (Fuel, speed, and temperature algorithms).
Industrial Automation and Process Control (Motor, valve, and energy management).
High-Precision Data Acquisition and UDH real-time diagnostics.
Combined Cycle Power Plant efficiency management.

Technical Specifications

Model	IS215UCCCH4A
Processor	Intel Pentium M 1.6 GHz
Memory	256 MB DRAM / 128 MB Flash
Form Factor	3U CompactPCI
Operating Voltage	3.3V
Communication Ports	6x Ethernet-style, RS-232, RS-422, RS-485
Data Bus Width	32-bit
Operating System	QNX Neutrino

Installation Guidelines

Ensure the system power is completely disconnected before inserting or removing the controller board.
The module is designed for a 3U cPCI rack; ensure proper alignment with the backplane pins to prevent mechanical damage during insertion.
Connect Unit Data Highway (UDH) or IONet cables to the designated RJ-45 ports as labeled on the faceplate.
For local diagnostics or DCS connection, use the COM1 or COM2 serial ports; ensure RS-232 cable lengths do not exceed 15 meters.
Maintain proper ventilation within the cabinet to ensure the processor operates within thermal limits.
Handle with standard ESD precautions to prevent damage to sensitive electronic components.

FAQ

What is the IS215UCCCH4A?

The GE IS215UCCCH4A is a VME controller board manufactured by General Electric for Mark VIe gas turbine control systems.

What is the form factor of the controller?

It is a modular 3U Compact PCI (cPCI) assembly that includes the IS200 EPMC daughter board and IS215UCCC H4 module.

What are the communication capabilities?

The faceplate is equipped with six Ethernet-style ports, each labeled for specific operational functions, allowing for extensive network connectivity and integration into the Mark VIe architecture.
