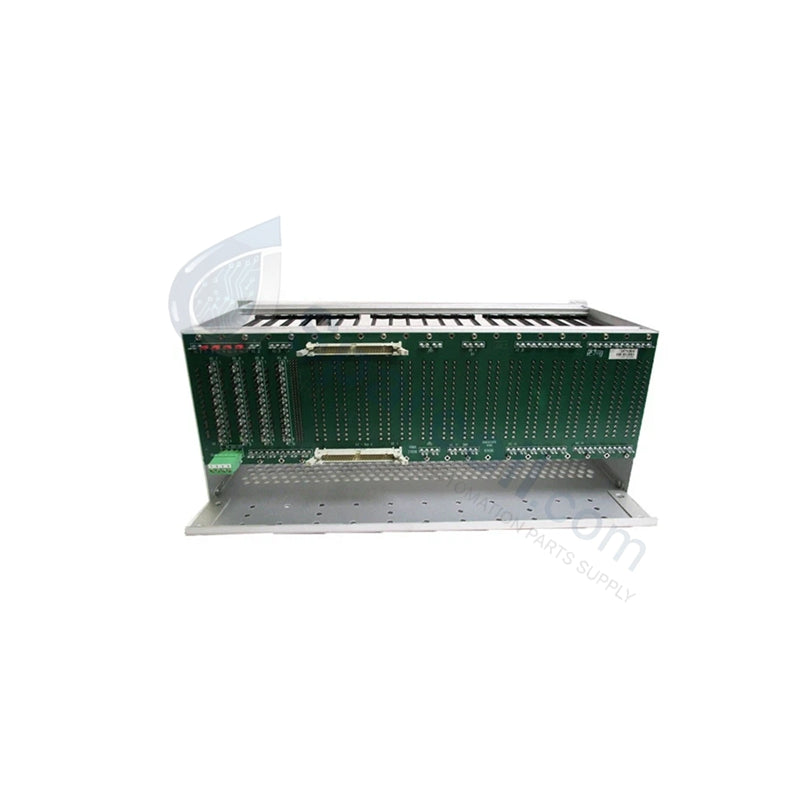

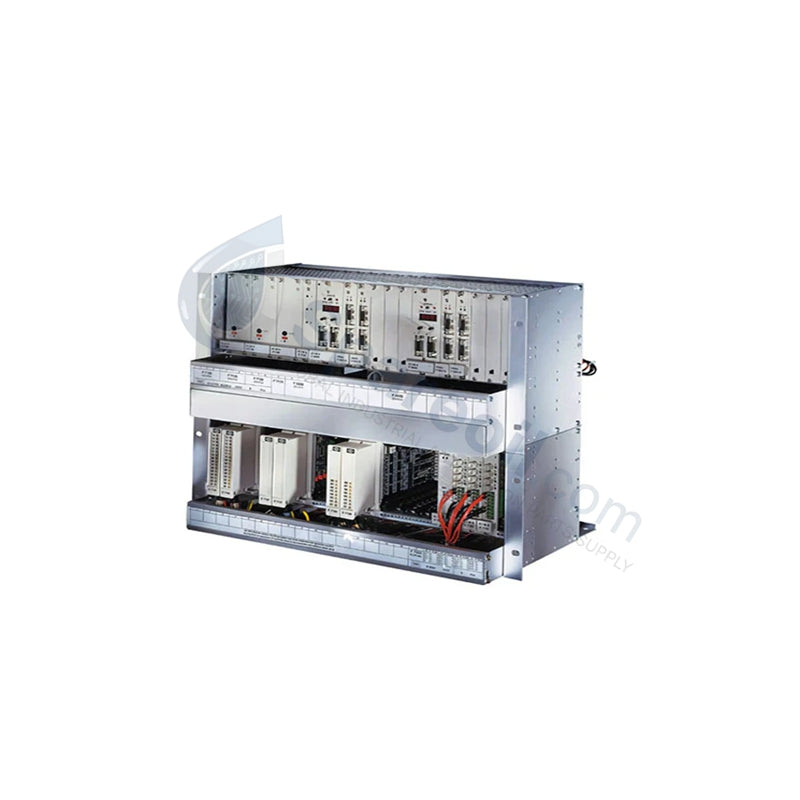

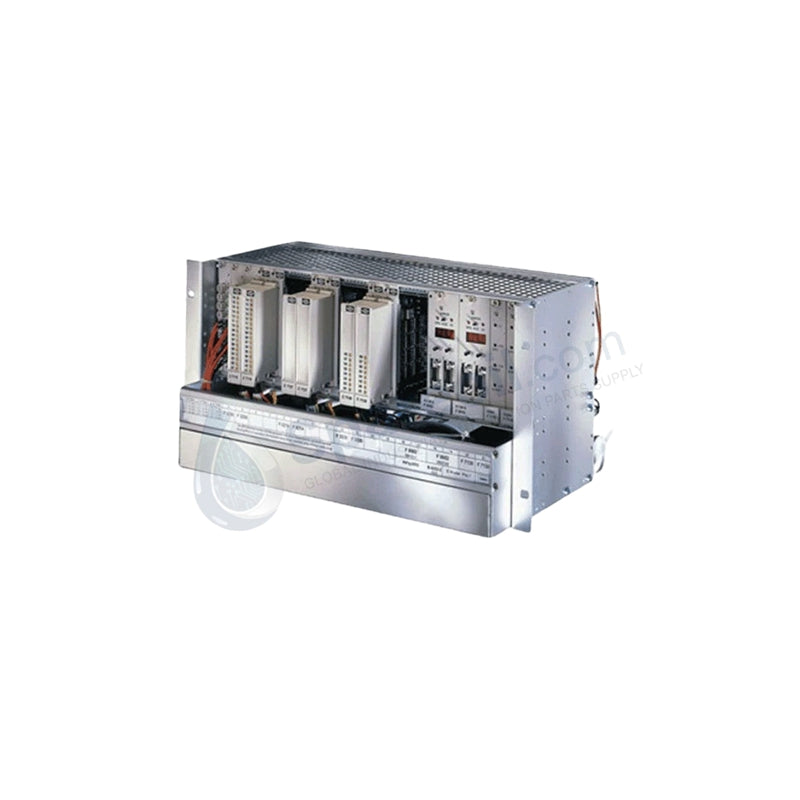

H51Q-HRS B5233-2 HIMA Safety Controller CPU Module

H51Q-HRS B5233-2 HIMA Safety Controller CPU Module | New Original Stock

Availability: 99 left in stock

HIMA H51Q-HRS B5233-2 HIQuad Safety Series The HIMA H51Q-HRS B5233-2, also cataloged as the B5233-2 Safety Controller CPU Module, operates...

SKU: H51Q-HRS B5233-2

Manufacturer: HIMA
Product No.: H51Q-HRS B5233-2
Product Type: CPU Processors
Product Origin: Germany
Payment:T/T, Western Union
Weight: 3700g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

HIMA H51Q-HRS B5233-2 HIQuad Safety Series

The HIMA H51Q-HRS B5233-2, also cataloged as the B5233-2 Safety Controller CPU Module, operates as a dedicated hardware component for safety logic execution and system rack integration within HIMA HIQuad platforms.

Hardware Specifications

Parameter	Specification
Model	H51Q-HRS B5233-2
Brand	HIMA
Origin	Germany
Weight	3.7 kg
Dimensions	30 x 25 x 30 cm
Operating Temp	0 to +60 deg C
Power Consumption	3-5 W
System Compatibility	HIMA HIQuad safety system
Safety Certification	SIL 3 (IEC 61508), TUV certified
Processor Hardware	1 GHz ARM Cortex-A9 / Redundant CPU architecture
Memory Capacity	1 GB DDR3
Dedicated I/O Array	16 DI, 16 DO, 8 AI, 4 AO
Communication Interfaces	Ethernet, USB, RS-232, Proprietary HIMA system bus
Execution Cycle Time	Deterministic, <20 ms typical
Redundancy Support	1oo2, 2oo3 configurations
Supply Voltage	5 VDC via backplane
Storage Temp	-40 to +85 deg C
Humidity Tolerance	5-95% RH, non-condensing
Protection Class	IP20 (rack mounted)

High Reliability Safety Control (SIS)

The processor module configuration complies with SIL 3 certification parameters by employing a dual-channel execution path paired with a deterministic cycle time under 20 ms. The architecture supports internal triple modular redundancy (TMR) 2oo3 architecture voting patterns to isolate physical node discrepancies across the active input/output registers. Galvanic isolation barriers protect the core processing unit from field-side voltage spikes, driving immediate fail-safe state execution through the proprietary system bus when safety thresholds are breached.

Frequently Asked Questions

Q: How does the B5233-2 processor handle hardware module replacement during active operations?

A: The architecture supports hot-swapping under fully powered backplane conditions, allowing a redundant CPU module to handle processing loads continuously without interrupting active safety logic.

Q: Can the internal memory structure be updated or flashed in the field?

A: Firmware flash compatibility and program updates are managed exclusively through the HIMA ELOP II Factory programming tool via secured Ethernet or RS-232 serial communication links.

Field Installation Guidelines

Mount the system rack assembly vertically within a grounded, climate-controlled enclosure providing a minimum index of IP54 protection. Ensure that all field-side I/O wires are routed inside metal wireways separated from high-current 3-phase AC power feeders to eliminate inductive noise coupling. External cable shields must connect directly to the master instrumentation earth busbar at a single point only. Maintain standard 100 mm clearances above and below the IP20 chassis to support unimpeded vertical convection air currents for component heat dissipation.
