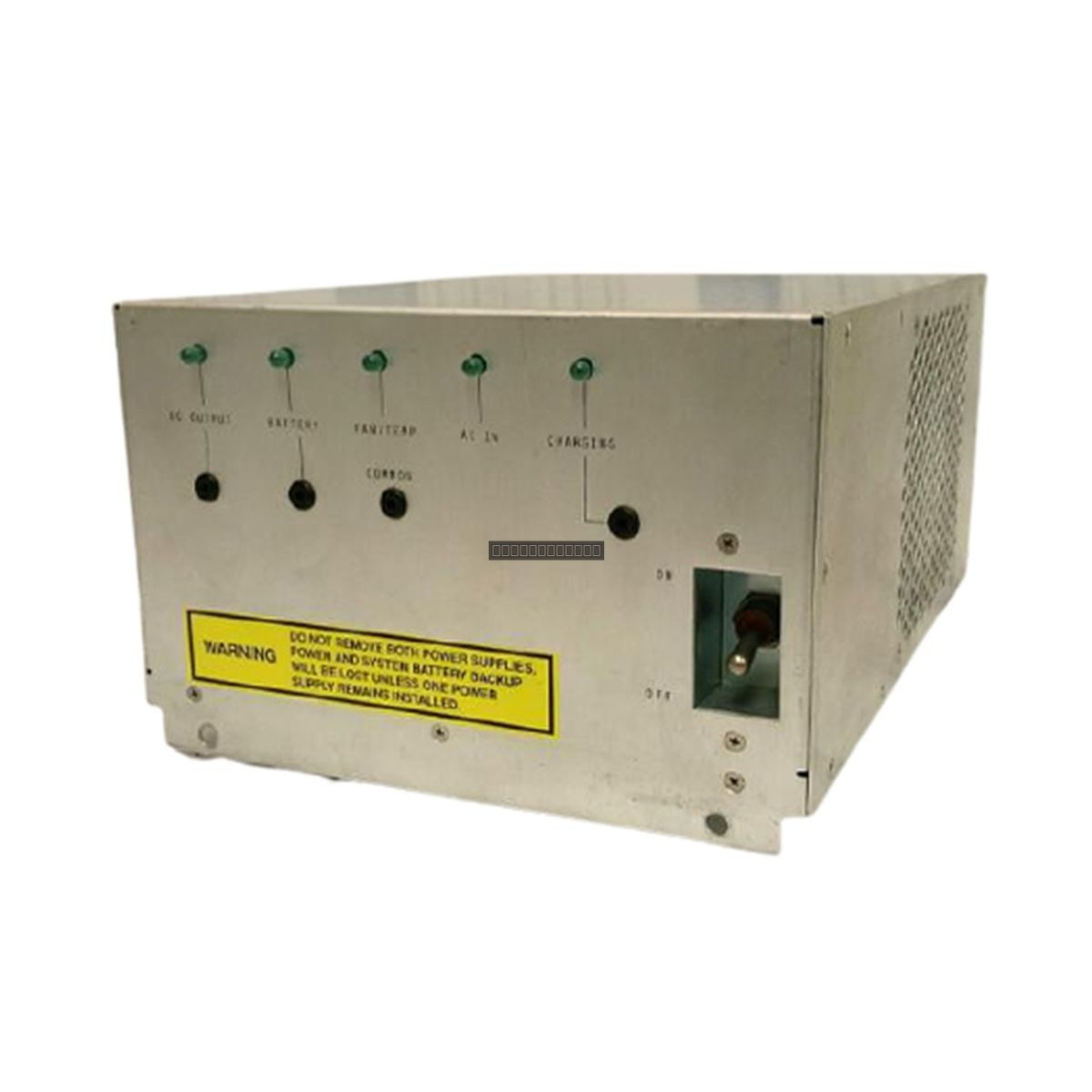

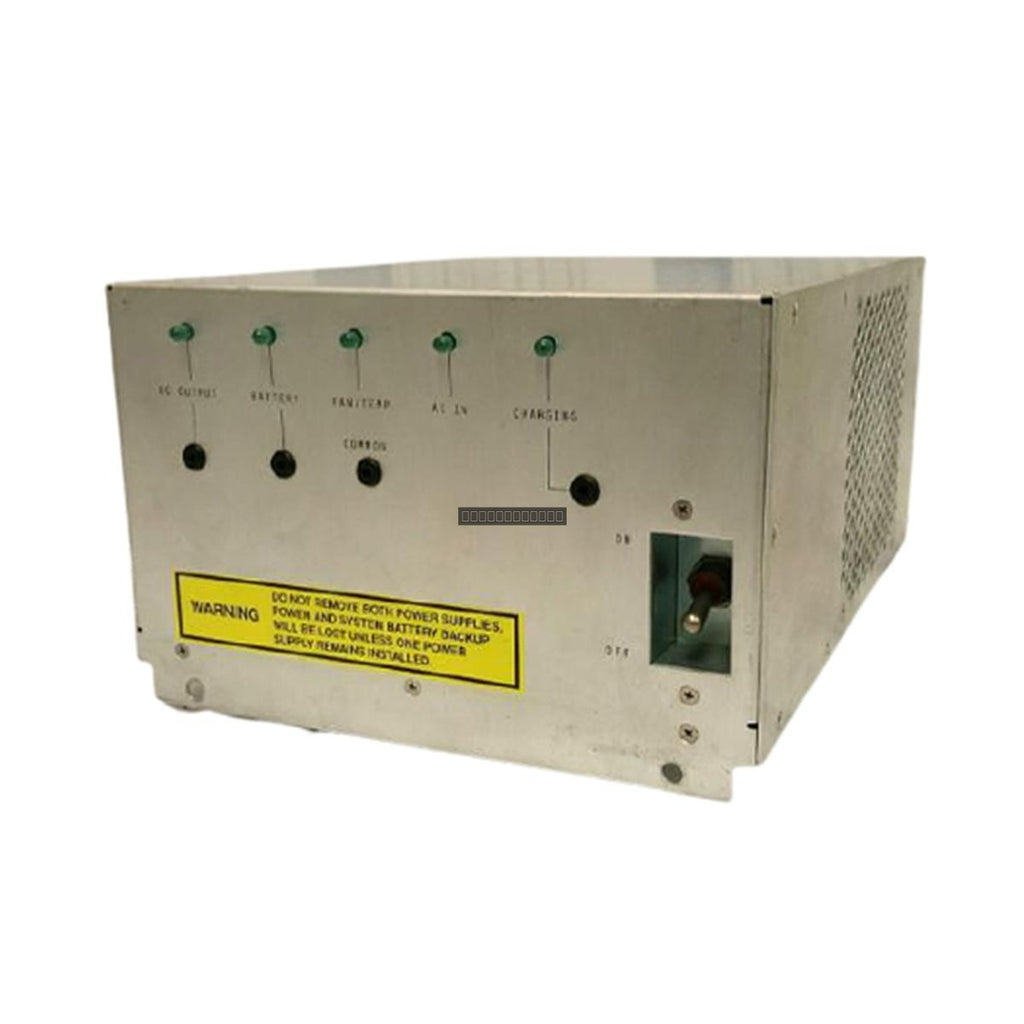

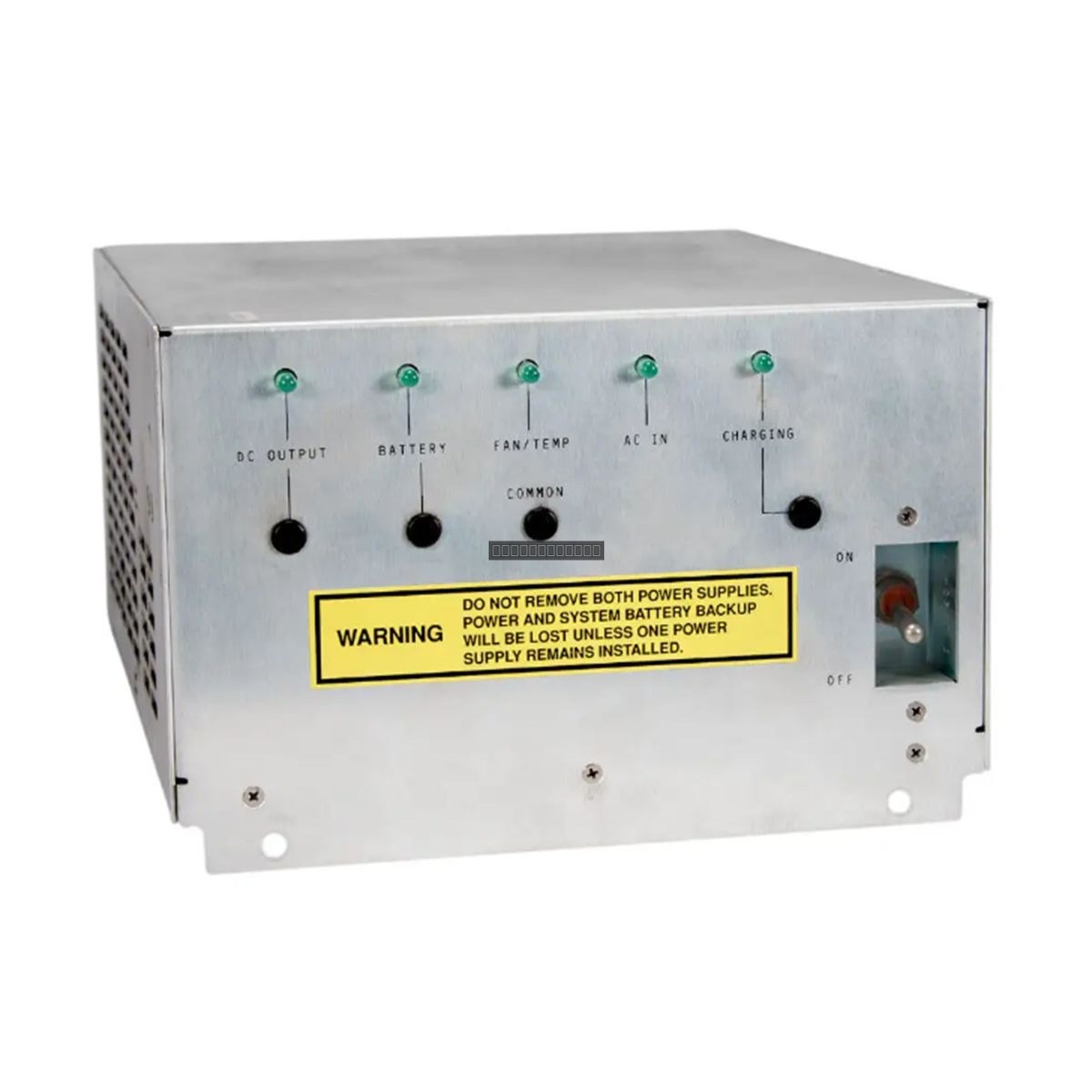

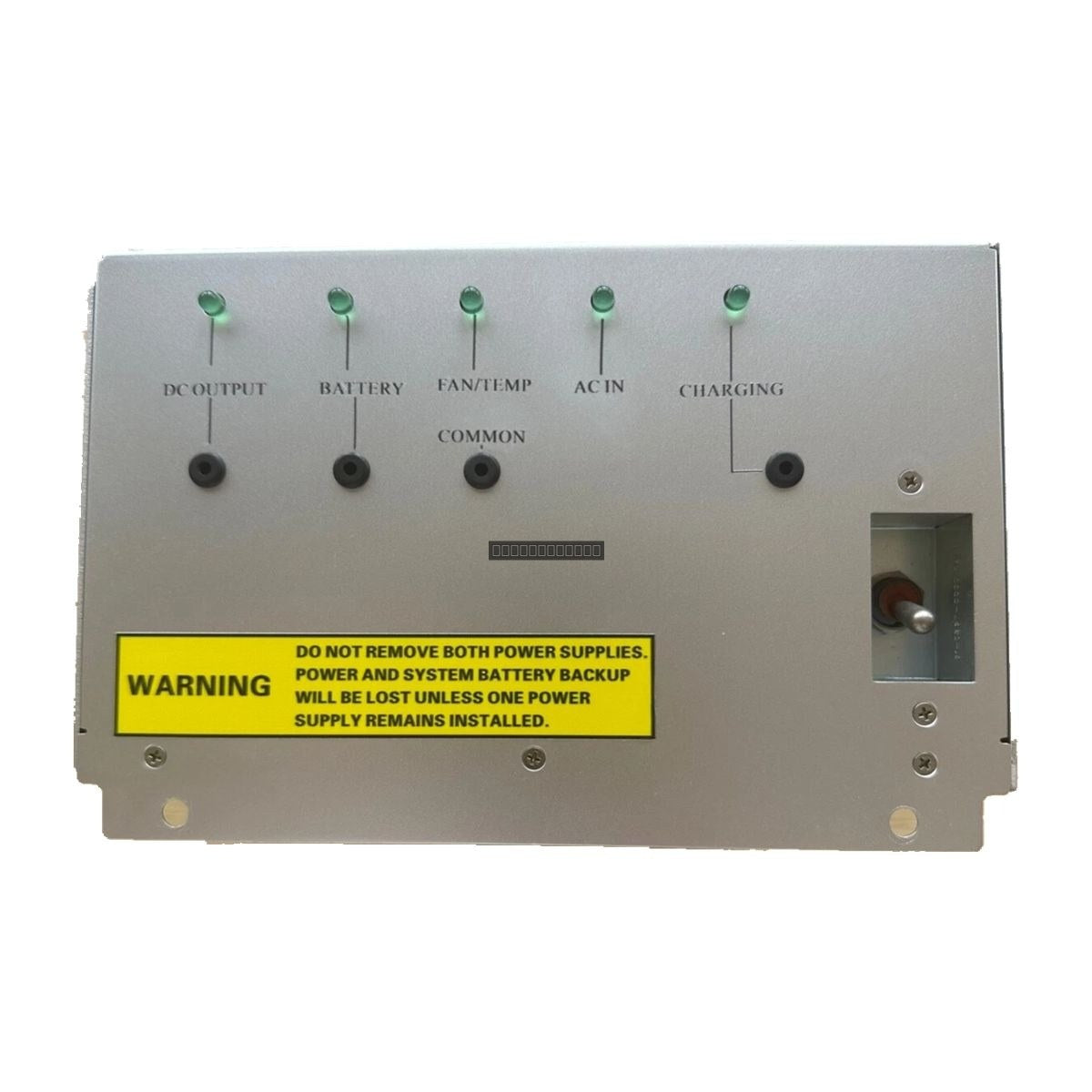

Honeywell 51109684-100 HPM Power Supply

Honeywell 51109684-100 HPM Power Supply Module

Availability: 7 left in stock

Product OverviewThe Honeywell 51109684-100 is a dedicated HPM power supply module engineered to provide reliable, regulated DC power distribution within...

SKU: 51109684-100

Manufacturer: Honeywell
Product No.: 51109684-100
Product Type: Power Supply Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 3800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 51109684-100 is a dedicated HPM power supply module engineered to provide reliable, regulated DC power distribution within Honeywell distributed control systems. This unit is designed for high-availability industrial environments, ensuring consistent power delivery to controllers and I/O assemblies to prevent downtime in critical process control applications.

Features

High Power Capacity: Delivers 550 W output to support complex control loads and multiple I/O modules.
Universal Input: Supports 115 VAC and 240 VAC inputs, with automatic frequency adaptation for 50 Hz or 60 Hz power grids.
Industrial Reliability: Built with Level 6 power architecture to maintain operational stability during voltage fluctuations.
Robust Protection: Integrated circuitry provides thermal protection and overload management to safeguard sensitive control hardware.
Continuous Duty: Designed for 24/7 operation in demanding sectors such as petrochemical, power generation, and large-scale manufacturing.

Applications

This power supply is primarily utilized within Honeywell HPM (High-Performance Process Manager) control racks. It is suitable for deployment in refinery control rooms, mining automation, and heavy manufacturing facilities where stable power is a prerequisite for system integrity.

Technical Specifications

Model	51109684-100
Output Power	550 W
Input Voltage	115 / 240 VAC
Input Frequency	50 / 60 Hz
Max Input Current	10 A AC
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Cooling Method	Passive

Installation Guidelines

Rack Mounting: Ensure the module is securely seated in the designated HPM rack slot to maintain proper electrical contact and structural stability.
Airflow: As this module utilizes passive cooling, ensure that the control cabinet provides adequate ventilation and that the module's cooling vents remain unobstructed.
Power Safety: Always disconnect the main AC power source before installing or removing the module from the rack to prevent electrical arcing or damage to the backplane.
Environment: Install in a clean, dry environment within the specified temperature range to ensure maximum service life.
Grounding: Verify that the control cabinet and chassis are properly grounded to mitigate EMI and protect against surge events.

FAQ

What is the primary function of the 51109684-100?
This module acts as the primary power source for Honeywell HPM controllers, converting standard AC input into stable DC voltage for the control rack.

Does this unit require active cooling?
No, the 51109684-100 is designed for passive industrial airflow; ensure the cabinet environment is well-ventilated.

Is this module compatible with both 115V and 240V systems?
Yes, the unit supports dual input ranges, making it suitable for a wide variety of global industrial power infrastructures.
