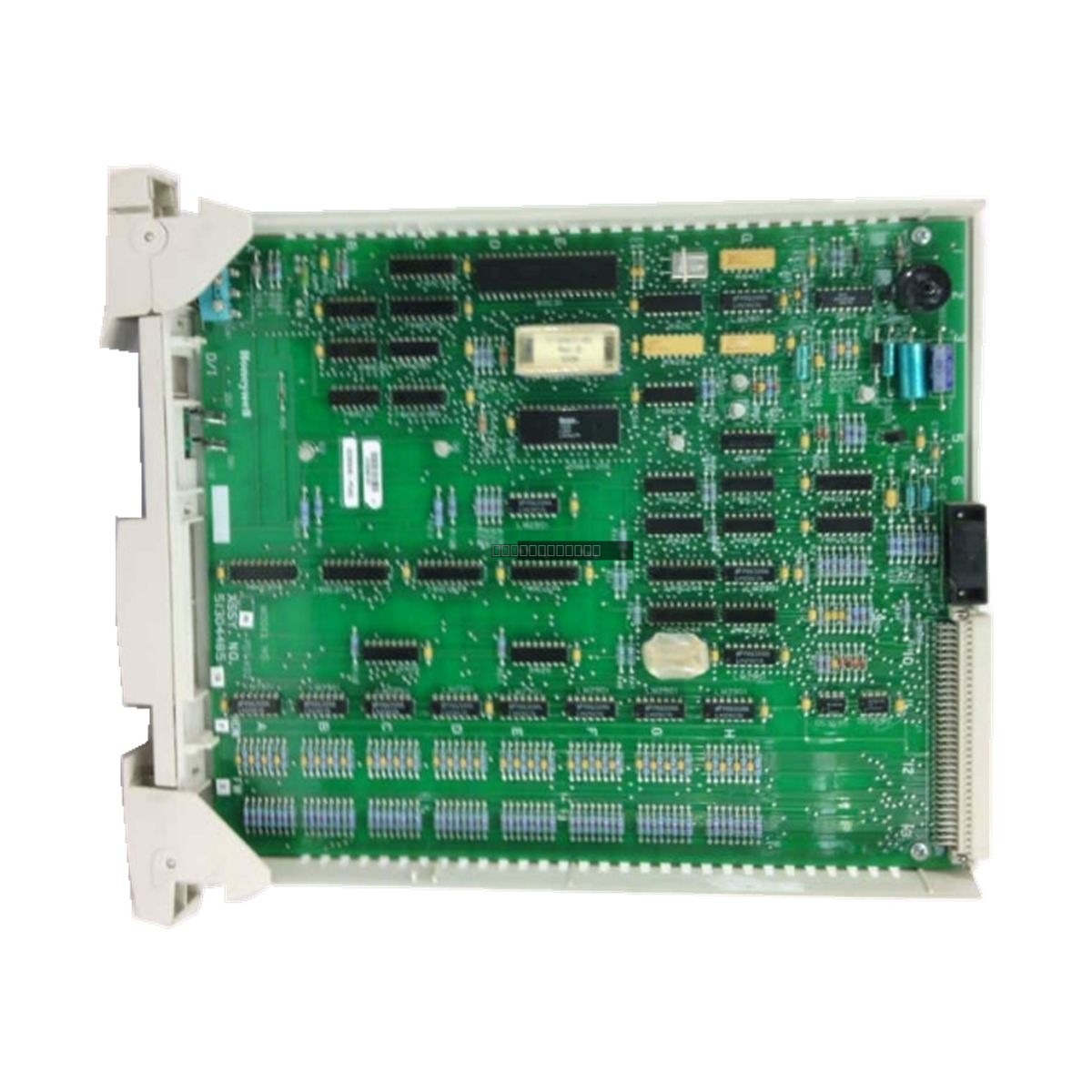

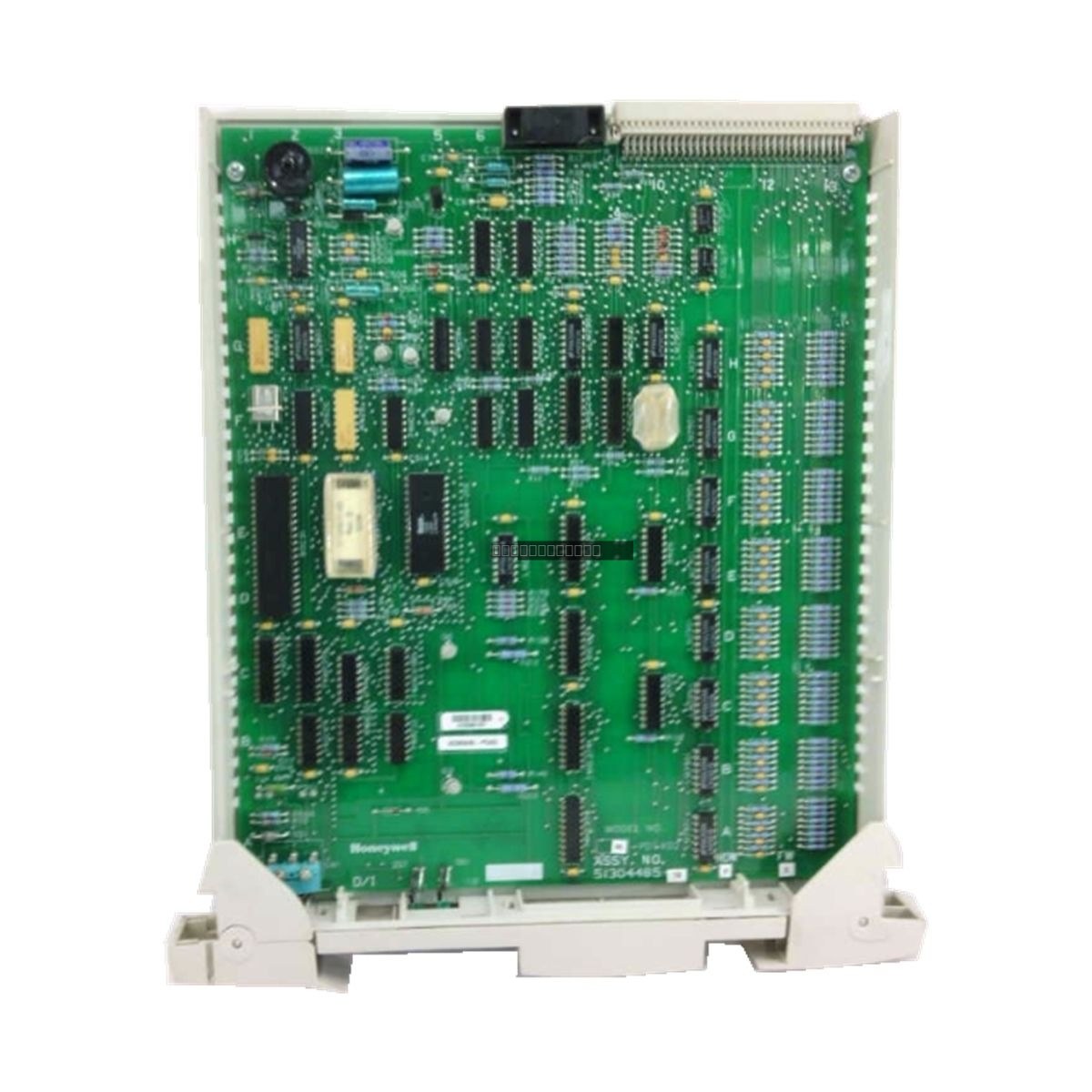

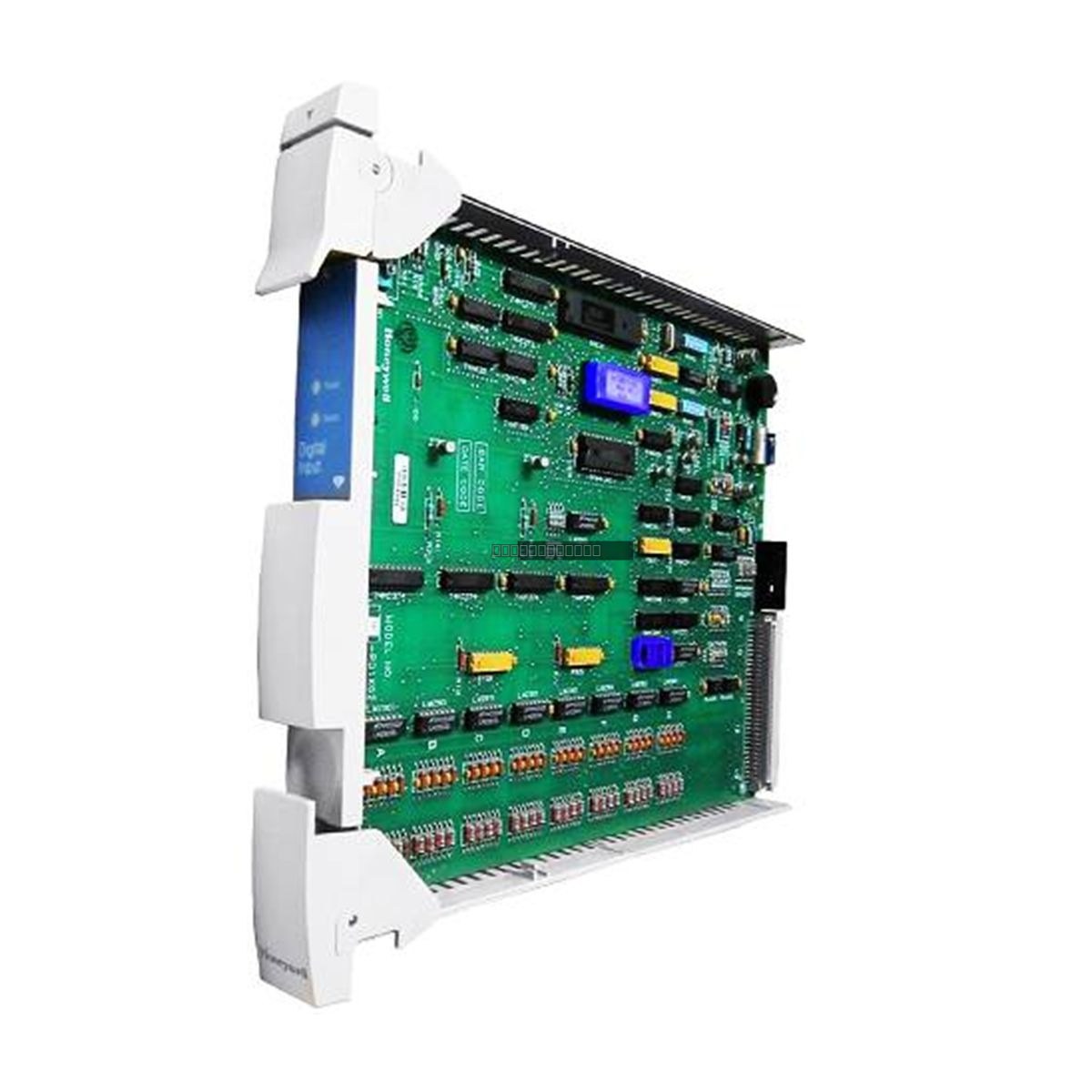

Honeywell 51304485-150 MC-PDIX02 Digital Input Module

Availability: 7 left in stock

DescriptionThe Honeywell MC-PDIX02 (51304485-150) is a high-density digital input processor module engineered for the Fault Tolerant Ethernet (FTE) and FSC...

SKU: 51304485-150 MC-PDIX02

Manufacturer: Honeywell
Product No.: 51304485-150 MC-PDIX02
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 660g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell MC-PDIX02 (51304485-150) is a high-density digital input processor module engineered for the Fault Tolerant Ethernet (FTE) and FSC (Fail Safe Controller) systems. This module provides 32 isolated input channels designed to interface with field-side discrete signals, ensuring reliable status monitoring within demanding industrial control environments. This specific unit features conformally coated electronics, providing enhanced protection against environmental contaminants such as moisture, dust, and corrosive gases.

Features

32 independent digital input channels for high-density signal processing.
Conformal coating applied to circuit boards for increased durability in harsh industrial conditions.
Supports a wide range of input voltage levels including 24 VDC and 120/240 VAC applications.
Galvanic isolation rated at 1500 VAC RMS or ±1500 VDC to protect the controller from field-side electrical transients.
Designed for integration with Honeywell FSC safety controller architectures.

Technical Specifications

Model	MC-PDIX02
Part Number	51304485-150
Input Channels	32
Input Frequency	DC to 15 Hz
ON Condition Voltage	20 VDC minimum
OFF Condition Voltage	10 VDC maximum
ON Condition Sense Current	4.5 mA minimum
OFF Condition Sense Current	2.8 mA maximum
Isolation	1500 VAC RMS / ±1500 VDC

Installation Guidelines

Ensure the controller chassis is powered down before inserting or removing the MC-PDIX02 module to prevent electrical damage.
Verify that the module is fully seated in the designated slot and that the locking mechanisms are engaged.
Follow proper ESD (Electrostatic Discharge) protocols when handling the module to prevent damage to sensitive internal components.
Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise environments.
Ensure that the module's conformal coating is not compromised during installation or wiring.

FAQ

What is the primary function of the MC-PDIX02 module? The MC-PDIX02 is a digital input processor module used to monitor 32 discrete field inputs within a Honeywell control system, facilitating safe and reliable data acquisition.

Does this module require specific environmental handling? Yes, this module features conformal coating. While it offers improved resistance to environmental factors, it should still be stored and operated within the manufacturer's specified temperature and humidity ranges to ensure long-term reliability.

Is this module compatible with 120/240 VAC signals? The MC-PDIX02 is designed to support these voltage levels; however, users should always verify the specific wiring configuration against the system documentation for their particular installation.
