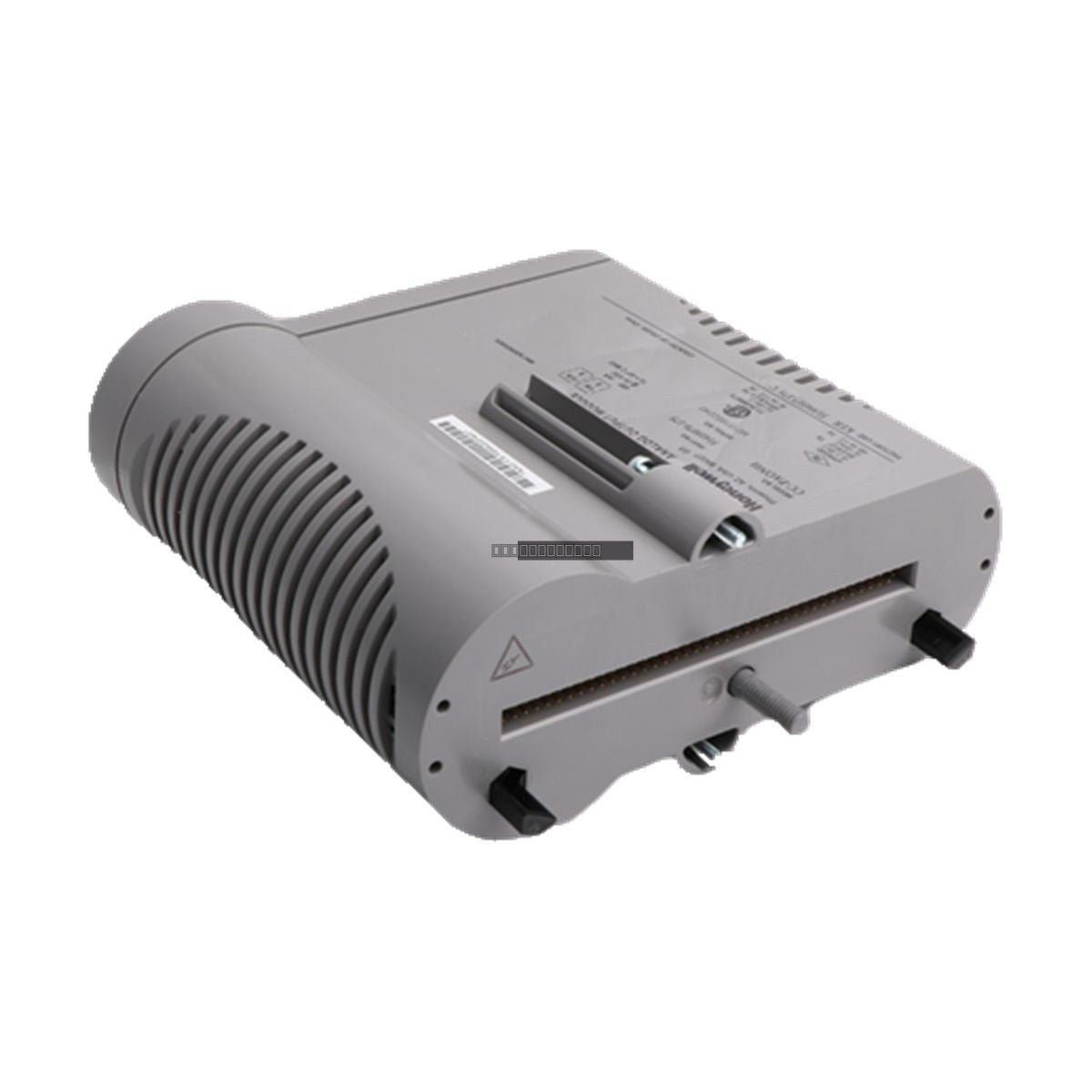

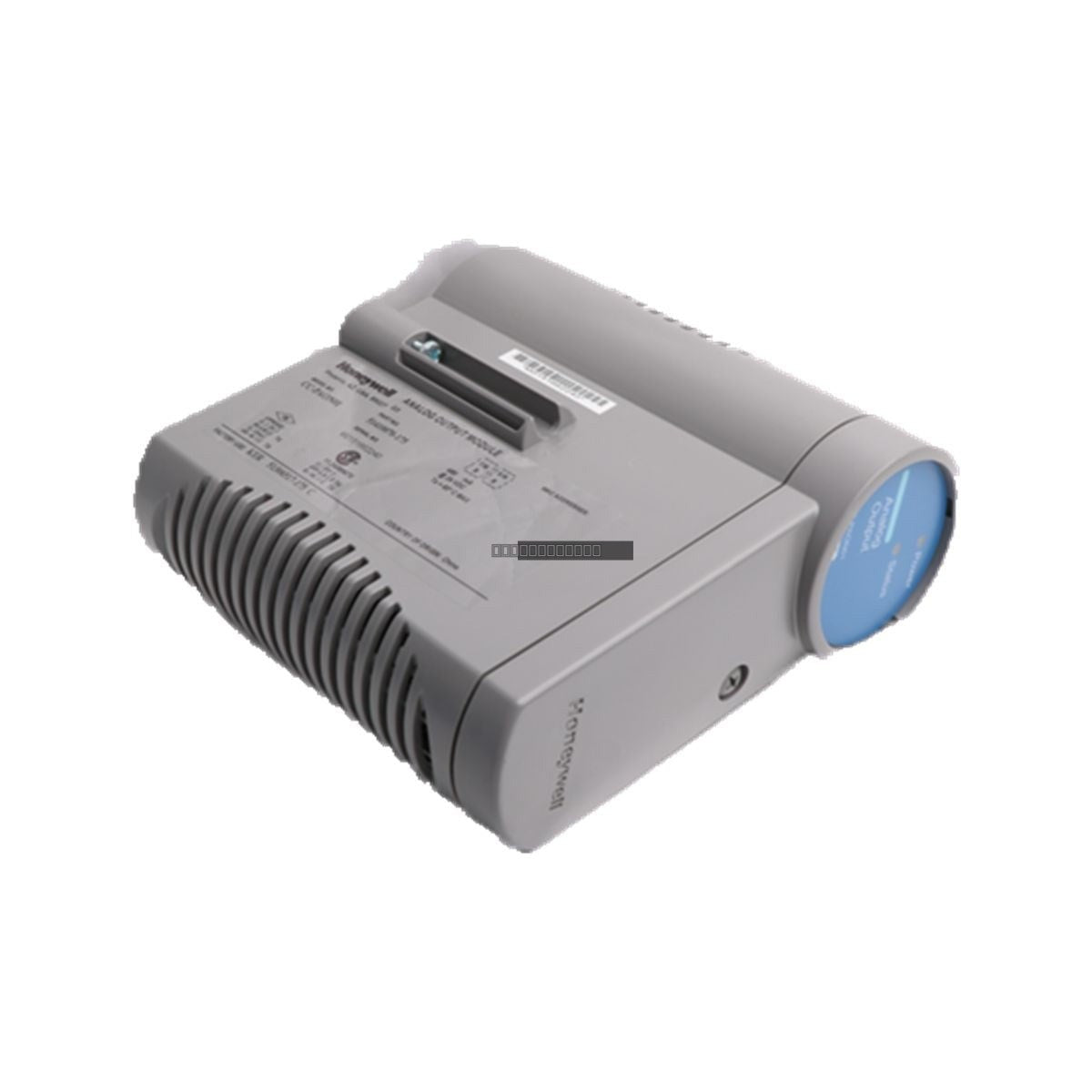

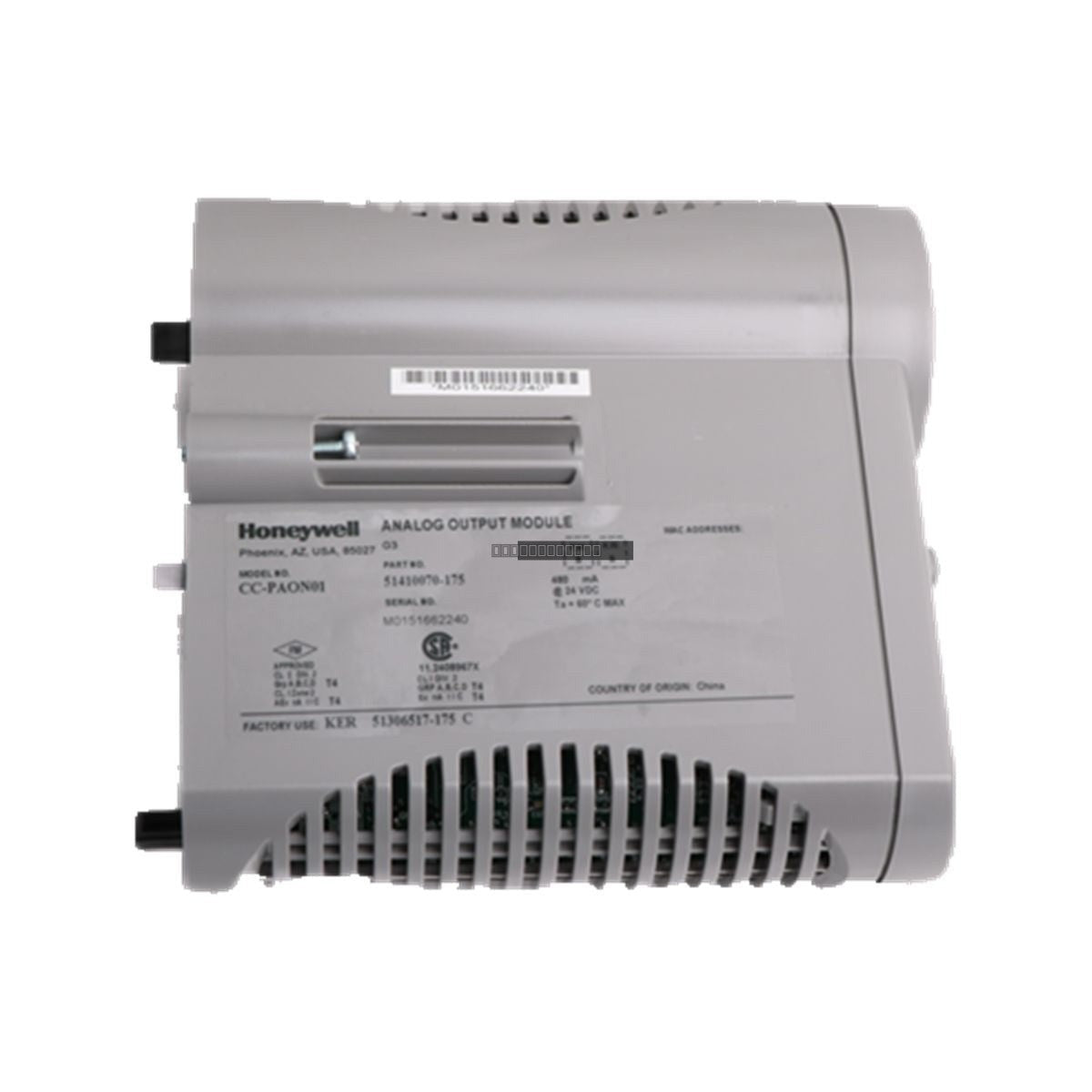

Honeywell CC-PAON01 51410070-176 16-Channel Analog Output Module

Honeywell CC-PAON01 51410070-176 Analog Output Module

Availability: 5 left in stock

DescriptionThe Honeywell CC-PAON01 (51410070-176) is a high-performance Analog Output Module designed for use within the Honeywell Experion PKS Distributed Control...

SKU: CC-PAON01 51410070-175

Manufacturer: Honeywell
Product No.: CC-PAON01 51410070-175
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell CC-PAON01 (51410070-176) is a high-performance Analog Output Module designed for use within the Honeywell Experion PKS Distributed Control System (DCS). This module provides 16 isolated analog output channels, typically used to drive field devices such as actuators, positioners, and I/P converters in industrial process control environments. It ensures precise control signal delivery with high resolution and low temperature drift.

Features

16-channel analog output capability for high-density control applications.
Standard 4-20 mA output signal range with support for extended ranges (2.9 mA to 21.1 mA).
High output accuracy with a calibrated accuracy of ± 0.35% of full scale.
Integrated readback functionality for enhanced diagnostic coverage and loop integrity monitoring.
Robust design suitable for operation in demanding industrial environments up to 60 degC ambient temperature.

Applications

This module is engineered for critical process control loops in industries such as oil and gas, chemical processing, power generation, and water treatment. It is primarily utilized for modulating control valves, variable frequency drives (VFDs), and other final control elements requiring a steady DC current signal.

Technical Specifications

Parameter	Specification
Model	CC-PAON01 (51410070-176)
Output Channels	16
Output Type	4-20 mA
Resolution	± 0.05% of Full Scale
Calibrated Accuracy	± 0.35% of Full Scale (at 25 degC)
Output Current Linearity	± 0.05% of Full Scale nominal
Max Resistive Load	800 ohms
Max Output Compliant Voltage	16 V
Max Open Circuit Voltage	22 V
Output Ripple	< 100 mV peak-to-peak
Power Requirements	24 VDC, 480 mA
Max Ambient Temperature	60 degC

Installation Guidelines

Ensure the control system is powered down before installing or removing the module from the I/O rack to prevent electrical damage.
Verify that the module is correctly seated in the chassis and that all terminal connections are secure.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) and noise pickup.
Maintain proper grounding practices for the I/O rack to ensure signal integrity and protection against surges.
Ensure adequate ventilation in the cabinet to maintain ambient temperatures below the 60 degC rating.
Handle the module using ESD-safe procedures to prevent damage to sensitive internal electronic components.

FAQ

What is the primary function of the CC-PAON01 module?

The CC-PAON01 is an analog output module used in Honeywell DCS systems to convert digital control signals into 4-20 mA current signals to operate field instruments like control valves.

Does this module support readback?

Yes, the module features output readback capability with an accuracy of ± 4% of full scale, allowing the controller to verify the actual current delivered to the field device.
