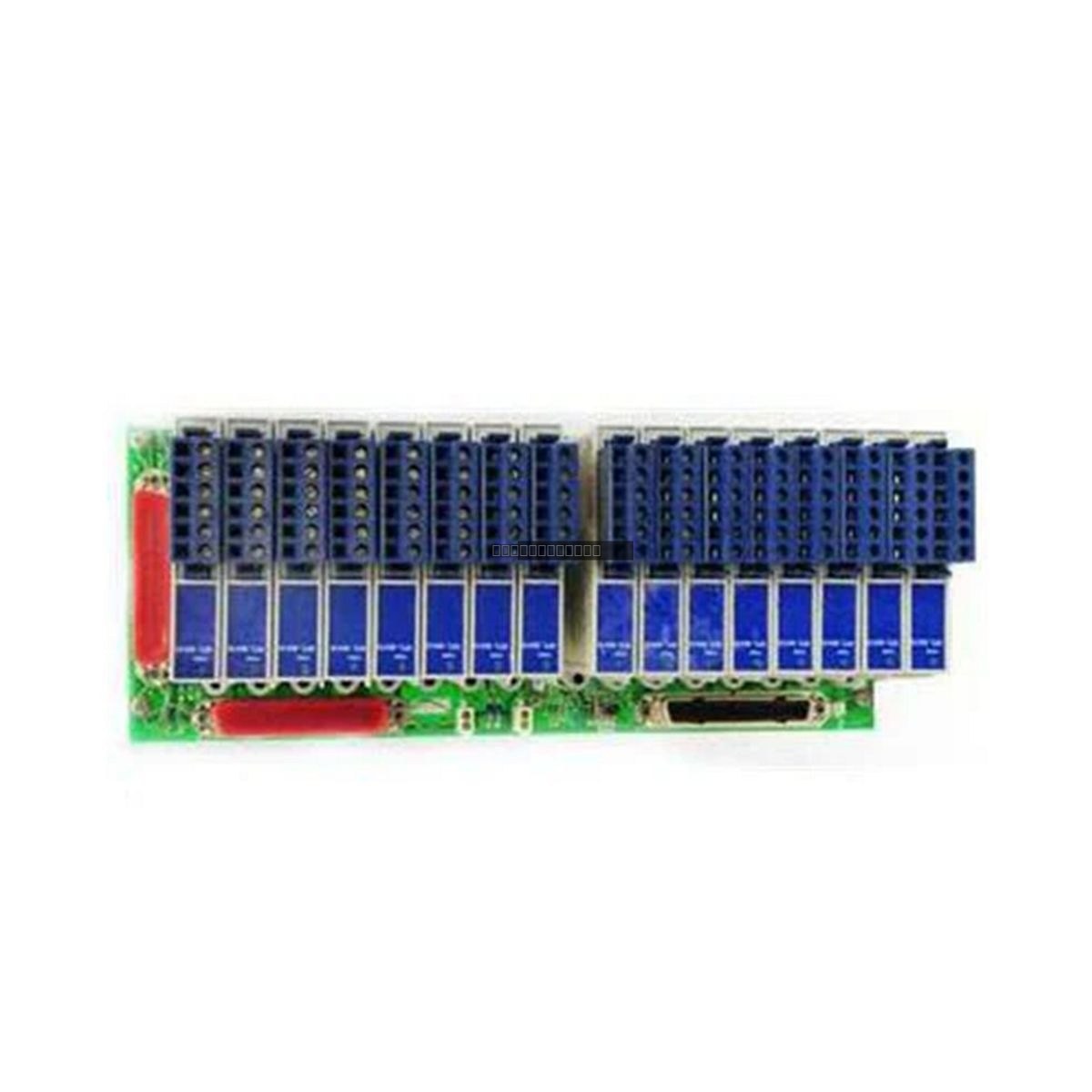

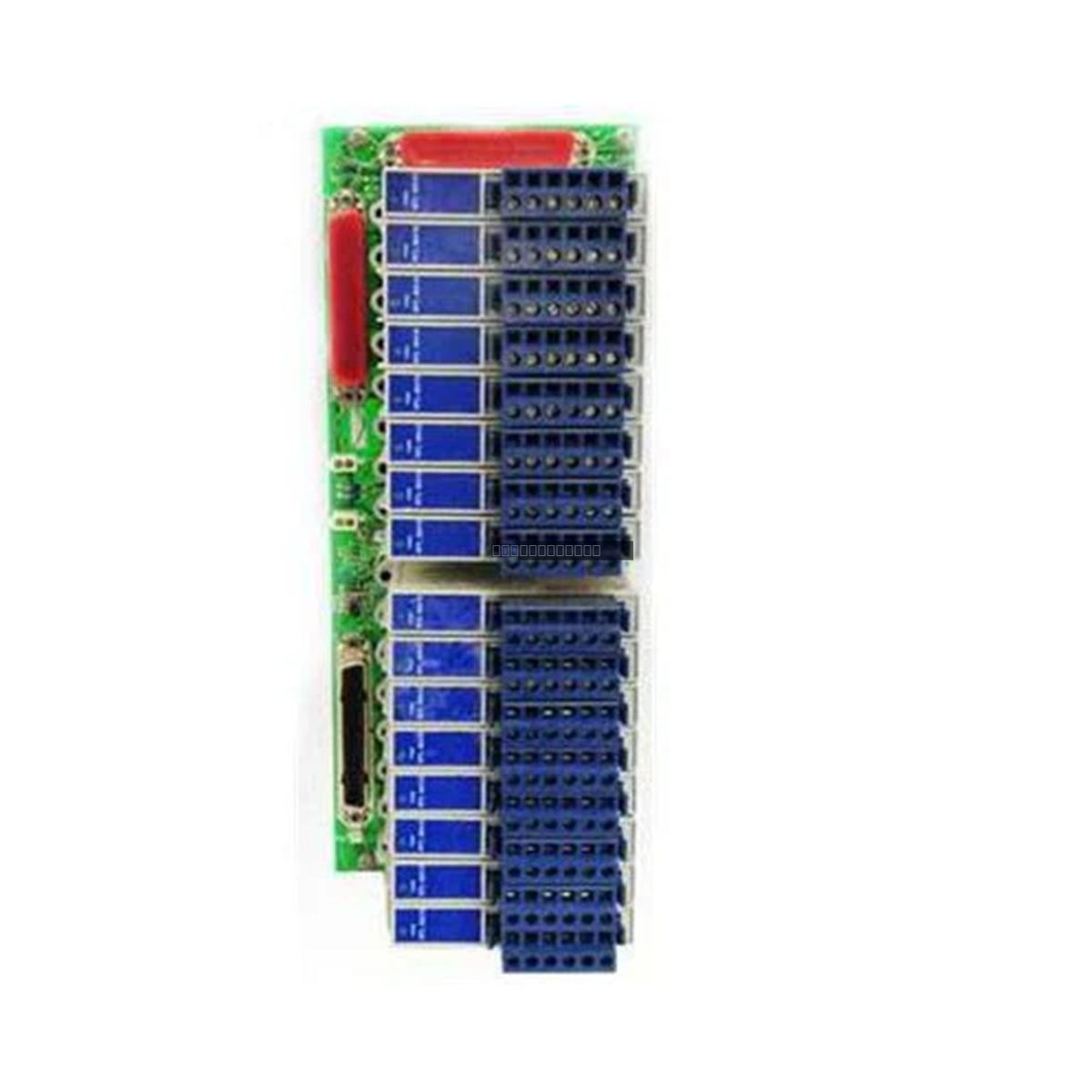

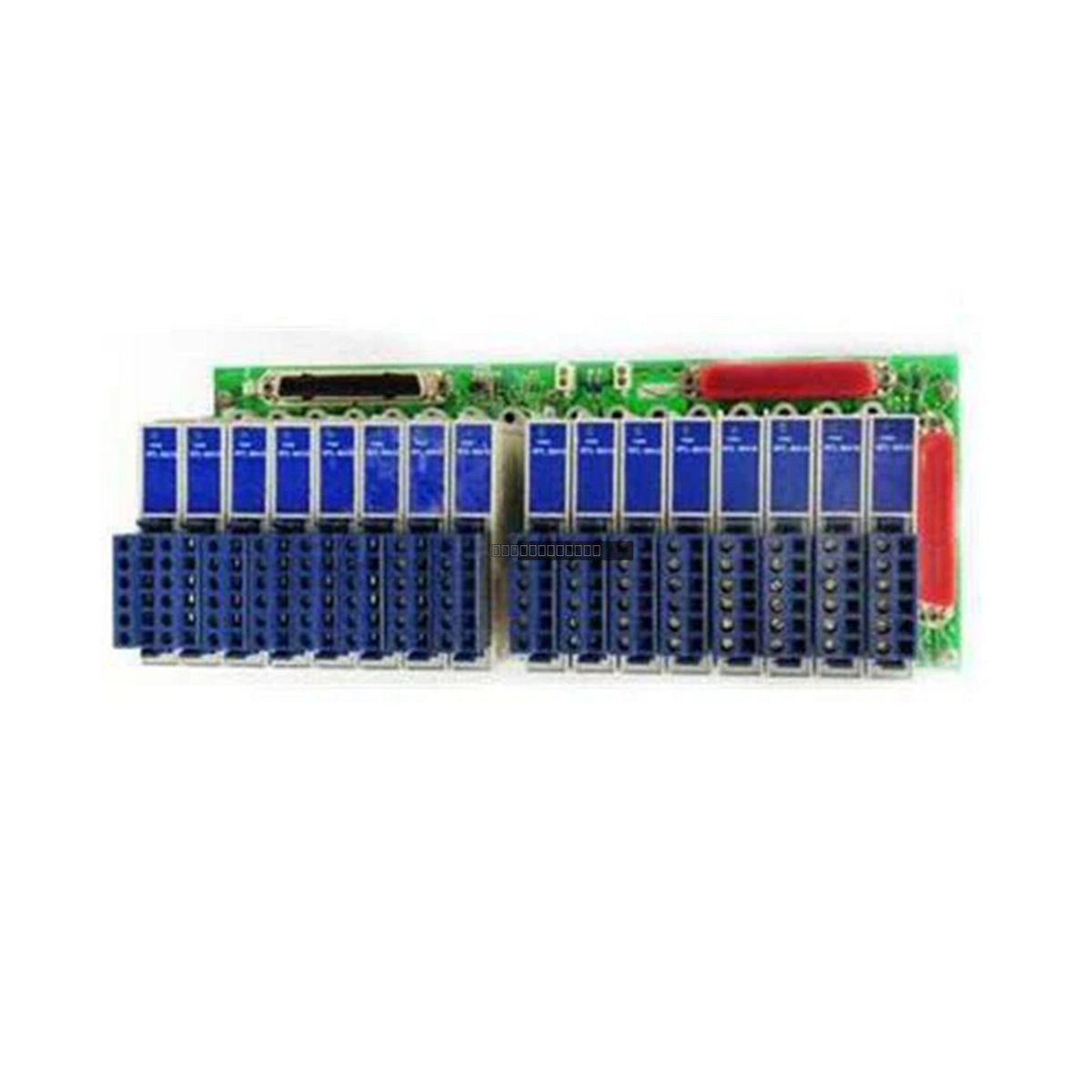

Honeywell MU-GAIH14 Analog Input Field Termination Assembly (FTA)

Availability: 8 left in stock

Description The Honeywell MU-GAIH14 is a 16-channel analog input Field Termination Assembly (FTA) engineered for industrial process control and safety...

SKU: MU-GAIH14

Manufacturer: Honeywell
Product No.: MU-GAIH14
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell MU-GAIH14 is a 16-channel analog input Field Termination Assembly (FTA) engineered for industrial process control and safety systems. This module serves as a critical interface between field-mounted transmitters and the distributed control system (DCS), facilitating reliable signal acquisition and galvanic isolation. It is designed to handle standard 4-20 mA process signals, ensuring high signal integrity in both hazardous and non-hazardous industrial environments.

Features

16-channel analog signal acquisition capacity.
Galvanic isolation to prevent ground loop interference and protect control system electronics.
Supports 2-wire and 3-wire transmitters with floating DC excitation.
Compatible with smart transmitters, allowing for HART digital communication signals superimposed on the analog loop.
Provides a 1 to 5 VDC output signal to the associated high-level analog input modules.
Robust design suitable for continuous operation in demanding process environments.

Applications

The MU-GAIH14 is widely utilized in process automation sectors, including:

Refinery and petrochemical control loops.
Power generation monitoring and instrumentation.
Chemical process control systems.
Any application requiring high-density, isolated analog signal conditioning.

Technical Specifications

Model	MU-GAIH14
Input Channels	16
Signal Type	4-20 mA analog input
Output Signal	1 to 5 VDC
Power Requirement	24 VDC (approx. 1.2 A)
Operating Temperature	-20 to 60 deg C
Storage Temperature	-40 to 85 deg C
Terminal Type	C screw terminal
Mounting Format	B standard rack mount

Installation Guidelines

Ensure all power is disconnected from the rack before inserting or removing the FTA module.
Verify that the module is securely seated in the B-format rack slot to ensure proper backplane connection.
Use shielded cabling for field inputs to minimize EMI/RFI interference.
Ensure proper grounding of the FTA chassis to the system common ground to maintain galvanic isolation integrity.
Follow standard ESD handling procedures when touching internal components or connector pins.
Maintain adequate ventilation around the rack to ensure the operating temperature remains within the specified -20 to 60 deg C range.

FAQ

Does this module support HART communication?
Yes, the MU-GAIH14 is designed to pass through HART digital communication signals superimposed on the 4-20 mA analog loop, allowing for remote configuration and diagnostics.

What is the primary function of the 1 to 5 VDC output?
The 1 to 5 VDC signal is the standard output provided to the system's high-level analog input cards, ensuring electrical separation between the field devices and the control system electronics.
