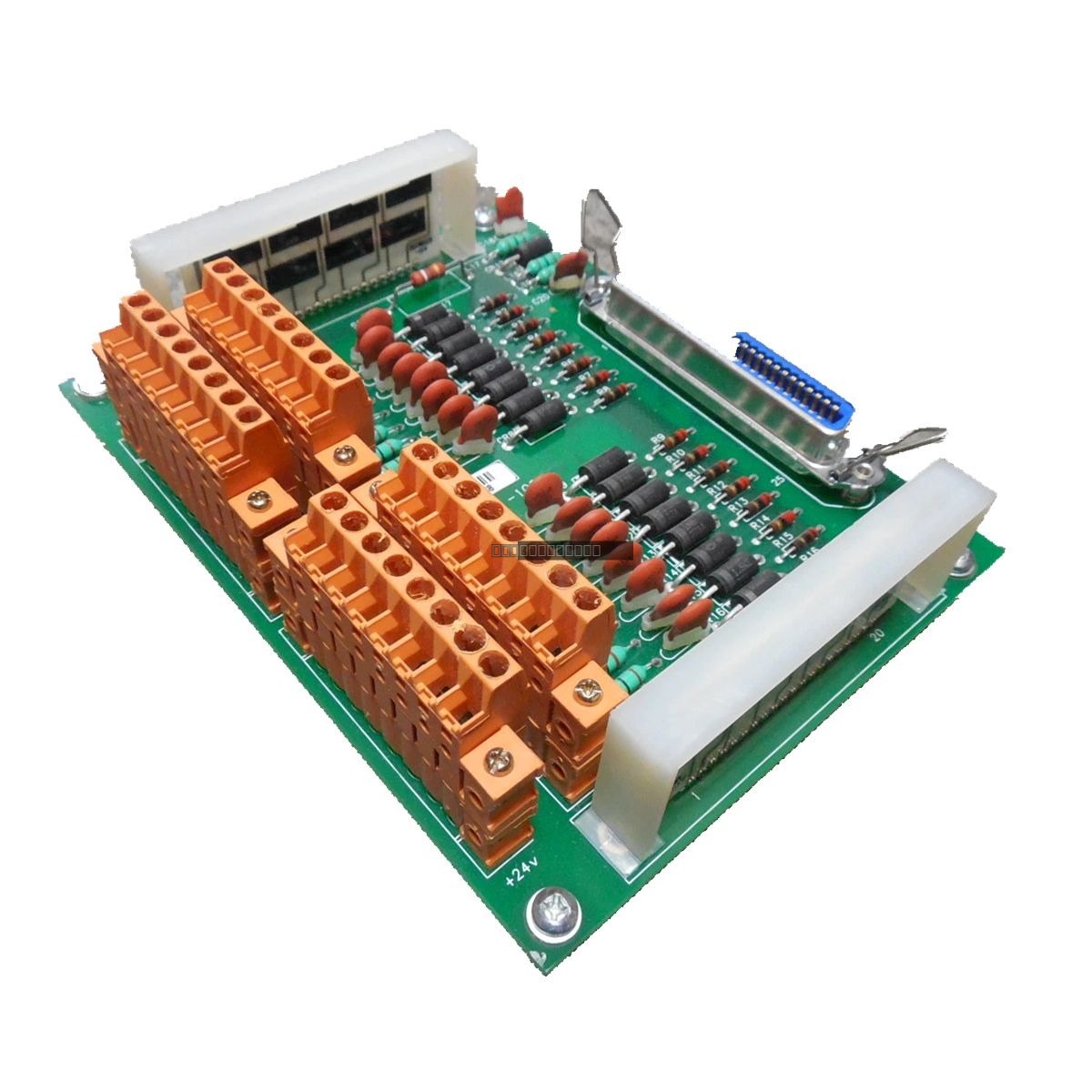

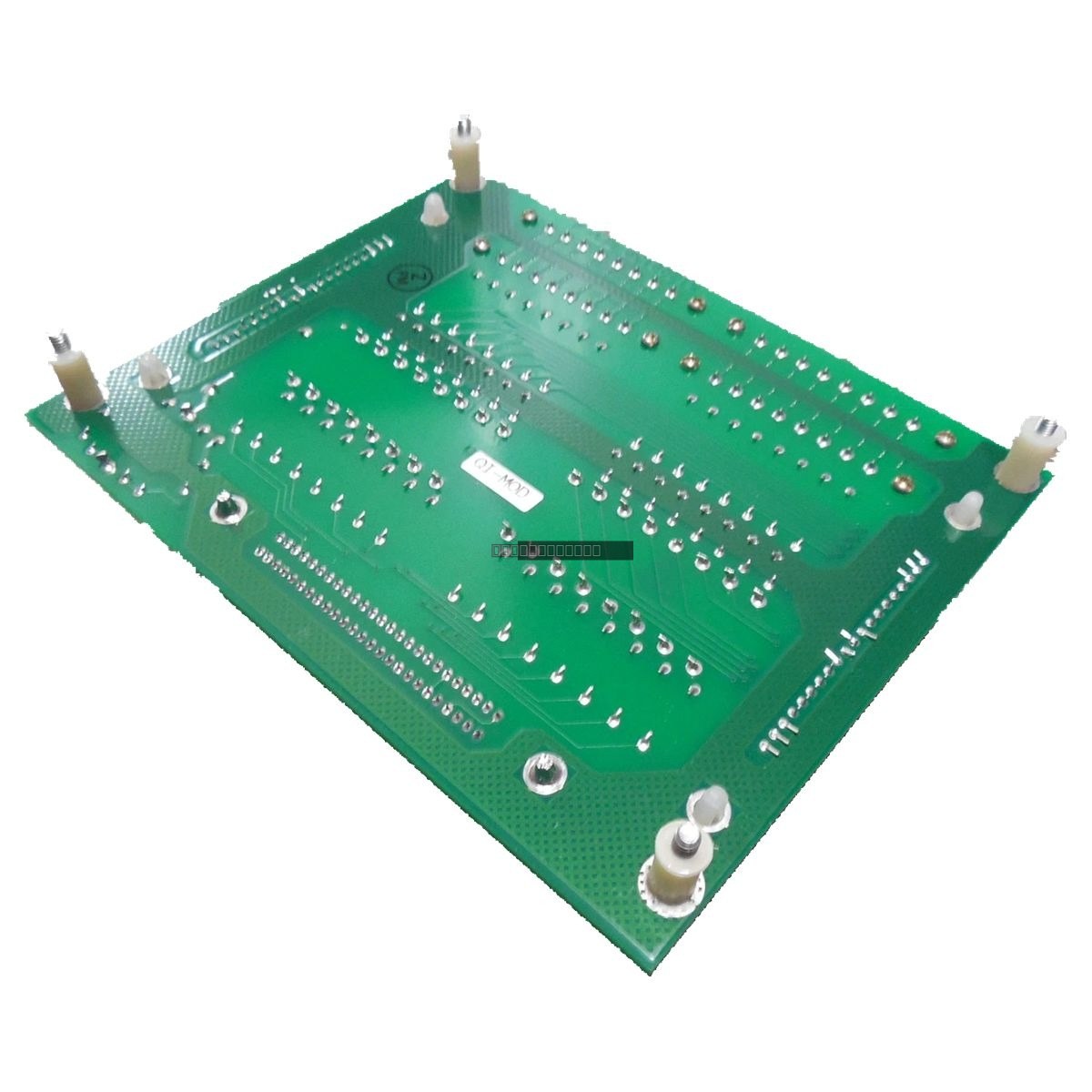

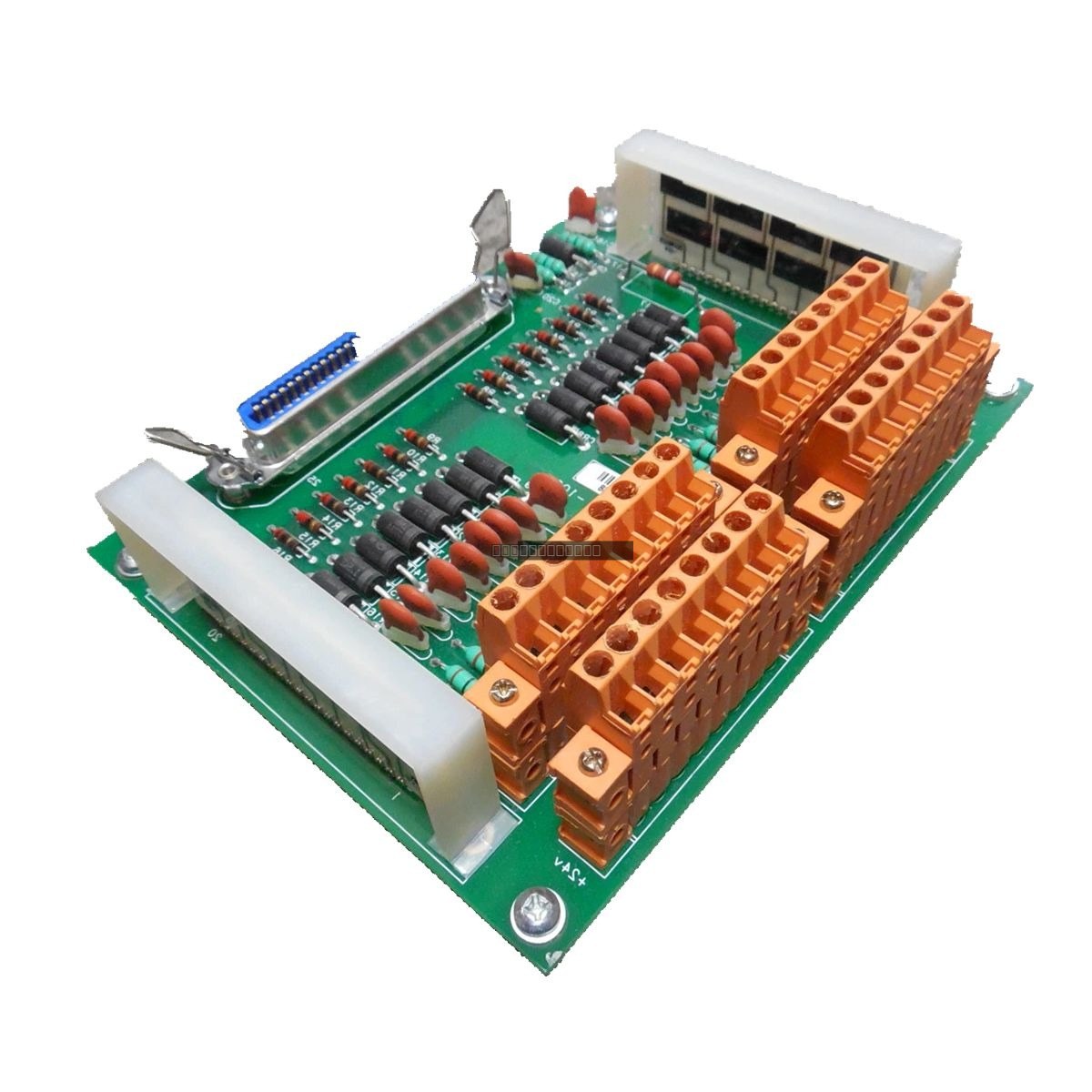

Honeywell MU-TSTX03 Smart Transmitter Interface FTA

Availability: 9 left in stock

DescriptionThe Honeywell MU-TSTX03 is a Smart Transmitter Interface Field Termination Assembly (FTA) engineered to facilitate robust communication between smart field...

SKU: MU-TSTX03

Manufacturer: Honeywell
Product No.: MU-TSTX03
Product Type: Smart Transmitter Interface FTA
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell MU-TSTX03 is a Smart Transmitter Interface Field Termination Assembly (FTA) engineered to facilitate robust communication between smart field transmitters and industrial control systems. This module serves as a critical bridge in process automation, ensuring reliable signal conversion and transmission for process variables and diagnostic data.

Features

Supports RS-485 serial communication for high noise immunity and long-distance signal transmission.
High-speed data exchange capabilities reaching up to 1 Mbps.
Designed for high reliability in demanding industrial environments, including oil, gas, and power generation facilities.
Low power consumption design, operating efficiently at 5 VDC.
Wide operating temperature range for deployment in diverse field conditions.

Applications

The MU-TSTX03 is typically utilized in distributed control system (DCS) architectures where smart field instruments must communicate with host controllers. It is suitable for applications requiring high-integrity data acquisition, such as flow, pressure, and temperature monitoring in complex process loops.

Technical Specifications

Model	MU-TSTX03
Brand	Honeywell
Product Type	Smart Transmitter Interface FTA
Communication Protocol	RS-485
Data Transfer Rate	Up to 1 Mbps
Operating Temperature	-40 to 85 deg C
Power Supply	5 VDC
Power Consumption	Less than 0.5 W

Installation Guidelines

Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
Mount the module in a clean, dry environment, preferably within a NEMA-rated enclosure to protect against dust and moisture.
Use shielded twisted-pair cabling for RS-485 connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at the control cabinet end to maintain signal integrity.
Verify that all terminal connections are secure and free from oxidation before applying power.
Maintain adequate spacing around the module to allow for proper heat dissipation during operation.

FAQ

What is the primary function of the MU-TSTX03?
The MU-TSTX03 acts as a field termination assembly that interfaces smart transmitters with a control system via RS-485, ensuring stable and high-speed data transmission.

Can this module be used in outdoor environments?
Yes, the module is designed with a wide operating temperature range of -40 to 85 deg C, making it suitable for harsh industrial conditions, provided it is housed in an appropriate protective enclosure.
