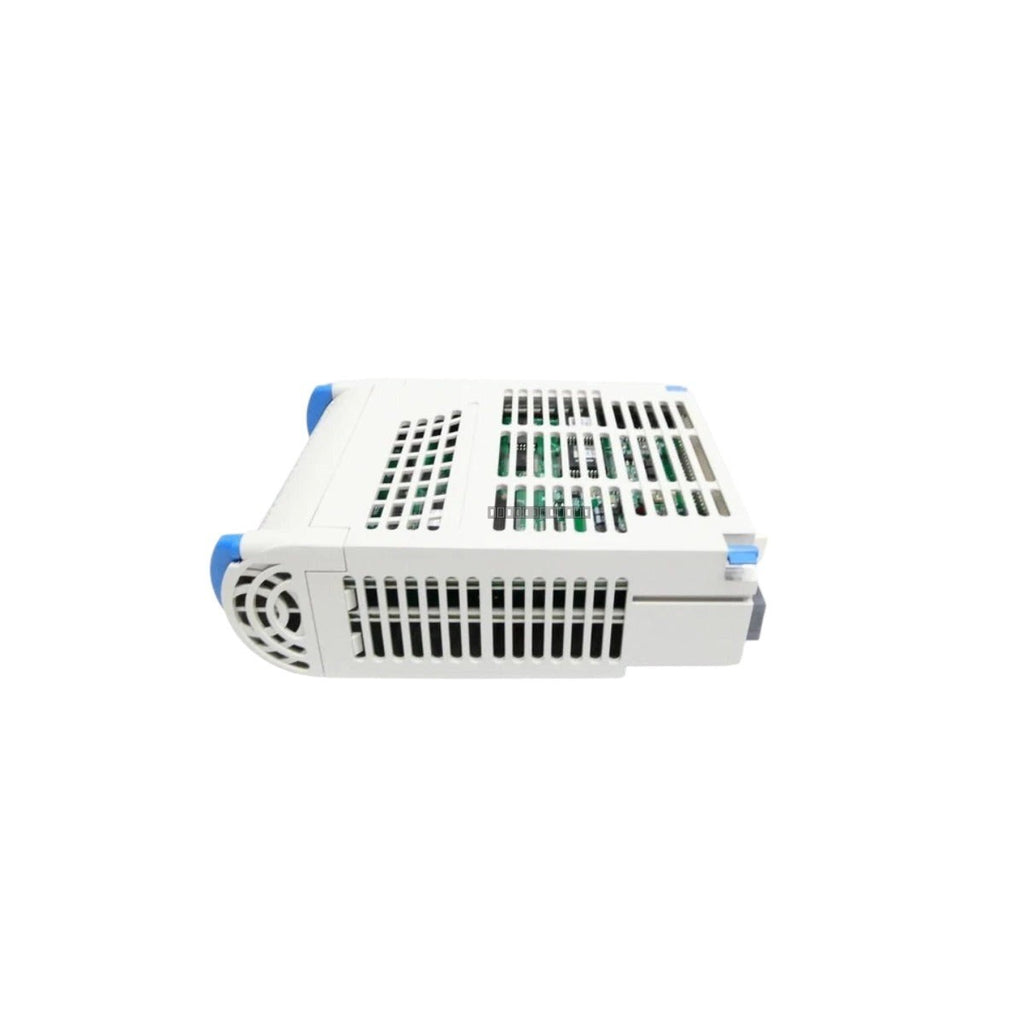

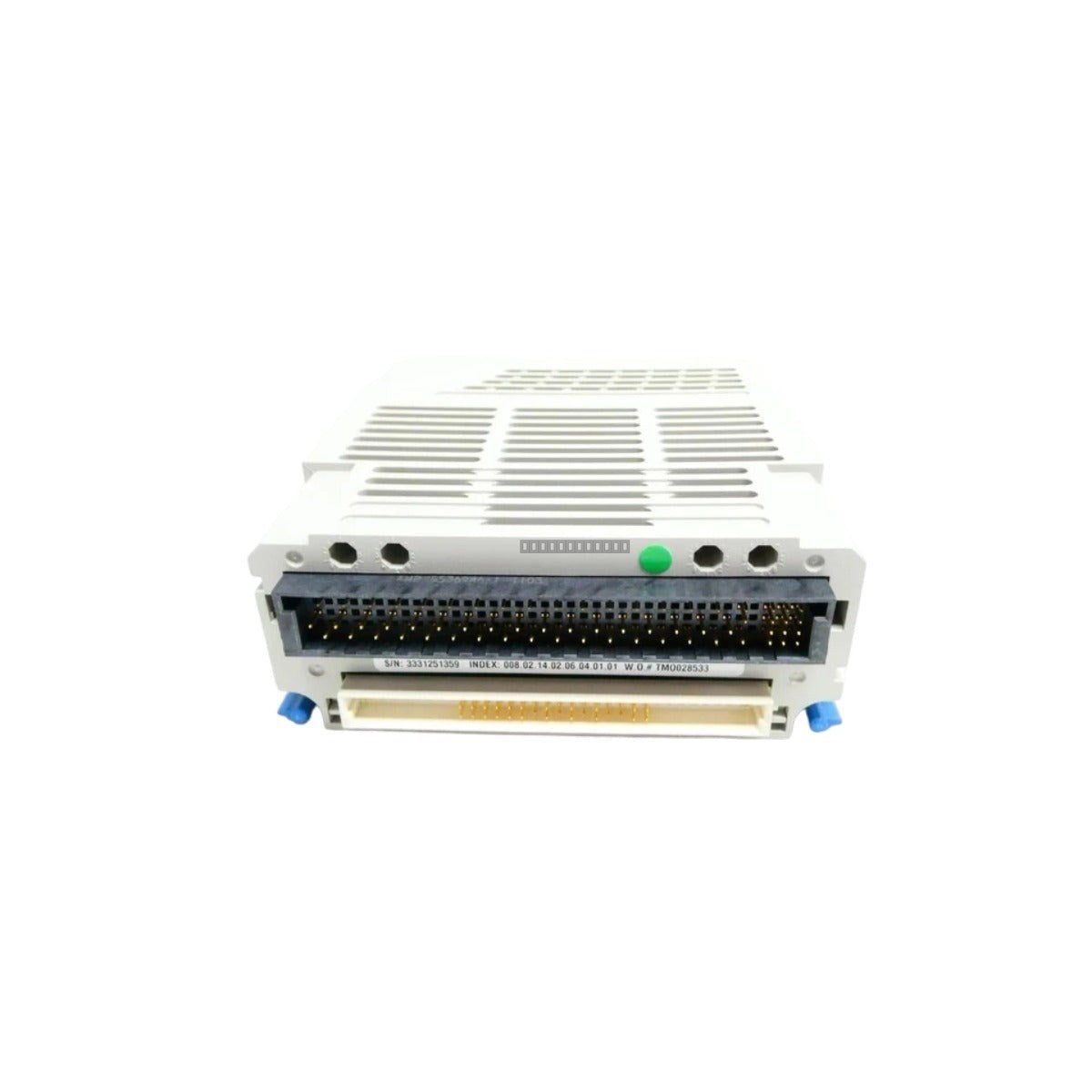

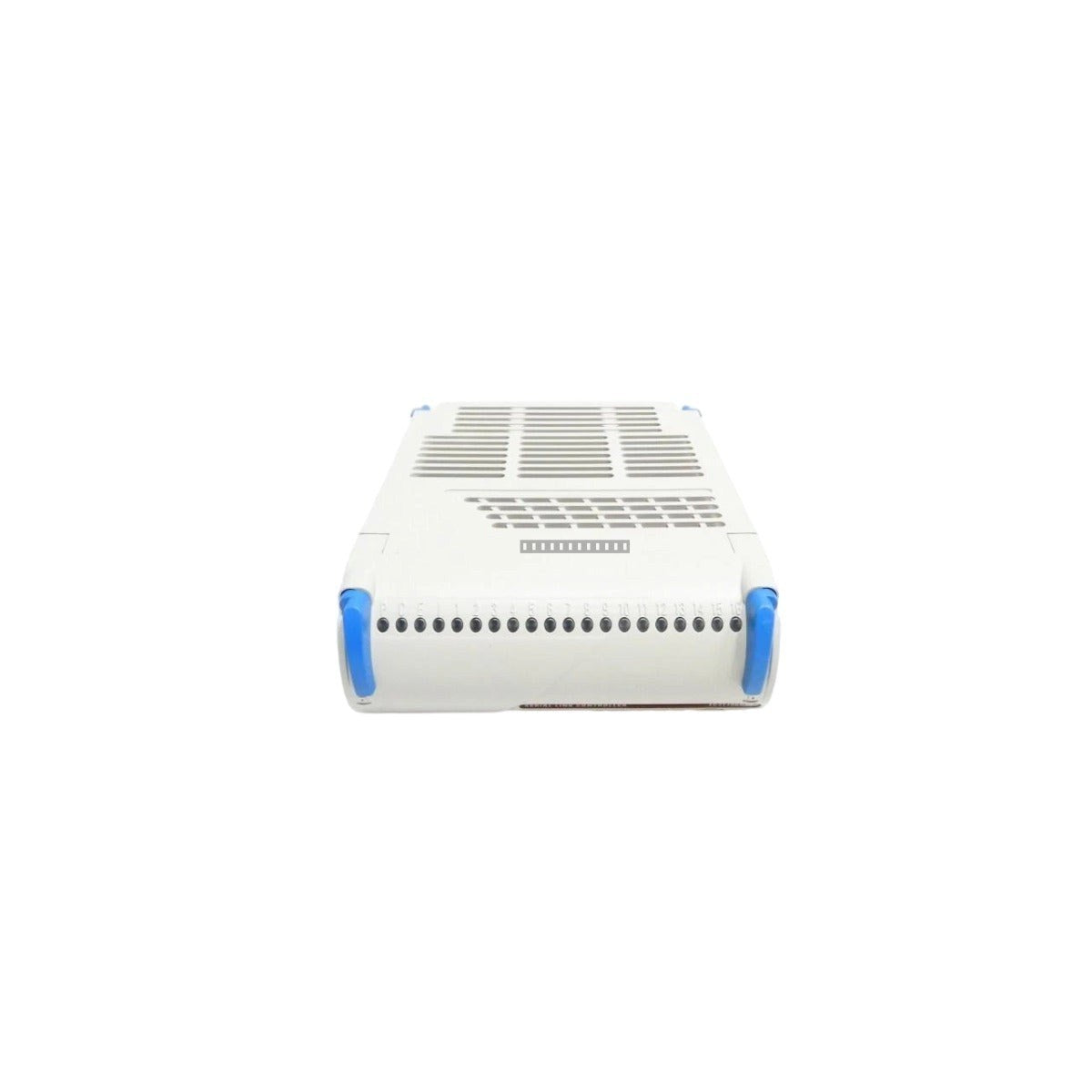

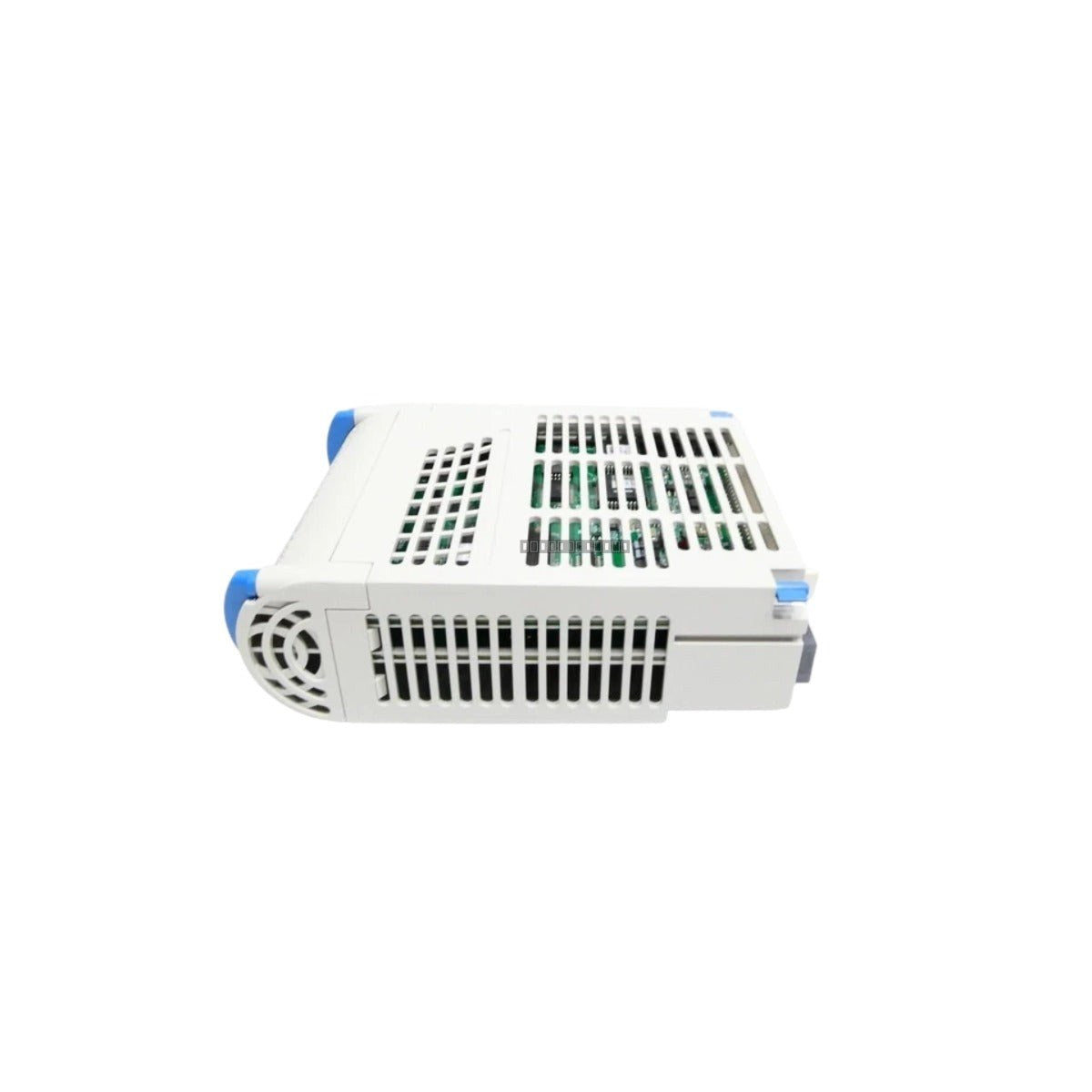

Emerson 1C31166G02 Ovation Serial Link Controller Module

Emerson Ovation 1C31166G02 Serial Link Controller Module

Availability: 3 left in stock

DescriptionThe Emerson 1C31166G02 is an electronic module (EMOD) base unit designed for the Ovation Distributed Control System (DCS). It functions...

SKU: 1C31166G02

Manufacturer: Emerson
Product No.: 1C31166G02
Product Type: Serial Link Controller Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Emerson 1C31166G02 is an electronic module (EMOD) base unit designed for the Ovation Distributed Control System (DCS). It functions as a Serial Link Controller, providing the necessary infrastructure for serial communication interfaces. The module is designed to accept a pluggable personality module (PMOD), which defines the specific serial protocol requirements, such as RS-232, RS-485, or RS-422.

The module features two primary ports on the front panel: J1, an RS-232 programming port for interface with a personal computer, and J2, an applications port for connecting to third-party serial devices. The J2 port includes a software-controlled tri-state enable input (TX-ENA) for managing RS-485/RS-422 data transmission, controlled via the UART Modem Control Register.

Features

Serial Link Controller base unit for Ovation DCS
Supports pluggable personality modules (PMOD) for flexible protocol selection
Dual-port configuration: J1 (Programming) and J2 (Applications)
Software-controlled tri-state enable (TX-ENA) for RS-485/RS-422 transmission
Compatible with R1120 CPU systems
Dielectric isolation (1,000 V AC/DC) between channels and logic

Applications

Power generation and distribution control
Water and wastewater treatment facilities
Steam and gas turbine governor synchronization
Generator protection relay data integration (SEL/GE Multilin)
Excitation system monitoring and adjustment
Boiler management and burner sequencer interlocks
Compressor skid data acquisition (vibration, temperature, surge)

Technical Specifications

Model	1C31166G02
Module Type	EMOD + PMOD
Supported CPU	R1120 CPU
Data Transfer Rate (RS-485)	Up to 3.125 Mbps
Power Supply	24 VDC
Power Consumption	5 W
Input Voltage Range	0 to 55 VDC
Operating Temperature	-40 degC to +70 degC
Storage Temperature	-55 degC to +85 degC
Humidity	5% to 95% non-condensing

Installation Guidelines

Ensure power is disconnected before installing or removing the module from the rack.
Use the appropriate personality module (PMOD) for the required serial protocol.
For RS-485 loops, install 120-ohm end-of-line termination resistors to prevent signal reflections.
Ground cable shields at one end only, typically at the cabinet entry point, to prevent ground loops.
Verify pinout alignment for TX+, TX-, RX+, and RX- lines when connecting to target machinery.
For CE-certified systems, ensure application port cables are less than 10 meters in length.

FAQ

What is the 1C31166G02 module?

It is an Emerson Ovation DCS Serial Link Controller base unit used to facilitate communication between the DCS network and external serial devices.

What is the function of this module?

It acts as a communication gateway, enabling the DCS to interface with third-party PLCs, intelligent field devices, and various subsystems in industrial environments.

What is the specific application of the 1C31166G02?

It is an EMOD assembly typically used in conjunction with R1120 CPU systems within power generation and process control applications.
