Description

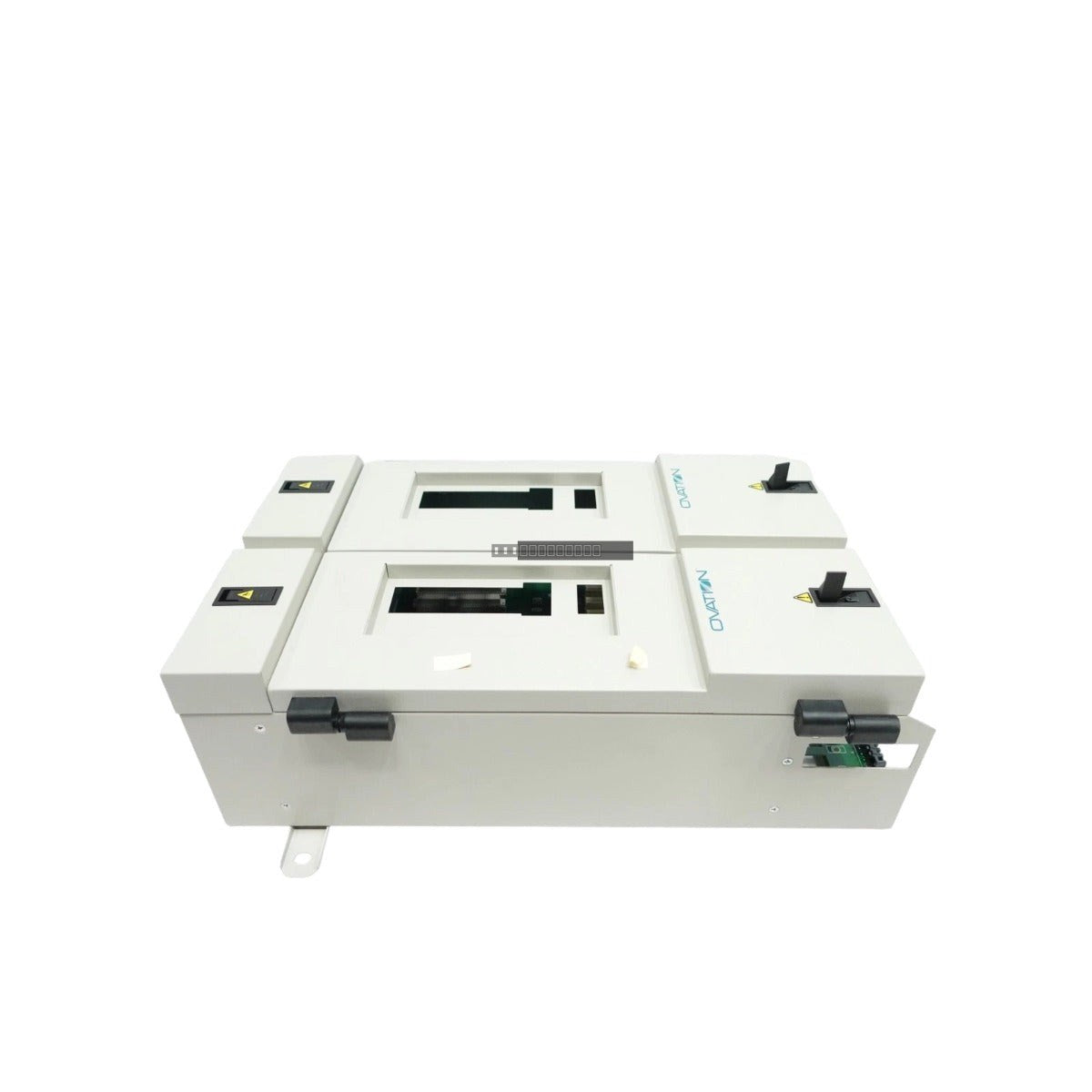

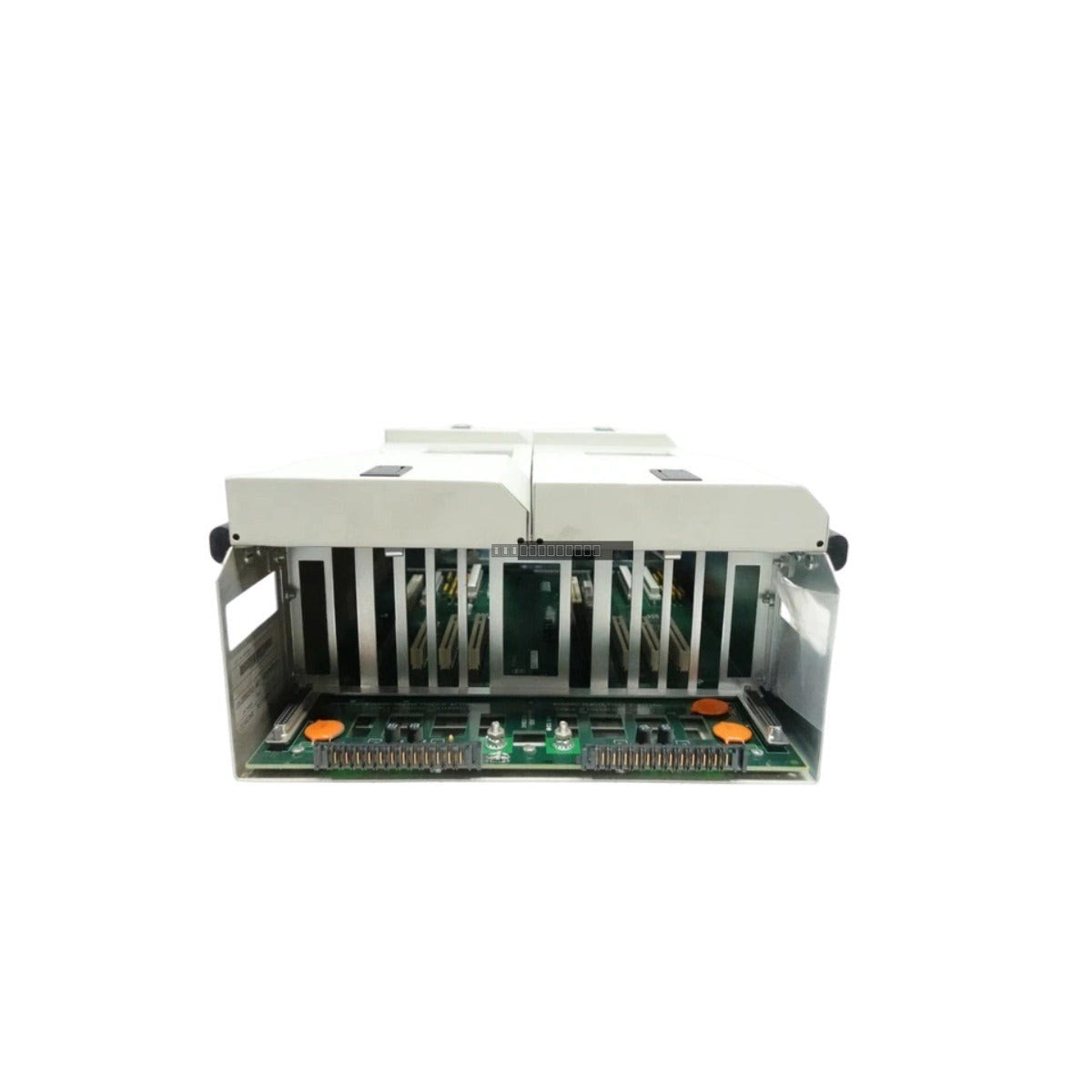

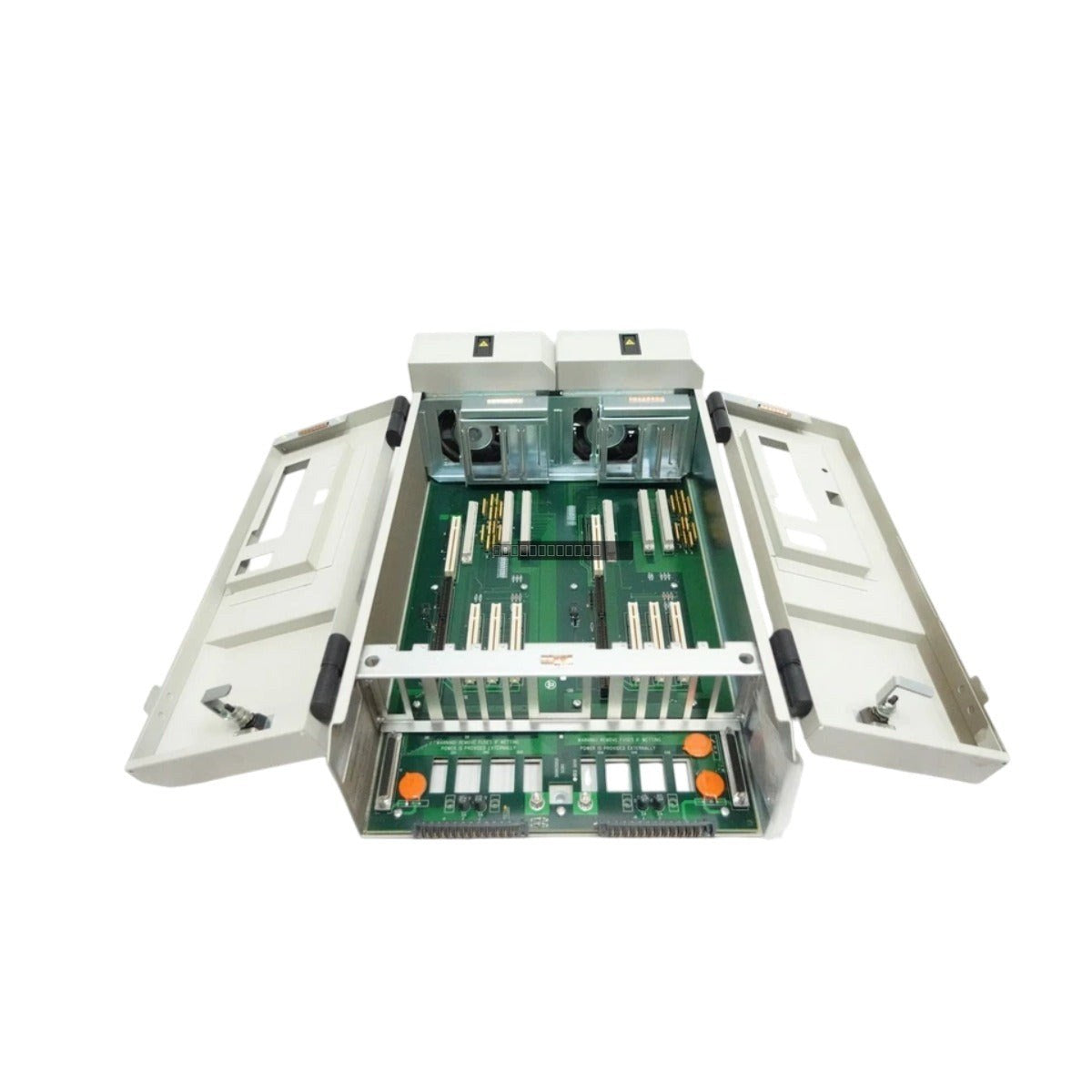

The 4D33942G01 Controller Slot Rack is a specialized chassis component engineered for the Ovation and Westinghouse Distributed Control System (DCS) environments. This rack functions as the primary backplane interface, providing the necessary mechanical support and electrical interconnectivity for high-speed control modules. Designed for mission-critical applications such as thermal power generation and large-scale industrial manufacturing, the rack ensures high-integrity signal routing and stable power distribution between the controller and associated I/O modules. By providing a robust, standardized foundation, it minimizes signal interference and mechanical stress, contributing to overall system uptime and operational reliability.
Features
- Modular slot-in design for efficient module installation and rapid maintenance.
- High-grade industrial metal construction for structural integrity and electromagnetic shielding.
- Integrated power distribution bus for stable 24 VDC delivery to seated modules.
- Optimized backplane architecture to support deterministic communication protocols.
- Standardized mounting configuration for seamless integration into existing control cabinet layouts.
Applications
This controller rack is intended for use in Ovation DCS architectures, specifically for housing control processors and I/O modules in environments requiring high availability and precise process control. It is commonly deployed in power plants, water treatment facilities, and heavy industrial processing units.
Technical Specifications
| Model | 4D33942G01 |
| Brand | Ovation/Westinghouse |
| Operating Temperature | -20 deg C to +70 deg C |
| Power Input | 24 VDC |
| Current Rating | 5 A |
Installation Guidelines
- Ensure the rack is mounted in a clean, dry environment within an industrial enclosure to protect against dust and moisture.
- Verify that the cabinet provides adequate ventilation to maintain operating temperatures within the specified -20 deg C to +70 deg C range.
- Always power down the system before inserting or removing modules from the rack to prevent electrical arcing or damage to backplane pins.
- Ensure proper grounding of the rack chassis to the cabinet earth bus to minimize electromagnetic interference (EMI).
- Handle modules with care to avoid bending backplane pins during the slot-in process.
FAQ
Is this rack compatible with all Ovation modules?
The 4D33942G01 is designed for specific Ovation/Westinghouse controller environments. Please verify your system hardware revision and module compatibility with your existing backplane configuration before installation.
What is the primary function of the backplane in this rack?
The backplane facilitates the high-speed, deterministic communication between the controller and the I/O modules, while simultaneously distributing the required 24 VDC power across the rack slots.
