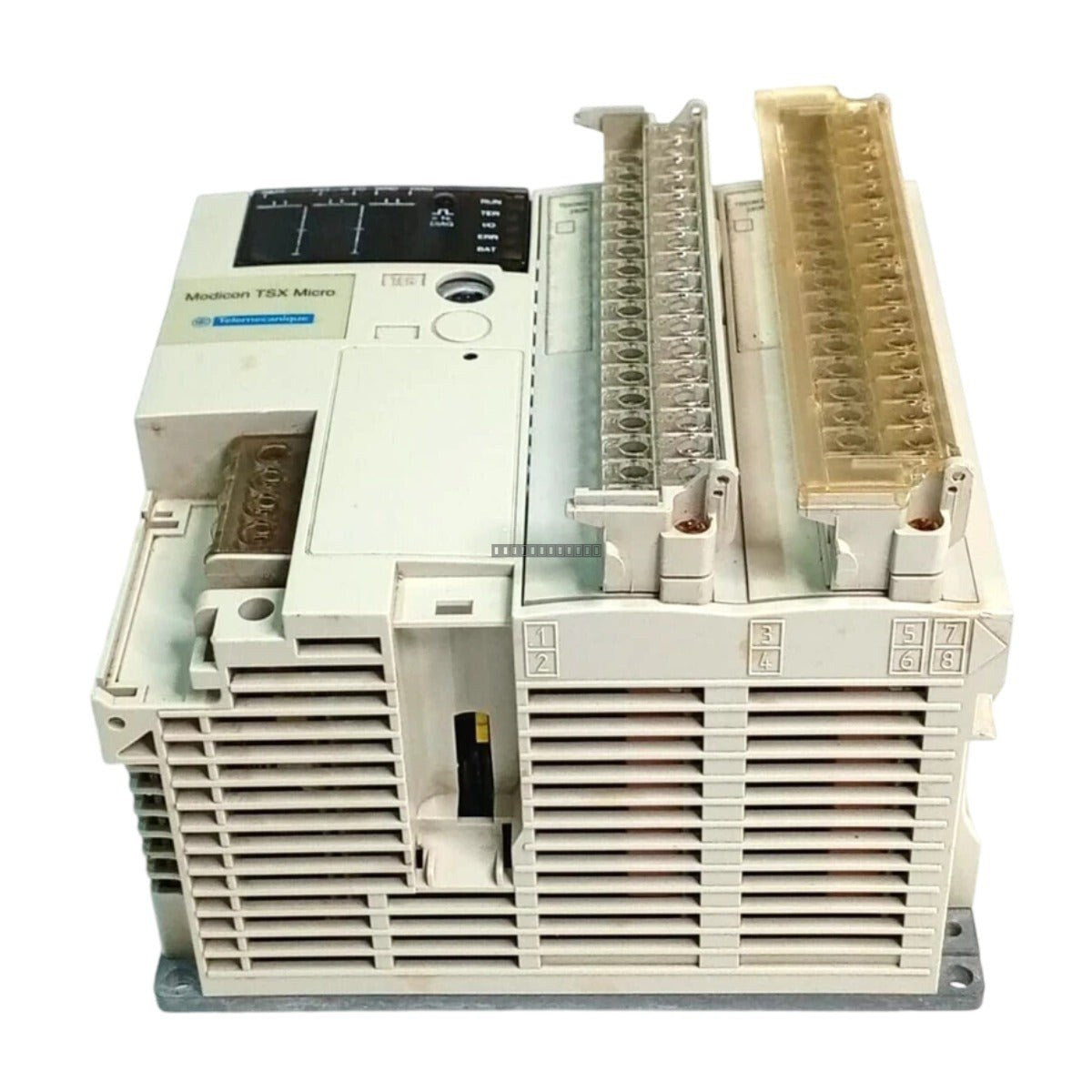

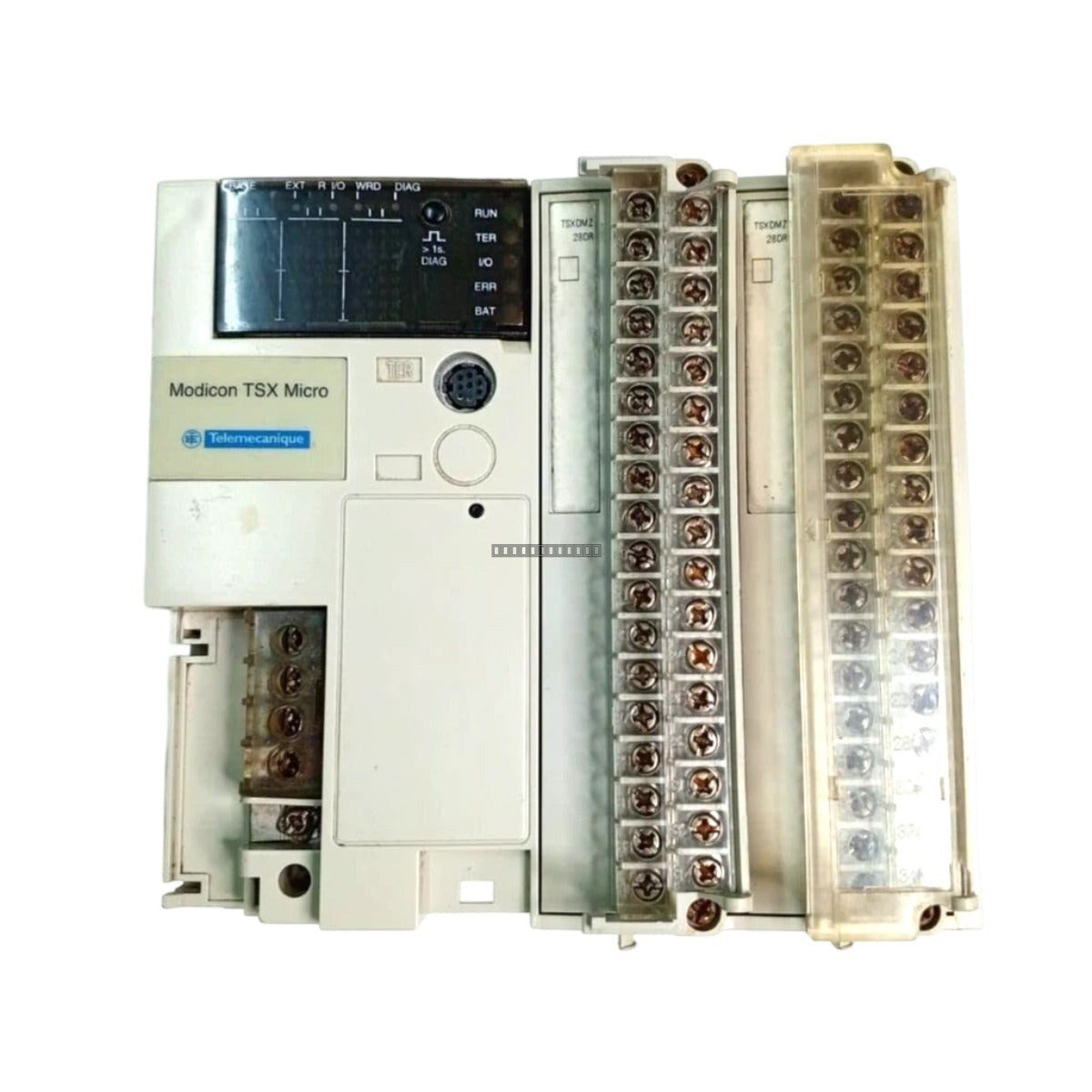

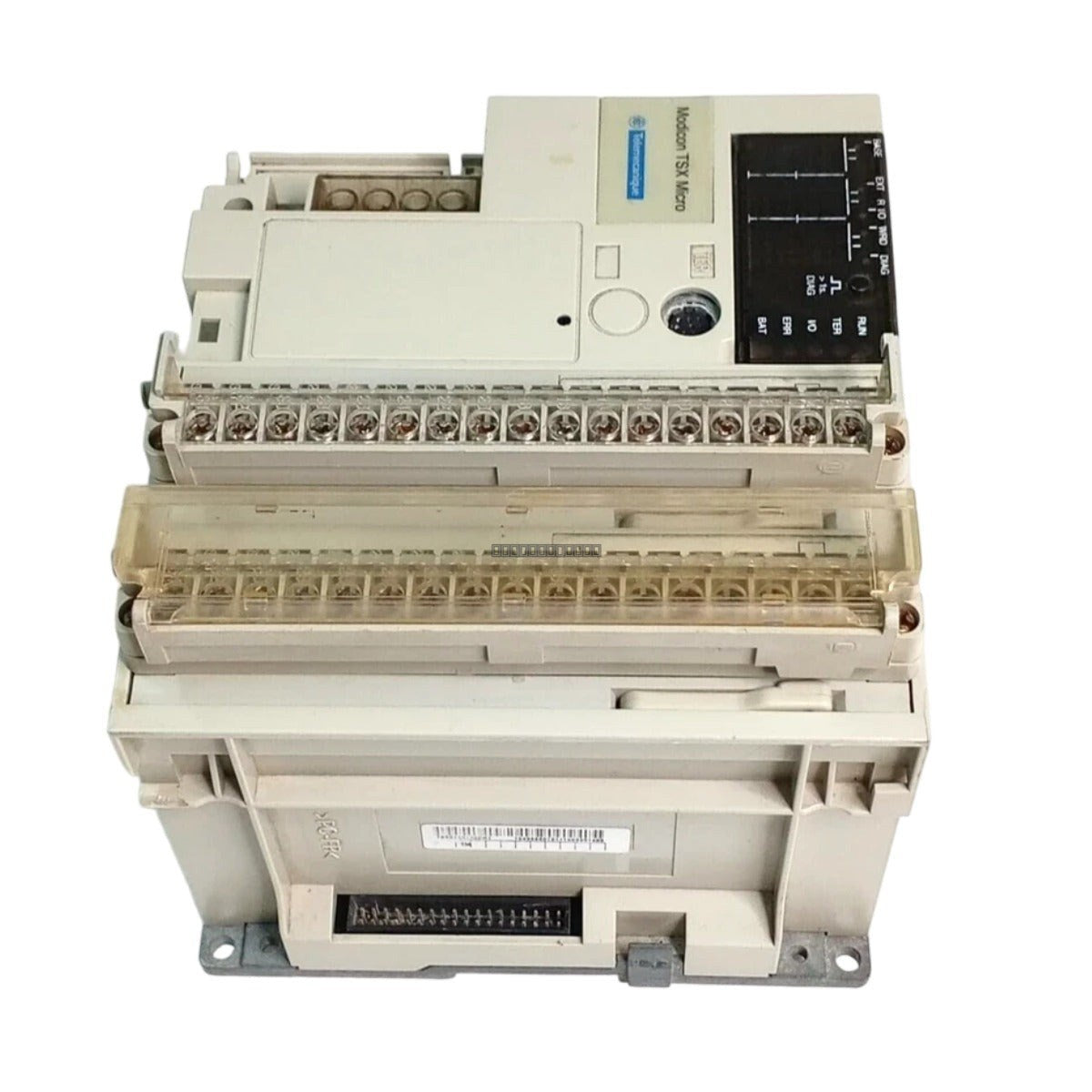

Schneider Electric TSX3710128DR1 Modicon TSX Micro CPU

Schneider Electric TSX3710128DR1 Modicon TSX Micro Modular Base Controller

Availability: 3 left in stock

DescriptionThe Schneider Electric TSX3710128DR1 is a high-performance modular base controller designed for the Modicon TSX Micro automation system. This CPU...

SKU: TSX3710128DR1

Manufacturer: Schneider
Product No.: TSX3710128DR1
Product Type: PLC CPU Module
Product Origin: France
Payment:T/T, Western Union
Weight: 1150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Schneider Electric TSX3710128DR1 is a high-performance modular base controller designed for the Modicon TSX Micro automation system. This CPU unit serves as the central processing core for small to medium-sized industrial control applications, providing robust logic execution for tasks such as packaging, material handling, conveying, and assembly line automation.

Features

Integrated 16-bit 24 MHz microcontroller for efficient logic processing.
Includes 28 built-in I/O points: 16 digital inputs (24 VDC, Sink/Source) and 12 relay digital outputs (2A).
128 kB of battery-backed RAM for program storage and 32 kB of retentive RAM for data.
Fast execution speed of 0.3 microseconds per Boolean instruction.
Supports expansion bus for additional I/O modules and communication interfaces.
Designed for flexible mounting on DIN rails or standard panels.

Applications

This controller is widely utilized in industrial environments requiring reliable, compact automation, including:

Automated packaging machinery
Conveyor system control
Small-scale assembly line logic
General-purpose machine control and monitoring

Technical Specifications

Brand	Schneider Electric
Model	TSX3710128DR1
Category	Modular Base Controller (CPU)
Power Supply Input	24 VDC (19.2 to 28.8 VDC range)
Power Consumption	12 W (Typical)
Inrush Current	30 A for 2 ms at startup
Processor	16-bit Microcontroller (24 MHz)
Program Memory	128 kB RAM (Battery Backed)
Data Memory	32 kB RAM (Retentive)
Backup Battery	TSX BAT LITHIUM (5-year life)
Execution Speed	0.3 us per Boolean instruction
Digital Inputs	16 Channels (24 VDC)
Digital Outputs	12 Channels (Relay, 2A)

Installation Guidelines

Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
The unit is compatible with standard DIN rail mounting or direct panel mounting.
Always disconnect power before installing or removing the module or any connected I/O wiring.
Use shielded cables for communication and analog signals to minimize EMI interference.
Ensure proper grounding of the controller chassis to the system ground bus to maintain signal integrity.
Verify that the 24 VDC power supply is within the specified 19.2 to 28.8 VDC range before energizing.

FAQ

What is the primary function of the TSX3710128DR1?

This unit acts as the main CPU and base controller for the Modicon TSX Micro system, handling logic execution, I/O management, and system expansion for industrial automation tasks.

Is the program memory volatile?

The program memory is battery-backed using the TSX BAT lithium battery to ensure data retention during power outages. It is recommended to replace the battery periodically (typically every 5 years) to prevent loss of data.

Can this controller be expanded?

Yes, the TSX3710128DR1 includes an integrated expansion bus, allowing for the addition of extra I/O modules or communication cards as required by the specific application.
