Schneider TSXDMF342A PLC Expansion Unit

Availability: 0 left in stock

The Schneider TSXDMF342A is a high-density PLC expansion unit designed to extend the control and monitoring capabilities of industrial automation...

SKU: TSXDMF342A

Manufacturer: Schneider
Product No.: TSXDMF342A
Product Type: PLC Expansion Unit
Product Origin: France
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

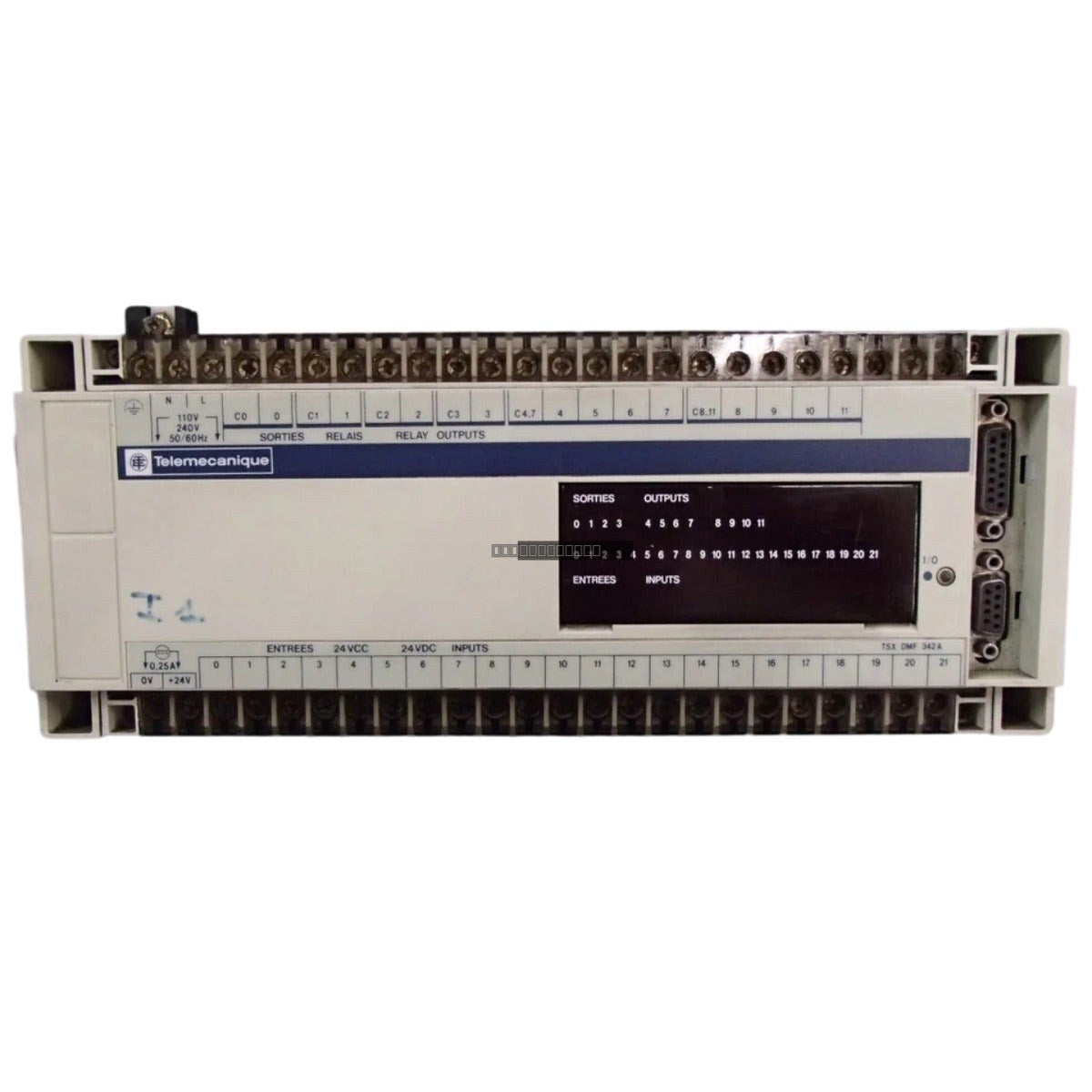

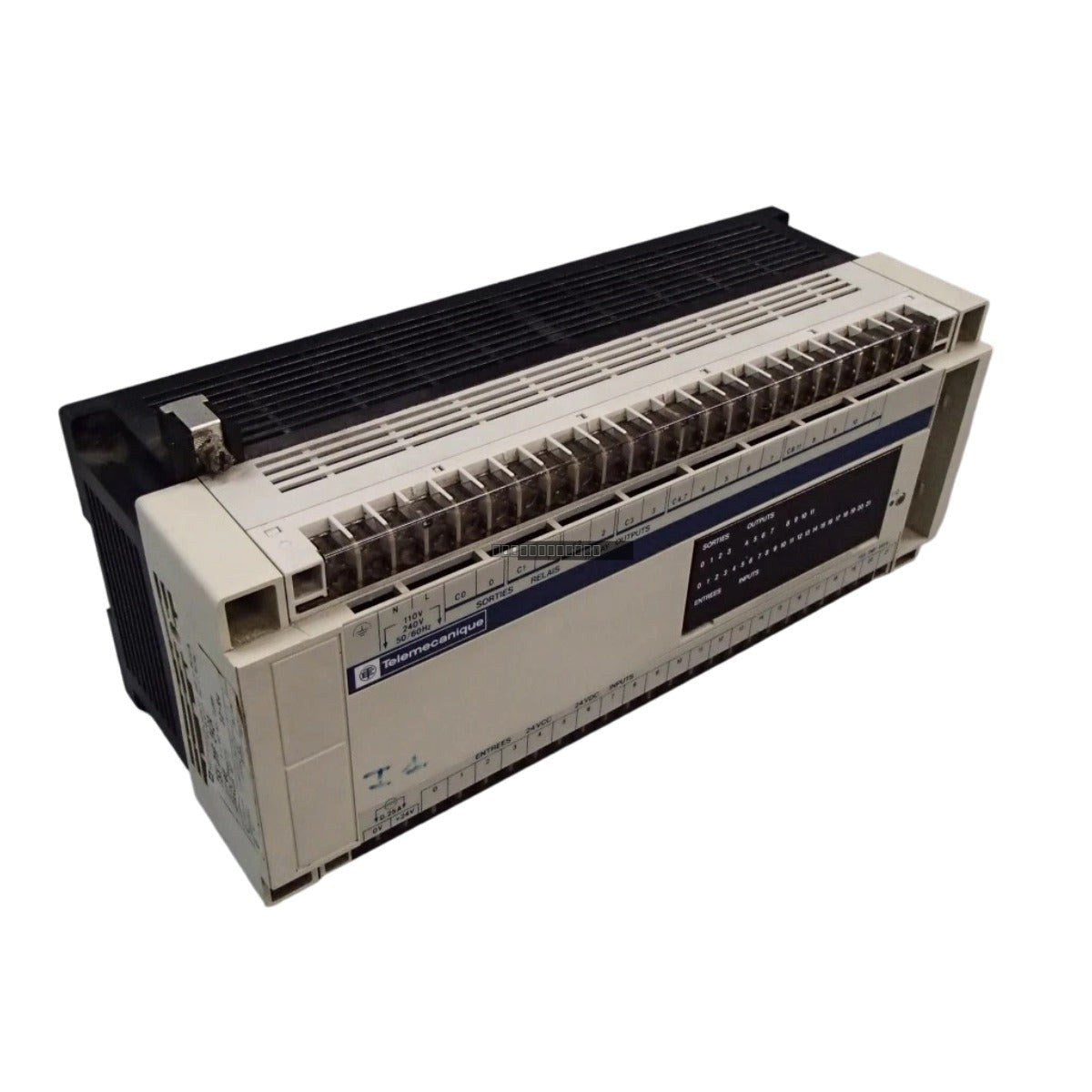

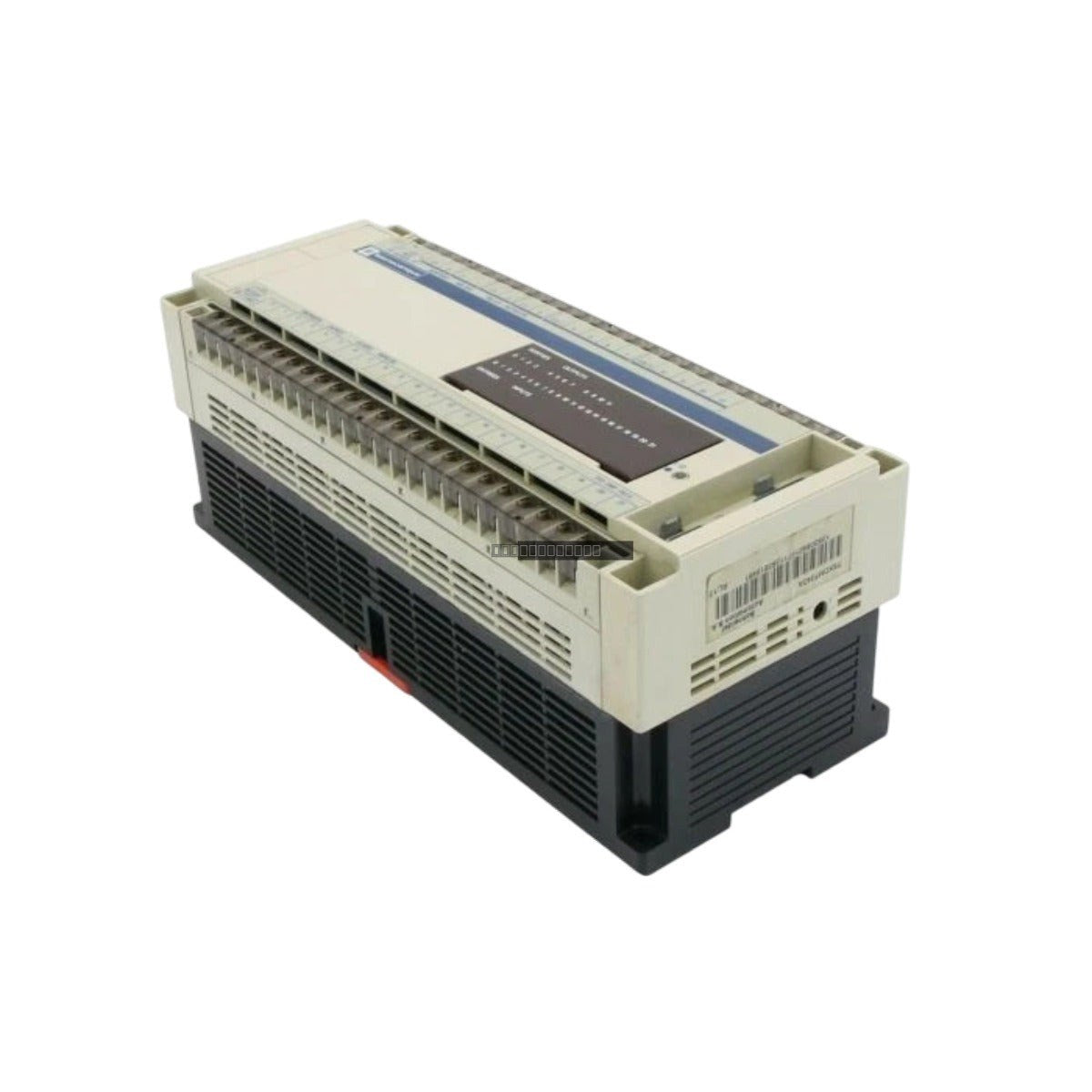

The Schneider TSXDMF342A is a high-density PLC expansion unit designed to extend the control and monitoring capabilities of industrial automation systems. This module provides 34 relay I/O channels, facilitating reliable signal switching and device control within modular automation architectures, specifically compatible with the RMS-TSG-TZ-C series.

Features

Provides 34 relay I/O channels for simultaneous control of multiple field devices.
Supports operation at 0.25 A per point, suitable for both 120 VAC and 240 VAC industrial control circuits.
Compact, modular design allows for efficient space utilization in control panels and PLC racks.
Engineered for seamless integration with Schneider RMS-TSG-TZ-C series controllers to support scalable system growth.
Reliable relay output architecture with a typical response time of 10 ms.

Technical Specifications

Manufacturer	Schneider Electric
Model	TSXDMF342A
Series	RMS-TSG-TZ-C
Category	PLC Expansion Unit
Number of Channels	34 I/O Relay
Load Current per Point	0.25 A
Voltage Rating	120/240 VAC
Output Type	Relay
Response Time	10 ms typical
Mounting Type	Rack mount / PLC slot
Operating Temperature	0 degC to 60 degC

Installation Guidelines

Ensure the PLC system is powered down before inserting or removing the expansion unit to prevent electrical damage.
Verify that the module is securely seated in the designated PLC rack slot to ensure proper backplane communication.
Maintain proper ventilation within the control cabinet; ensure the ambient temperature remains within the specified 0 degC to 60 degC range.
Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
Use appropriate wire gauges and ensure all terminal connections are tightened to the manufacturer's recommended torque specifications.

FAQ

What is the primary function of the TSXDMF342A?

The TSXDMF342A serves as an I/O expansion module, adding 34 relay-based input/output points to a compatible Schneider PLC system, allowing for increased control of external field devices.

Is this module compatible with all Schneider PLCs?

This unit is specifically designed for integration with the RMS-TSG-TZ-C series. Please verify your specific PLC rack and CPU compatibility before installation.
