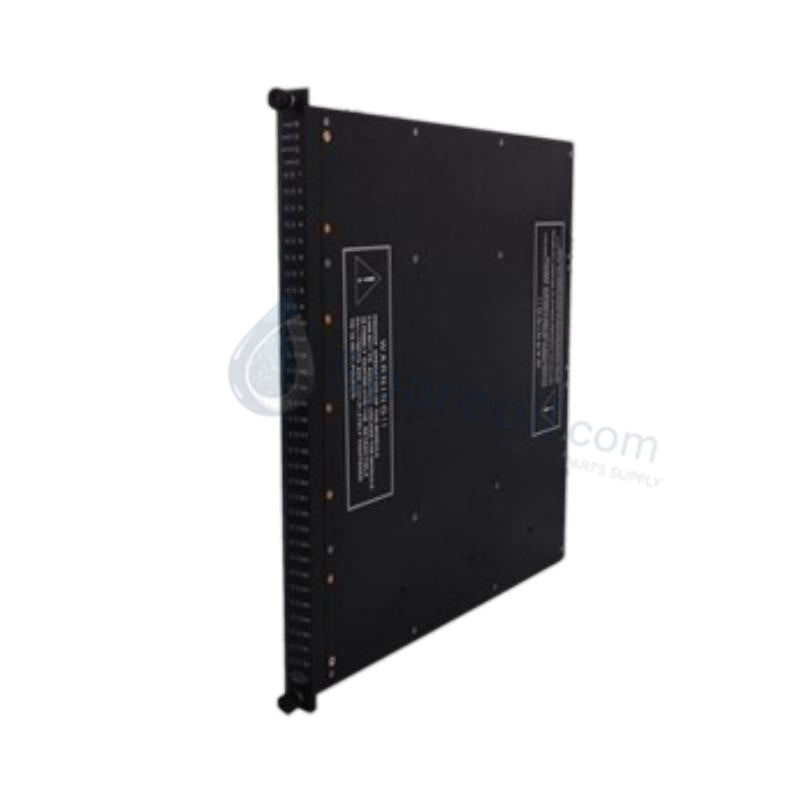

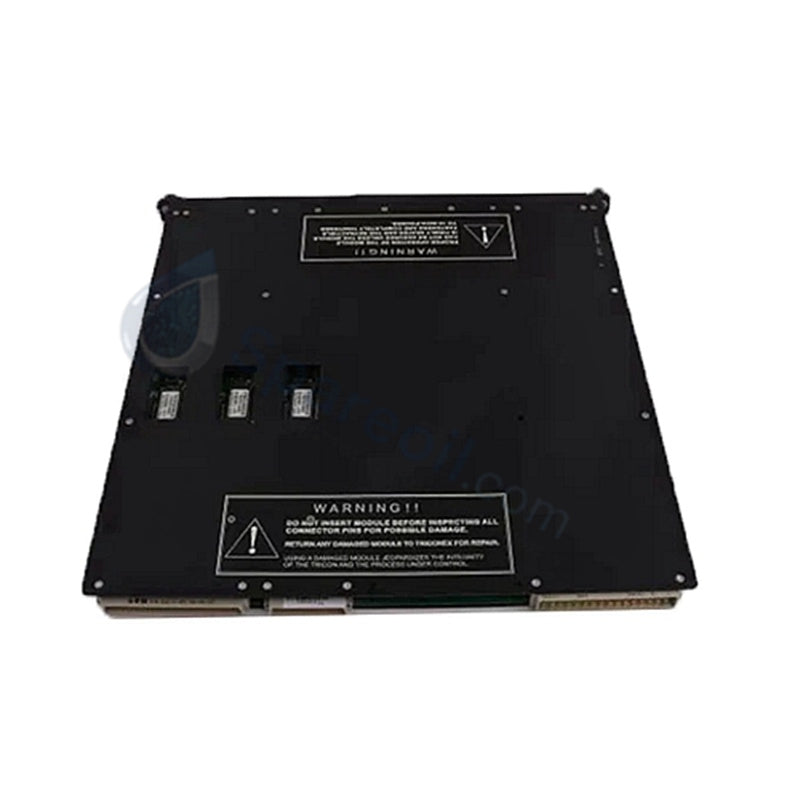

Triconex 9802 Main Processor Module
Configured for executing application programs and system logic in Triconex safety platforms, the Triconex 9802 (9802 Main Processor Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 9802 |
| Brand | Triconex |
| Origin | United States |
| Weight | 1.2 kg |
| Dimensions | Standard Tricon chassis module size |
| Operating Temp | 0 to 60 deg C |
| Storage Temp | -40 to +85 deg C |
| Relative Humidity | 5 to 95%, non-condensing |
| Power Consumption | 8 W (typical) |
| Operating Voltage | 24 VDC (18 to 32 VDC input range) |
| System Processor | Dual RISC processors |
| Memory Capacity | 16 MB non-volatile RAM |
| System Architecture | Triple Modular Redundant (TMR) 2oo3 |
| Safety Certification | IEC 61508 SIL 3 |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, Peer-to-Peer Triconex |
| Physical Interfaces | RS-232, RS-485, Ethernet (10/100 Mbps) |
| Hot-Swap Capability | Supported via online chassis backplane insertion |
Triple Modular Redundancy and Fail-Safe State Execution
The hardware operates using a triple modular redundancy (TMR) 2oo3 architecture to execute continuous fault isolation and system logic validation. Three separate internal sub-channels execute user application programs concurrently, validating results through hardware voting circuits prior to updating output variables. This engineering design meets IEC 61508 SIL 3 safety standards, enforcing automatic fail-safe state execution upon detection of non-recoverable internal processor discrepancies or clock desynchronization. Internal diagnostic routines continuously sample hardware registers and verify data integrity across the dual RISC processor architecture to contain faults before they impact process safety functions.
Frequently Asked Questions
Q: How does the processor memory retain the application logic during a complete loss of external 24 VDC backplane power?
A: The module contains 16 MB of non-volatile RAM. When the input voltage drops below the 18 VDC minimum operating threshold, internal shutdown logic saves volatile operational variables directly into the non-volatile memory sector, preventing data corruption without requiring continuous external battery backup.
Q: What are the deterministic constraints when replacing an active 9802 processor module during online system operations?
A: The chassis backplane supports online hot-swap deployment. Inserting a replacement module triggers automatic background equalization, copying the active running memory state and application parameters from the remaining operational processors into the new module without affecting control loop execution timing or safety response deadlines.
Field Installation Guidelines
- Chassis Insertion and Keying: Inspect the rear backplane connectors for pin alignment prior to installation. Insert the module into the designated slot rails of the Tricon chassis and apply steady force until the top and bottom mechanical ejector levers lock flush against the chassis frame.
- Backplane Isolation and Grounding: Ensure the chassis enclosure connects directly to the master plant instrument ground using a low-impedance copper strap. Maintain separation between high-voltage power routing and the low-voltage communication cables attached to the RS-232/RS-485 interfaces to minimize signal interference.
- Network Cable Termination: Connect Ethernet links using double-shielded twisted-pair (SFTP) Category 5e or Category 6 cables. Ground the cable shields strictly at the patch panel side or chassis grounding bar, leaving the field end ungrounded to avoid hazardous ground loops.
- Firmware Verification Matrix: Confirm that the internal firmware build version of the incoming module matches the exact software version running on the paired active processors before switching the unit into active control mode.
What's clients say about us
Excellent Emergency Support!
Our production line was down due to a faulty Bently Nevada monitor. We found it in stock here and they shipped it via DHL immediately. Back in operation within 48 hours—truly a lifesaver for our plant.
Mark Thompson
Maintenance Manager, USAReliable Source for New Spares
Finding brand new, original modules is critical for our safety. This team delivers factory-fresh components with full certification. Their commitment to only selling new products makes them our most trusted partner.
Robert Hoffmann
Engineering Lead, GermanyTop-tier Service and Quality
We have sourced Honeywell and Schneider parts here for two years. Every shipment arrives well-packaged with original factory seals intact. Clear communication and the best lead times in the industry.
Lucas Müller
Operations Director, GermanyRelated Products
ICS Triplex T7310 Trusted Main Processor Modules
$99.00
$199.00

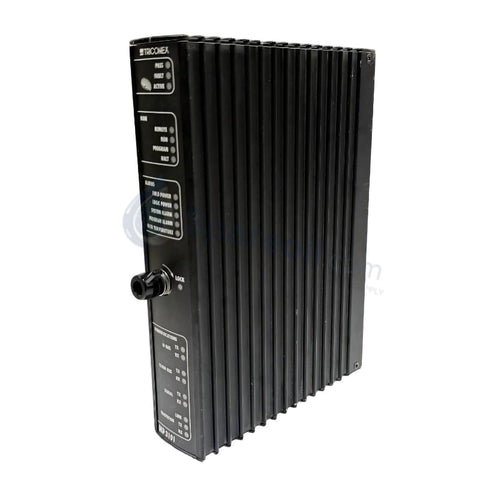

Triconex MP3101 Trident Redundant Processor Module Hardware
$99.00
$199.00

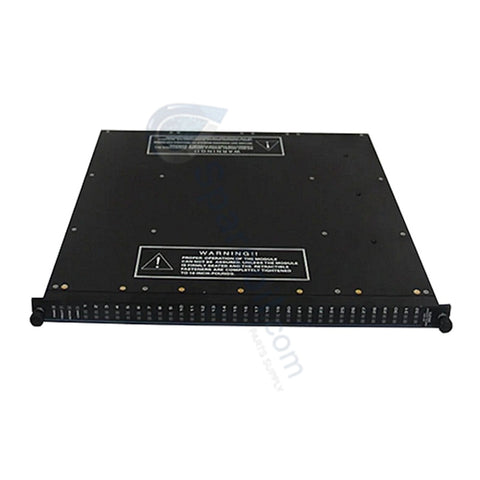

ICS Triconex AP3101 TMR Main Processor Module
