9100 Triconex SIS TMR Module Datasheet & Technical Manual

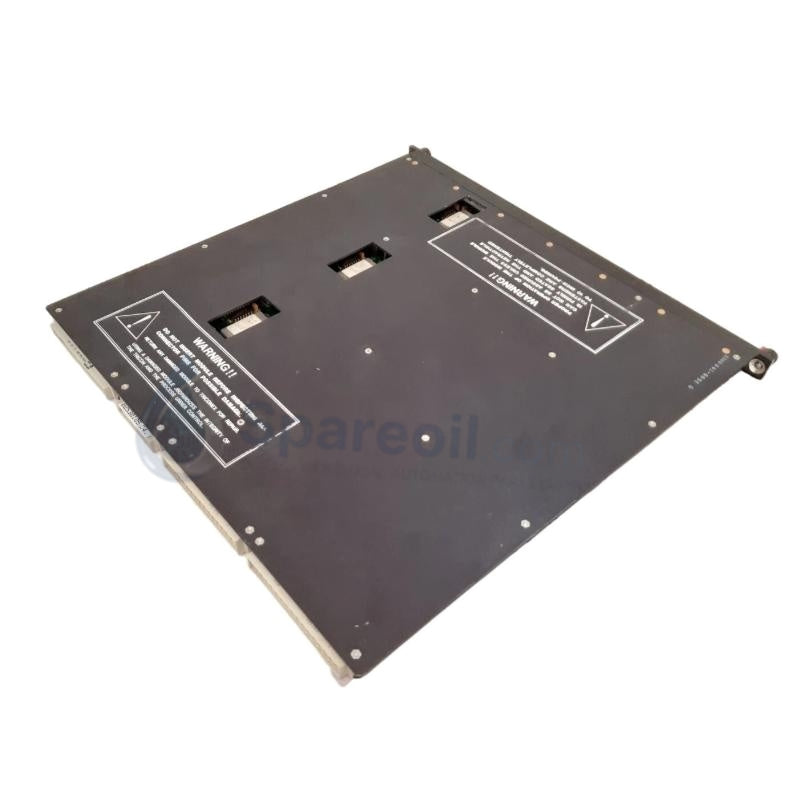

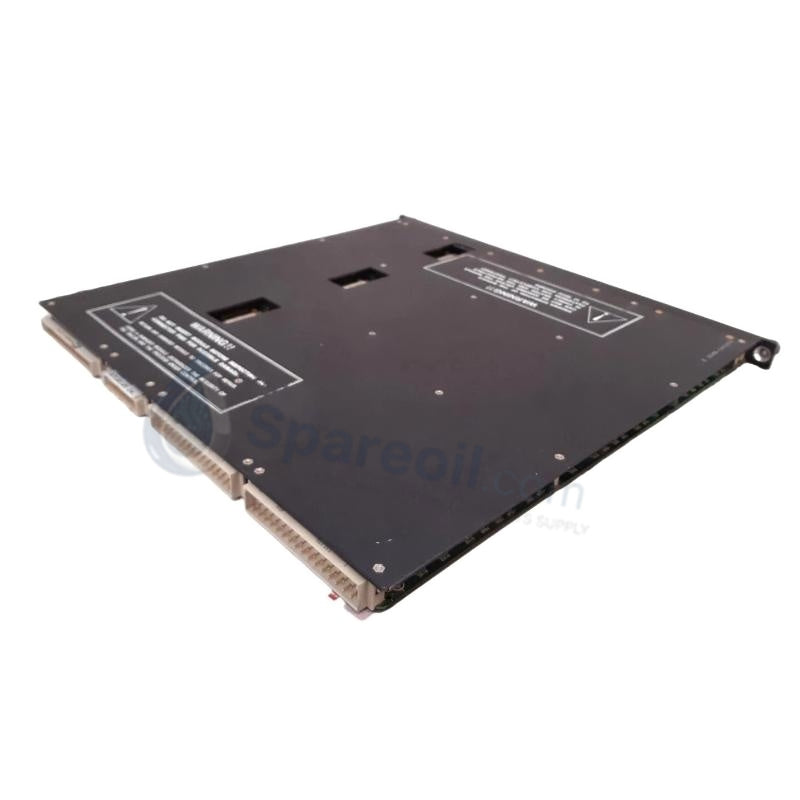

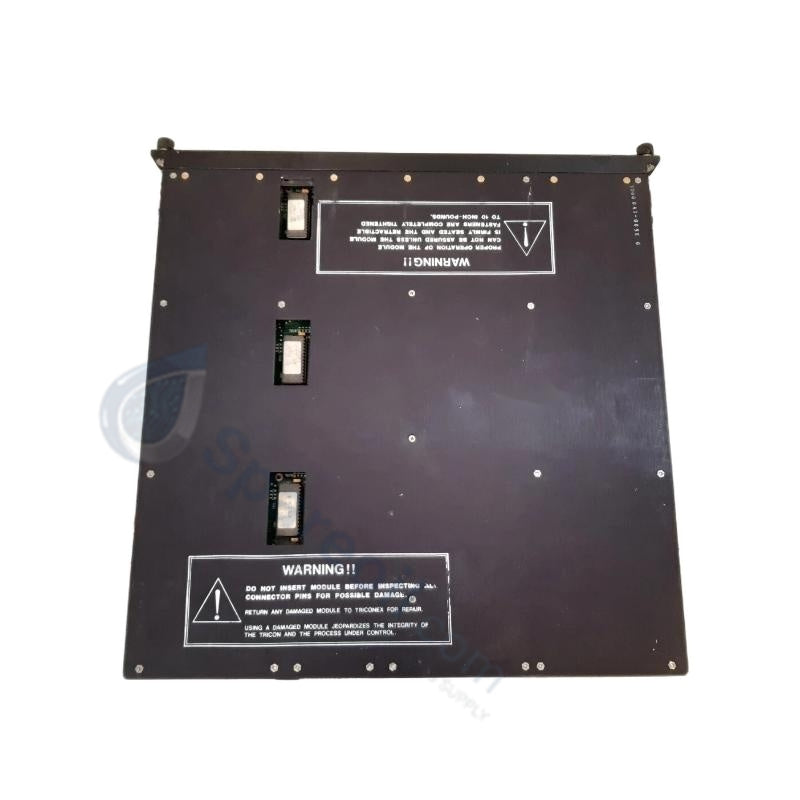

Triconex 9100 9100-00049-03 Main Processor Module

Triconex 9100 9100-00049-03 Main Processor Module

Availability: 10 left in stock

Triconex 9100 Main Processor Module The Triconex 9100, also cataloged as the 9100 Main Processor Module (MPM), operates as a...

SKU: 9100

Manufacturer: Triconex
Product No.: 9100
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Triconex 9100 Main Processor Module

The Triconex 9100, also cataloged as the 9100 Main Processor Module (MPM), operates as a dedicated hardware component for safety logic execution within Triconex safety instrumented system networks. Configured to act as the central control unit or a high-integrity TCP communication module, the hardware processes data streams across a dual RJ45 Ethernet matrix supporting 10/100 Mbps auto-negotiation. The module executes continuous safety algorithms while serving up to 16 I/O modules, managing field parameters via integrated Modbus, TCP/IP, and OPC protocols.

Hardware Specifications

Parameter	Specification
Model	9100 (9100-00049-03 architecture baseline)
Brand	Triconex (Schneider Electric)
Origin	United States
Weight	1.2 - 1.8 kg
Dimensions	19.9 x 23.3 x 6.8 cm (SIS) / 260 x 180 x 60 mm (TCP)
Operating Temp	-20 to +70 deg C (TCP variant); -40 to +70 deg C (SIS variant)
Power Consumption	25 W maximum
Input Supply Voltage	115/230 VAC (SIS chassis variant) / 24 VDC nominal field distribution
Network Ports	Dual redundant RJ45 Ethernet ports
Cybersecurity	Achilles Level 1 certified with full encryption support
Safety Certification	IEC 61508 SIL 3, TÜV Certified, Nuclear rated

Triple Modular Redundancy (TMR) 2oo3 Architecture

The hardware utilizes isolated processing paths designed around a triple modular redundancy (TMR) 2oo3 voting architecture, distributing tasks across three independent microprocessing legs. Continuous self-diagnostics and cross-leg hardware cross-checking execute in parallel to discover, isolate, and mask component deviations without disrupting active system loops. Galvanic isolation and hardware-enforced boundaries separate execution sectors from communication interfaces, while Achilles Level 1 cybersecurity filters out network anomalies to protect the deterministic safety loop matrix from external digital disruption.

Frequently Asked Questions

Q: What mechanisms govern the online hot-swapping sequence of a 9100 processor module?

A: The chassis configuration allows for live single-slot hot-swapping while the safety loop remains fully active. Upon physical insertion, the remaining operational processor paths execute verification routines to align the database and synchronize memory registers before integrating the replacement unit into the active 2oo3 voting loop.

Q: How does the module maintain synchronization across the redundant communication ports?

A: The integrated dual RJ45 Ethernet ports work through independent internal channels managed directly by the TMR processing array. This configuration enables immediate path failover if a media link or port interface drops, maintaining stable data rates without causing communication timeouts or latency spikes.

Q: What are the primary diagnostic indicators available on the physical faceplate?

A: The module front panel includes dedicated hardware status LEDs indicating PASS, FAULT, and ACTIVE states alongside precise error logging nodes. These visual arrays expose real-time diagnostic telemetry, showing leg faults or port link issues directly without necessitating an external programming terminal connection.

Field Installation Guidelines

Insert the main processor module vertically into the allocated primary slot of the Triconex chassis backplane, pushing firmly until the rear locking pins seat firmly.
Route the redundant Ethernet communication cables through distinct, separated cable management runs to reduce the risk of simultaneous physical link failure.
Verify that the AC power sources feeding the chassis meet the exact 115/230 VAC voltage tolerances required by the underlying power distribution layout.
Ground the communication cable shield matrices directly to the cabinet low-impedance copper earthing bus to shield the data streams from high-frequency electrical noise.
Ensure the surrounding enclosure features active ventilation or clear space to maintain operational temperatures between the rated -40 to +70 deg C boundaries.
