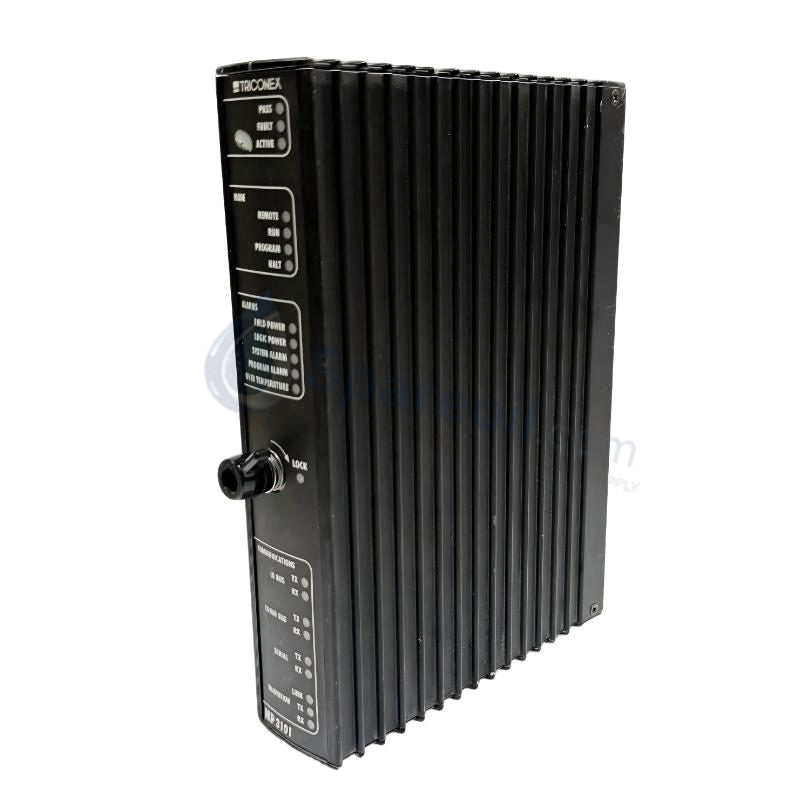

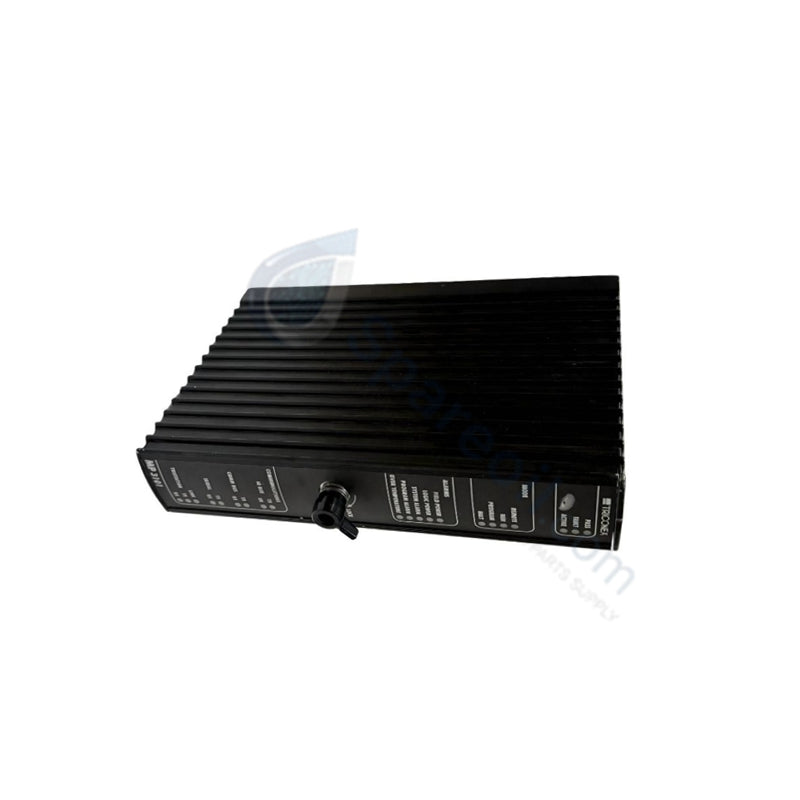

Triconex MP3101 Trident Redundant Processor Module

The Triconex MP3101, also cataloged as the MP3101 Trident Redundant Processor Module, operates as a dedicated hardware component for safety logic execution and I/O coordination within Triconex Trident safety instrumented system platforms.

Hardware Specifications

Parameter	Specification
Model	MP3101
Brand	Triconex
Origin	United States
Weight	2.0 kg
Dimensions	228 mm x 160 mm x 75 mm
Operating Temp	-40 to +70 deg C
Storage Temp	-40 to +85 deg C
Relative Humidity	5 to 95%, non-condensing
Power Consumption	8 W max
Processor	32-bit RISC, 50 MHz
Logic Scan Time	Less than 20 ms typical (10 ms minimum)
Voltage Rating	24 VDC nominal (18 to 32 VDC range)
Memory Capacity	6 MB Flash (program), 16 MB DRAM (data), 8 KB NVRAM
Inter-Processor Link	TriBus (25 Mbps CRC-protected)
Communication Interfaces	Ethernet 10BaseT, RS-232, RS-485
Safety Certification	IEC 61508 SIL 3 compliant, TUV certified

Triple Modular Redundancy and Fail-Safe State Execution

The module implements a triple modular redundancy (TMR) 2oo3 architecture using three independent processing channels to ensure fault-tolerant logic execution. Each channel scans inputs, performs safety calculations, and compares output states via the 25 Mbps hardware-synchronized TriBus inter-processor network. If any single channel experiences an operational variance or component failure, the internal hardware voting logic masks the faulty channel without interrupting active processes. This architecture ensures complete adherence to IEC 61508 SIL 3 specifications, executing a deterministic fail-safe state transition in the event of concurrent channel faults.

Frequently Asked Questions

Q: What is the synchronization throughput between the three internal processor channels?

A: The three internal sub-processors maintain data synchronization over the dedicated TriBus network layer, executing hardware-level data verification at a continuous speed of 25 Mbps with integrated CRC error protection.

Q: Can a single faulty processor module be extracted while the system continues active safety logic operations?

A: Yes. The system supports full online hot-swap capabilities, allowing the extraction and replacement of an individual processor module without interrupting the 2oo3 voting sequence or dropping field I/O control loops.

Q: How does the hardware retain application variables during total external DC power loss?

A: The processor incorporates an 8 KB non-volatile random-access memory (NVRAM) block dedicated to the preservation of critical system states and retentive variables during power dropouts.

Field Installation Guidelines

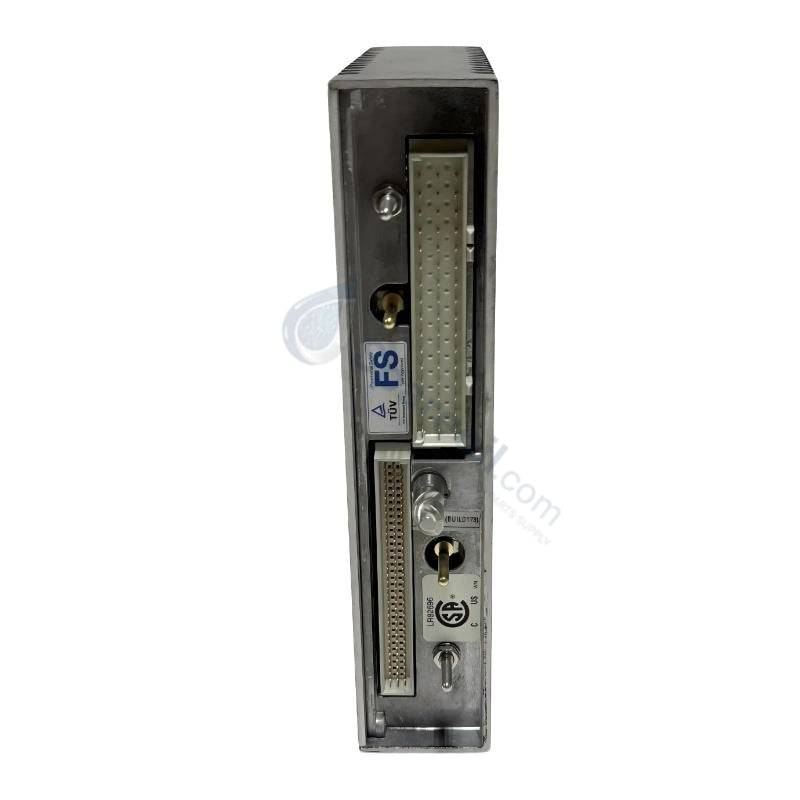

Chassis Insertion: Guide the module vertically along the target slot rails until the rear multi-pin DIN backplane connectors seat fully, then lock the front panel retention clips to ensure stable contact pressure.
Shield Grounding Continuity: Connect external Ethernet and serial communication cable shields directly to the chassis frame ground bar using single-point grounding methods to minimize common-mode electrical noise.
Wiring Ducts Segregation: Maintain physical isolation between low-voltage network cables and high-voltage power distribution wiring paths within the cabinet to prevent signal distortion.
Firmware Verification: Check that the module firmware baseline matches the active runtime system application project specifications prior to putting the slot in an active operational state.
