Description

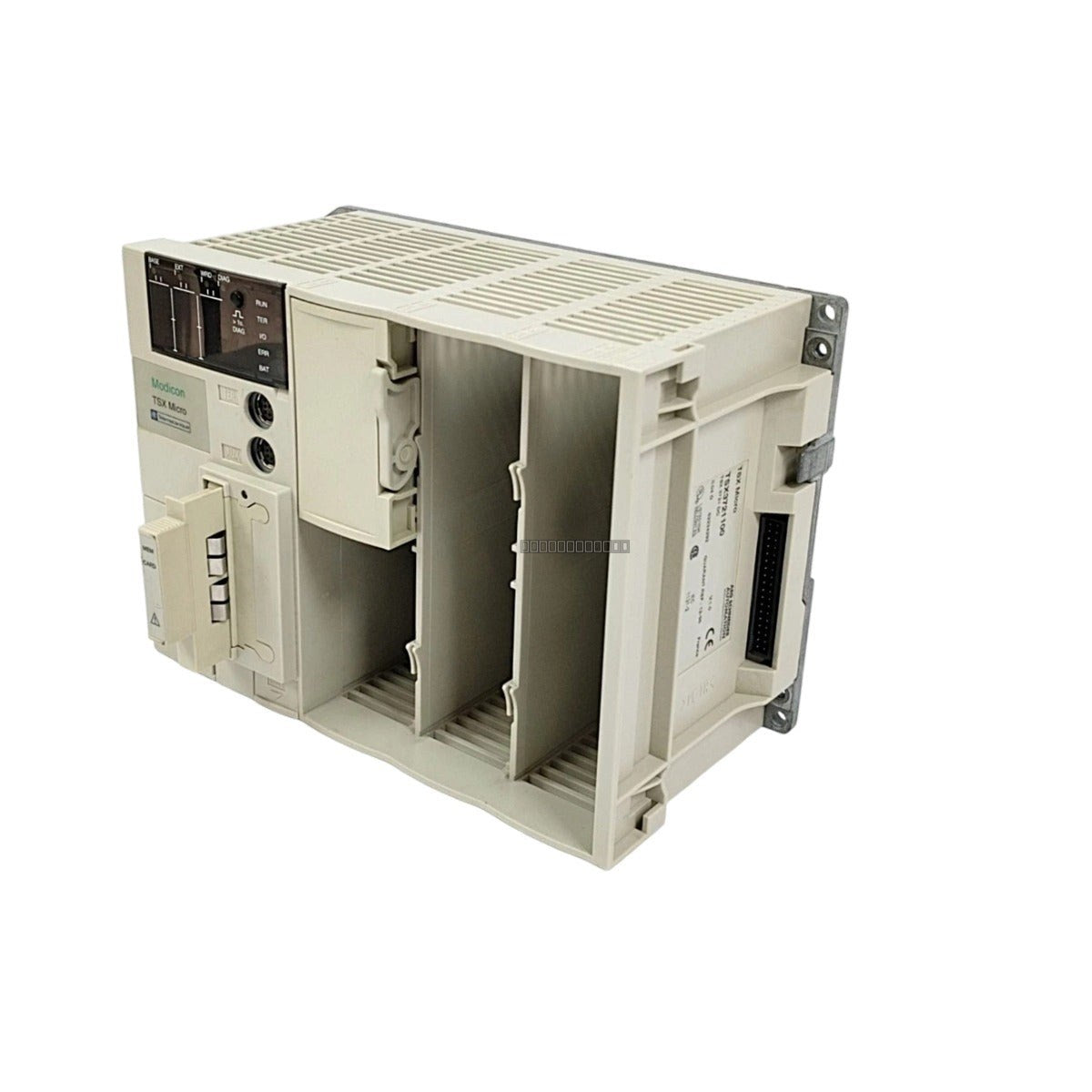

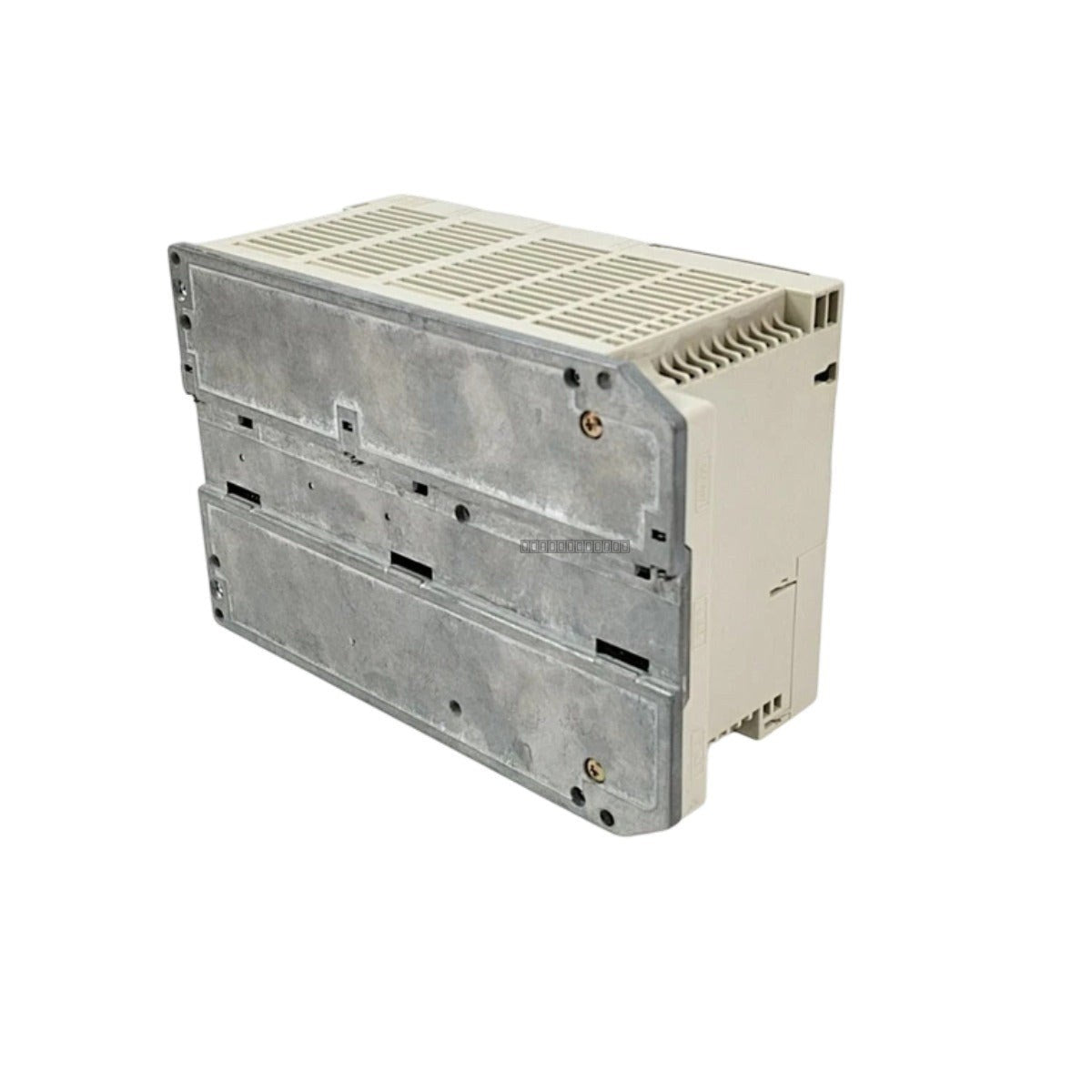

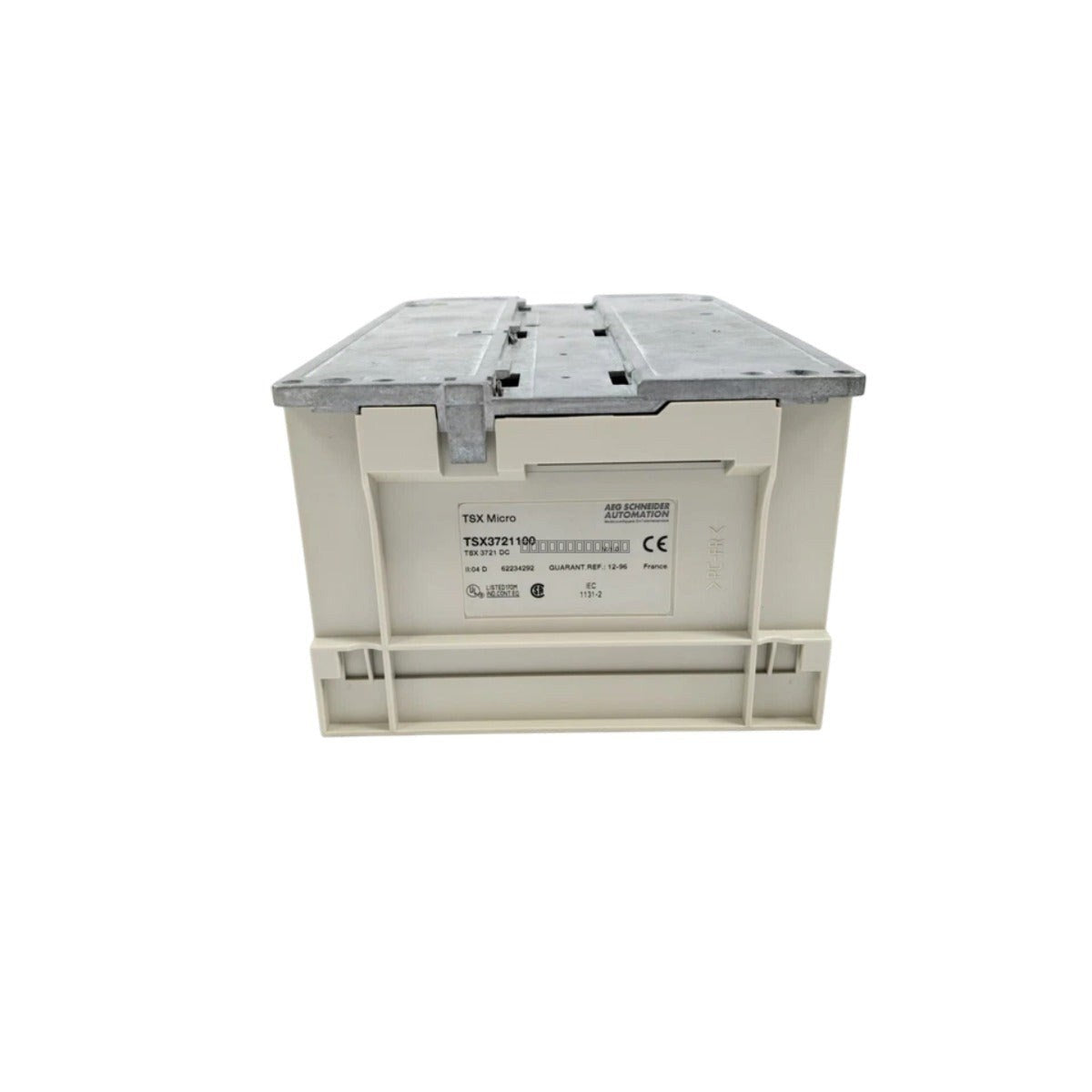

The Schneider Electric TSX3721100 is a high-performance modular base controller designed for the TSX Micro PLC platform. This CPU module provides robust automation control for industrial processes, offering a balance of processing speed and memory capacity. It is engineered to handle complex task management, including one master task, eight event tasks, and one fast task, ensuring efficient execution of time-critical operations.
Features
- Memory Capacity: Equipped with 14 Kwords of RAM and 15 Kwords of Flash memory for reliable program and data storage.
- Connectivity: Features integrated communication ports including one Uni-Telway serial link and one Modbus connection, both supporting speeds up to 19.2 kbit/s.
- Expansion: Includes three dedicated slots for additional I/O or communication modules, allowing for system scalability.
- Operational Stability: Designed with an immunity to microbreaks of less than 20 ms, ensuring continuous operation during minor power fluctuations.
- Environmental Resilience: Rated for operation in temperatures from 0 degC to 60 degC and altitudes up to 2000 meters.
Applications
This controller is widely utilized in small to medium-sized industrial automation applications, including machine control, process monitoring, and material handling systems where modularity and reliable communication protocols are required.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | TSX Micro PLCs |
| Part Number | TSX3721100 |
| Supply Voltage | 24 V DC (19.2 - 30 V DC) |
| Operating Temperature | 0 degC to 60 degC |
| Storage Temperature | -25 degC to 70 degC |
| Relative Humidity | 10-95% (non-condensing) |
| Operating Altitude | 0-2000 m |
| Immunity to Microbreaks | < 20 ms |
Installation Guidelines
- Mounting: Ensure the unit is mounted in a clean, dry environment with adequate ventilation to maintain operating temperature limits.
- Power Supply: Verify that the input voltage is within the 19.2-30 V DC range before powering on the unit.
- ESD Protection: Use standard electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal components.
- Wiring: Ensure all communication cables (Uni-Telway/Modbus) are properly shielded and routed away from high-voltage power lines to minimize EMI interference.
- Safety: Always disconnect power before inserting or removing the module from the rack or connecting peripheral devices.
FAQ
What is the primary function of the TSX3721100?
The TSX3721100 is a modular base controller (CPU) for the TSX Micro PLC series, used to manage automation tasks, logic processing, and communication between field devices.
Can this module be expanded?
Yes, the unit features three expansion slots that allow for the addition of various I/O or communication modules to suit specific application requirements.
