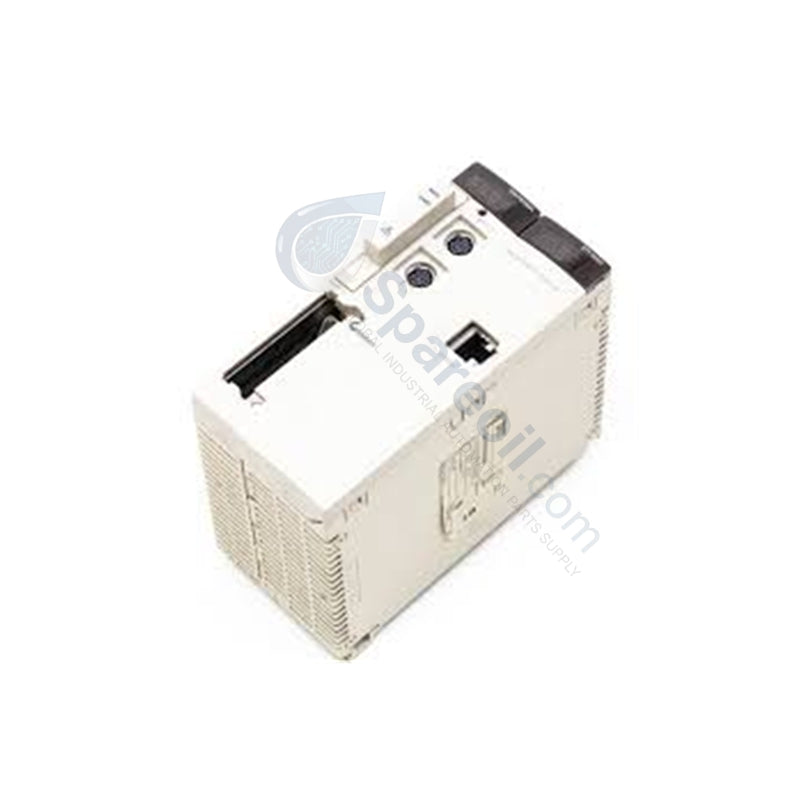

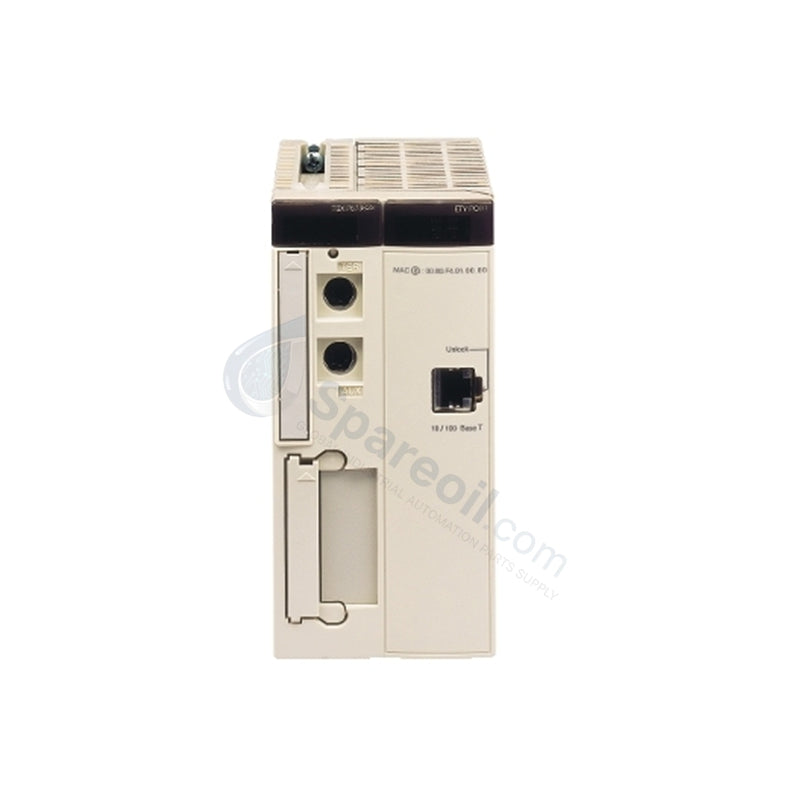

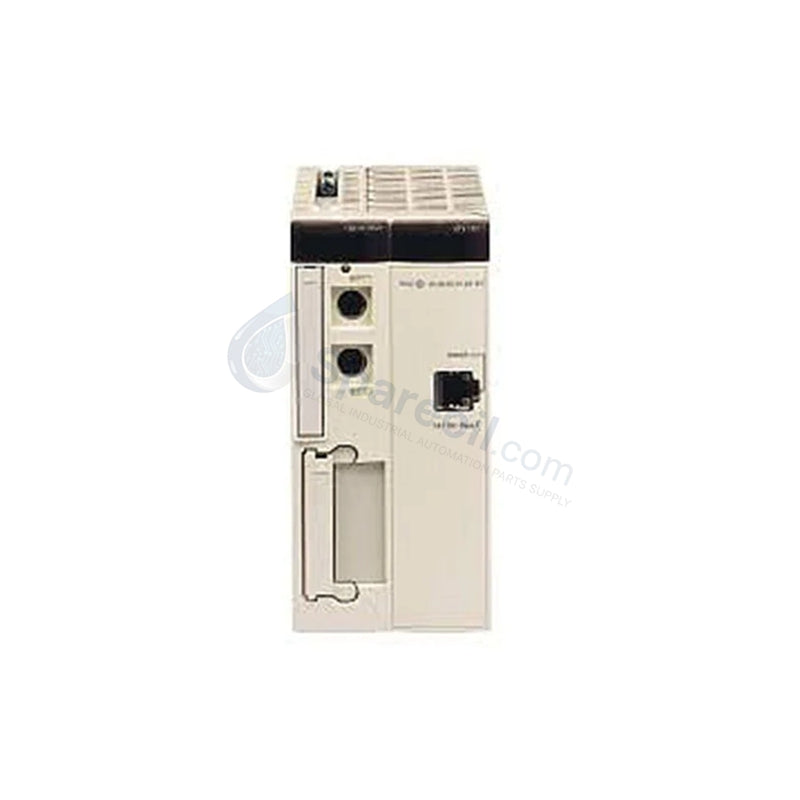

Schneider TSXP572634M Modicon Premium Unity Processor

Configured for user program execution and synchronized multi-rack data management in Modicon Premium networks, the Schneider TSXP572634M (TSXP572634M PLC CPU) provides direct physical/electrical execution. The double-width module executes Boolean logic and numerical routines directly over internal memory spaces, controlling communication allocation parameters across integrated serial links and an embedded 10/100 Mbps Ethernet port interface.

Hardware Specifications

Parameter	Specification
Model	TSXP572634M
Brand	Schneider Electric
Origin	France
Weight	0.42 kg (0.93 lbs)
Dimensions	Double-width Premium module allocation
Operating Temp	0 to 60 deg C
Storage Temp	-25 to 70 deg C
Power Consumption	1650 mA at 5 V DC backplane reference
Processor Platform	Unity Processor (Transparent Ready)
Program Execution Speed	0.19 us Boolean (no PCMCIA), 0.21 us Boolean (with PCMCIA)
Base User Memory	160 kB internal program/data
Memory Expansion	Up to 768 kB program and 16 MB data via PCMCIA slots
Maximum I/O Capacity	1024 discrete I/O, 80 analog I/O
Application Channels	<= 24 application-specific channels
Process Control Capacity	<= 10 process loops (up to 30 simple loops)
Embedded Interfaces	1 x Ethernet TCP/IP (RJ45, 10/100 Mbps), 2 x RS485 serial (19.2 kbps)
Runtime Task Structure	1 master task, 1 fast task, 64 event tasks
Protection Class	IP20
Certifications	CE, UL, CSA, IEC 61131-2, Marine (ABS, BV, DNV, GL, LR, RINA, RMRS)

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Schneider TSXP572634M coordinates data exchanges between the core execution engine and the hardware sub-racks using dedicated parameters configured under native backplane bus communication velocity licenses. The Unity processor processes discrete and analog data tables across 1 master task and 64 distinct event tasks, minimizing logic update delays during shifting field configurations.

When interacting with Profinet / EtherNet/IP deterministic networks via the embedded RJ45 interface, the CPU handles high-frequency data framing natively. This baseline architecture supports precise I/O density scaling profiles up to 1024 discrete and 80 analog points across 16 physical racks, preventing communication jitter or frame dropouts from affecting critical process control loops.

Frequently Asked Questions

Q: How does the TSXP572634M respond to memory resource exhaustion during large application downloads?

A: The processor relies on its internal 160 kB memory block. If application code or variable tables exceed this boundary, the module halts execution and indicates a configuration error. Expanding the memory requires inserting an external PCMCIA card to scale up to 768 kB for program code or 16 MB for data retention.

Q: What is the significance of the double-width mechanical format of this processor during rack layout planning?

A: The double-width form factor requires two contiguous slots on the Modicon Premium backplane rack. It must be locked into the designated master slots to ensure correct bus pinning alignment and full 1650 mA power rail supply.

Q: Can this Unity processor be directly programmed with EcoStruxure Control Expert software versions?

A: Yes, the TSXP572634M is compatible with Unity Pro and corresponding newer EcoStruxure Control Expert programming software environments, provided the specific hardware catalog definition and matching firmware revisions are selected.

Field Installation Guidelines

Remove all primary power sources supplying the target backplane assembly prior to inserting or extracting the processor module.
Align the double-width card within the chassis slot tracks, pressing firmly to verify the rear connectors seat into the backplane pins before securing the integrated locking screws.
Establish a low-impedance connection between the rack ground terminal and the central enclosure earth ground plane to maintain conformity with IEC 61131-2 requirements.
Route all communication lines, including the RJ45 Ethernet run and the RS485 serial connections, through independent paths separated from high-voltage AC conductors by at least 30 cm.
Ensure adjacent slot clearances conform to vendor spacing regulations to permit proper thermal air convection and maintain internal components below the 60 deg C operating threshold.
