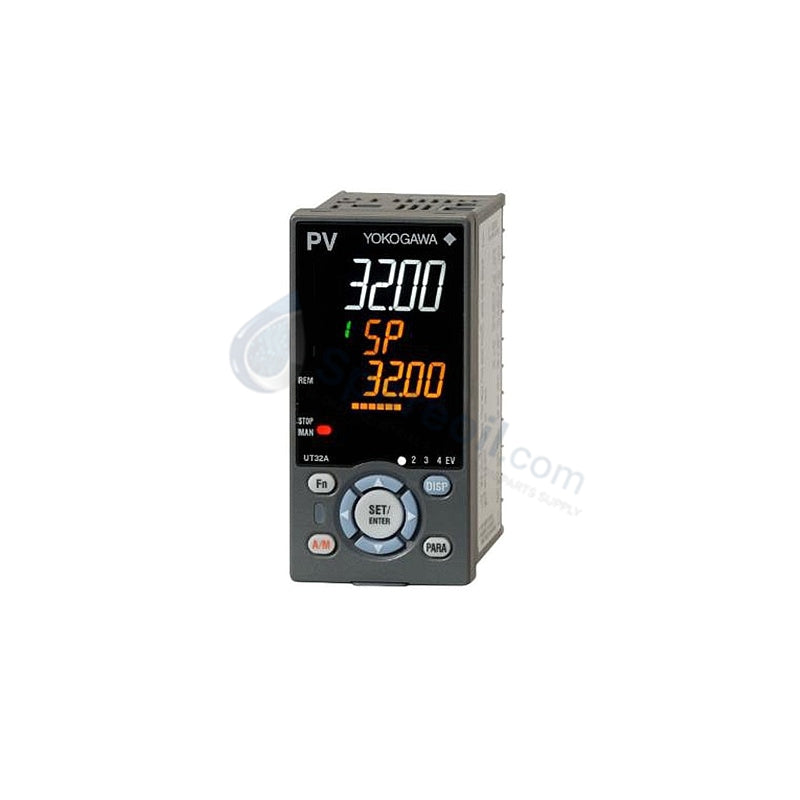

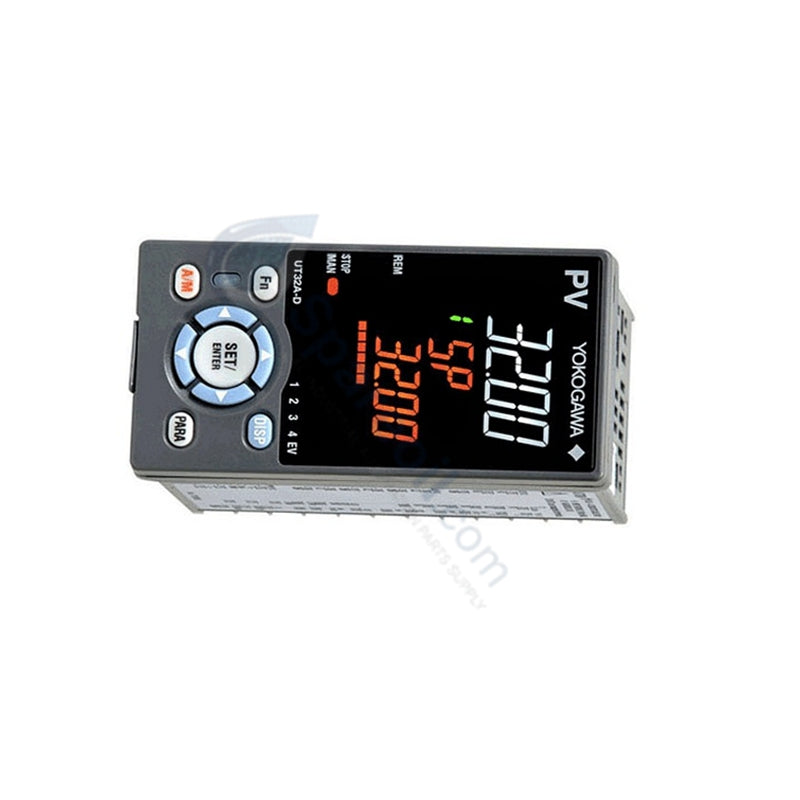

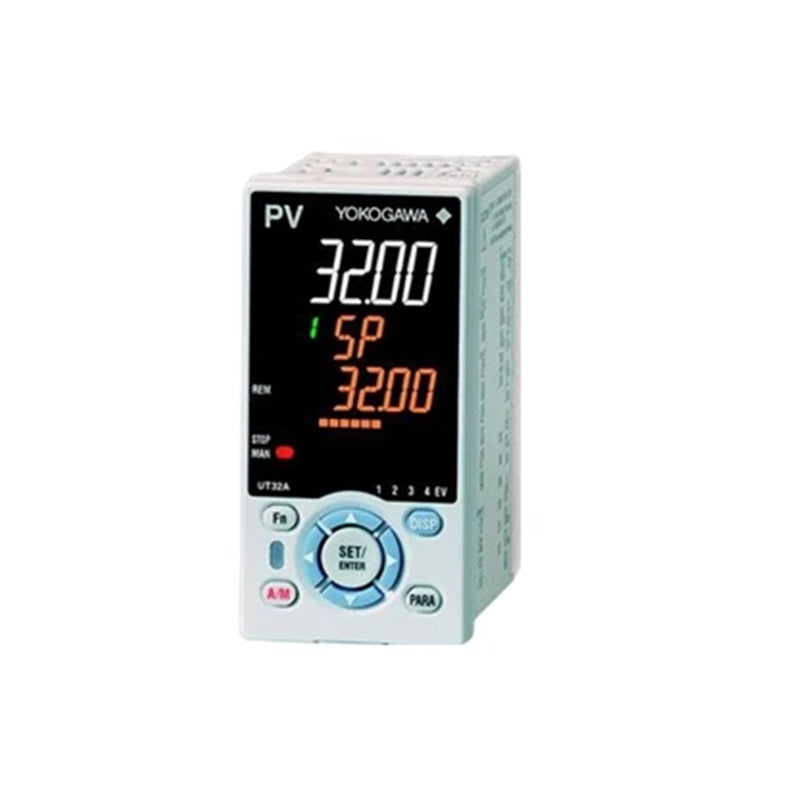

Yokogawa UT32A-010-11-00 UTAdvanced Digital Indicating Controller

The Yokogawa UT32A-010-11-00, also cataloged as the UT32A Digital Indicating Controller, operates as a dedicated hardware component for single-loop process variable monitoring and control within UTAdvanced series setups. Encased in a 1/8 DIN panel housing with a 65 mm mounting depth, the unit samples universal field inputs (thermocouple, RTD, DC voltage, and DC current) every 200 ms to calculate active PID loops with ±0.1% span accuracy. It executes real-time control via 3 digital outputs and processes 2 digital inputs alongside RS-485 Modbus/RTU communication lines.

Hardware Specifications

Parameter Specification
Model UT32A-010-11-00
Brand Yokogawa
Origin South Korea
Weight 0.48 kg (1.05 lbs)
Dimensions 48 x 96 x 65 mm (1/8 DIN panel size)
Operating Temp 0 to +50 deg C
Power Consumption 100-240 VAC power supply
Control Period 200 ms sampling rate
Measurement Accuracy ±0.1% of input span
Display Type 14-segment active color LCD, dual 5-digit displays
Digital I/O Capacity 2 digital inputs, 3 digital outputs
Communication Interface RS-485 (Modbus/RTU, PC-Link)
Front Panel Ingress Rating IP66 and NEMA4 front sealing

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The controller incorporates high-density analog signal processing circuitry to interface active transmitter lines with internal digital control algorithms. Channel input stages provide cold junction compensation (CJC) for thermocouple sensor connections and maintain strict electrical separation across the internal bus. This isolation scheme prevents common-mode noise on field-side 4-20 mA current loops from injecting signal offsets into the active 14-segment LCD parameter display or the RS-485 serial communication transceiver.

Frequently Asked Questions

Q: How does the hardware handle cold junction compensation when measuring thermocouple sensors?

A: Internal semiconductor temperature sensors located at the rear terminal block continuously measure ambient reference junction temperatures, dynamically adjusting the thermocouple mV input calculations.

Q: Can the front panel withstand direct water jet washdowns in exposed control cabinets?

A: Yes, the front panel features an IP66 and NEMA4 environmental seal, which prevents moisture, dust, and water ingress during routine panel washdown procedures.

Q: What action should technicians take if RS-485 serial communication drops offline?

A: Inspect the 2-wire serial line termination resistors, verify that the Modbus/RTU station address matches controller configuration settings, and confirm shielding continuity back to the host gateway ground terminal.

Field Installation Guidelines

  1. Cut out a standard 1/8 DIN panel opening measuring 45 mm by 92 mm in the cabinet door.
  2. Slide the controller housing into the cut-out from the front until the synthetic rubber gasket seats flush against the panel exterior.
  3. Insert the mounting brackets into the top and bottom housing slots, tightening the clamping screws evenly until the unit rests firmly against the panel face.
  4. Route field signal wires through dedicated cable troughs, separating low-voltage thermocouple/RTD lines from 100-240 VAC main power wiring.
  5. Connect all field signal drain wires directly to a central cabinet ground bar to ensure single-point electrical grounding.
  6. Apply 100-240 VAC main operating power and confirm that the dual 5-digit LCD display completes its initial self-test routine.
