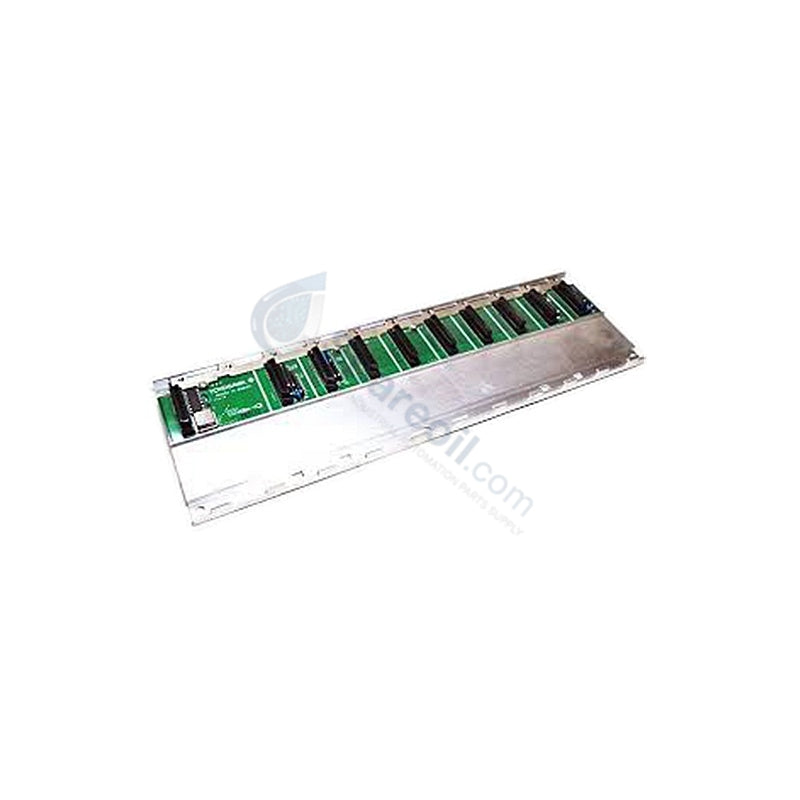

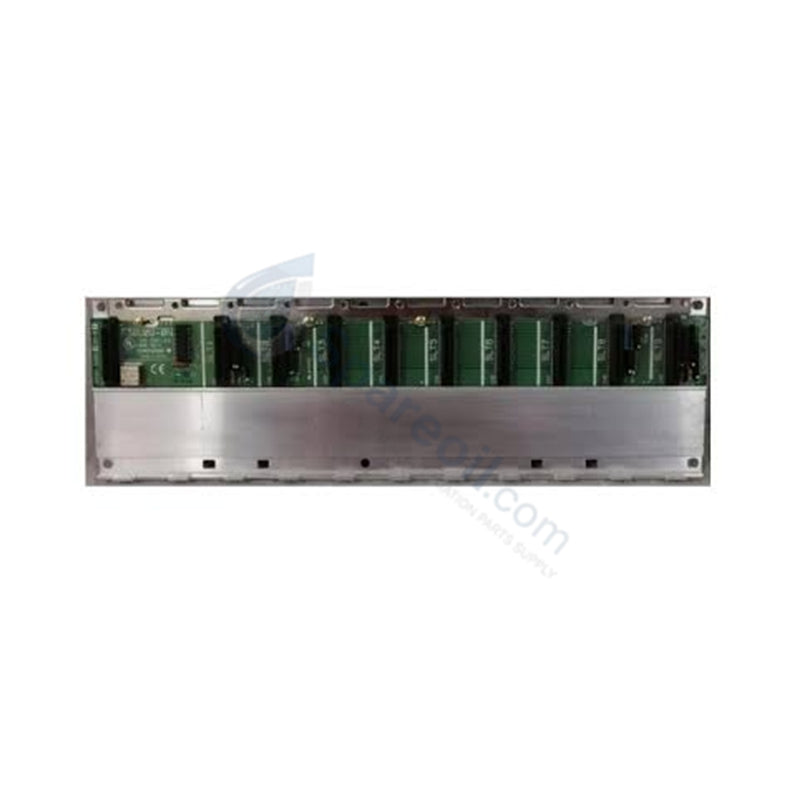

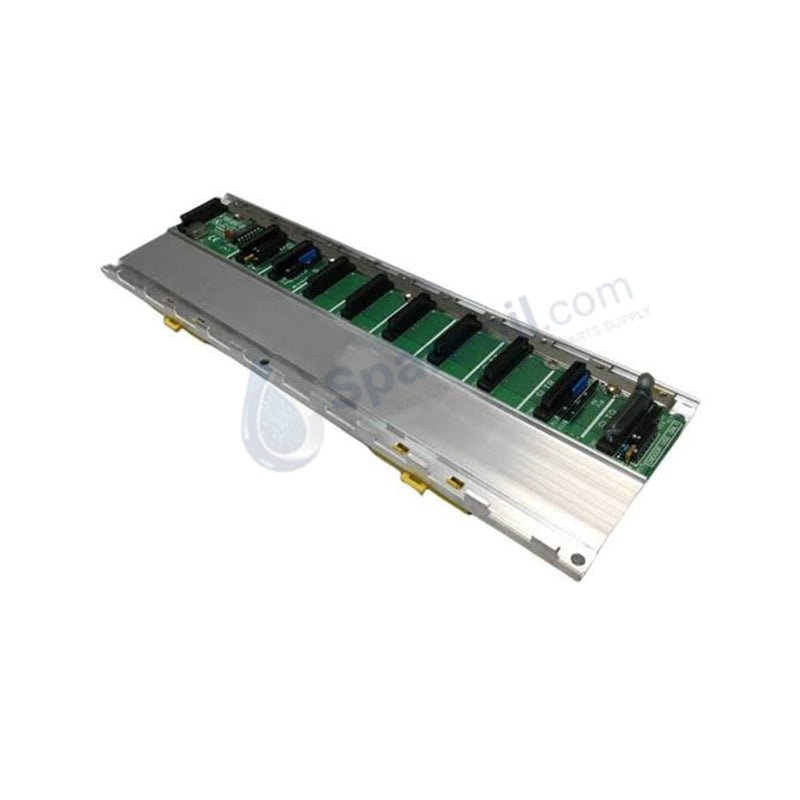

Yokogawa F3BU09-0N FA-M3 9-Slot Base Unit

The Yokogawa F3BU09-0N, also cataloged as the F3BU09-0N 9-Slot Base Unit, operates as a dedicated hardware component for structural mounting and backplane bus interconnection within Yokogawa FA-M3 PLC platforms.

Hardware Specifications

Parameter Specification
Model F3BU09-0N
Brand Yokogawa
Origin Japan
Weight 0.29 kg (0.64 lbs)
Dimensions 350 x 120 x 30 mm
Operating Temp -20 to +55 deg C
Power Consumption 50 mA at 5 VDC (backplane bus load)
Available Slots 9 module slots
Bus Interface FA-M3 high-speed system bus
Mounting Method DIN-rail or panel mounting
Cooling Natural convection

Channel-to-Channel Isolation & Cold Junction Compensation Compatibility

The base unit routes system power and high-speed data bus traffic across 9 dedicated expansion slots without introducing signal crosstalk. Standard power distribution buses route regulated DC supply to installed CPU, digital, and analog I/O modules. While handling analog input modules with channel-to-channel isolation and thermocouple inputs with cold junction compensation (CJC), the backplane architecture maintains ground isolation between field signals and internal processing logic. This structural separation suppresses common-mode noise and prevents ground loop currents across connected field loops.

Frequently Asked Questions

Q: What is the backplane power current draw for the F3BU09-0N base unit?

A: The unit draws a nominal 50 mA at 5 VDC from the system backplane power supply to operate internal bus interface logic.

Q: What module types can be installed into the 9 available slots?

A: The unit accepts FA-M3 CPU processors, power supply modules, digital I/O, analog I/O, and specialized communication modules across all standard positions.

Q: How is the base unit cooled during continuous industrial operation?

A: Cooling relies entirely on natural convection. The physical layout requires unblocked vertical clearance above and below the chassis for passive airflow.

Field Installation Guidelines

Mount the base unit onto a standard 35 mm DIN rail or secure it directly to a flat enclosure panel using mounting screws. Ensure the enclosure maintains adequate vertical spacing above and below the assembly to allow unrestricted natural convection cooling. Align each FA-M3 module with the guide channels before applying firm pressure to seat the backplane connector.

Connect the primary enclosure earth ground to the dedicated base ground terminal using a low-impedance copper conductor. Keep high-voltage field wiring physically separated from low-voltage DC signals and backplane communication paths to eliminate inductive coupling. Furthermore, confirm that all expansion modules seat fully and lock into position prior to applying system power.
