Yokogawa F3SP05-0P FA-M3 Sequence CPU Module

Availability: 20 left in stock

Yokogawa F3SP05-0P FA-M3 Sequence CPU Module The Yokogawa F3SP05-0P, also cataloged as the F3SP05 CPU Module, operates as a dedicated...

SKU: F3SP05-0P

Manufacturer: Yokogawa
Product No.: F3SP05-0P
Product Type: CPU Processors
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

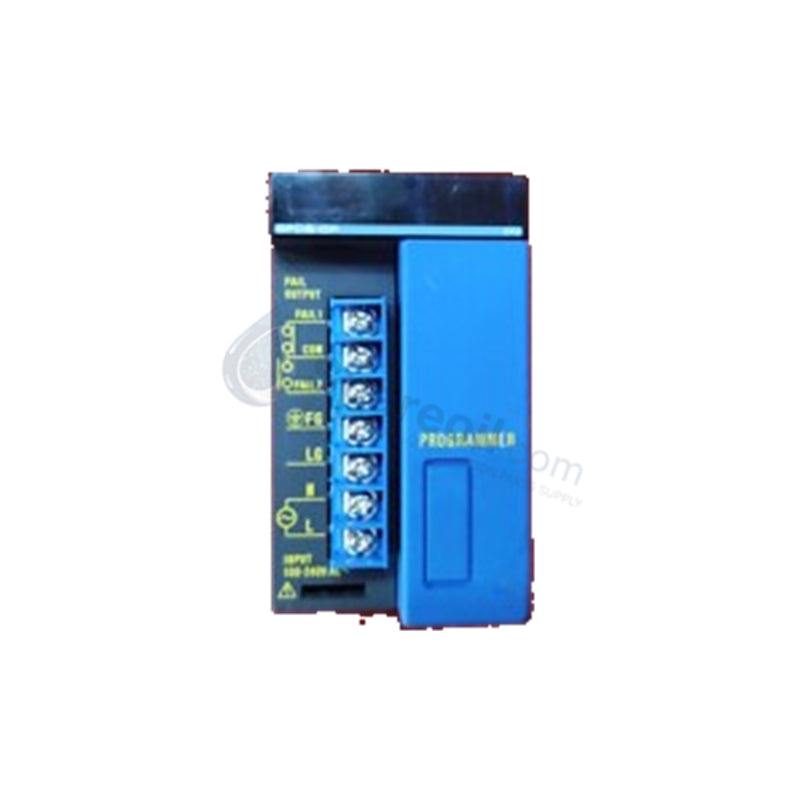

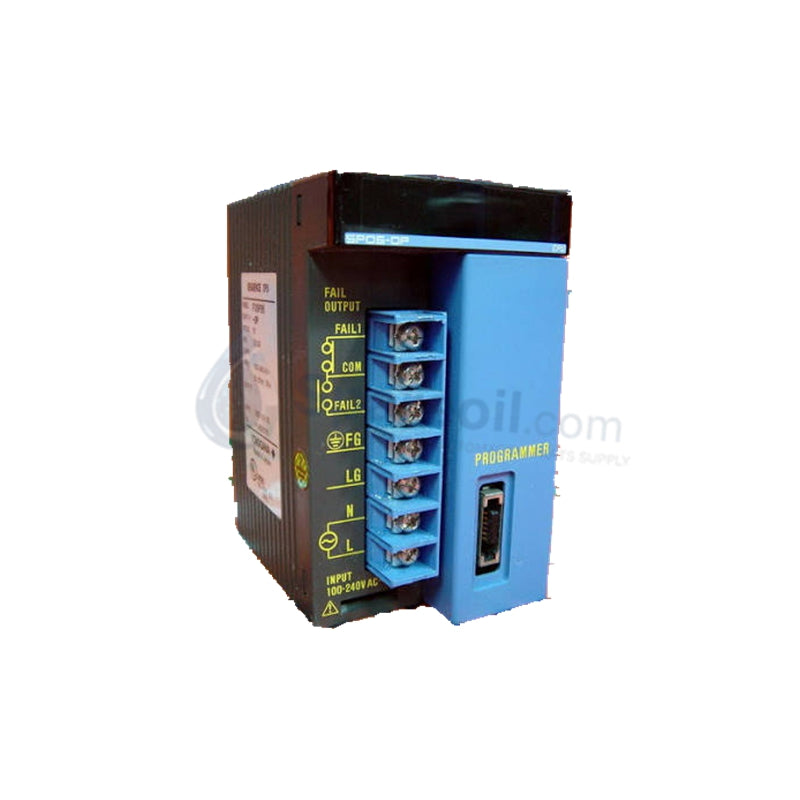

Yokogawa F3SP05-0P FA-M3 Sequence CPU Module

The Yokogawa F3SP05-0P, also cataloged as the F3SP05 CPU Module, operates as a dedicated hardware component for high-speed sequence processing within Yokogawa FA-M3 Range-Free Multi-Controller platforms. Configured to execute ladder logic and parallel instruction cycles across local and expanded backplanes, the unit processes discrete and analog I/O data through direct system bus connections. The module interfaces with adjacent power supplies, communication cards, and density-scaled I/O assemblies while maintaining sub-millisecond control execution across internal processing slots.

Hardware Specifications

Parameter	Specification
Model	F3SP05-0P
Brand	Yokogawa
Origin	Japan
Weight	0.20 kg net
Dimensions	28.9 mm W x 100 mm H x 148 mm D
Operating Temp	0 to +55 deg C
Power Consumption	Logic bus powered via backplane (5 VDC internal rail)
Platform	FA-M3 Range-Free Multi-Controller
Instruction Execution	Sub-millisecond sequence processing and multi-tasking execution
Program Memory	High-density internal memory allocation for register and logic steps
Relative Humidity	5 to 95% RH (non-condensing)
Mounting Profile	Main or expansion base unit slot in FA-M3 rack

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation Integration

The F3SP05-0P CPU module features internal logic decoupling structures to preserve data accuracy when processing analog inputs originating from isolated field transmitters. When coordinating system loops running 4-20 mA HART loop protocol signals or millivolt CJC (cold junction compensation) inputs via FA-M3 analog modules, the processor isolates real-time data tables from high-frequency bus noise. High internal noise immunity prevents backplane voltage spikes from corrupting active register values, ensuring deterministic scan execution during heavy parallel I/O transactions.

Frequently Asked Questions

Q: What action occurs if backplane supply voltage drops below standard operational logic thresholds?

A: The processor initiates an orderly hardware shutoff sequence, setting output signals to predetermined safe states and halting active scan cycles to prevent memory corruption or unpredictable logic execution.

Q: Can the F3SP05-0P CPU module be inserted or removed while the FA-M3 base chassis is powered?

A: No. Power to the FA-M3 base unit must be disconnected prior to inserting or removing the CPU module to prevent backplane bus pin damage and processor latch-up faults.

Q: How does the processor manage parallel task execution across high-density I/O configurations?

A: The internal processing engine divides ladder scanning and system communications into prioritized execution threads, ensuring high-priority control loops maintain deterministic update rates regardless of background peripheral tasks.

Field Installation Guidelines

Slot Placement: Insert the F3SP05-0P into the designated CPU slot on the FA-M3 main base unit, aligning the card edge connectors before firmly seating the module lock.
Chassis Grounding: Connect the main chassis protective earth (PE) terminal to the primary cabinet ground rail using a short, low-impedance copper conductor.
Cabinet Thermal Clearance: Maintain a minimum 50 mm clearance above and below the module rack assembly to support natural convection cooling and maintain operating temperatures between 0 and +55 deg C.
Handling Practices: Observe standard electrostatic discharge (ESD) precautions by wearing a grounded wrist strap when handling the exposed module circuit board or connector pins.
