F3SP76-7S Yokogawa Sequence CPU Module

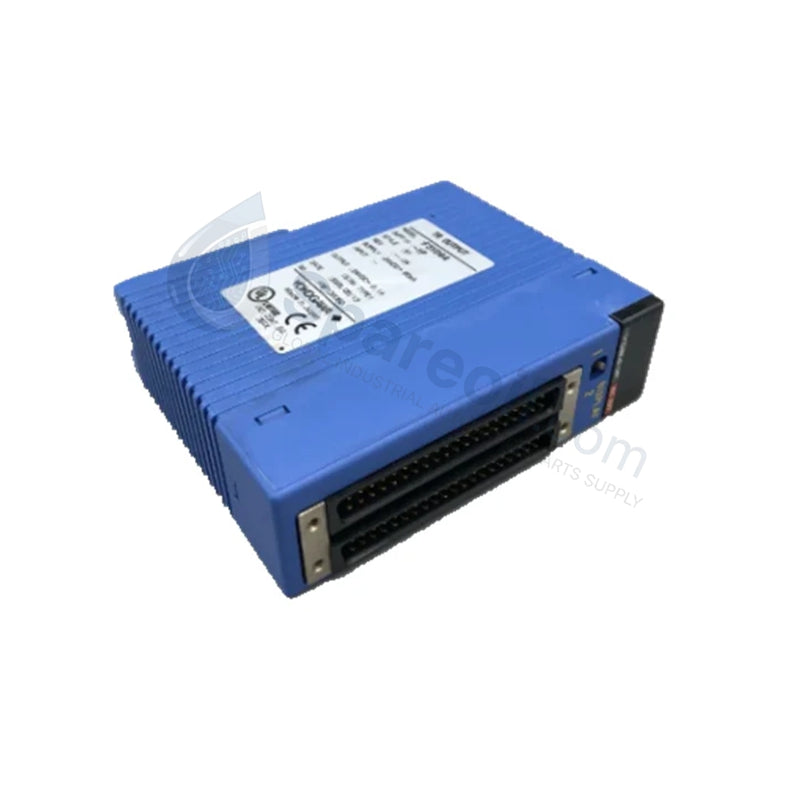

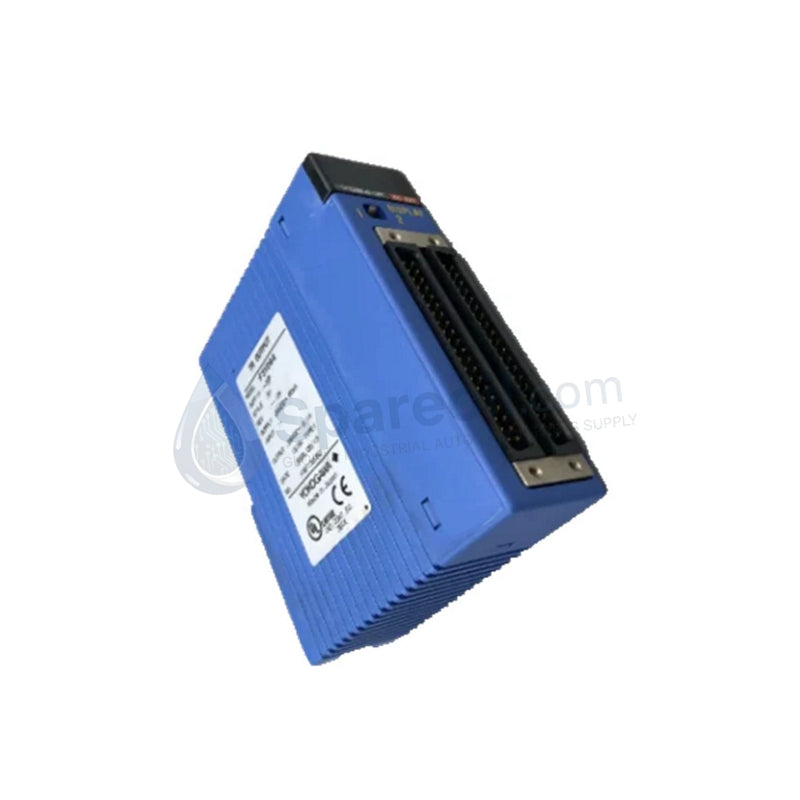

Yokogawa F3SP76-7S FA-M3 High-Speed Sequence CPU Processor

Yokogawa F3SP76-7S FA-M3 High-Speed Sequence CPU Processor

Availability: 10 left in stock

Yokogawa F3SP76-7S FA-M3 Sequence CPU Module The Yokogawa F3SP76-7S, also cataloged as the F3SP76 Sequence CPU Module, operates as a...

SKU: F3SP76-7S

Manufacturer: Yokogawa
Product No.: F3SP76-7S
Product Type: CPU Processors
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa F3SP76-7S FA-M3 Sequence CPU Module

The Yokogawa F3SP76-7S, also cataloged as the F3SP76 Sequence CPU Module, operates as a dedicated hardware component for ultra-high-speed deterministic sequence execution within Yokogawa FA-M3 Range-free Multi-controller platforms. The processor processes basic instructions at 0.00375 us per step across a program capacity of 260K ladder steps, managing up to 8,192 local and remote I/O points via embedded Ethernet and USB 2.0 communication interfaces.

Suffix Breakdown & Model Matrix

Suffix / Option Code	Designation	Functional Execution
F3SP76	Base Controller Module	High-speed PLC processor with 260K step program capacity
-7S	Hardware & Protocol Option	Integrates 10/100 Mbps Ethernet port, USB 2.0 maintenance interface, and SD/SDHC expansion slot

Hardware Specifications

Parameter	Specification
Model	F3SP76-7S
Brand	Yokogawa Electric Corporation
Origin	Japan
Weight	0.45 kg
Dimensions	28.9 x 100 x 83.2 mm
Operating Temp	-20 to +55 deg C
Storage Temp	-40 to +70 deg C
Power Consumption	460 mA at 5 VDC backplane bus
Basic Instruction Speed	0.00375 us per step
Application Instruction Speed	0.0075 us per step
Program Capacity	260K ladder steps (520K steps project capacity)
Max I/O Points	8,192 total points (local and remote combined)
Internal Storage Memory	Internal RAM disk, SD/SDHC card expansion slot
Onboard Network Ports	1 x Ethernet (10/100 Mbps), 1 x USB 2.0 (12 Mbps)
Supported Protocols	TCP/IP, UDP/IP, FTP client/server, Modbus/TCP slave
Diagnostic System	Hardware self-test, software error log, watchdog timer
Compliance Standard	CE, UL certified

Ethernet Connectivity and Process Automation Protocols

The sequence CPU integrates direct 10/100 Mbps Ethernet connectivity to establish real-time deterministic communication across plant-wide control networks. Support for Modbus/TCP, FTP server/client operations, and native TCP/UDP sockets allows seamless data exchange between the FA-M3 backplane bus and higher-level DCS host stations or SCADA platforms. Operating with dual-scan task execution (achieving up to 200 us high-priority loop updates), the processor segregates fast control tasks from standard background logic execution, preventing communication overhead from degrading deterministic field scan times.

Frequently Asked Questions

Q: How does the dual-scan control architecture prevent scan time jitter during heavy communication loads? A: The dual-scan engine isolates time-critical control tasks from standard logic execution frames. The high-speed scan updates priority I/O at deterministic intervals as short as 200 us, ensuring that network data requests or background file logging to the SD card do not disrupt critical control loops.

Q: What precautions are required when utilizing an SDHC card for offline project restoration? A: Technicians must verify that the SD/SDHC memory card uses a supported filesystem and that file transfer operations complete before removing power. Unplugging memory cards during active write sequences can corrupt backup project files or system logs stored on the card.

Field Installation Guidelines

Insert the CPU module firmly into the designated CPU slot on the FA-M3 base rack, ensuring that top and bottom retaining clips snap securely into place to maintain solid backplane pin alignment. Connect shielded Cat5e or Cat6 industrial Ethernet cables to the front RJ-45 socket, routing communications away from high-voltage motor lines to prevent noise interference. Bond the main rack frame to the cabinet grounding system using a low-impedance copper ground strap.
