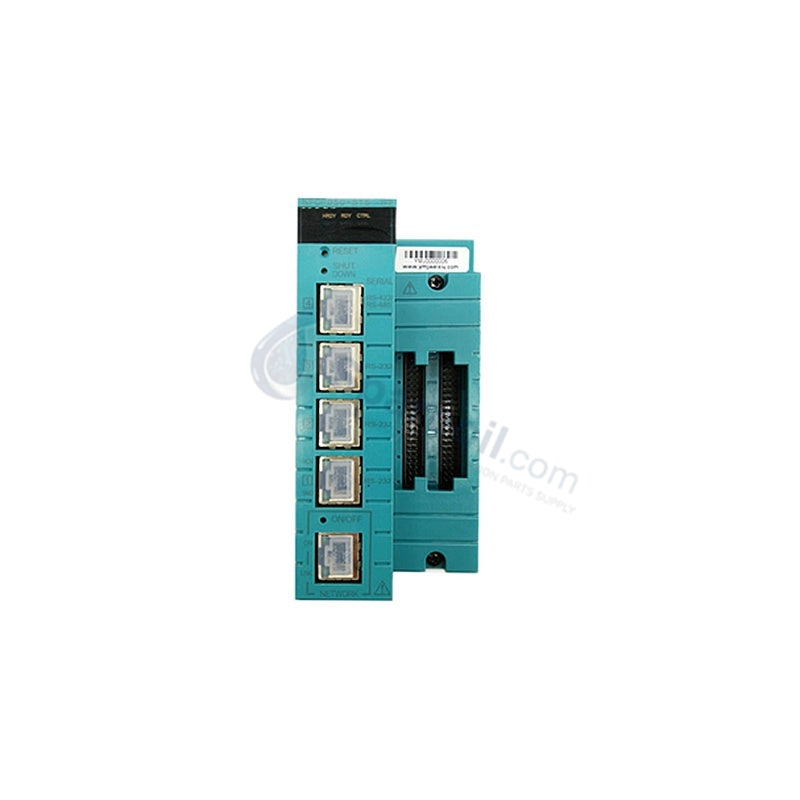

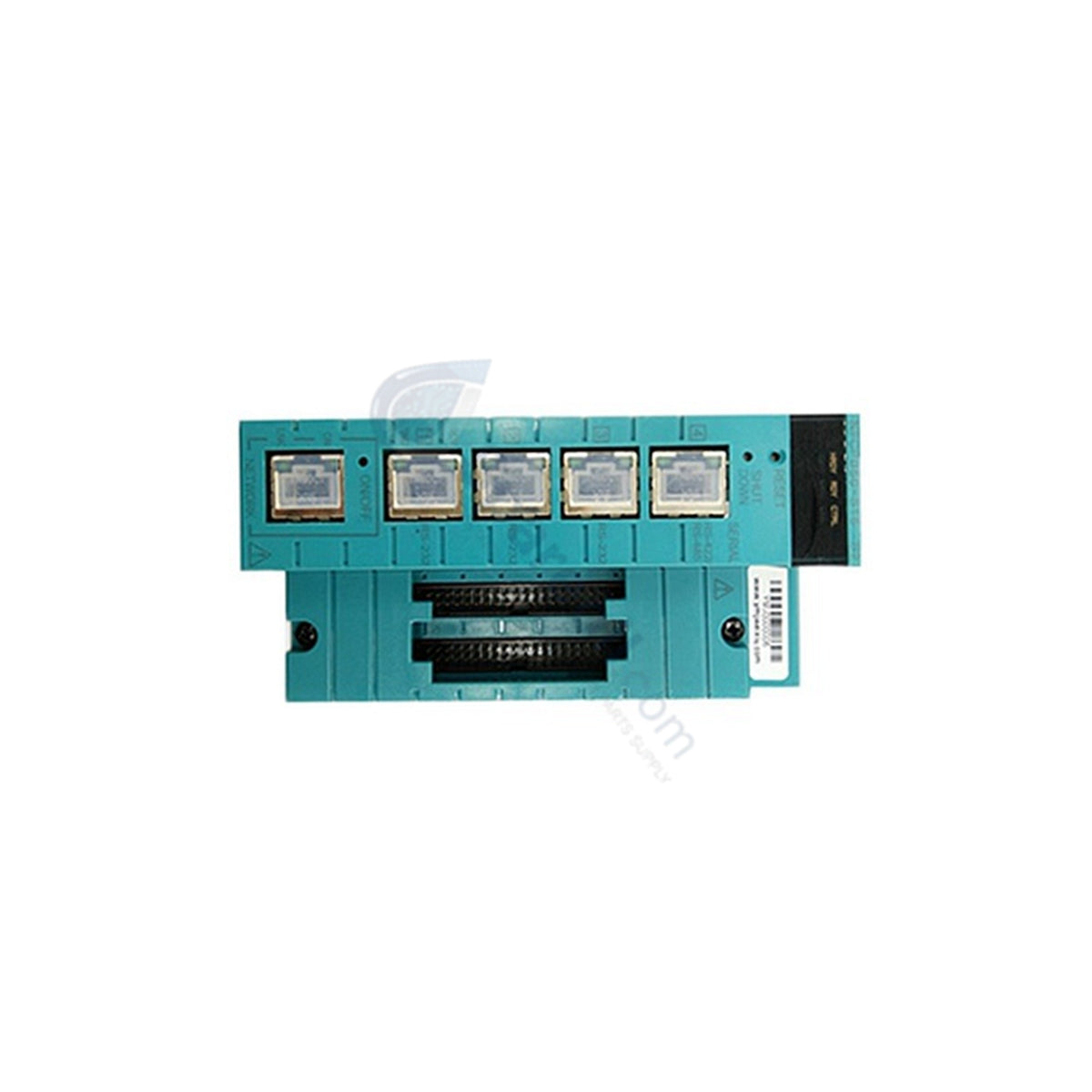

Yokogawa NFCP050 Field Control Processor Module
Configured for deterministic control cycle execution in Yokogawa STARDOM FCN-RTU and CENTUM systems, the Yokogawa NFCP050 (NFCP050 Field Control Processor Module) provides direct physical/electrical execution. The unit executes control logic, manages built-in digital/analog I/O channel coordination, and processes dual-redundant network communications across Vnet/IP and ESB bus backplane architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NFCP050 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.3 kg |
| Dimensions | 120 mm x 28 mm x 90 mm |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | ~10 W (24 VDC Power Supply) |
| CPU Architecture | SH-4A (SH7730) at 256 MHz |
| Main Memory | 128 MB ECC main memory / 32 MB battery-backed RAM |
| Flash Memory | 128 MB onboard flash memory / 1 MB ECC static RAM |
| Built-in I/O | 16 DI, 8 DO, 12 AI, 2 AO, 2 PI |
| Interfaces | Dual-redundant Vnet/IP, ESB bus |
4-20 mA HART Loop Protocol and Channel Isolation
The processor board integrates direct analog interfaces operating alongside isolated system communication buses. Built-in analog input channels (12 AI) and output channels (2 AO) interface with 4-20 mA field loops through channel-to-channel isolation barriers, preventing common-mode noise propagation and ground loop potential differences from affecting internal execution logic. Signal conditioning circuits maintain high loop accuracy and noise rejection while delivering process variables directly to the SH-4A processing core for deterministic real-time control calculations.
Frequently Asked Questions
Q: How does the NFCP050 module handle main memory retention during system power outages?
A: The board incorporates onboard ECC static RAM and battery backup circuitry designed to maintain critical memory states and control data retention for up to 72 hours during power supply interruptions.
Q: Can maintenance teams hot-swap the processor module in a redundant control station configuration?
A: Yes. In a dual-redundant hot-standby CPU framework, field engineers can insert or remove a secondary NFCP050 card online without halting active control cycle execution on the primary processor.
Q: What onboard diagnostic features detect internal processor or memory faults?
A: The processor continuously runs hardware-level self-diagnostics, monitoring ECC parity checks, task execution timing, battery status, and Vnet/IP communication link integrity.
Field Installation Guidelines
Insert the module vertically into the dedicated slot of the field control unit rack until the rear connector fully mates with the backplane board, then tighten the top and bottom retaining screws. Route all field wiring for the built-in digital and analog I/O terminals through shielded cable trunks, securing the copper shield braid directly to the cabinet ground bus bar. Connect primary and secondary 24 VDC power feeds to ensure proper power supply redundancy and verify LED status indicators upon boot completion.
