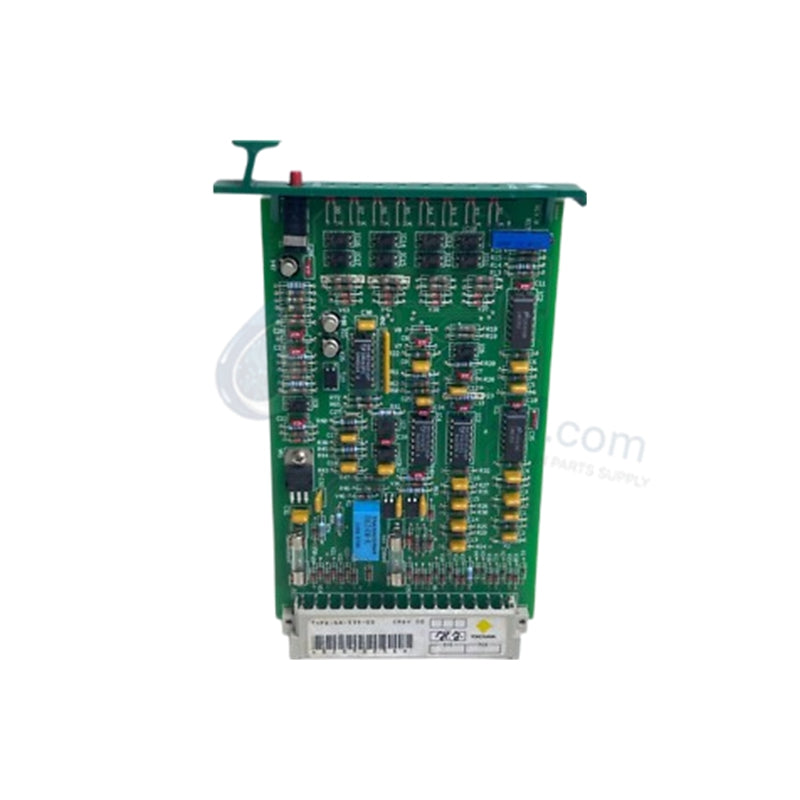

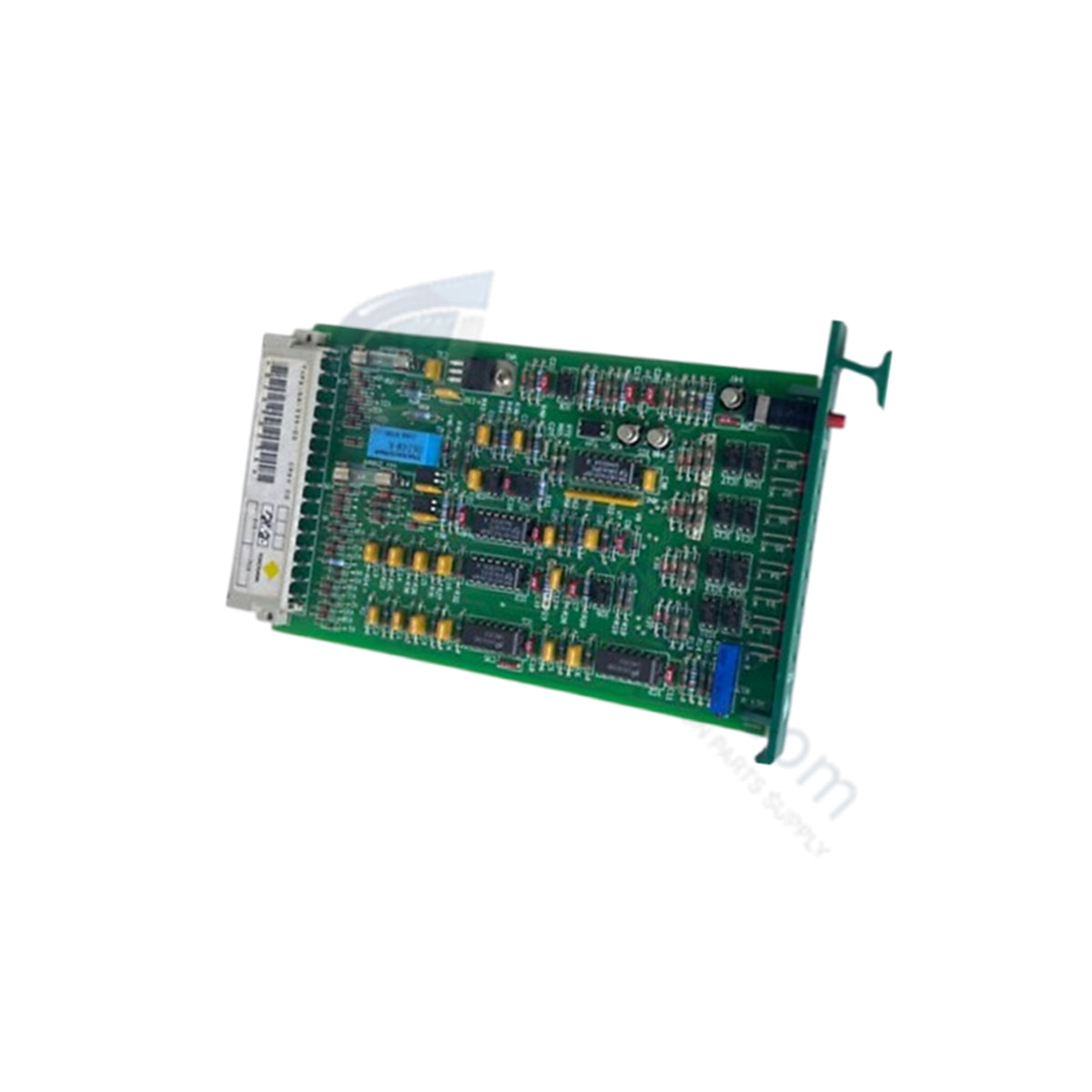

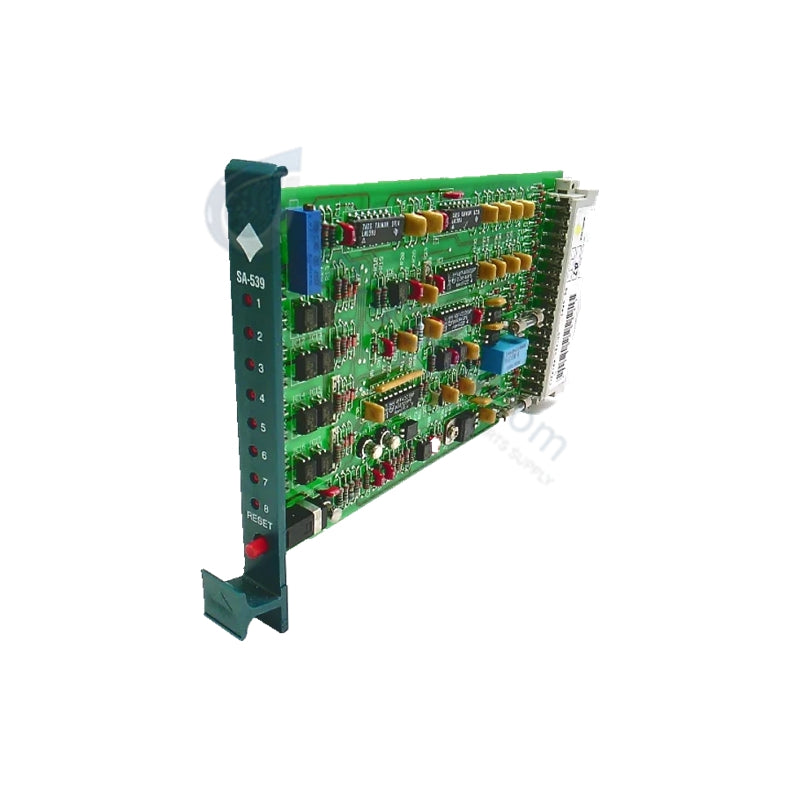

The YOKOGAWA SA-539-00, also cataloged as the SA-539 System Fault Alarm Module, operates as a dedicated hardware component for centralized fault signal processing within Yokogawa PLC and DCS architectures. The module evaluates power, fuse, earth leakage, and clock signal integrity across 1 main channel and 8 sub-channels, driving front-panel diagnostic LEDs and dry contact alarm outputs.
| Parameter | Specification |
|---|---|
| Model | SA-539-00 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.24 lbs (0.11 kg) |
| Dimensions | 160 mm x 100 mm x 15 mm (3TE Single Euro format) |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 24 VDC ±10% (field supply), 20 VDC logic supply |
| Channels | 1 main channel with 8 sub-channels |
| Relay Output | 60 VDC / 48 VAC, 0.5 A (min. load 1 V / 0.5 mA) |
| Error Lamp Output | Current sink, 60 VDC, 0.25 A (fuse protected) |
| Reset Inputs | 24 VDC, 1 mA (threshold 6 to 18 V) |
| Connector | DIN 41612 Bauform F, 48-pin |
The system fault alarm board evaluates discrete fault conditions across internal power distribution and supervisory loops, maintaining continuous galvanic isolation between field reset lines and backplane logic networks. The module interfaces with system clock pulses to monitor timing continuity, triggering dry relay contacts and low-latency sink outputs to alert host Field Control Stations. Built-in noise filtration suppresses high-frequency loop transients, preventing false alarm trips on 24 VDC control buses.
Q: What connector interface does the card use for backplane connectivity?
A: The card utilizes a standard 48-pin DIN 41612 Bauform F rear connector to interface directly with the rack backplane signals and power rails.
Q: What electrical rating is required for resetting an active fault state via external hardware?
A: The reset input expects a 24 VDC signal drawing 1 mA, with an ON-state threshold window between 6 VDC and 18 VDC.
Q: Is the external error lamp output protected against short-circuit events?
A: Yes, the 60 VDC, 0.25 A current-sink error lamp output includes integrated fuse protection to prevent trace damage during wiring faults.
Insert the Euro-format card into the designated 3TE rack position using the card guides to align the 48-pin DIN 41612 connector. Apply steady inward pressure until the rear connector fully seats into the backplane receptacle, then hand-tighten the retaining screws to confirm physical grounding path continuity.
Route field reset and external alarm relay lines separately from high-voltage AC cables and variable frequency drive conductors, maintaining a minimum clearance of 300 mm. Ensure incoming 24 VDC field supply voltages stay within the ±10% tolerance limit to avoid logic reset instabilities. Connect all wiring shields to the primary station grounding bar at a single point to prevent ground loops.
