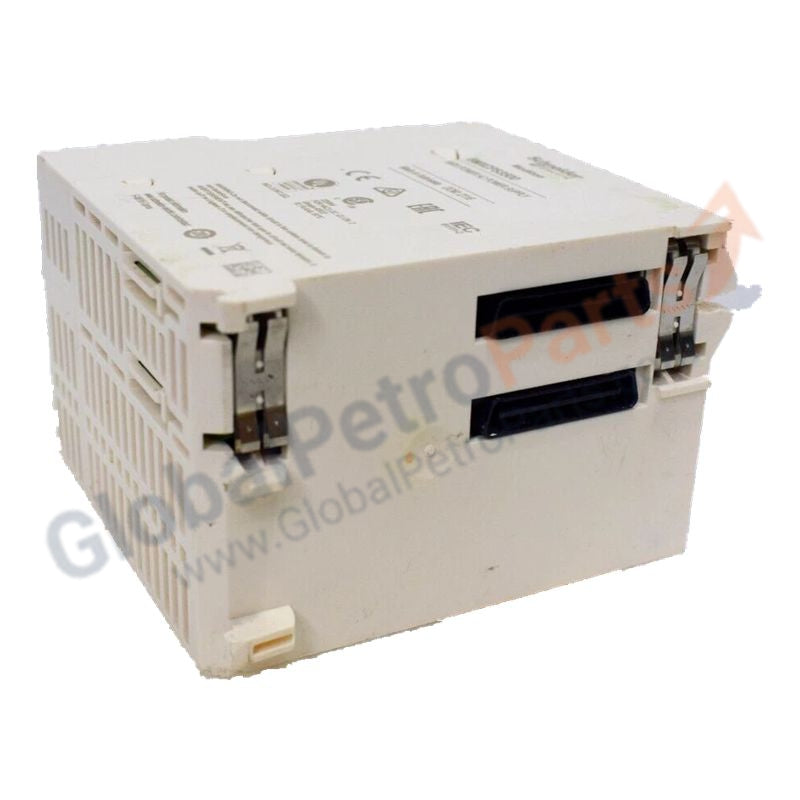

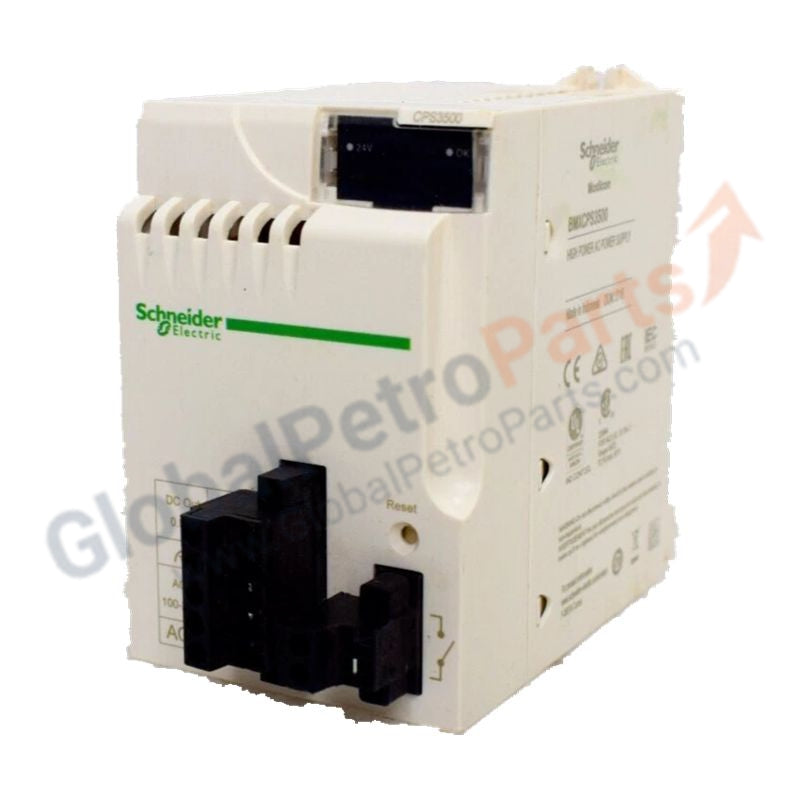

Schneider BMXCPS3500 Modicon X80 Power Supply Module

Availability: 94 left in stock

Product Description The BMXCPS3500 is a high-performance AC-to-DC power supply module for the Schneider Electric Modicon X80 platform. Designed for high-density M340 and M580 racks, it...

SKU: BMXCPS3500

Manufacturer: Schneider
Product No.: BMXCPS3500
Product Type: Power Supply Module
Product Origin: France
Payment:T/T, Western Union
Weight: 360g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The BMXCPS3500 is a high-performance AC-to-DC power supply module for the Schneider Electric Modicon X80 platform. Designed for high-density M340 and M580 racks, it converts 100–240 V AC into three isolated DC outputs to reliably power processors, I/O modules, and field sensors, even in demanding industrial environments.

Technical Specifications

Item	Specification
Input Voltage Nominal	100–240 V AC
Input Voltage Range	85–264 V AC
Frequency	50/60 Hz (47–63 Hz)
Isolation	> 100 MΩ @ 500 V DC
Hold-up Time	10 ms @ 100 V AC / 20 ms @ 240 V AC
Backplane Compatibility	Standard BMXXBP racks (Not BMEXBP..02)
Status Monitoring	Alarm relay contact (NC)
Protection	Primary fuse; secondary overload & short-circuit
Operating Temperature	0–60 °C
Weight	0.36 kg

Typical Applications

High-density M580 racks with multiple communication and analog I/O modules
Direct sensor powering via 24 V DC sensor output (21.6 W)
Industrial installations with voltage sags, requiring hold-up time
Marine automation systems

Notes

Redundancy: Not compatible with BMEXBP..02 redundant backplanes; use BMXCPS4002 series for redundant supply
Sensor Power: 21.6 W 24 V DC output can energize field sensors directly, reducing external wiring
