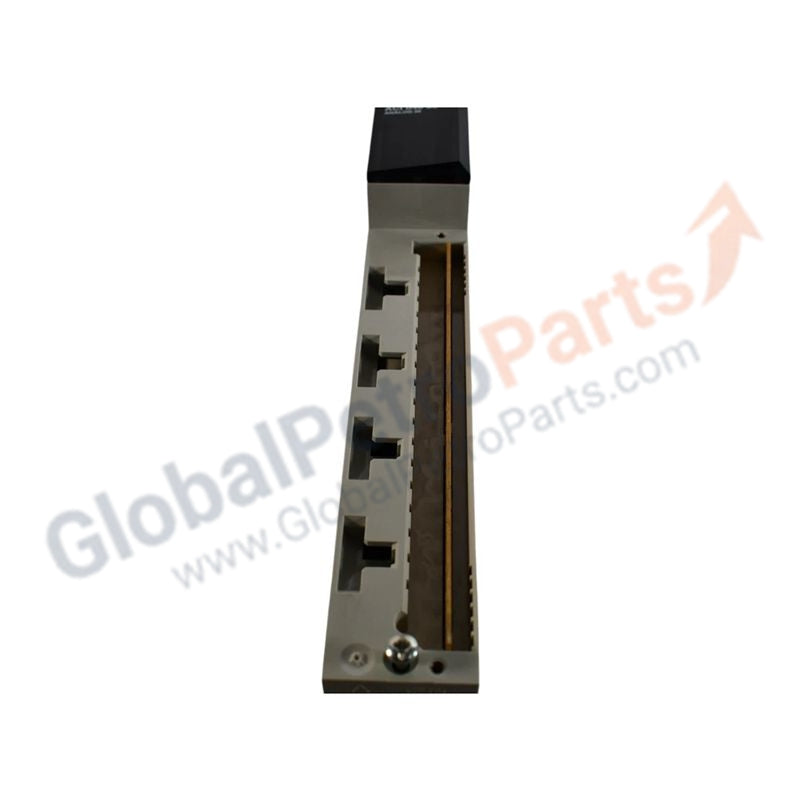

Schneider Electric 140ACI04000 Modicon Quantum Analog Input Module

Availability: 94 left in stock

Product Description The 140ACI04000 is a high-density analog current input module for the Modicon Quantum automation platform. It provides 16 input channels dedicated to 4–20 mA and 0–20 mA industrial...

SKU: 140ACI04000

Manufacturer: Schneider
Product No.: 140ACI04000
Product Type: Analog Input Module
Product Origin: France
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

The 140ACI04000 is a high-density analog current input module for the Modicon Quantum automation platform. It provides 16 input channels dedicated to 4–20 mA and 0–20 mA industrial signaling, making it well suited for large-scale process monitoring applications. Designed for reliable operation in demanding environments, the module delivers stable performance for continuous data acquisition in control and monitoring systems.

Technical Specifications

Parameter	Specification
Series	Modicon Quantum
Model	140ACI04000
Input Channels	16 current inputs
Input Type	4–20 mA / 0–20 mA
Input Architecture	Non-isolated differential
Resolution	12-bit
Accuracy	±0.125% of full scale @ 25°C
Input Impedance	250 Ω
Maximum Input Current	30 mA (absolute max)
Addressing Requirement	17 input words
Operating Temperature	32°F to 140°F (0°C to 60°C)
Weight	0.3 kg

Application

Commonly used in high-channel-count process control systems, including:

Flow, pressure, and level measurement
Chemical and batch processing
Power generation auxiliaries
Water and wastewater treatment

FAQ

Which terminal block is required?
The module supports standard Quantum terminal blocks:

140XTS00200 (40-point screw terminals)
140XTS00201 (spring clamp terminals)

Can each channel be configured individually?
Scaling and range configuration are applied at the group level via programming software. Individual channel status and health can be monitored through the module’s input status word.
