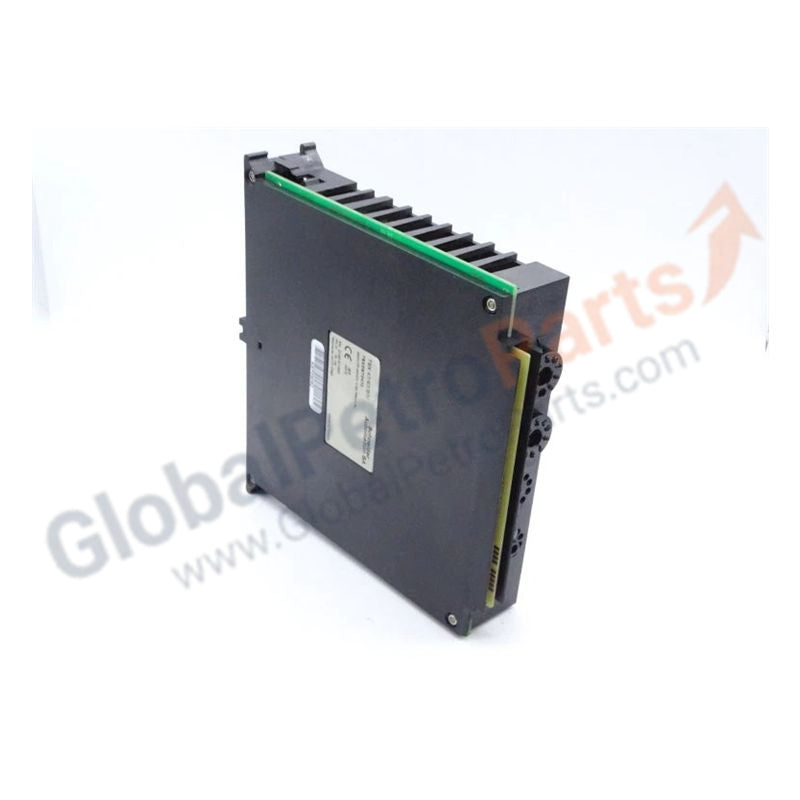

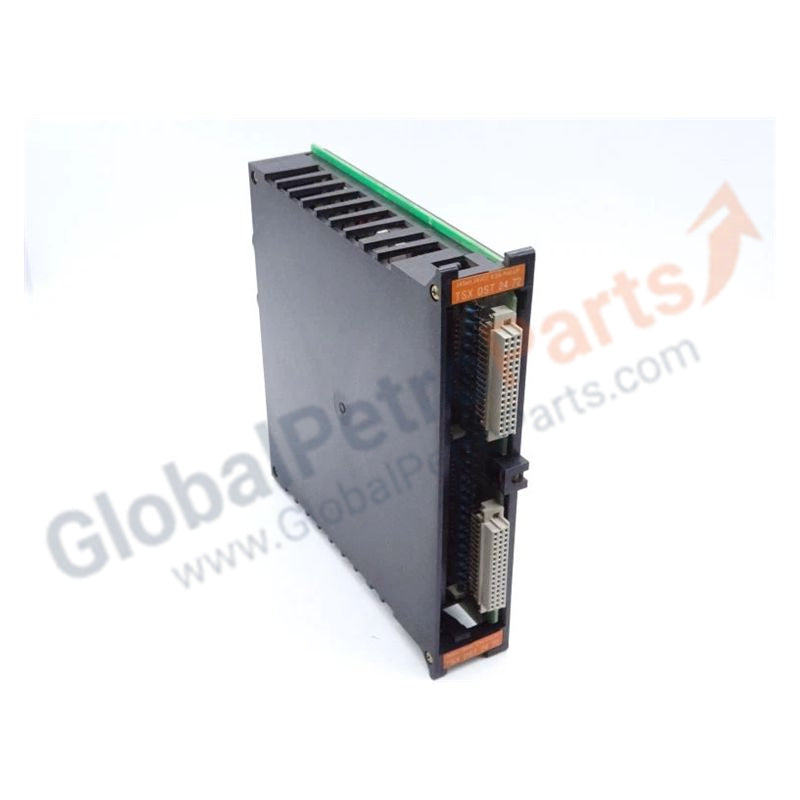

TSXDST2472 Schneider Electric Discrete Output Modules

Availability: 94 left in stock

Product Description TSXDST2472 (Part Number: TSXDST2472) is a 24-channel DC solid-state output module for the Modicon Premium platform. It drives actuators, solenoids, and motor starters...

SKU: TSXDST2472

Manufacturer: Schneider
Product No.: TSXDST2472
Product Type: Discrete Output Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

TSXDST2472 (Part Number: TSXDST2472) is a 24-channel DC solid-state output module for the Modicon Premium platform. It drives actuators, solenoids, and motor starters with fast switching and long operational life, making it ideal for high-speed, high-reliability industrial systems.

The module integrates into the Premium backplane and uses a removable screw terminal block for easy installation and maintenance.

Technical Specifications

Feature	Specification
Output Channels	24 discrete
Technology	Solid-state transistor (DC)
Rated Voltage	24 V DC
Current Capacity	0.5 A per channel, 12 A total
Switching Performance	Off→On: 1.2 ms On→Off: 12 ms
Voltage Drop	≤1 V (On state)
Leakage Current	1 mA at 24 V DC
Physical Interface	Removable screw terminal block
Form Factor	1 Premium slot
Dimensions	35.5 × 141 × 125 mm
Operating Temp.	0–60 °C
Weight	0.4 kg

Applications

High-speed packaging machinery
Automotive assembly lines
Material handling systems
Dense control cabinets requiring many DC outputs

Notes

Logic Type: Source (provides 24 V DC to load)
Protection: Internal short-circuit and overload protection
Terminal Block: Typically ordered separately (TSXBLY series)
