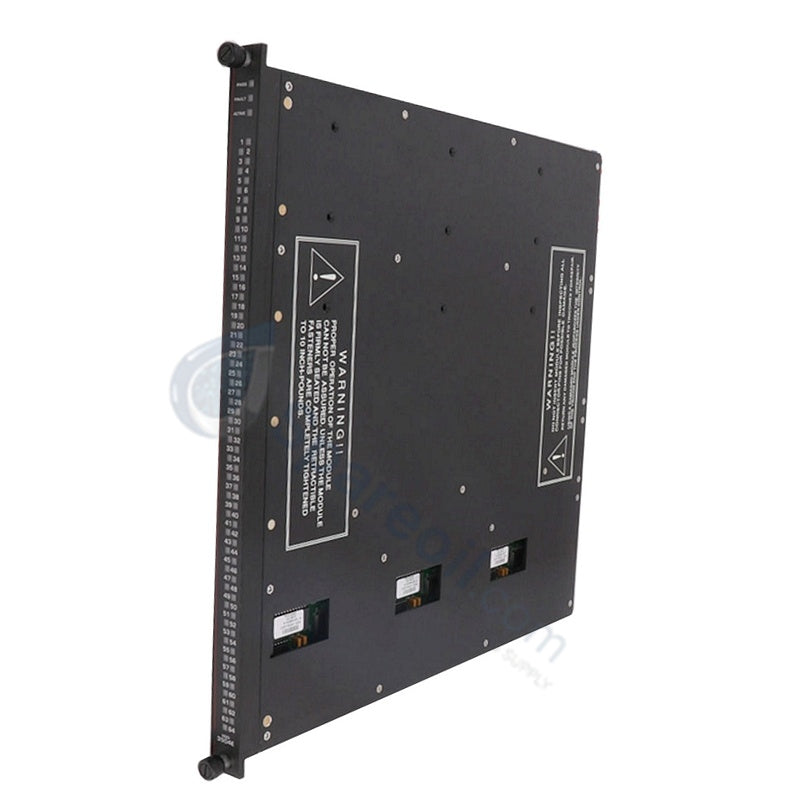

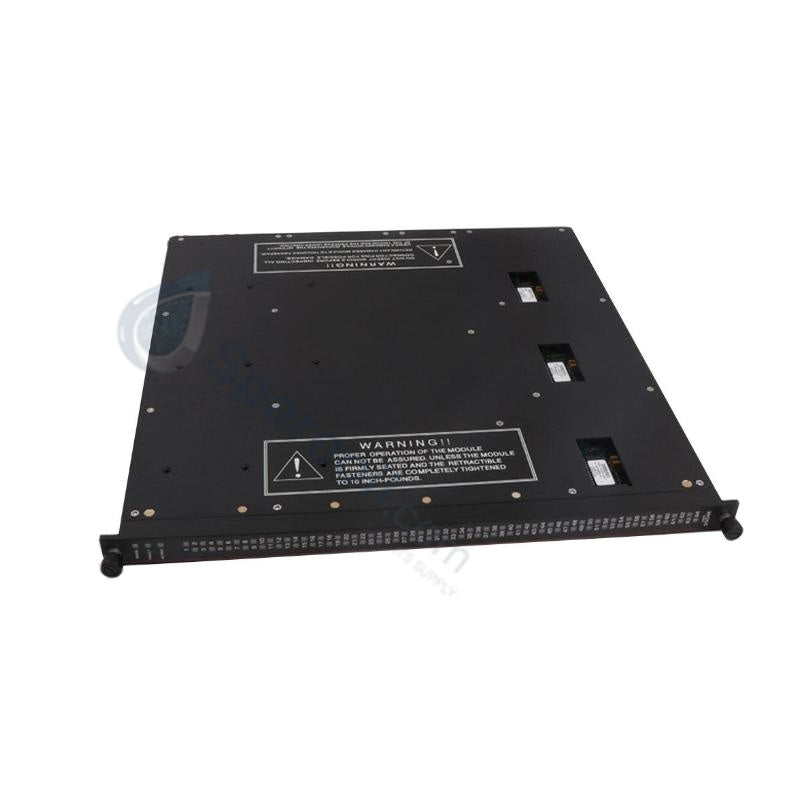

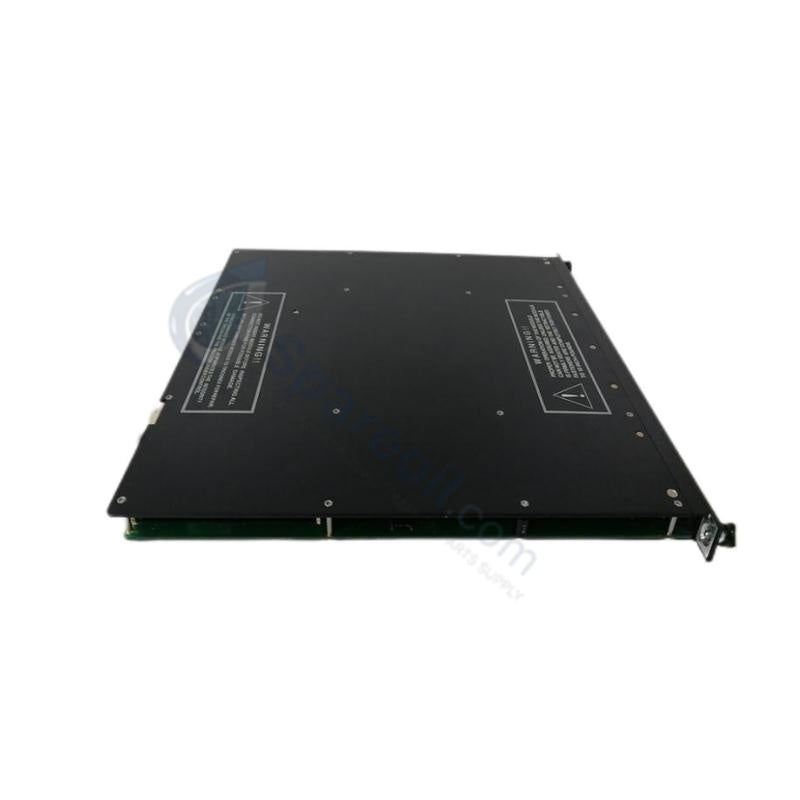

TRICONEX 3504E High Density Digital Input Module

The TRICONEX 3504E, also cataloged as the TRICONEX 3504E High Density Digital Input Module, operates as a dedicated hardware component for processing discrete field inputs within Tricon 3000 Series SIS racks platforms. It establishes the physical interface required to scan status signals from high-density binary arrays, managing voltage detection boundaries across critical instrument loops. The assembly transmits consolidated logic states directly to the redundant execution backplane.

Hardware Specifications

Parameter Specification
Model 3504E
Brand TRICONEX (Schneider Electric / Invensys)
Origin USA
Weight 1.5 kg (Shipping weight allocated at 2 kg)
Dimensions 177.8 mm x 101.6 mm x 228.6 mm
Operating Temp -20 deg C to +60 deg C
Power Consumption 6 W typical @ 5 VDC via backplane
Input Channels 64 points, commoned, DC coupled
Nominal Voltage 24 VDC or 48 VDC
Operational DC Range 20-72 VDC
Maximum Voltage 72 VDC absolute limit
Typical Hysteresis 4 VDC to 7 VDC switching threshold gap
Diagnostic Function Integrated ON and OFF stuck-switch testing
Visual Identification Dark Red color code front fascia
Safety Certification IEC 61508 SIL3, IEC 61511, TÜV, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy & Fail-Safe State Execution

Configured to prevent single-point failures from causing spurious process trips, the module executes internal processing using a hardware-implemented triple modular redundancy (TMR) architecture. The 64 DC-coupled input points feed incoming field voltage levels simultaneously into three independent, electrically isolated logic legs. Dedicated voter logic continuously correlates the readings to determine the valid state of each process variable. If an electronic component on one processing path fails or encounters an anomalous state, the internal loop monitoring identifies the divergence, executes a targeted fail-safe state execution routing, and updates the local diagnostic indicators without impeding the continuous logic delivery of the remaining operational legs.

Frequently Asked Questions

Q: How does the integrated stuck test function operate without disrupting live field data?

A: The module performs automatic, periodic internal diagnostic routines that test the switching capability of the input conditioning circuitry for both ON and OFF states. These high-speed micro-tests occur within milliseconds, verifying that the solid-state input gates respond correctly without inducing latencies in the active safety application loop.

Q: What are the engineering constraints regarding the commoned and DC-coupled channel structure?

A: The 64 input channels share internal common return points and are DC-coupled rather than completely channel-to-channel isolated. Installers must ensure all connected field loops share a compatible reference potential and utilize adequate circuit segregation to prevent external electrical noise from corrupting channel readings.

Field Installation Guidelines

  • Common Reference Potential: Connect the field wiring terminations using proper commoning bars, ensuring that the reference voltage profile is uniform across all 64 DC-coupled measurement points.
  • Transient Voltage Suppression: Install external surge protection components on loops exposed to high inductive loads to prevent raw spike voltages from exceeding the 72 VDC maximum rating.
  • Live Extraction Management: Verify system status via TriStation before executing an online hot-swap procedure to confirm the adjacent slot is fully synchronized, minimizing the risk of accidental interlock deployment.
  • Firmware Baseline Alignment: Ensure the embedded firmware revision of the replacement card matches the active Tricon main processor baseline version to prevent backplane configuration faults during startup.
