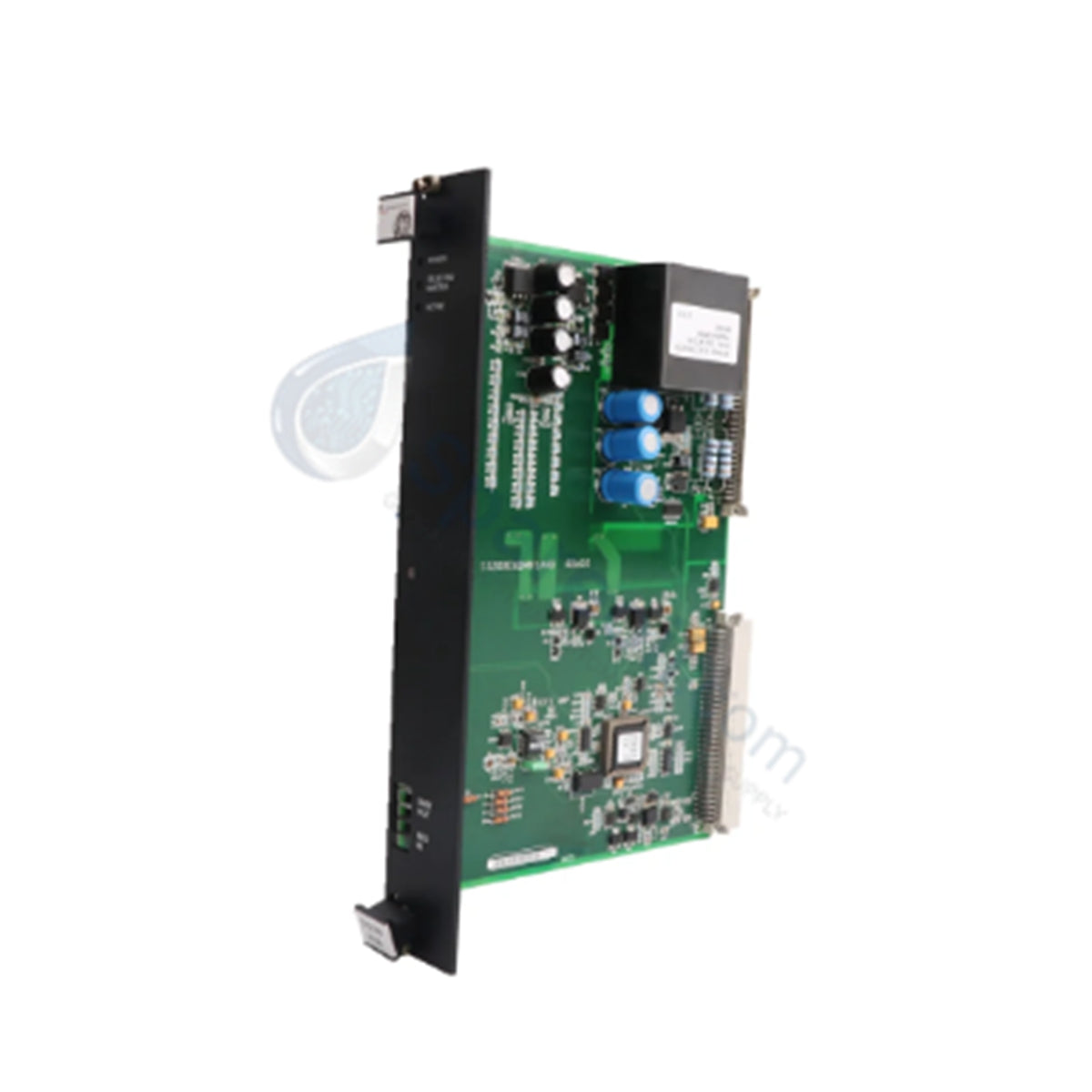

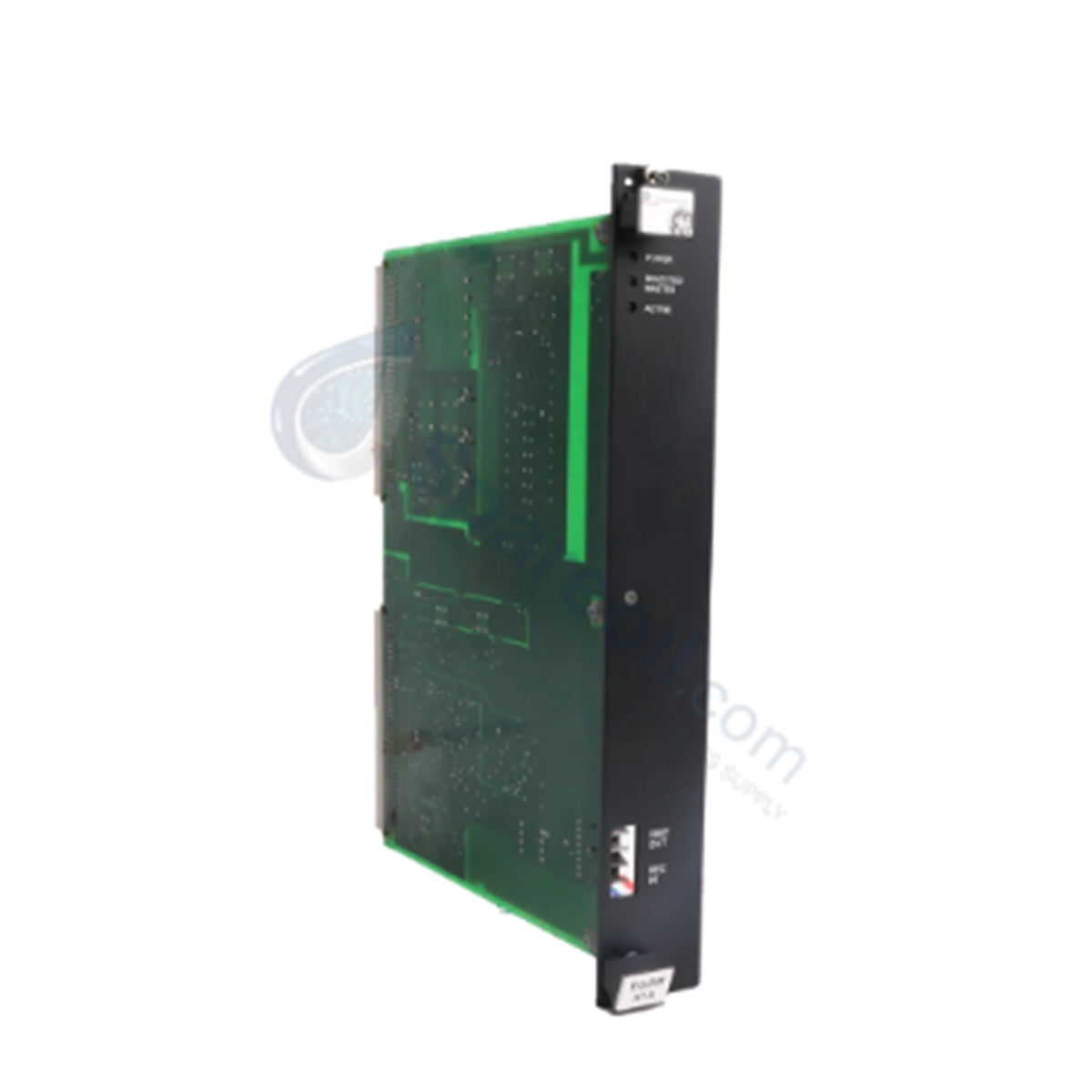

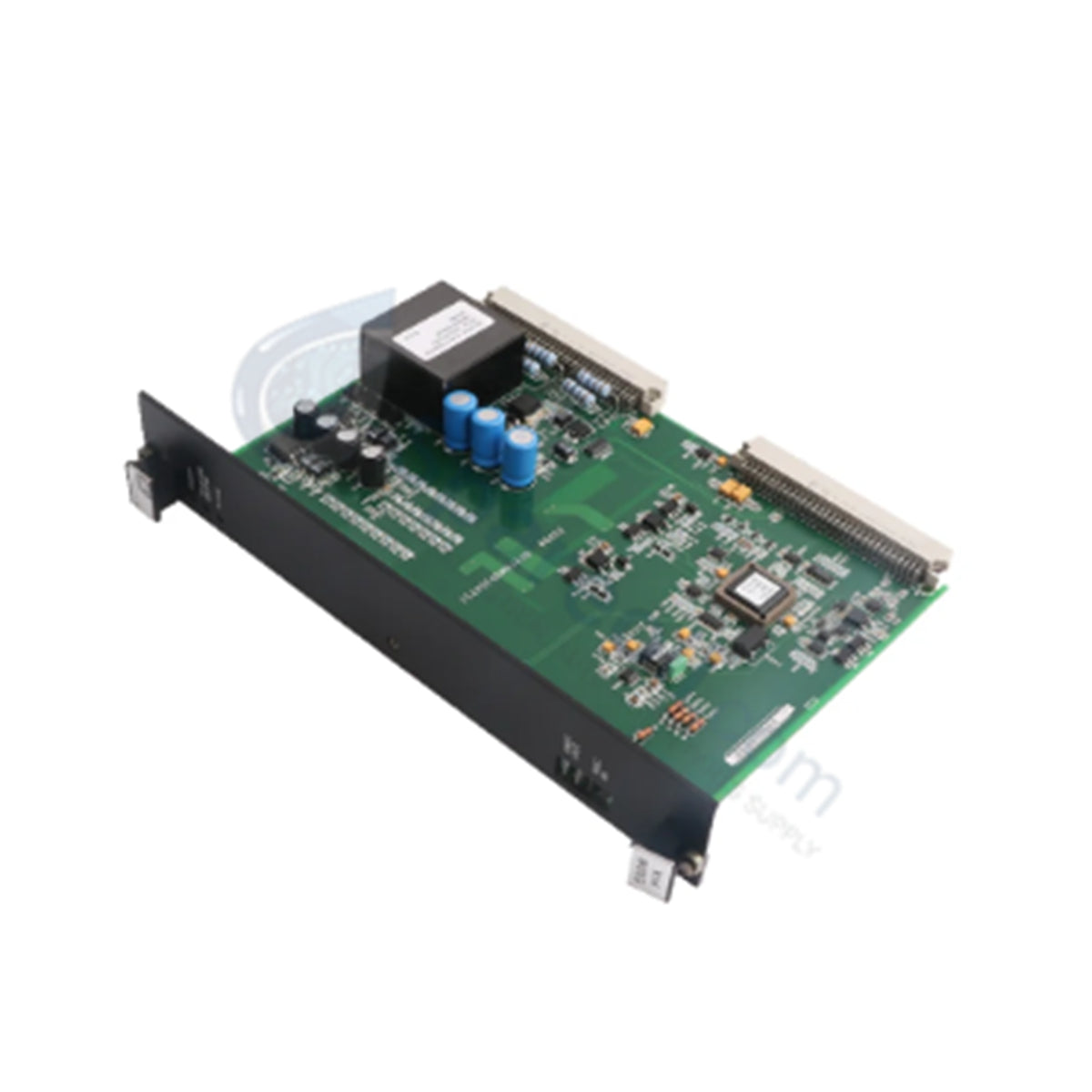

IS200EGDMH1AEF GE Exciter Ground Detector Module

GE IS200EGDMH1AEF EX2100 Exciter Ground Detector Module

GE IS200EGDMH1AEF EX2100 Exciter Ground Detector Module

Disponibilidad: 10 Quedan en stock

Configured for field insulation resistance monitoring in GE EX2100 and Mark VI excitation control systems, the GE IS200EGDMH1AEF (IS200EGDM Exciter...

Código: IS200EGDMH1AEF

Manufacturer: General Electric
Product No.: IS200EGDMH1AEF
Product Type: Exciter Ground Detector Modules
Product Origin: China
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for field insulation resistance monitoring in GE EX2100 and Mark VI excitation control systems, the GE IS200EGDMH1AEF (IS200EGDM Exciter Ground Detector Module) provides direct physical/electrical execution. The module measures insulation breakdown across field winding circuits down to ground reference, processing diagnostic fault states across a 0 - 500 kOhm measurement range with execution response latency under 100 ms.

Hardware Specifications

Parameter	Specification
Model	IS200EGDMH1AEF
Brand	GE
Origin	United States
Weight	0.6 kg
Dimensions	Standard 6U VME Form Factor
Operating Temp	-40 deg C to +70 deg C
Power Consumption	24 VDC logic supply
System Platform	GE EX2100 / Mark VI Excitation Control System
Detection Method	Field winding insulation resistance monitoring to ground
Measurement Range	0 - 500 kOhm insulation resistance
Accuracy	+/-5% typical
Response Time	Less than 100 ms fault detection
Communication Interface	VME backplane communication and diagnostic outputs

Profinet / EtherNet/IP Deterministic Networks and VME Processing

The GE IS200EGDMH1AEF integrates into the controller architecture using high backplane bus communication velocity across the VME interface. Firmware flash compatibility ensures seamless real-time processing of insulation impedance values within deterministic network loops. The board supports high I/O density scaling when operating in both simplex and triple modular redundant (TMR) architectures, delivering event updates directly to excitation system control logic while onboard transient suppression protects measurement pathways.

Frequently Asked Questions

Q: What electrical condition does the IS200EGDMH1AEF monitor?

A: The module monitors insulation resistance between the exciter field winding circuit and ground to identify field ground fault conditions.

Q: What communication interface is used by the IS200EGDMH1AEF?

A: The module communicates with the GE control system through the VME backplane interface and provides diagnostic outputs.

Q: Can this module operate in redundant control configurations?

A: The IS200EGDMH1AEF supports simplex and TMR system configurations within compatible GE excitation control architectures.

Field Installation Guidelines

Mount the IS200EGDMH1AEF card directly into its designated 6U VME slot within the excitation rack frame, verifying complete connector alignment before fully seating the board. Tighten top and bottom faceplate captive screws to secure frame earth continuity. Route ground sensing lead wires using shielded twisted-pair cables, terminating shields at a single chassis ground bus bar to prevent ground loop interference. Ensure the 24 VDC power source is isolated before inserting or extracting the module.
