IS200ERDDH1ABB GE Exciter Regulator Board

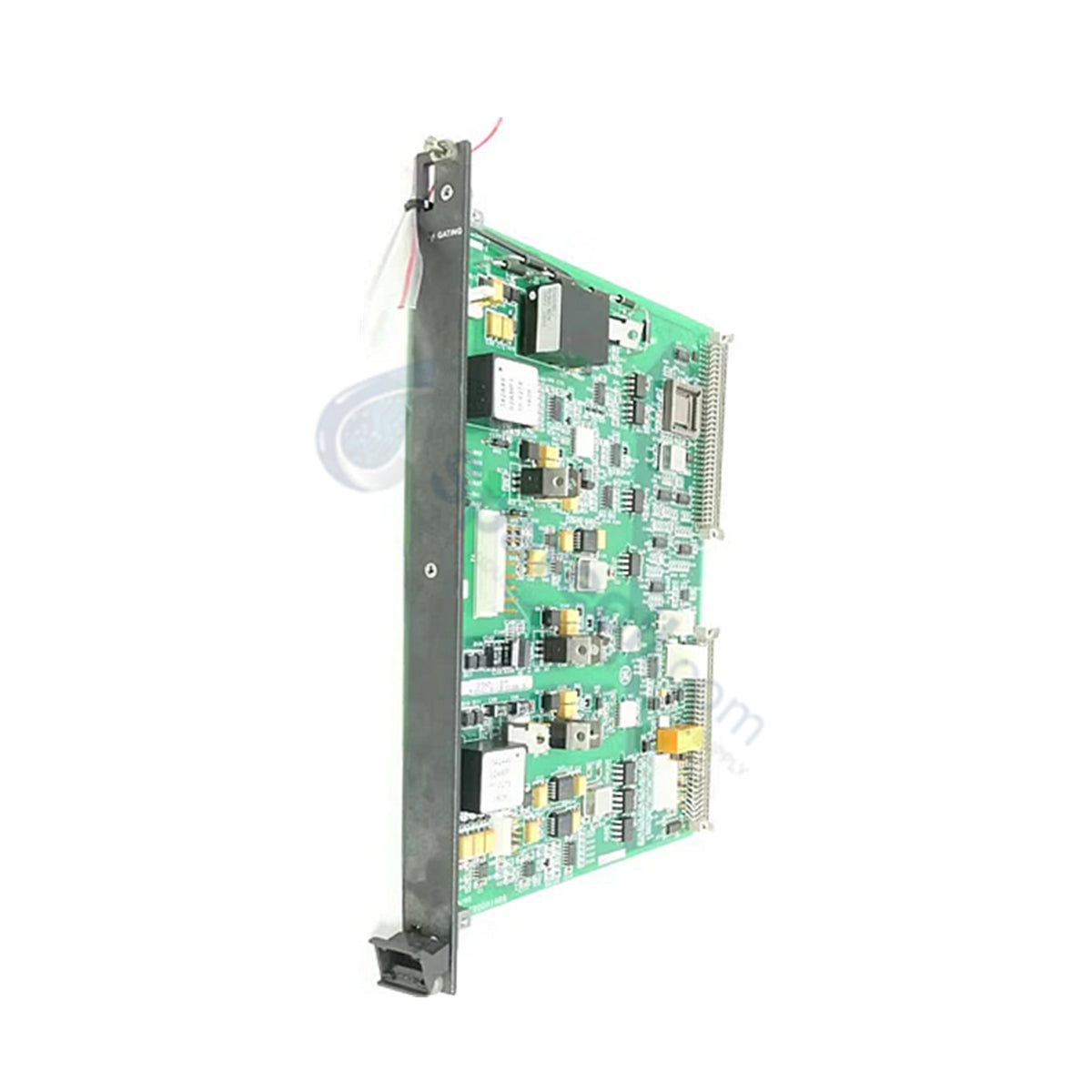

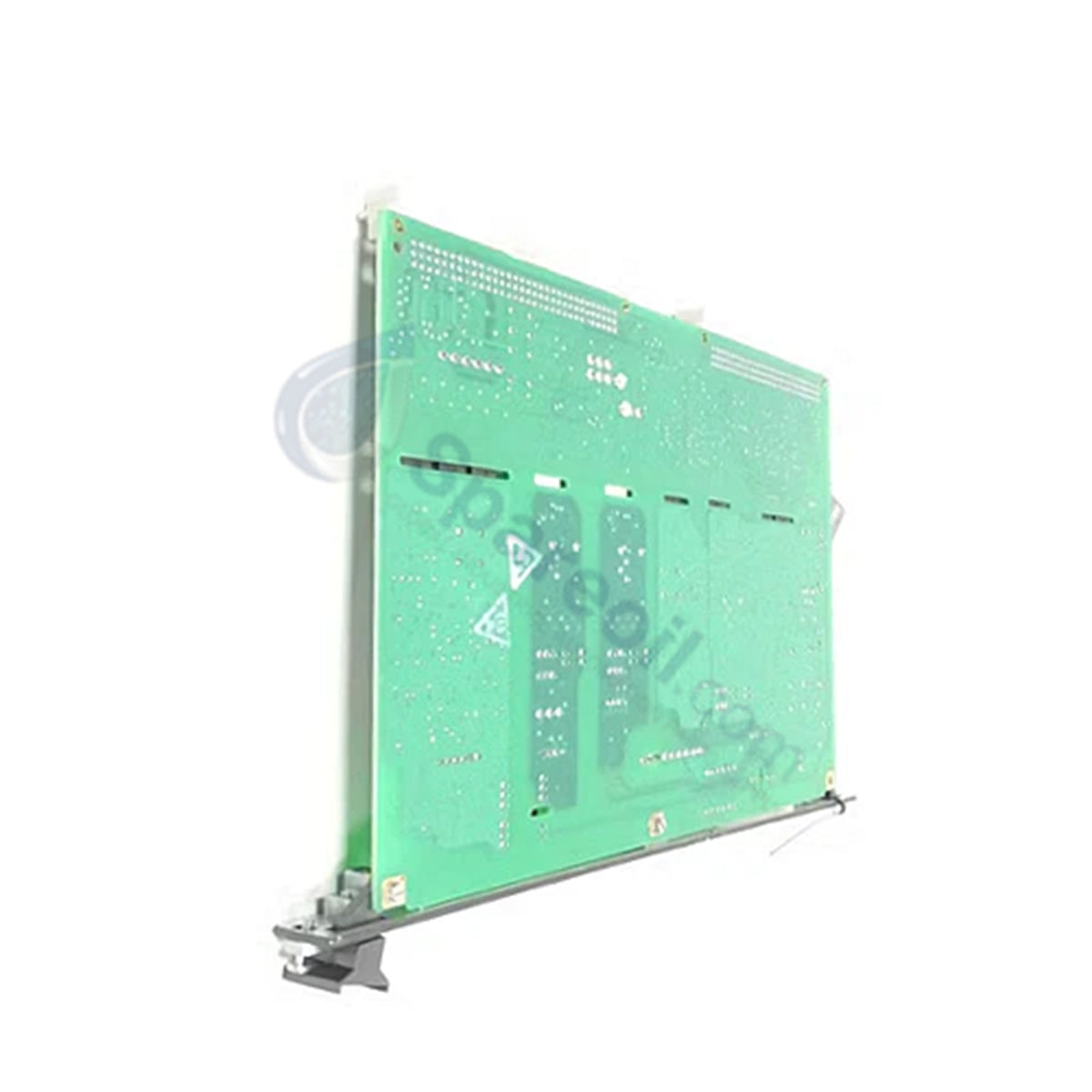

GE IS200ERDDH1ABB EX2100 Exciter Regulator Board

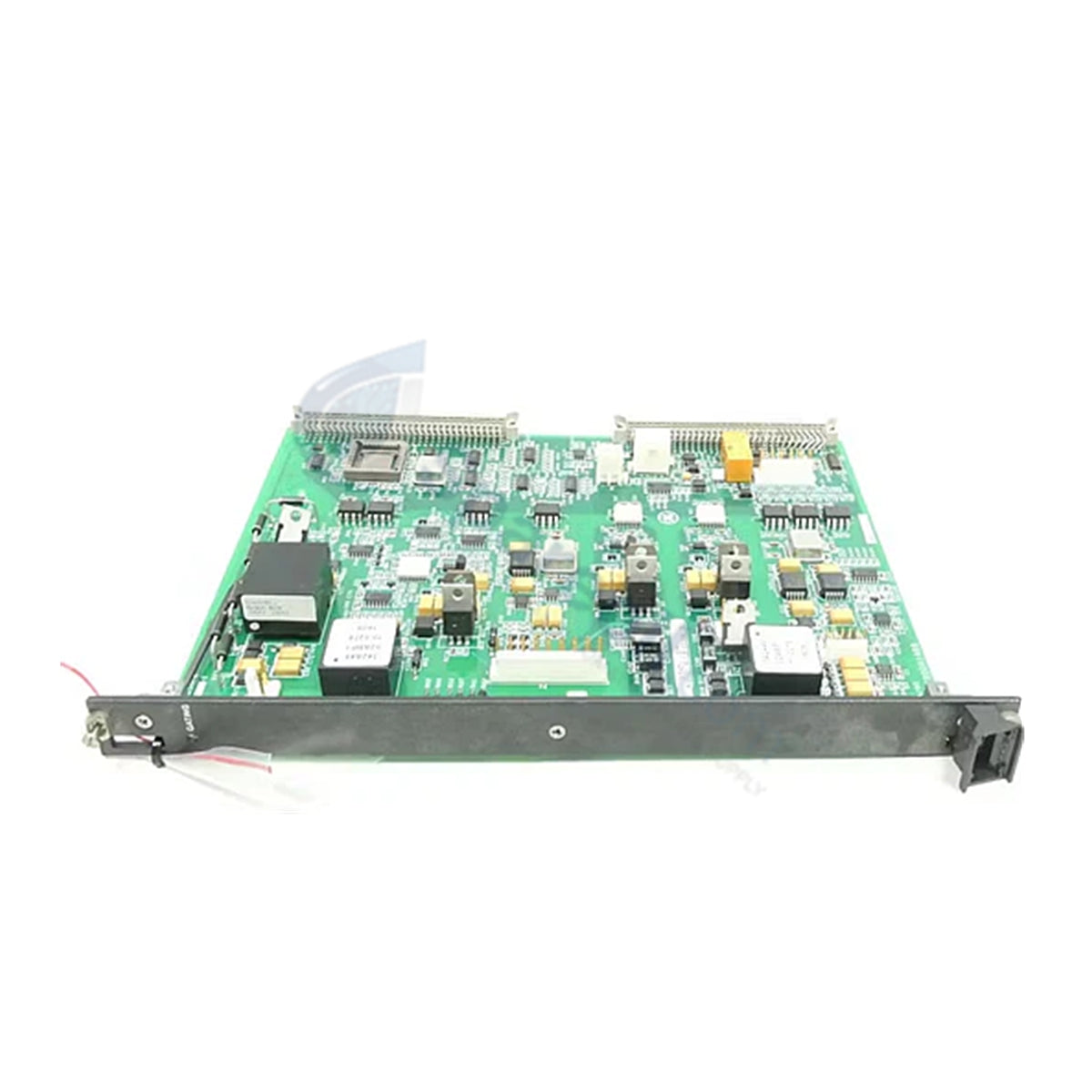

GE IS200ERDDH1ABB EX2100 Exciter Regulator Board

Disponibilidad: 10 Quedan en stock

The GE IS200ERDDH1ABB, also cataloged as the IS200ERDD IGBT Exciter Regulator/Dynamic Discharge Card, operates as a dedicated hardware component for...

Código: IS200ERDDH1ABB

Manufacturer: General Electric
Product No.: IS200ERDDH1ABB
Product Type: Excitation Control Boards
Product Origin: China
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE IS200ERDDH1ABB, also cataloged as the IS200ERDD IGBT Exciter Regulator/Dynamic Discharge Card, operates as a dedicated hardware component for gate drive control and dynamic discharge voltage regulation within EX2100 excitation control system platforms. Mounted in a 6U form factor, the module monitors bridge feedback signaling, regulates DC link overvoltage conditions, and interfaces with de-excitation or charging relays across P1 and P2 backplane buses.

Hardware Specifications

Parameter	Specification
Model	IS200ERDDH1ABB
Brand	General Electric
Operating Temp	-30 to 65 deg C
Power Consumption	Backplane Powered (P1/P2 Connectors)
System Series	EX2100
Form Factor	Single-slot double-height (6U VME chassis standard)
Front Panel Interfaces	7 surface connectors for field/interfacing boards
Relay Control Outputs	De-excitation relay (K41, simplex) / Charging relay (K3, redundant)

Gate Drive Control and I/O Density Scaling

The IS200ERDDH1ABB interfaces directly with the EX2100 rack backplane to manage dynamic discharge execution and gate driver timing without introducing latency into the control loop. High-speed signal paths process DC link voltage monitoring, output shunt current feedback, and IGBT desaturation diagnostics. The module maintains high I/O density scaling across its seven front-panel interconnects while preserving firmware flash compatibility and real-time backplane bus communication velocity during system power transients.

Frequently Asked Questions

Q: What specific bridge parameters are actively monitored by the onboard feedback circuitry?

A: The card continuously monitors DC link voltage, output shunt current, output field voltage, bridge operating temperature, and IGBT gate drive status including local power supply levels and desaturation conditions.

Q: How does relay execution differ between simplex and redundant system configurations?

A: In simplex control configurations, the card directly drives the de-excitation relay (K41). In redundant configurations, control logic switches to manage the DC link charging relay (K3).

Field Installation Guidelines

Slide the 6U module into its designated single slot in the EX2100 rack until the P1 and P2 backplane connectors seat firmly. Secure the top and bottom panel retaining screws to establish physical grounding with the rack chassis. Attach all seven front-panel ribbon and wiring connectors, ensuring connector locking latches are fully engaged. Shielded cable harnesses must have their grounding drains bonded to the cabinet earth ground. Ensure ambient panel operating temperatures remain within -30 to 65 deg C during continuous operation.
