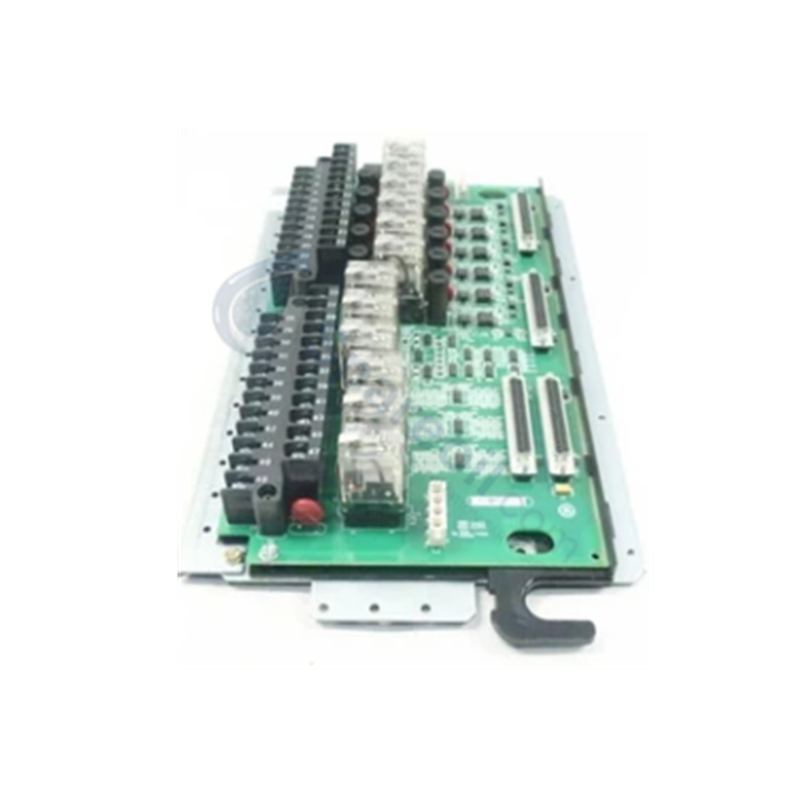

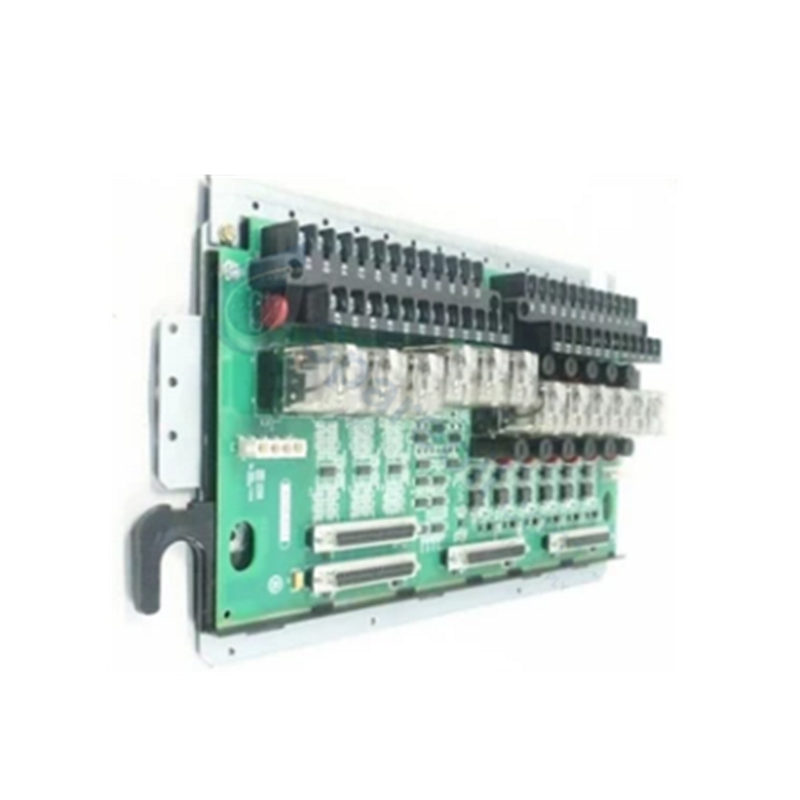

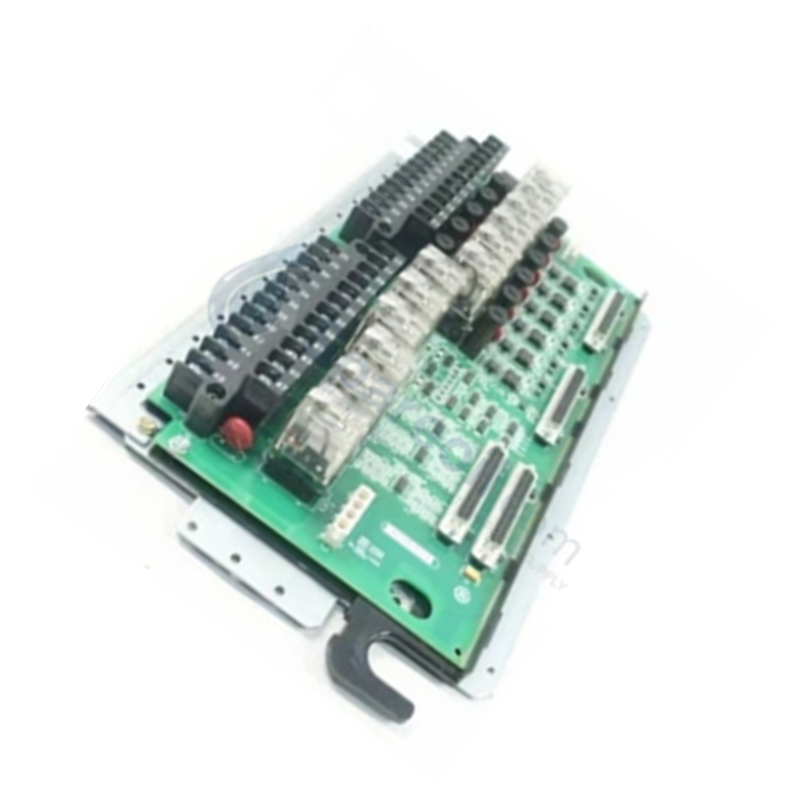

The GE IS200TRLYS1BGG, also cataloged as the IS200TRLY Discrete Relay Termination Board, operates as a dedicated hardware component for switching discrete control signals and executing relay contact outputs within GE Mark VI Speedtronic platforms. Equipped with plug-in magnetic relays using Form C contacts, this specific board revision includes onboard diagnostic circuitry configured for coil current evaluation.

Hardware Specifications

Parameter Specification
Model IS200TRLYS1BGG (IS200TRLY)
Brand GE (General Electric)
Origin USA
Operating Temp -30 to 65 deg C
Power Consumption Circuit Dependent (Supports 120/240 VAC Power Sources)
Relay Type Plug-in Magnetic Relays with Form C Contacts
Diagnostic Function Coil Current Diagnostics (S1BGG Revision)
Field Interfaces 2 Barrier-type Screw Terminal Strips (Numbered Terminals)
System Connectivity 4 D-shell Connectors, 3 Three-pin Plugs
Passive Components Fuses, Variable Resistors, Diodes, Capacitors, Integrated Circuits

Deterministic Backplane Bus Velocity and I/O Density Scaling

The IS200TRLYS1BGG processes discrete relay switching operations while providing fast channel feedback to the controller pack via high-density D-shell cabling interfaces. Operating without latency on the backplane bus communication velocity loop, the board transmits real-time coil current diagnostic status to verify solenoid and interlock execution. Full firmware flash compatibility within the Mark VI I/O processor layer allows continuous line monitoring and dynamic state reporting across multi-channel I/O density scaling configurations.

Frequently Asked Questions

Q: What is the primary operational distinction between the IS200TRLYS1BGG and the TRLYH1C revision?

A: The IS200TRLYS1BGG revision is equipped with diagnostic circuitry for relay coil current monitoring, whereas the TRLYH1C revision is configured specifically for contact voltage diagnostics.

Q: How are field wiring connections landed on the IS200TRLYS1BGG?

A: Field control lines connect directly to the two numbered barrier-type screw terminal strips positioned along the outer edge of the board.

Q: Can individual relays be serviced or replaced on the board?

A: Yes, the board utilizes plug-in magnetic relays with Form C contacts, allowing individual relay units to be replaced without desoldering components from the printed circuit board.

Field Installation Guidelines

  1. Disconnect all primary power supplies and field contact power sources (including 120/240 VAC control loops) before servicing or installing the board.
  2. Wear an ESD grounding wrist strap attached to a bare metal cabinet grounding point during module handling.
  3. Secure the terminal board firmly to the cabinet mounting plate using all designated screws to ensure chassis earth continuity.
  4. Route high-voltage AC output relay lines away from low-voltage DC communication cables to prevent electromagnetic coupling.
  5. Verify that all multi-pin D-shell connectors are fully seated and secured with their mechanical retention screws prior to reapplying power.
