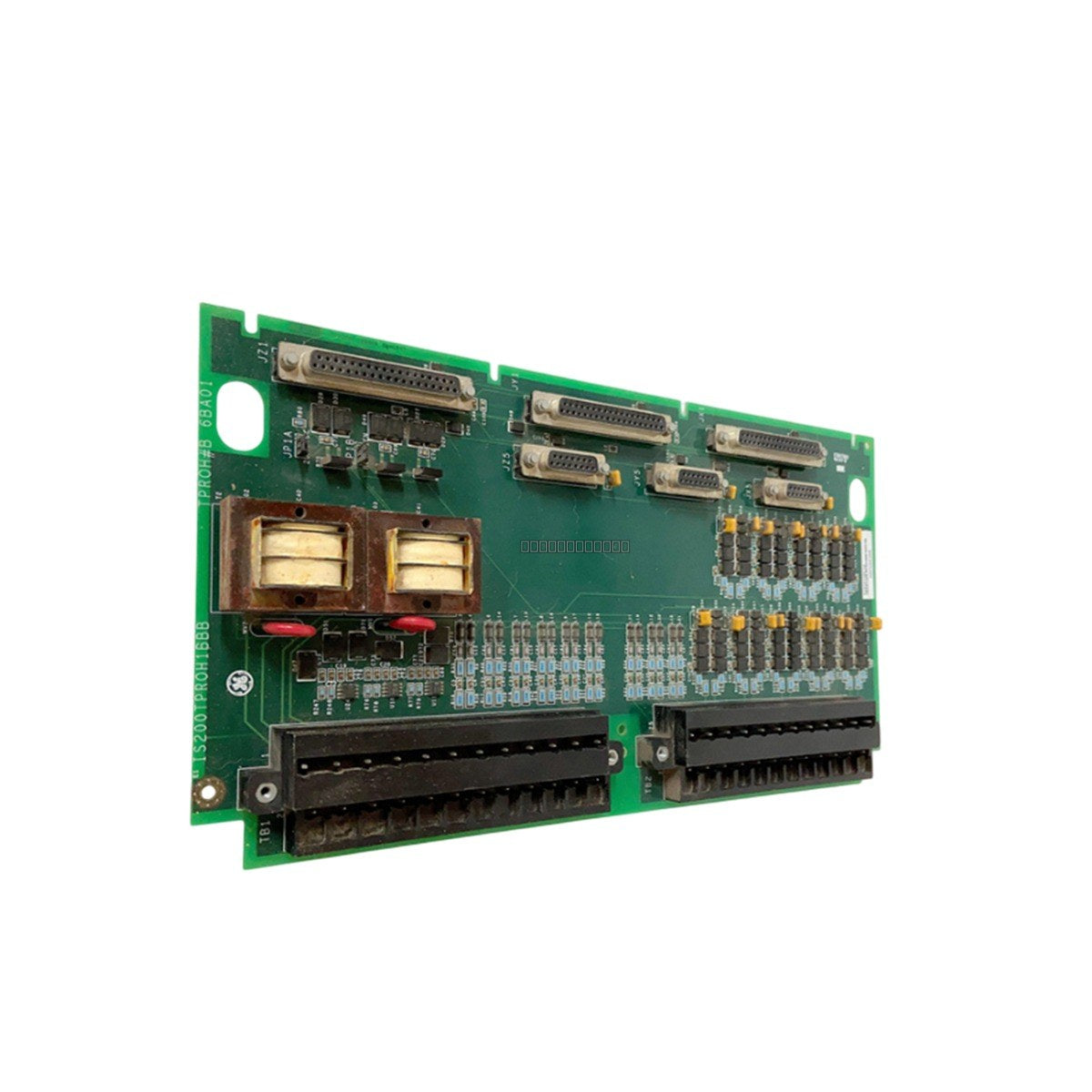

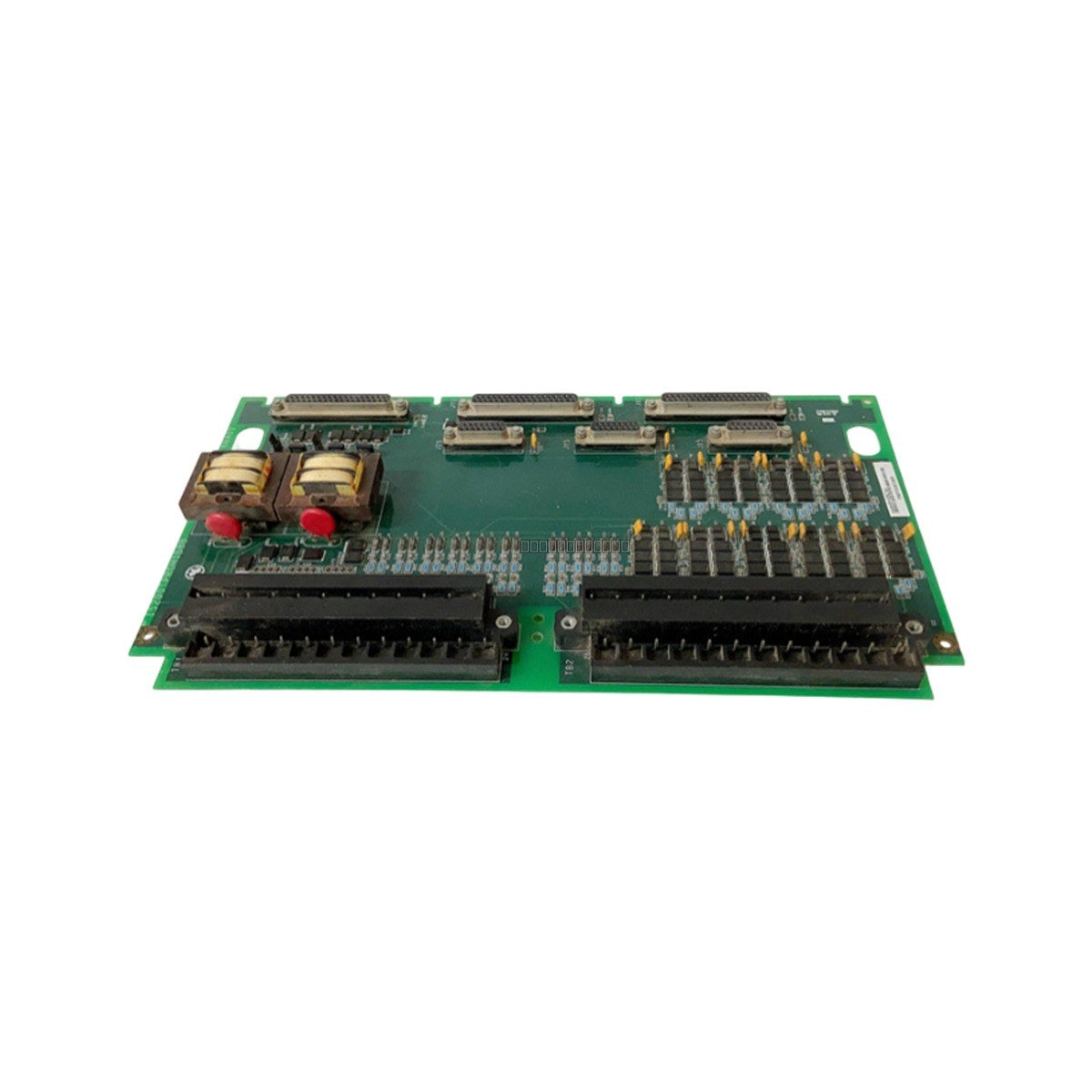

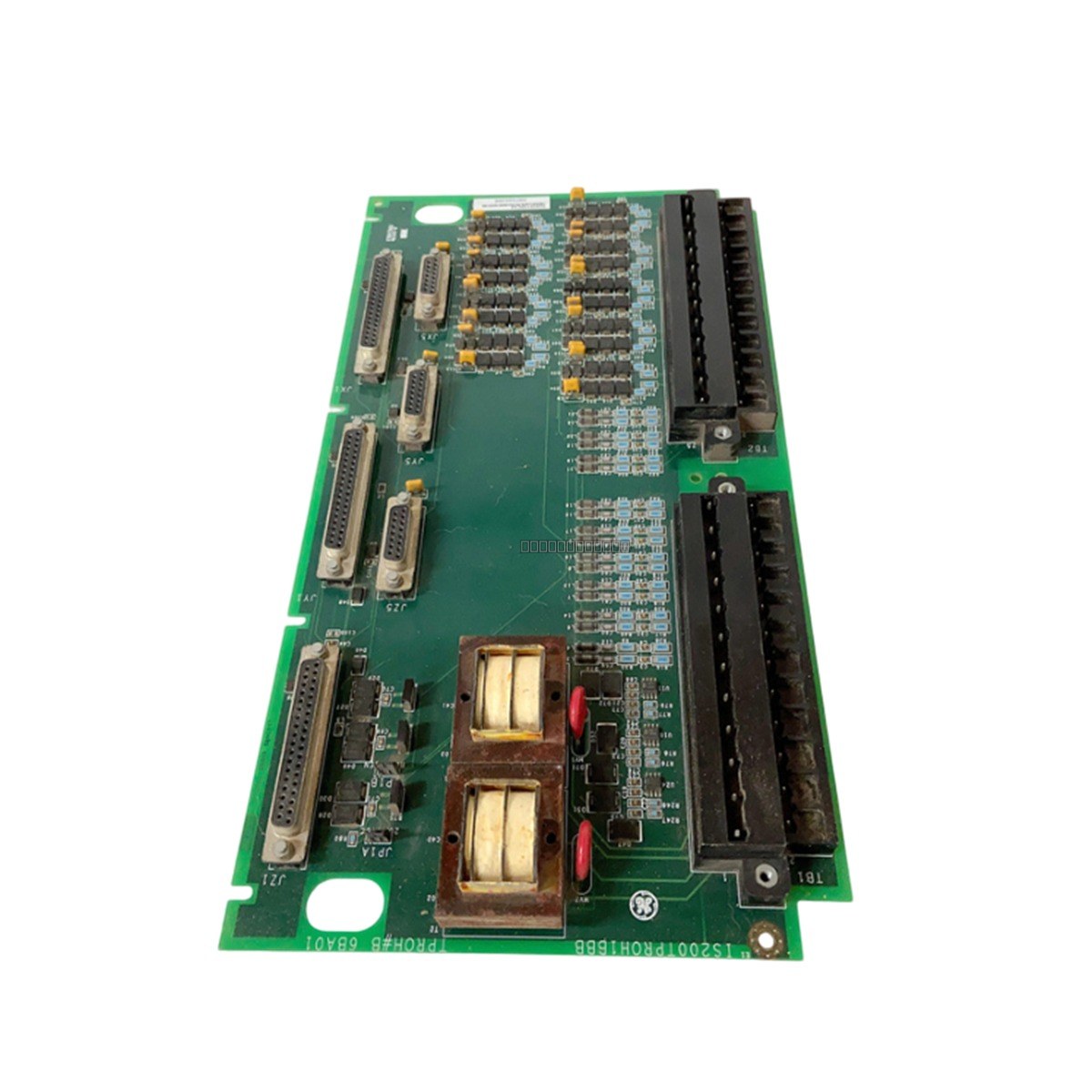

General Electric IS200TPROH1B Mark VIe Termination Board

Disponibilidad: 4 Quedan en stock

DescriptionThe General Electric IS200TPROH1B is a termination board designed for use within the Mark VIe control system, part of the...

Código: IS200TPROH1B

Manufacturer: General Electric
Product No.: IS200TPROH1B
Product Type: Termination Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Description

The General Electric IS200TPROH1B is a termination board designed for use within the Mark VIe control system, part of the Speedtronic series. This component serves as a critical interface for field wiring, facilitating the connection between external field devices and the control system I/O modules. As a termination board, it provides the necessary physical connection points and signal conditioning required for reliable operation in industrial turbine control environments.

Features

Designed for integration with the GE Mark VIe control platform.
Provides 48 screw terminals for secure field wiring connections.
Supports 24 V DC wetting voltages for field inputs.
Robust isolation rating of 1500 V DC to protect sensitive control electronics.
Wide operating temperature range suitable for demanding industrial environments.

Technical Specifications

Model	IS200TPROH1B
Manufacturer	General Electric
Series	Speedtronic Mark VIe
Power Supply	24 V DC
Power Consumption	< 5 W typical
Field Inputs	48 screw terminals
Isolation	1500 V DC
Operating Temperature	-40 degC to +85 degC
Humidity	5 - 95 % RH non-condensing

Installation Guidelines

Ensure the control system is powered down before installing or removing the termination board to prevent electrical damage.
Mount the board in a clean, dry, and vibration-free environment within the control cabinet.
Use appropriate ESD (Electrostatic Discharge) precautions when handling the module to avoid damaging internal components.
Ensure all field wiring is properly routed and secured to the screw terminals; verify polarity before applying power.
Maintain adequate clearance around the board to allow for proper airflow and cooling.
Verify that all connections are tight and that cables are shielded where necessary to minimize EMI interference.

FAQ

Is this board compatible with the Mark VI system?

The IS200TPROH1B is specifically designed for the Mark VIe series. Please consult your system documentation or the hardware revision labels to ensure compatibility with your specific controller configuration.

What is the primary function of the IS200TPROH1B?

This board acts as a termination point for field signals, providing the necessary interface between field sensors/actuators and the Mark VIe I/O modules.
