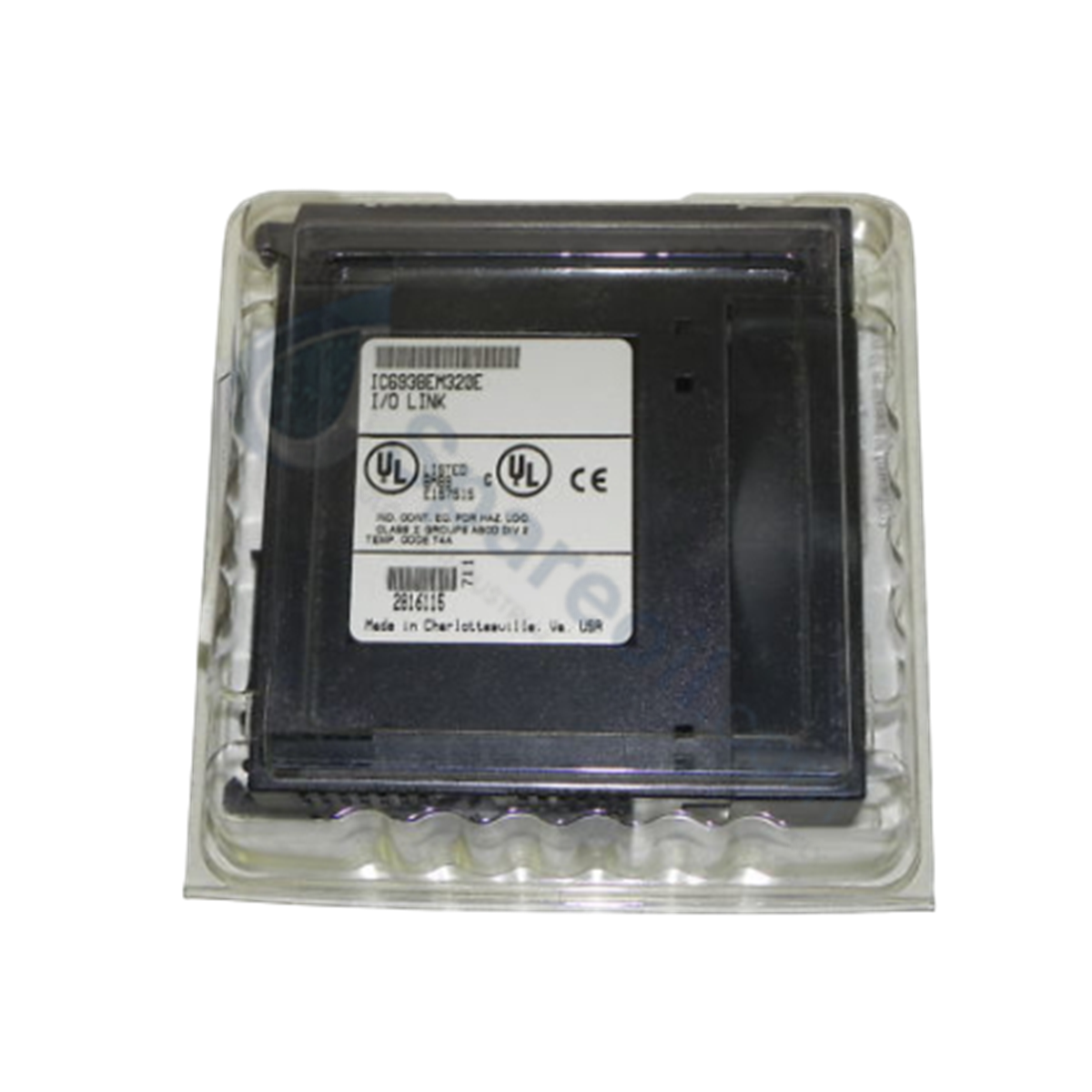

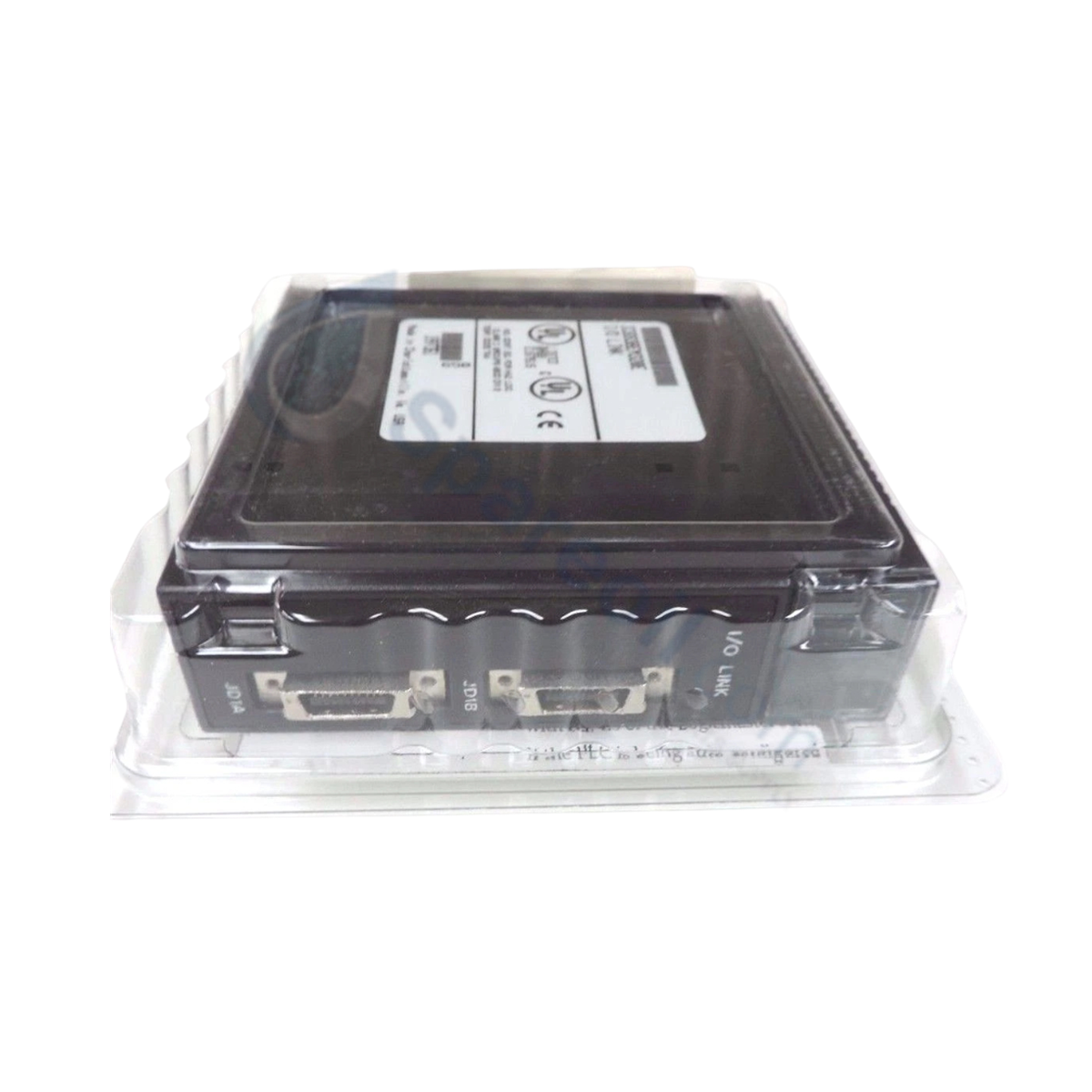

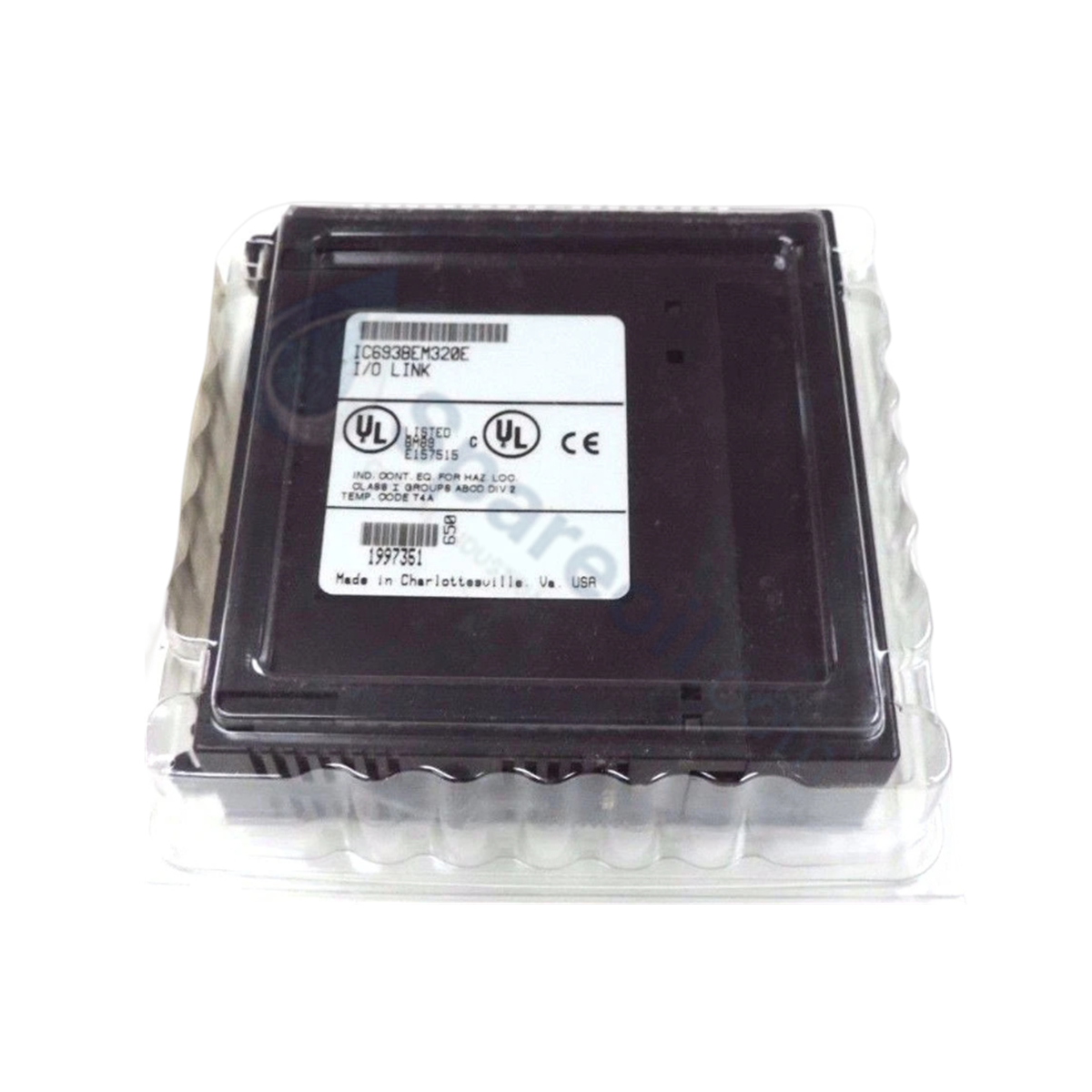

The GE Fanuc IC693BEM320, also cataloged as the IC693BEM320 I/O Link Module, operates as a dedicated hardware component for slave communications interface and data exchange within GE Fanuc Series 90-30 PLC platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC693BEM320 |
| Brand | GE Fanuc |
| Origin | United States |
| Weight | 0.64 lbs (0.29 kg) |
| Dimensions | Single-slot Series 90-30 form factor |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive backplane load |
| Product Line | Series 90-30 |
| Module Type | I/O Link Interface Module |
| Operating Mode | Slave device only |
| Supported I/O | 32 or 64 discrete I/O points |
| Communication Ports | Two (2) RS-485 / RS-422 serial ports |
| Physical Interface | Series 90-30 backplane connector |
Backplane Bus Communication Velocity and Serial Interface Properties
The IC693BEM320 interfaces directly with the Series 90-30 backplane to exchange discrete input and output states with the central processing unit. Functioning strictly as a slave node, the module processes high-speed data transmission over dual RS-485/RS-422 serial links without imposing processing overhead on the master controller. Internal logic maps up to 64 discrete I/O points into the PLC memory table while maintaining firmware flash compatibility and deterministic data polling across the backplane bus.
Frequently Asked Questions
Q: Can the IC693BEM320 be configured to act as a master node on the I/O Link network?
A: No. The IC693BEM320 operates exclusively as a slave device on the I/O Link network and requires an external master controller to initiate communication frames.
Q: How many discrete I/O points can be controlled through a single IC693BEM320 module?
A: The module supports software configuration for either 32 or 64 discrete I/O points allocated within the Series 90-30 CPU reference memory.
Q: What physical media interface is utilized by the module's communication ports?
A: The module provides two integrated serial ports configured for differential RS-485/RS-422 hardware signaling standards.
Field Installation Guidelines
- Disconnect main system power from the Series 90-30 baseplate prior to inserting or removing the IC693BEM320 module to prevent backplane arcing.
- Hook the bottom pivot tab of the IC693BEM320 into the desired baseplate slot and push the module firmly against the backplane connector until the top latch engages.
- Wire the RS-485/RS-422 serial cables to the designated port terminals, ensuring correct polarity for differential signal lines (+ and -).
- Ground cable shielding to the nearest chassis ground terminal using a short, low-impedance conductor to suppress high-frequency noise.
- Apply power to the rack and verify module status via the CPU configuration software to confirm slave network address alignment.
