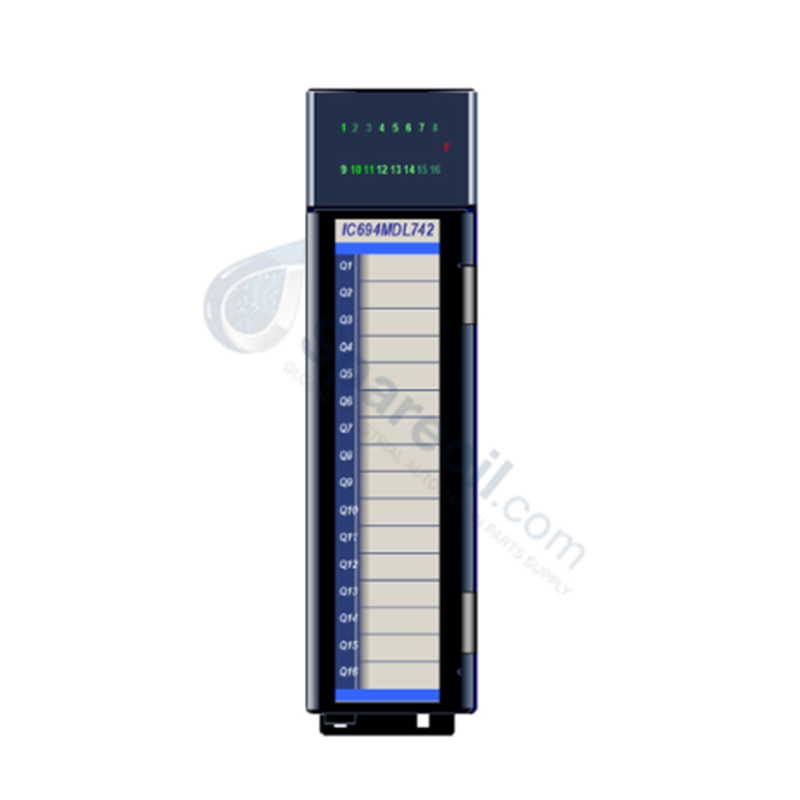

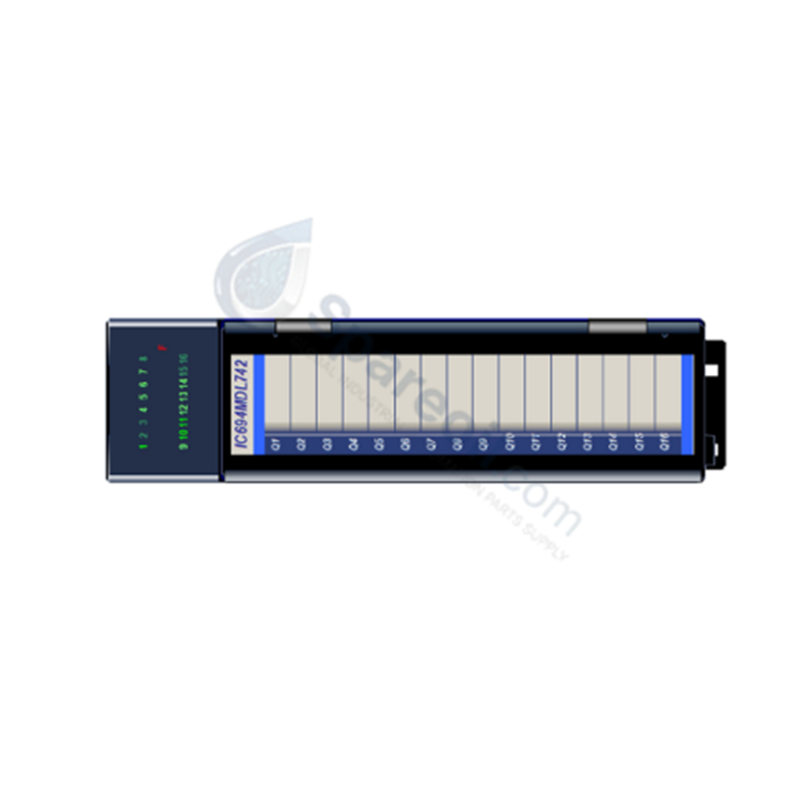

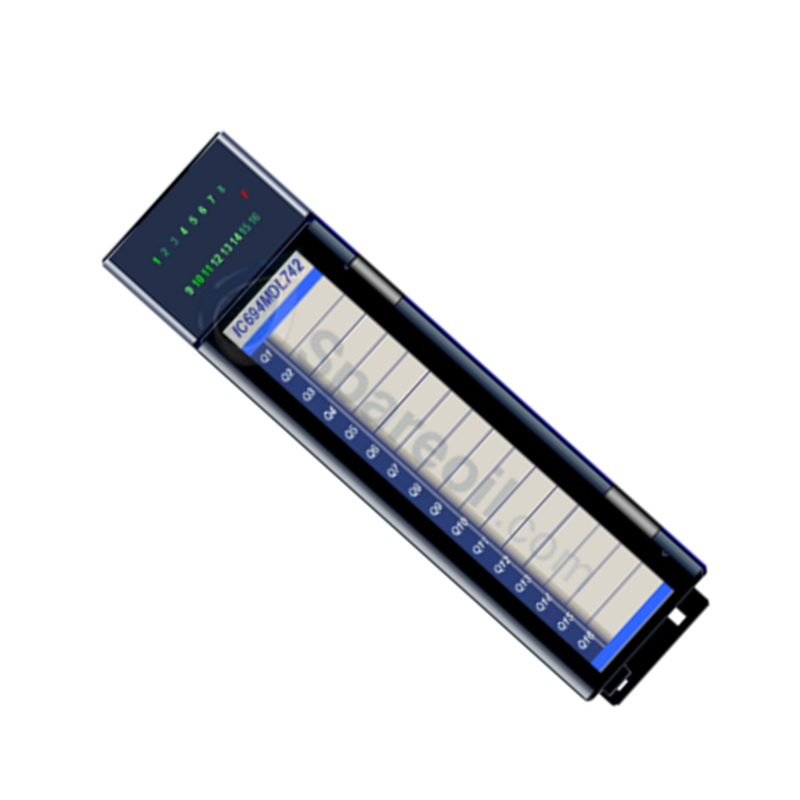

The GE Fanuc IC694MDL742 serves as the primary IC694MDL742 Output Module utilized to execute discrete negative-logic switching operations across PACSystems RX3i platforms. Configured to act as a solid-state interface between the controller backplane and external field loads, the device controls up to 16 actuator channels organized into two electrically isolated blocks of 8 points. The execution path provides integrated electronic short-circuit protection and supports high-density backplane configuration with hot-insertion compatibility.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC694MDL742 |
| Brand | GE Fanuc Emerson |
| Origin | USA |
| Product Line | RX3i PACSystems |
| Type | Discrete Output Module (Negative Logic) |
| Outputs per Module | 16 (2 groups of 8 outputs each) |
| Rated Voltage | 12/24 VDC |
| Voltage Tolerance | -15% to +20% |
| Output Current | 1.0 A maximum per point |
| Inrush Current | 5.2 A for 10 ms |
| Isolation Rating | 250 VAC continuous |
| Power Consumption | 130 mA (all outputs on, from backplane) |
| Electronic Short-Circuit Protection | Yes (integrated per group) |
| Hot Insertion & Removal | Yes (on RX3i universal backplane) |
| LED Indicators | 16 individual channel status, 1 Fault LED |
| Operating Temp | 0 to 60 deg C |
| Weight | 0.37 kg (0.81 lbs) |
| Dimensions | Standard single-slot RX3i module width |
Backplane Bus Communication Velocity & Control
The GE Fanuc IC694MDL742 interfaces directly with the high-speed RX3i PCI backplane bus. The output command byte execution utilizes deterministic system scan rates to maintain low transmission latencies across modern Industrial Ethernet topologies such as Profinet and EtherNet/IP networks. Dual electronic short-circuit protection (ESCP) monitors current levels on channels 1 to 8 and 9 to 16. If a short-circuit threshold is violated, the corresponding channel block is forced into a safe shutdown state, isolating the backplane and triggering the module's master Fault LED to prevent bus voltage drops.
Frequently Asked Questions
Q: Does the IC694MDL742 module require external field power to operate the load circuits?
A: Yes. The RX3i backplane only supplies logic power (130 mA at 5 VDC) for the module's internal circuitry. External field devices and the outputs must be powered from a separate 12/24 VDC external power source.
Q: Is hot-swapping supported for the IC694MDL742 module?
A: Yes, hot insertion and removal (hot-swapping) is fully supported when the module is installed in a PACSystems RX3i universal backplane. It can be inserted or removed under power without interrupting the operation of other active modules in the rack.
Field Installation Guidelines
- Backplane Insertion: Ensure the module is correctly aligned with the guide rails of the RX3i slot before pushing it firmly into the backplane connector.
- Mechanical Security: Secure the module terminal block latch to prevent accidental disconnection during periods of operational vibration.
- Wiring Separation: Route external DC power cabling separately from high-voltage AC cables to minimize electromagnetic coupling and cross-talk interference.
- Grounding Protocols: Apply continuous shielding to all external actuator cabling and ensure the drain wires are terminated directly at the system ground bar.
