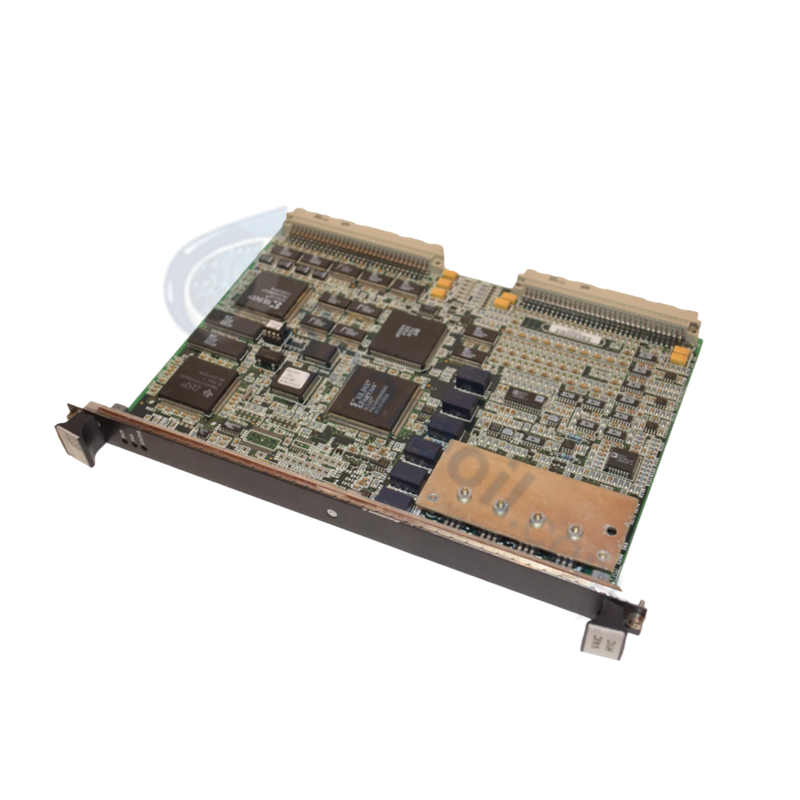

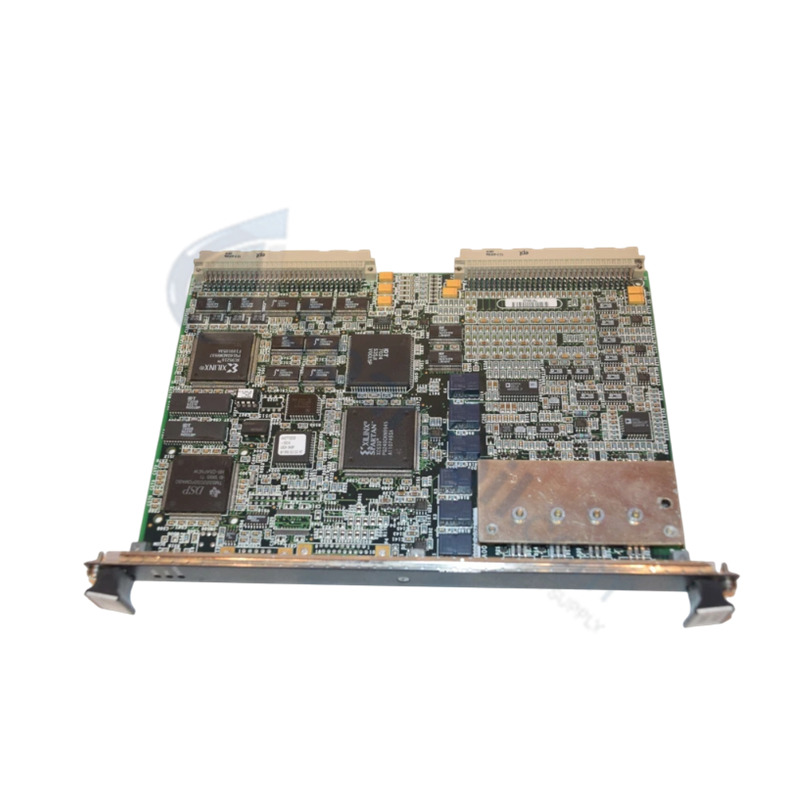

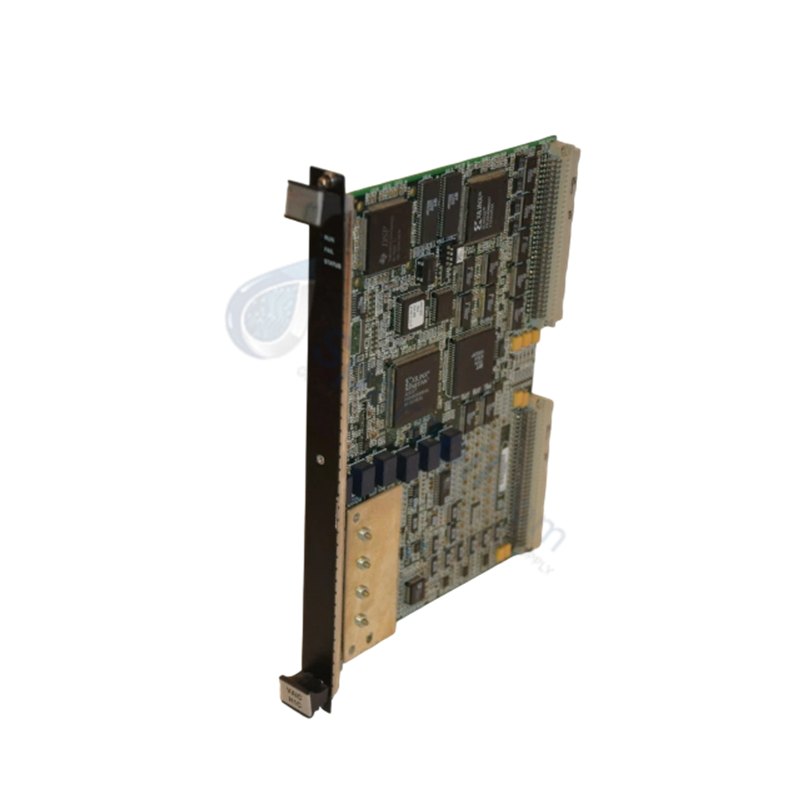

IS200VAICH1CBA GE Analog I/O VME Card

Disponibilidad: 10 Quedan en stock

The GE IS200VAICH1CBA, also cataloged as the IS200VAIC Analog I/O Board, operates as a dedicated hardware component for conditioning and...

Código: IS200VAICH1CBA

Manufacturer: General Electric
Product No.: IS200VAICH1CBA
Product Type: Analog Input Modules
Product Origin: China
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE IS200VAICH1CBA, also cataloged as the IS200VAIC Analog I/O Board, operates as a dedicated hardware component for conditioning and digitizing analog signals within Mark VI Turbine Control System networks. The board interfaces through a 6U VME rack backplane to process 20 input channels and 4 output channels via onboard signal multiplexing, high-resolution A/D converters, and D/A converters.

Hardware Specifications

Parameter	Specification
Model	IS200VAICH1CBA
Brand	GE General Electric
Origin	USA
Weight	0.8 kg
Dimensions	Standard 6U VME Single-Slot Card
Operating Temp	-30 to +65 deg C
Power Consumption	15 W (VME backplane power bus)
Board Type	Analog Input / Output VME Card
Analog Inputs	20 channels (10 per connected terminal board)
Analog Outputs	4 channels (2 per connected terminal board)
Signal Conversion	Multiplexed A/D converter, active D/A converter
Coating Style	Conformal coating
System Platform	Mark VI Speedtronic Control System

Deterministic Network Integration and I/O Density Scaling

The IS200VAICH1CBA maintains high backplane bus communication velocity across the VME backplane to process high-density analog signal channels without software execution delays. Firmware flash compatibility across the onboard digital signal processors ensures real-time scaling of process inputs and immediate loop execution for turbine governing loops. High I/O density scaling allows dual terminal board connections to feed multiplexed A/D conversion stages directly, preserving scan synchronization within simplex and redundant VME rack configurations.

Frequently Asked Questions

Q: How are the analog input and output channels distributed across external terminal boards?

A: The board supports up to 20 analog inputs and 4 analog outputs in total. Each connected terminal board interfaces 10 analog inputs and 2 analog outputs back to the IS200VAICH1CBA card.

Q: What hardware conversion components process field signals on the IS200VAICH1CBA?

A: Field inputs pass through onboard signal conditioning stages into an analog multiplexer (MUX) and high-resolution A/D converter. Outputs are driven by onboard D/A converters interfacing to the VME backplane.

Q: Does the IS200VAICH1CBA support hot-swapping during VME rack operation?

A: No. Power to the VME rack must be isolated prior to removing or inserting the card to prevent damage to the backplane pins and onboard signal converters.

Field Installation Guidelines

Insert the IS200VAICH1CBA into its designated 6U VME slot, taking care to align the card guide rails before applying firm pressure to seat the backplane connectors. Tighten the top and bottom panel retention screws to secure the module and establish ground continuity with the rack chassis. Route analog input and output cables from the terminal boards away from high-voltage field wiring to prevent electromagnetic coupling. Ensure all cable shields are grounded at a single terminal point inside the cabinet before applying system power.
