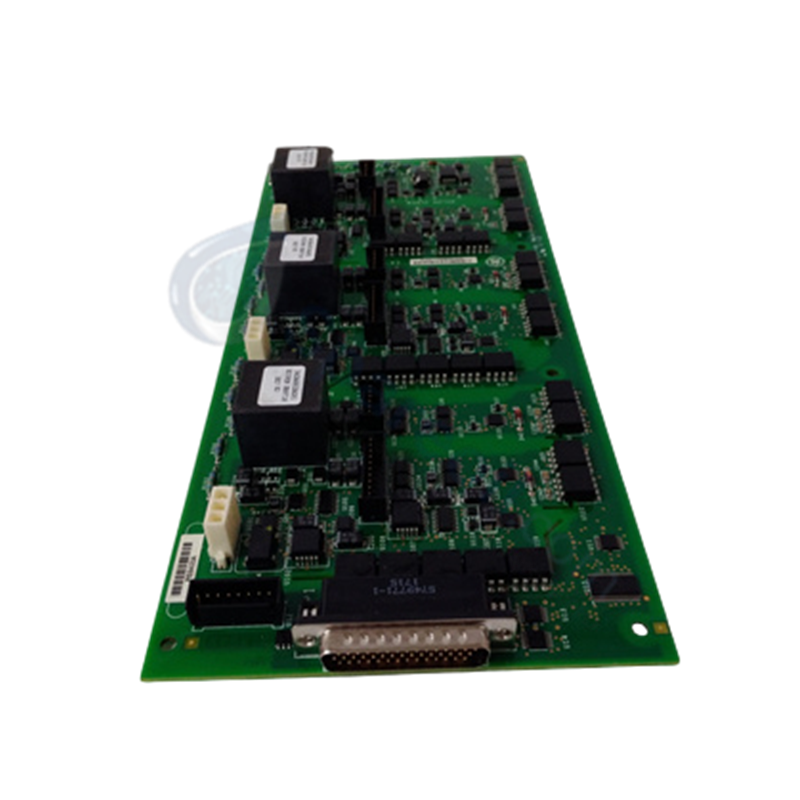

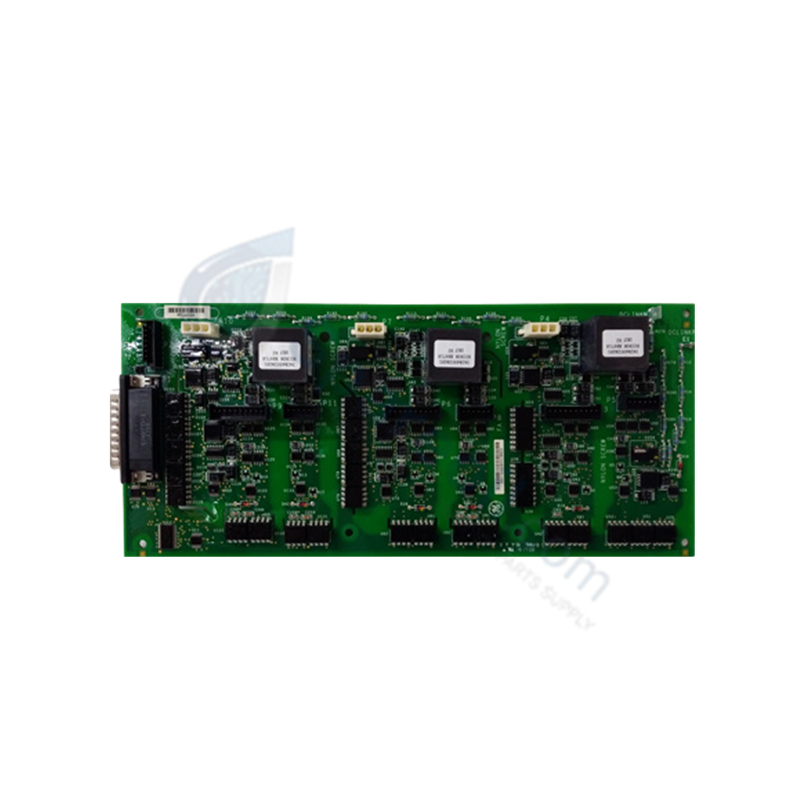

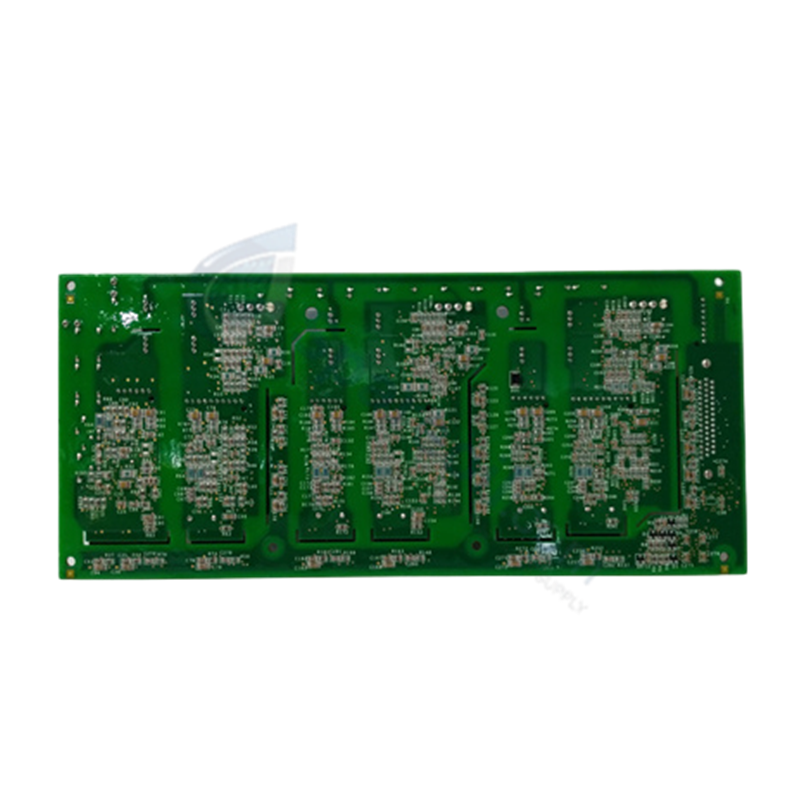

IS210AEBIH1BOA GE Analog Expansion Bridge Card

IS210AEBIH1BOA GE Mark VIe Analog Expansion Bridge Interface Card

IS210AEBIH1BOA GE Mark VIe Analog Expansion Bridge Interface Card

Disponibilidad: 10 Quedan en stock

The GE IS210AEBIH1BOA, also cataloged as the IS210AEBI Analog Expansion Bridge Interface Card, operates as a dedicated hardware component for...

Código: IS210AEBIH1BOA

Manufacturer: General Electric
Product No.: IS210AEBIH1BOA
Product Type: Analog Input Modules
Product Origin: China
Payment:T/T, Western Union
Weight: 1327g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE IS210AEBIH1BOA, also cataloged as the IS210AEBI Analog Expansion Bridge Interface Card, operates as a dedicated hardware component for interfacing sensors and actuators within Mark VIe Distributed Control System platforms. This PCB module processes incoming analog signaling and translates control commands across the local system bus under direct 24 VDC nominal power distribution.

Hardware Specifications

Parameter	Specification
Model	IS210AEBIH1BOA
Brand	GE
Origin	United States
Weight	0.5 kg
Dimensions	22.5 x 15.5 x 5.2 cm
Operating Temp	-20 to +70 deg C
Power Consumption	24 VDC nominal
Storage Temp	-40 to +85 deg C
Relative Humidity	5% to 95% non-condensing
System Compatibility	Mark VIe Distributed Control System

Backplane Bus and I/O Density Scaling

The IS210AEBIH1BOA provides internal backplane bus communication velocity needed to maintain deterministic data paths across expansion racks. High I/O density scaling allows direct connection to multiple field sensors and output actuators without degrading overall loop execution speeds. Onboard flash firmware compatibility ensures consistent interface timing across diverse Mark VIe cabinet architectures.

Frequently Asked Questions

Q: How should power wiring be connected to ensure proper operating voltage?

A: The board operates from a nominal 24 VDC supply. Ensure field power connections meet specified voltage tolerances and are routed through dedicated fused terminal blocks to maintain power integrity.

Q: What are the thermal storage limits when storing spare units?

A: Uninstalled cards must be stored within a ambient temperature range of -40 to +85 deg C with non-condensing relative humidity between 5% and 95%.

Q: Does the card require specialized grounding during handling and installation?

A: Yes. As an unshielded circuit board assembly, proper ESD precautions including a grounded wrist strap must be utilized during handling to prevent damage to onboard semiconductors.

Field Installation Guidelines

Mount the card into the designated Mark VIe card slot using standard guide rails, ensuring all retention screws are fully tightened to secure physical grounding to the enclosure chassis. Run all analog signal cabling separate from high-voltage AC lines in grounded metal conduits. Ensure signal cable shields are grounded at a single point near the cabinet entry plane to prevent ground loops and electromagnetic noise interference. Maintain ambient operating temperatures within -20 to +70 deg C via cabinet forced-air convection.
