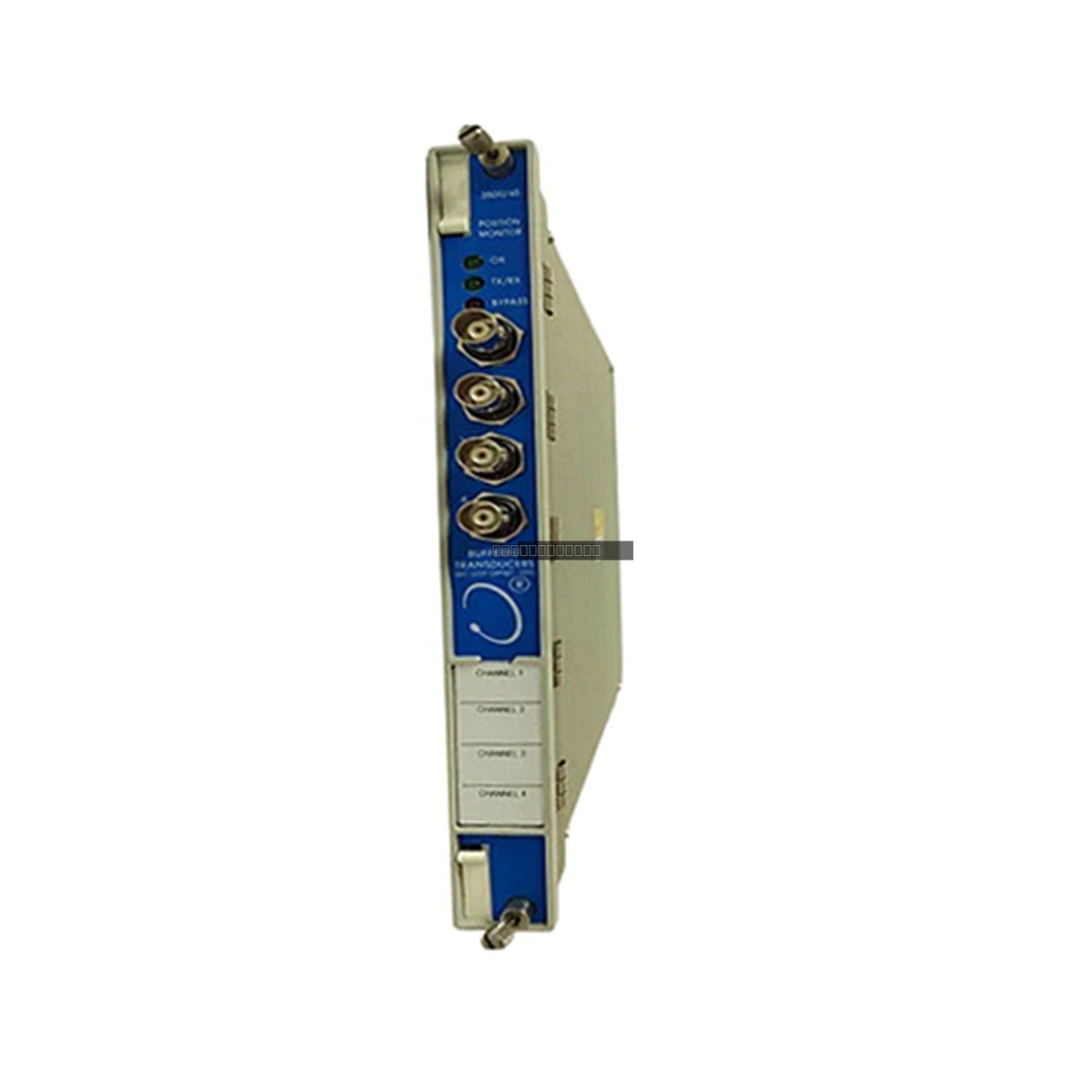

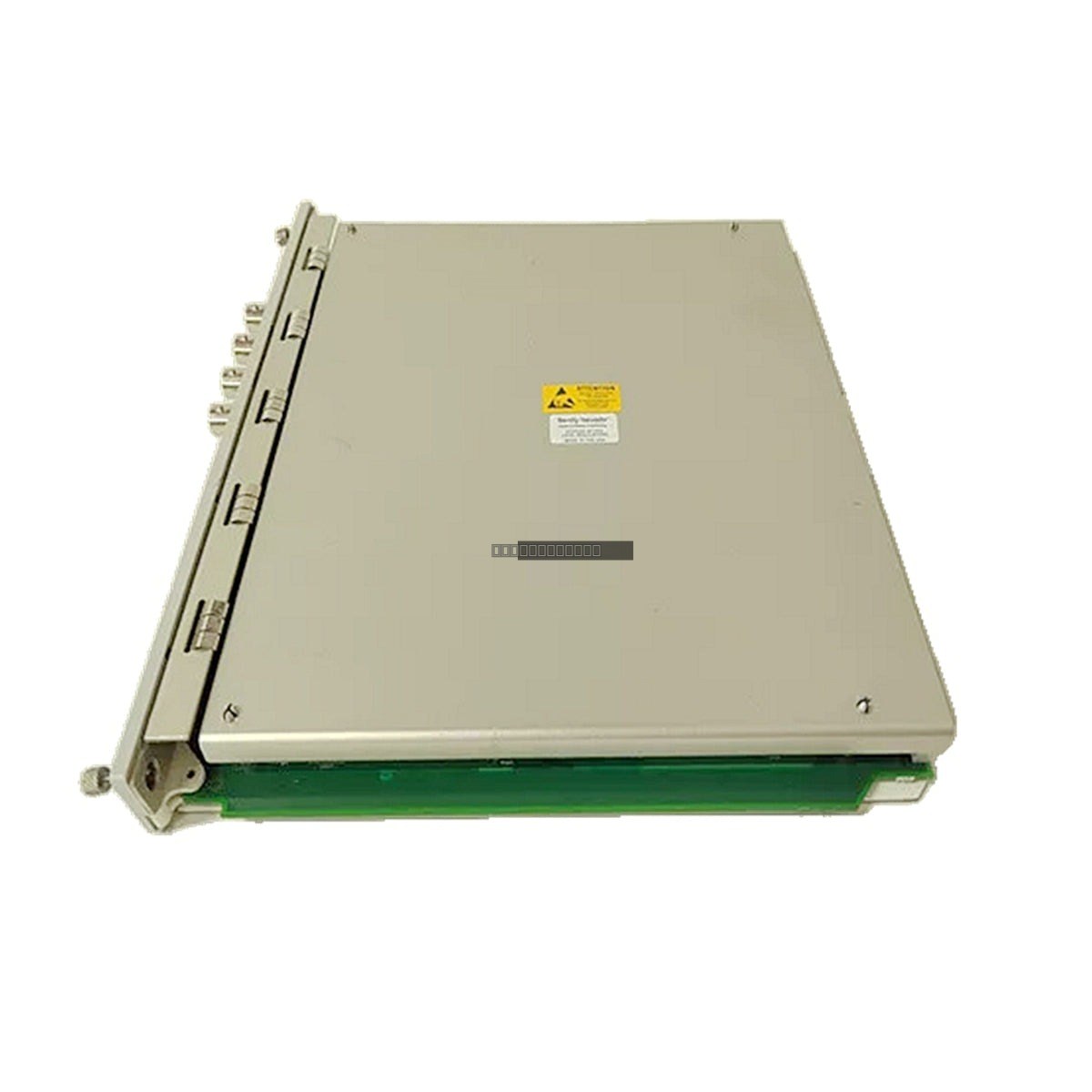

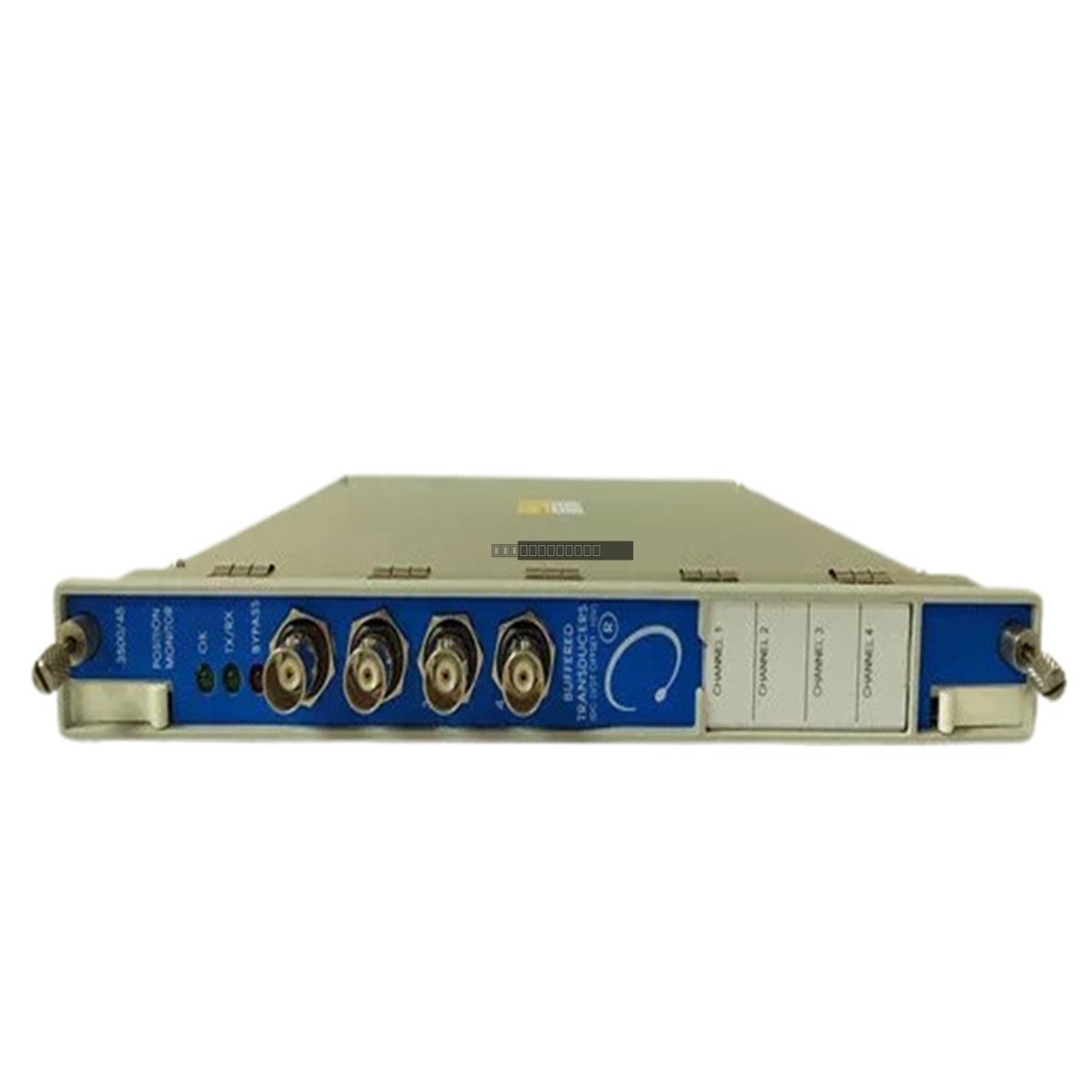

Bently Nevada 176449-04 3500/45 Position Monitor Module

التوفر: 3 متوفر في المخزون

The Bently Nevada 176449-04 is a 4-channel Position Monitor module designed for the 3500 Machinery Protection System. This module serves...

رمز المنتج: 176449-04

Manufacturer: Bently Nevada
Product No.: 176449-04
Product Type: Position Monitor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 820g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 176449-04 is a 4-channel Position Monitor module designed for the 3500 Machinery Protection System. This module serves as a critical component for monitoring and protecting rotating machinery by processing signals from various position-sensing transducers and comparing them against user-defined alarm setpoints.

Features

Four-channel monitoring capability for high-density rack configurations.
Versatile input compatibility, supporting proximity transducers, Rotary Position Transducers (RPTs), DC LVDTs, AC LVDTs, and rotary potentiometers.
Integrated machinery protection through continuous signal conditioning and alarm threshold comparison.
Essential data acquisition for both operational monitoring and predictive maintenance cycles.

Applications

This module is engineered for high-demand industrial environments, including:

Power Generation: Steam turbine generator sets and high-pressure feedwater pumps.
Oil & Gas: Gas turbines and natural gas pipeline compression stations.
Petrochemical: Ethylene cracking gas compressors and hydrogenation plant high-pressure units.
Metallurgy: Blast furnace blowers and TRT energy recovery systems.

Technical Specifications

Model	3500/45
Part Number	176449-04
Channels	4
Operating Temperature	-30 degC to +65 degC
Storage Temperature	-40 degC to +85 degC
Humidity	95% non-condensing
Weight	0.82 kg

Installation Guidelines

Ensure the 3500 rack power is disconnected before inserting or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
Use shielded cabling for all transducer inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
Handle with standard ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.

FAQ

What sensors are supported by the 176449-04?

The module supports proximity transducers, RPTs, DC LVDTs, AC LVDTs, and rotary potentiometers.

What is the primary function of the 3500/45?

It performs continuous monitoring of position parameters and compares them against programmed alarm setpoints to provide machinery protection and diagnostic data.

Is this module compatible with other 3500 series components?

Yes, the 3500/45 is designed specifically for integration within the Bently Nevada 3500 Series rack-based monitoring system.
