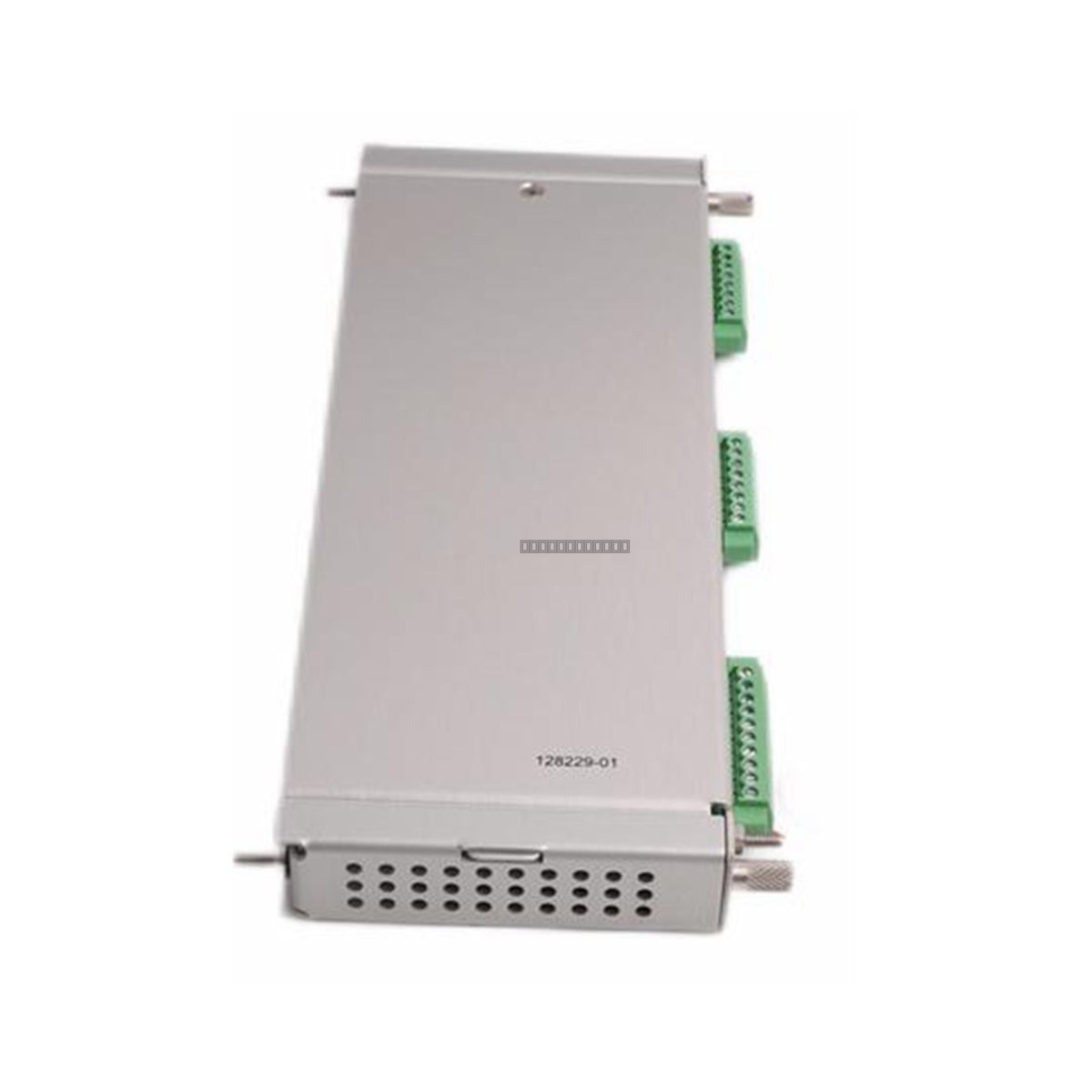

Bently Nevada 128229-01 Proximitor / Seismic I/O Module

التوفر: 2 متوفر في المخزون

DescriptionThe Bently Nevada 128229-01 is a Proximitor/Seismic I/O module designed for integration with the 3500/42M series machinery protection system. This...

رمز المنتج: 128229-01

Manufacturer: Bently Nevada
Product No.: 128229-01
Product Type: I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Bently Nevada 128229-01 is a Proximitor/Seismic I/O module designed for integration with the 3500/42M series machinery protection system. This module serves as the interface for four channels, accepting inputs from both proximity and seismic transducers. It conditions these signals to provide critical vibration and position measurements, which are then compared against user-programmable alarm setpoints to ensure reliable machinery protection and operational monitoring.

Features

Four-channel monitoring capability.
Compatible with proximity and seismic transducer inputs.
Internal termination design for streamlined wiring.
Supports continuous machinery protection and diagnostic data acquisition.
Designed for seamless integration with the 3500 series rack architecture.

Applications

Oil & Gas: Monitoring for upstream platforms, midstream pipelines, and downstream refineries.
Power Generation: Essential for steam, gas, and hydro turbine protection in traditional and combined-cycle plants.
Petrochemicals: Safeguarding high-speed reactors, compressors, and mixers.
Mining & Metals: Monitoring large-scale rotating equipment such as conveyors, crushers, and rolling mills.

Technical Specifications

Model	128229-01
Manufacturer	Bently Nevada
Module Type	Proximitor / Seismic I/O Module
Input Signal	-10 Vdc to +10 Vdc
Transducer Power Supply	-24 Vdc
Power Consumption	10.5 Watts
Operating Temperature	-30 degC to +65 degC
Termination Type	Internal Terminations

Installation Guidelines

ESD Precautions: Always use a grounded anti-static wrist strap when handling the module to prevent damage to sensitive internal circuitry.
Rack Mounting: The I/O module must be installed in the rear slot directly behind its corresponding 3500/42M monitor module.
Securing: Slide the module into the rack and tighten the two captive screws to ensure a secure connection to the backplane.
Bulkhead Racks: For bulkhead-style rack configurations, the I/O module is positioned above the monitor module.
Power: Ensure the system power is disconnected before inserting or removing any I/O modules to prevent electrical faults.

FAQ

What is the primary function of the 128229-01?

The 128229-01 is a Proximitor/Seismic I/O module with internal terminations, specifically engineered to interface with Bently Nevada 3500/42M monitors to provide machinery protection through vibration and position signal conditioning.

Where should this module be installed?

This module must be installed in the rear slot of the 3500 rack, directly behind the associated 3500/42M monitor module. For bulkhead-mounted racks, it is installed above the monitor.
