330102-00-40-10-01-05 Bently Nevada Proximity Probes Datasheet

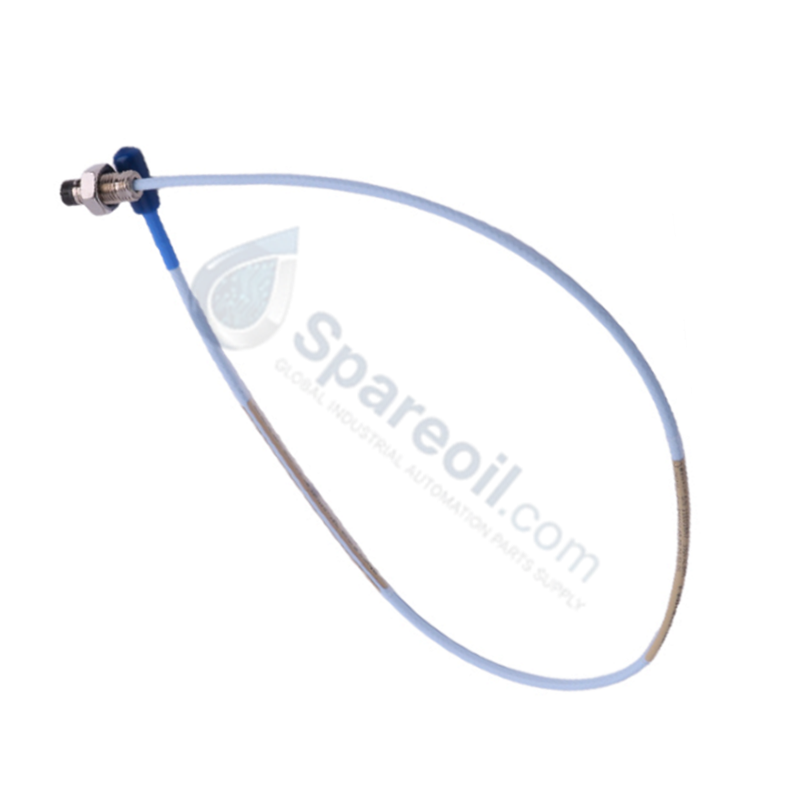

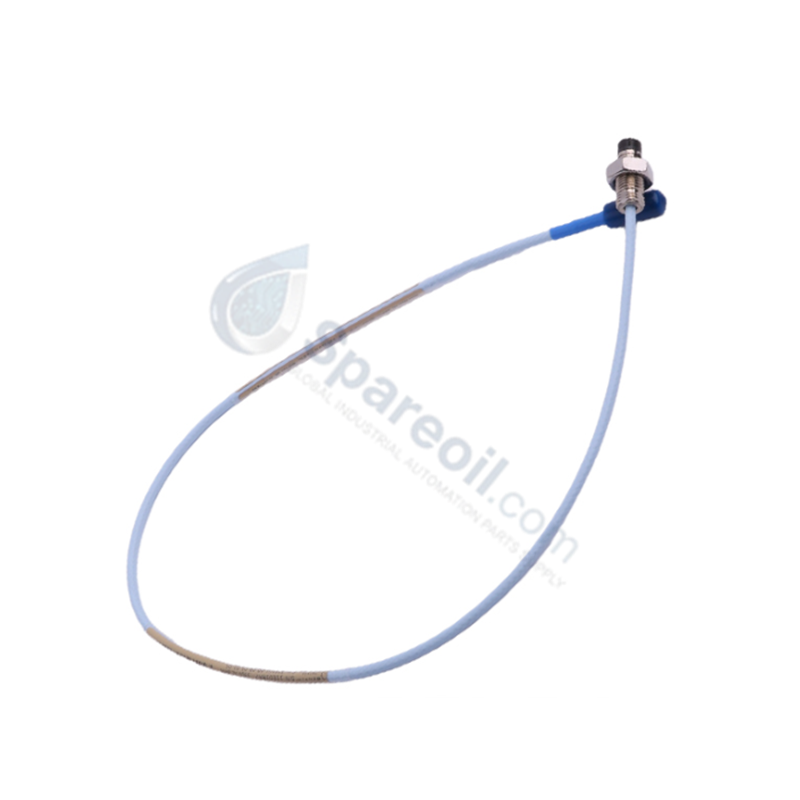

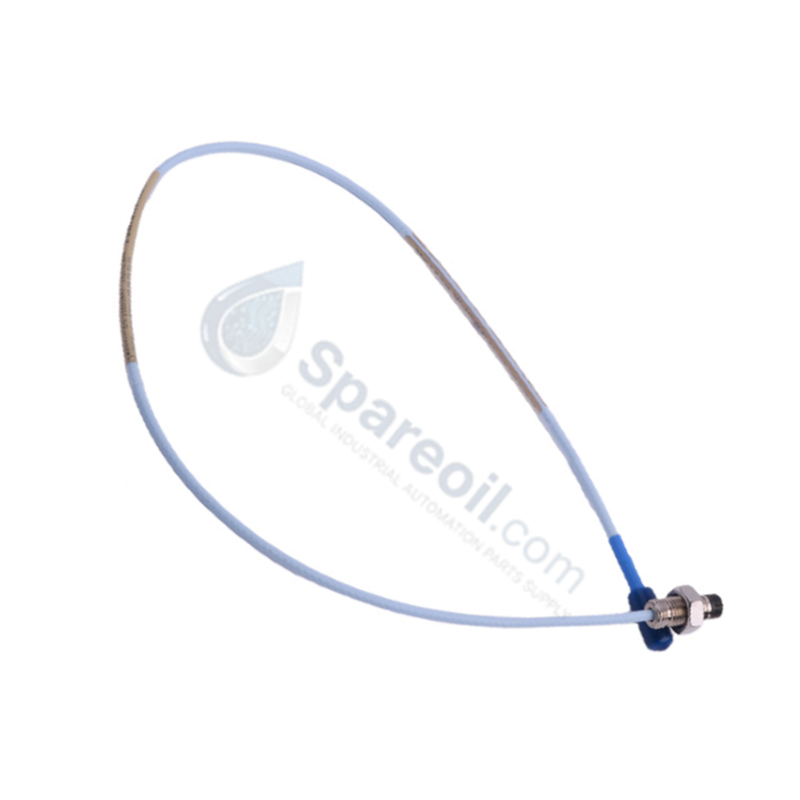

330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm Proximity Probe

330102-00-40-10-01-05 Bently Nevada 3300 XL 8 mm Proximity Probe

التوفر: 10 متوفر في المخزون

The Bently Nevada 330102-00-40-10-01-05, also cataloged as the 330102 Proximity Probe, operates as a dedicated hardware component for non-contact shaft...

رمز المنتج: 330102-00-40-10-01-05

Manufacturer: Bently Nevada
Product No.: 330102-00-40-10-01-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 120g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330102-00-40-10-01-05, also cataloged as the 330102 Proximity Probe, operates as a dedicated hardware component for non-contact shaft position and vibration measurements within 3300 XL machinery monitoring systems. It interfaces directly with a Proximitor sensor to transform physical gap variations into proportional electrical voltage signals via an eddy-current field generated at the 8 mm probe tip.

Hardware Specifications

Parameter	Specification
Model	330102-00-40-10-01-05
Brand	Bently Nevada
Origin	USA
Weight	0.12 kg
Dimensions	1.5 x 1.3 x 113 cm
Probe Tip Diameter	8 mm
Operating Temp	-51 deg C to +177 deg C (-60 deg F to +350 deg F)
Power Consumption	Externally driven by Proximitor sensor loop current
Target Material	AISI 4140 steel (standard calibration target)
Scale Factor	7.87 V/mm (200 mV/mil) nominal
Linear Range	2.0 mm (80 mils)
Connector Type	Miniature coaxial ClickLoc connector

Mechanical Monitoring & Eddy-Current Transducer Performance

The 330102-00-40-10-01-05 proximity probe relies on precise eddy-current probe scaling to convert target surface displacement into linear output voltage. Field verification requires rigorous gap voltage validation (-10 VDC targets) measured at the Proximitor terminals when the shaft target is positioned at the electrical center of the sensor dynamic range. Proper physical mounting offsets and cross-talk suppression precautions must be maintained when installing adjacent probe assemblies to prevent mutual inductive interferences across parallel signal paths.

Frequently Asked Questions

Q: What is the target voltage requirement for initial mechanical center-gap setup?

A: The probe gap must be adjusted until the Proximitor sensor output yields a baseline gap voltage validation target of -10.0 VDC, corresponding to the midpoint of the sensor linear operating curve.

Q: How do rotor dynamics impact signal stability at the ClickLoc connection?

A: High vibrational forces from rotor dynamics can cause physical connector wear if not secured; the ClickLoc connector employs a positive locking detent to prevent rotational mechanical separation under operational stress.

Field Installation Guidelines

Mount the probe body securely using standard mounting brackets, ensuring thread engagement complies with mechanical load specifications without over-torquing the casing.
Verify that the probe tip maintains a clear clearance area around the target shaft to avoid side-wall interference from housing structures.
Keep coaxial ClickLoc connectors completely dry, clean, and shielded from conductive debris before mating.
Route extension and probe cables through dedicated grounded metal conduit, isolated from high-voltage motor feeds to avoid EMI noise pickup.
Confirm total system length calibration matching (probe length plus extension cable length) prior to final transmitter or monitor configuration.
