330103-00-05-05-02-CN Bently Nevada Series Datasheet & Technical Manual

330103-00-05-05-02-CN | Bently Nevada | 3300 XL Series Proximity Probe

330103-00-05-05-02-CN | Bently Nevada | 3300 XL Series Proximity Probe

التوفر: 10 متوفر في المخزون

The Bently Nevada 330103-00-05-05-02-CN serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300...

رمز المنتج: 330103-00-05-05-02-CN

Manufacturer: Bently Nevada
Product No.: 330103-00-05-05-02-CN
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

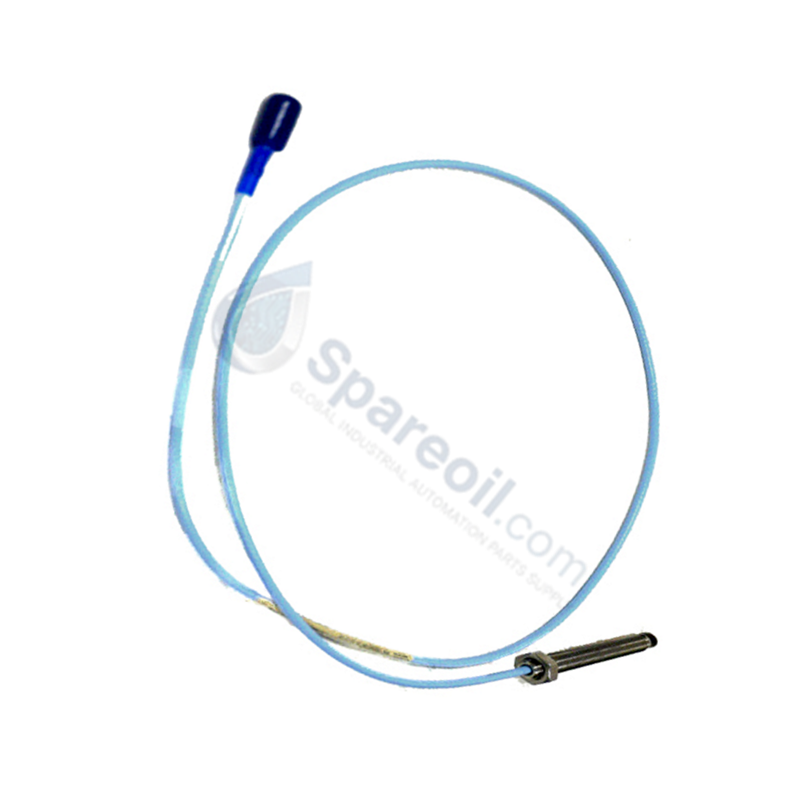

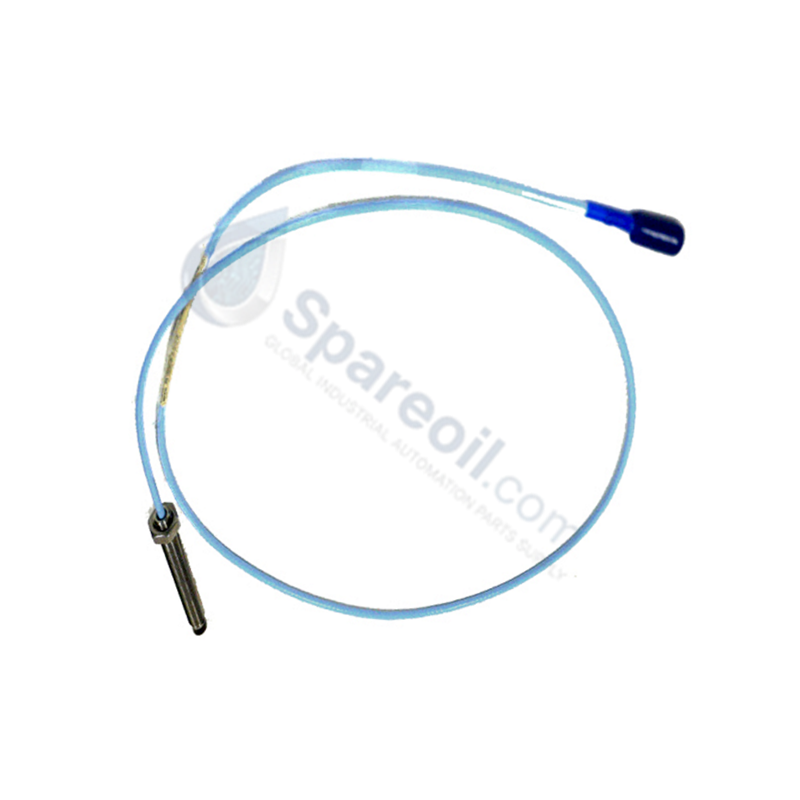

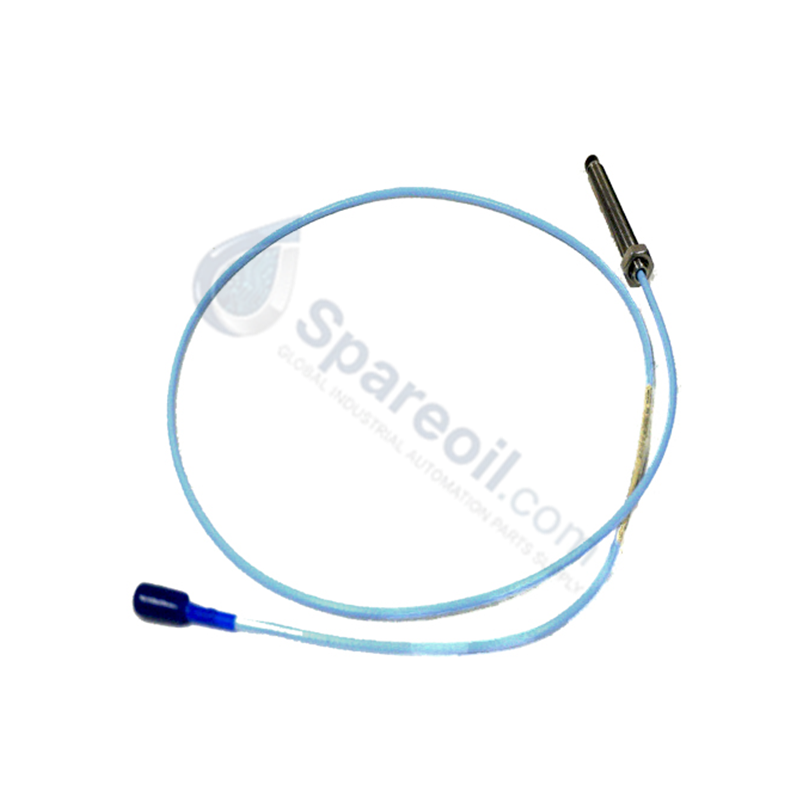

The Bently Nevada 330103-00-05-05-02-CN serves as the primary 330103 Proximity Probe utilized to execute vibration and displacement monitoring across 3300 XL Transducer System platforms. This passive inductive sensor monitors the physical gap variations between its unarmored 8 mm probe tip and a moving conductive metal surface, generating high-frequency radio frequency modulation loops to output accurate electrical signals without mechanical contact.

Hardware Specifications

Parameter	Specification
Model	330103-00-05-05-02-CN
Brand	Bently Nevada
Origin	USA
Weight	0.32 kg
Dimensions	8 mm probe tip diameter, 5 mm case length, M10 x 1 metric thread
Operating Temp	-40 deg C to 120 deg C
Power Consumption	Passive sensor driven exclusively by external Proximitor loop supply
Measurement Range	0-4 mm typical displacement
Frequency Response	Up to 15 kHz
Connector Type	ClickLoc miniature coaxial interface
System Compatibility	3300 XL Proximity Transducer System

Mechanical Monitoring & TSI Technical Attributes

The transducer requires strict matching to a verified target metallurgy to sustain linear eddy-current probe scaling accuracy across the measured spectrum. During mechanical commissioning, field engineers must execute a gap voltage validation protocol, adjusting the physical depth of the metric body until the quiescent DC level measures exactly -10 VDC at the geometric center of the linear calibration envelope. Proper physical alignment tracks real-time rotor dynamics under high velocity while filtering thermal errors. Cross-talk suppression is maintained via continuous internal coaxial shielding braid, mitigating electrical interference when multiple probe channels route through close-proximity machine penetrations.

Frequently Asked Questions

Q: Can this 5 mm short-case probe be mounted directly through a machine casing without a bracket?

A: No, due to the 5 mm short-case geometry, a dedicated reverse-mount bracket or external housing assembly is required to secure the probe body and prevent structural collision with the shaft.

Q: How does a layer of non-conductive synthetic oil on the probe tip affect raw output calibration?

A: Because the probe tip material is non-conductive, the presence of clean, non-conductive lubrication oils does not interfere with the high-frequency eddy-current path or alter the physical gap measurements.

Q: What is the purpose of the -CN suffix on this specific proximity sensor module?

A: The -CN suffix indicates specialized regional industrial standard approvals for deployment within hazardous zone locations, enforcing strict safety loop parameter monitoring.

Field Installation Guidelines

Clean out the threaded mounting port completely, verifying that the bore is clear of metal shavings, burrs, or grease.
Advance the 5 mm stainless steel case into the installation assembly by hand to prevent cross-threading or tip scoring.
Apply a digital voltmeter to the Proximitor Sensor terminal blocks to capture the live output potential during depth adjustment.
Rotate the probe body until the gap voltage validation registers the nominal baseline of -10 VDC, matching the midpoint of the sensor linear field.
Secure the structural locknut tightly against the machine face to fix the calibrated gap, and secure the ClickLoc connector using self-fusing insulation wrap to isolate the loop from structural grounding points.
