330901-00-16-05-02-CN Bently Nevada Proximity Probe Series Datasheet

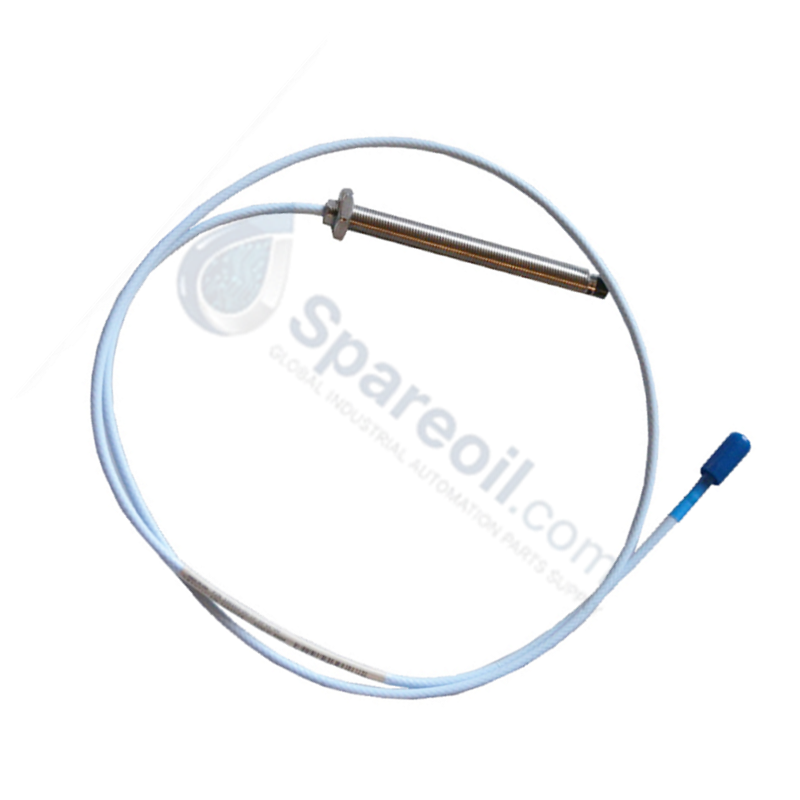

330901-00-16-05-02-CN Bently Nevada 3300 NSv Proximity Probe

330901-00-16-05-02-CN Bently Nevada 3300 NSv Proximity Probe

التوفر: 10 متوفر في المخزون

The Bently Nevada 330901-00-16-05-02-CN serves as the primary 330901 Proximity Probe utilized to execute non-contact shaft position and vibration measurement...

رمز المنتج: 330901-00-16-05-02-CN

Manufacturer: Bently Nevada
Product No.: 330901-00-16-05-02-CN
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330901-00-16-05-02-CN serves as the primary 330901 Proximity Probe utilized to execute non-contact shaft position and vibration measurement across 3300 NSv Proximity Transducer System platforms. It generates a high-frequency electromagnetic field at the probe tip to detect physical displacement variations between the sensor face and the observed target shaft, outputting proportional voltage signals through an integral coaxial lead to a matching Proximitor conditioning unit.

Suffix Breakdown & Model Matrix

Option Code	Specification Parameter	Value / Description
330901	Base Model	3300 NSv Proximity Probe, 1/4-28 UNF thread
-00	Unthreaded Length Option	0.0 in
-16	Overall Case Length Option	1.6 in
-05	Total Length Option	0.5 metre (20 in)
-02	Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
-CN	Agency Approval Option	Country-specific approvals (China/Regional)

Hardware Specifications

Parameter	Specification
Model	330901-00-16-05-02-CN
Brand	Bently Nevada
Origin	USA
Weight	Approx 0.10 kg (Shipping Weight 0.5 kg)
Dimensions	1/4-28 UNF thread, 1.6 in case length, 0.5 m cable
Operating Temp	-51 deg C to +177 deg C (-60 deg F to +351 deg F)
Power Consumption	Passive transducer (driven by external Proximitor driver circuit)
Thread Type	1/4-28 UNF threads
Unthreaded Length	0.0 in
Overall Case Length	1.6 in
Total System Length	0.5 metre (20 in)
Connector Type	Miniature coaxial ClickLoc connector
Agency Approval	Country-specific approvals (Option CN)

Mechanical Monitoring & Eddy-Current Transducer Performance

The 330901-00-16-05-02-CN 3300 NSv probe relies on tight eddy-current probe scaling tuned specifically for tight-clearance installation zones where standard probe diameters experience sideview target interference. During field installation and mechanical setup, gap voltage validation (-10 VDC targets) must be verified at the Proximitor monitor signal terminals to lock the transducer in its linear operating region. Precise physical mounting alignment mitigates cross-talk suppression issues and suppresses inductive field coupling during active rotor dynamics.

Frequently Asked Questions

Q: How is the -10.0 VDC gap voltage verified during probe mechanical positioning?

A: Thread the probe case into its mounting bracket while monitoring the DC voltage output at the Proximitor test points until the reading reaches -10.0 VDC, indicating optimal linear range mid-point placement.

Q: Can a 0.5 metre probe be connected directly to a 5.0 metre Proximitor sensor?

A: No, a 0.5 metre probe requires a dedicated 4.5 metre extension cable to achieve the required 5.0 metre total electrical system length calibrated for the Proximitor.

Field Installation Guidelines

Thread the 1/4-28 UNF probe body into the mounting bracket or housing, tightening hand-tight before securing with a locknut to resist rotational movement during operation.
Ensure ClickLoc miniature coaxial connector contact faces are free from oil, dust, and moisture prior to mating.
Hand-tighten the ClickLoc coaxial connection until positive mechanical engagement is felt; do not use mechanical tools or wrenches on the connector.
Maintain a minimum static cable bend radius of 25.4 mm (1.0 in) along the unarmored routing path.
Direct the transducer lead wire through grounded metallic conduit isolated from high-voltage AC electrical lines to shield signal loops from electromagnetic interference.
