AEA4D-05 YOKOGAWA CENTUM VP Datasheet & Technical Manual

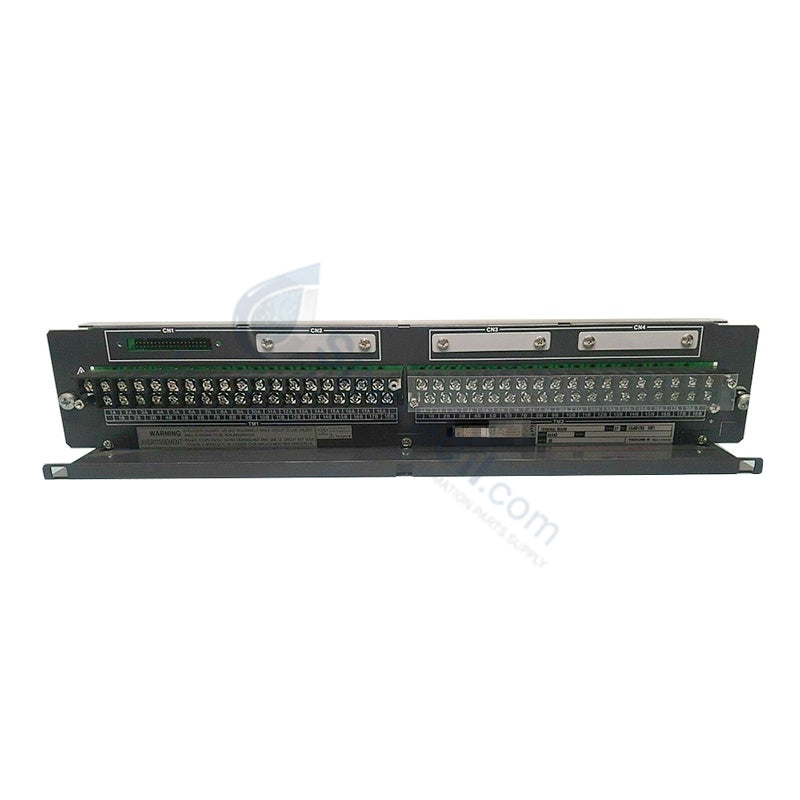

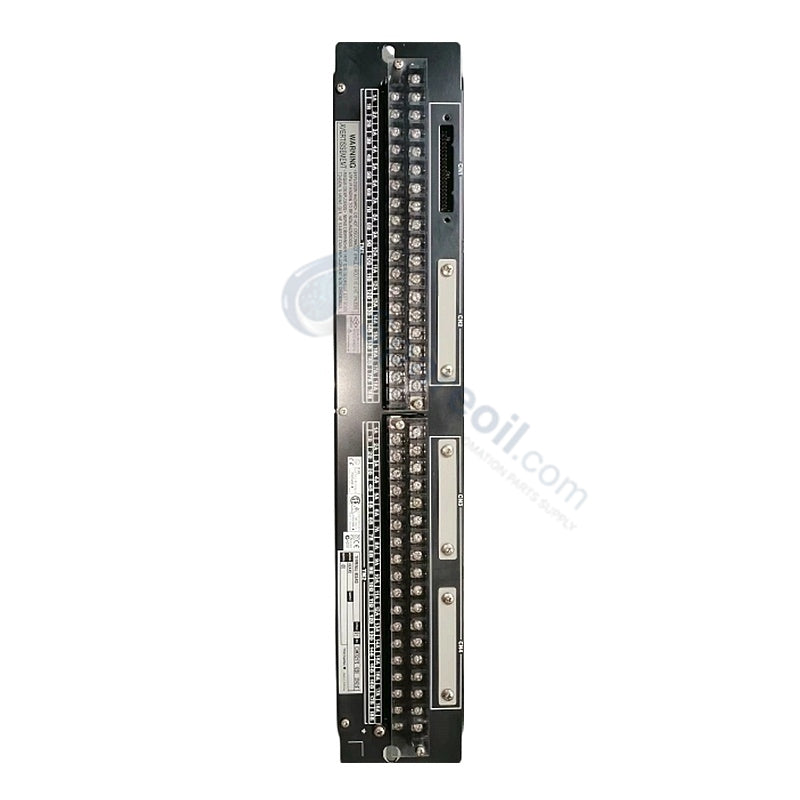

AEA4D-05 YOKOGAWA CENTUM VP Terminal Boards

AEA4D-05 YOKOGAWA CENTUM VP Terminal Boards

التوفر: 10 متوفر في المخزون

YOKOGAWA AEA4D-05 CENTUM VP/CS 3000 Series Configured for high-density digital input signal termination in CENTUM VP, CS 3000, and ProSafe-RS...

رمز المنتج: AEA4D-05

Manufacturer: Yokogawa
Product No.: AEA4D-05
Product Type: Terminal Boards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

YOKOGAWA AEA4D-05 CENTUM VP/CS 3000 Series

Configured for high-density digital input signal termination in CENTUM VP, CS 3000, and ProSafe-RS control platforms, the YOKOGAWA AEA4D-05, also cataloged as the AEA4D Terminal Board for Analog, provides direct physical/electrical execution for transferring field contact signals to system input modules.

Suffix Breakdown & Model Matrix

Code Component	Selection	Technical Specification
Base Model	AEA4D	Terminal Board for Analog (16-Channel / 32-Channel Configuration)
Surge Protection	-0	Without surge absorber
Safety Certification	5	Basic type with no explosion protection

Hardware Specifications

Parameter	Specification
Model	AEA4D-05
Brand	Yokogawa
Origin	Japan
Channel Count	32 digital input channels
Signal Type	Dry contact / voltage input
Input Voltage Range	24 VDC nominal (18-30 VDC limits)
Dielectric Strength	500 VAC for 1 minute
Insulation Resistance	Minimum 10 MOhms at 500 VDC
Connector Type	M3.5 screw terminals
Cable Compatibility	Yokogawa KS1 / AKB series shielded cables
Dimensions	150 x 120 x 45 mm
Weight	1.5 kg (Shipping weight 2.5 kg)
Operating Temp	-20 to +70 deg C
Power Consumption	Passive hardware loop powered

DCS Network & Signal Isolation Characteristics

The AEA4D-05 enforces optical isolation barriers between field-side connections and core system logic to prevent electrical noise propagation across the backplane bus. The assembly integrates dedicated channel-to-channel isolation circuitry, mitigating common-mode interference during multi-point dry contact monitoring. Designed to maintain signal integrity within CENTUM VP distributed control networks, the module incorporates direct grounding traces to dump transient electromagnetic interference directly to the local instrument earth busbar without affecting adjacent I/O cards.

Frequently Asked Questions

Q: Does the AEA4D-05 support live hot-swapping of field cables during system operation?

A: Yes. Field wiring connected to the M3.5 screw terminals can be manipulated while the system is energized, provided the 24 VDC loop current is isolated via external fuses or terminal disconnect switches to avoid accidental short-circuits.
Q: What is the maximum torque specification for the M3.5 screw terminals?

A: The M3.5 terminal screws must be torqued to exactly 0.8 N-m. Exceeding this limit risks damaging the internal PCB solder pads, while undertorquing results in unstable loop resistance.
Q: Why does the model description indicate "Terminal Board for Analog" while the specifications list 32 digital input channels?

A: The AEA4D base hardware platform is designated under Yokogawa's analog layout classification, but the specific suffix 05 basic digital variant is populated with optical isolators to condition discrete dry contacts for digital entry cards.

Field Installation Guidelines

Mounting Orientation: Secure the terminal board horizontally or vertically onto a standard industrial DIN rail. Ensure a minimum clearance of 50 mm above and below the assembly to allow convective thermal dissipation.
Shield Grounding Protocol: Terminate the outer shields of all AKB/KS1 cables directly to the enclosure copper ground bar. The shield must be grounded at the cabinet entry point only, preventing ground loops across the DCS backplane.
Wiring Separation: Route the 24 VDC field input wiring inside independent wire ducts separated from high-voltage AC power distribution lines by at least 200 mm to suppress cross-talk.
Cable Connection: Align the KS1 multi-pin connector squarely with the board header before engaging the retention screws. Tighten the connector jack screws fully to ensure a gas-tight interface.
